CUSHYBITE 40V Cordless String Trimmer and Blower Combo Kit Instruction Manual

1. Introduction

This manual provides essential instructions for the safe operation, assembly, maintenance, and troubleshooting of your CUSHYBITE 40V Cordless String Trimmer and Blower Combo Kit. This kit includes a powerful string trimmer, a high-efficiency blower, a 4.0 Ah battery, and a charger, designed for various yard maintenance tasks. Please read this manual thoroughly before initial use to ensure proper function and safety.

2. Important Safety Information

Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury when operating power tools. Keep this manual for future reference.

• Read All Instructions: Familiarize yourself with the controls and proper use of the equipment.
• Wear Eye Protection: Always wear safety glasses or goggles when operating the trimmer or blower.
• Wear Appropriate Clothing: Long pants, long sleeves, gloves, and sturdy footwear are recommended. Avoid loose clothing that can get caught in moving parts.
• Keep Area Clear: Ensure children, bystanders, and pets are at a safe distance (at least 50 feet) from the operating area.
• Inspect Before Use: Check for damaged parts, loose fasteners, or any other condition that may affect safe operation.
• Use Correct Battery and Charger: Only use the specified 40V battery and charger provided or recommended by CUSHYBITE.
• Avoid Wet Conditions: Do not operate in rain or damp conditions.
• Store Safely: Store tools in a dry, secure place out of reach of children.

3. Package Contents

Verify that all items listed below are included in your package. If any parts are missing or damaged, contact customer support.

• 40V Cordless String Trimmer
• 40V Cordless Blower
• 40V 4.0 Ah Lithium Battery
• 40V Battery Charger
• Pre-Cut 0.080-inch Heavy-Duty Spiral Co-Extruded Trimmer Line
• Operator's Manual

Figure 3.1: Overview of the CUSHYBITE 40V Cordless String Trimmer and Blower Combo Kit, showing the string trimmer, blower, 40V battery, charger, and pre-cut trimmer line.

4. Setup and Assembly

4.1. Battery Charging and Installation

1. Connect the charger to a standard electrical outlet.
2. Slide the 40V battery onto the charger. Ensure it clicks into place.
3. Allow the battery to charge fully. The charger indicator light will change when charging is complete.
4. Once charged, remove the battery from the charger.
5. To install the battery into the trimmer or blower, align the battery with the tool's battery port and slide it in until it locks securely.
6. To remove, press the battery release button and slide the battery out.

4.2. String Trimmer Assembly

1. Attach the auxiliary handle to the trimmer shaft. Adjust its position for comfortable operation and tighten securely.
2. Ensure the guard is properly installed over the cutting head.
3. The trimmer comes with pre-cut 0.080-inch line. If reloading is needed, refer to the "Maintenance" section.

4.3. Blower Assembly

1. Attach the blower tube to the main blower housing. Ensure it is securely fastened.

5. Operating Instructions

5.1. String Trimmer Operation

• Starting: Ensure the battery is installed. Press the safety lock-out button and then squeeze the trigger to start the trimmer.
• Adjustable Cutting Swath: The trimmer features an adjustable cutting swath from 13 inches to 15 inches. Adjust this setting to optimize between performance for tough jobs and extended runtime for larger areas. Refer to the tool's specific adjustment mechanism.
• Attachment Capability: This trimmer is attachment-capable. To use attachments, follow the instructions provided with the specific attachment.
• Technique: Hold the trimmer firmly with both hands. Use a sweeping motion to cut grass and weeds. Keep the cutting head slightly above the ground.
• Runtime: With the included 4.0 Ah battery, the trimmer can provide up to 1 hour of runtime, depending on cutting conditions and swath setting.

Figure 5.1: A user demonstrating the proper technique for operating the CUSHYBITE 40V Cordless String Trimmer to trim grass around a mailbox.

5.2. Blower Operation

• Starting: Ensure the battery is installed. Squeeze the trigger to start the blower.
• Variable Speed Control: The blower features a variable-speed trigger, allowing you to adjust the airflow for different tasks. Use lower speeds for delicate areas and higher speeds for clearing heavy debris.
• Performance: The blower delivers up to 550 CFM (Cubic Feet per Minute) airflow at 120 MPH (Miles Per Hour), suitable for clearing leaves, grass clippings, and light debris.
• Technique: Hold the blower firmly. Use a sweeping motion to move debris. For stubborn debris, use short bursts of higher power.
• Runtime: The blower can provide over 75 minutes of runtime with the 4.0 Ah battery, depending on the speed setting.

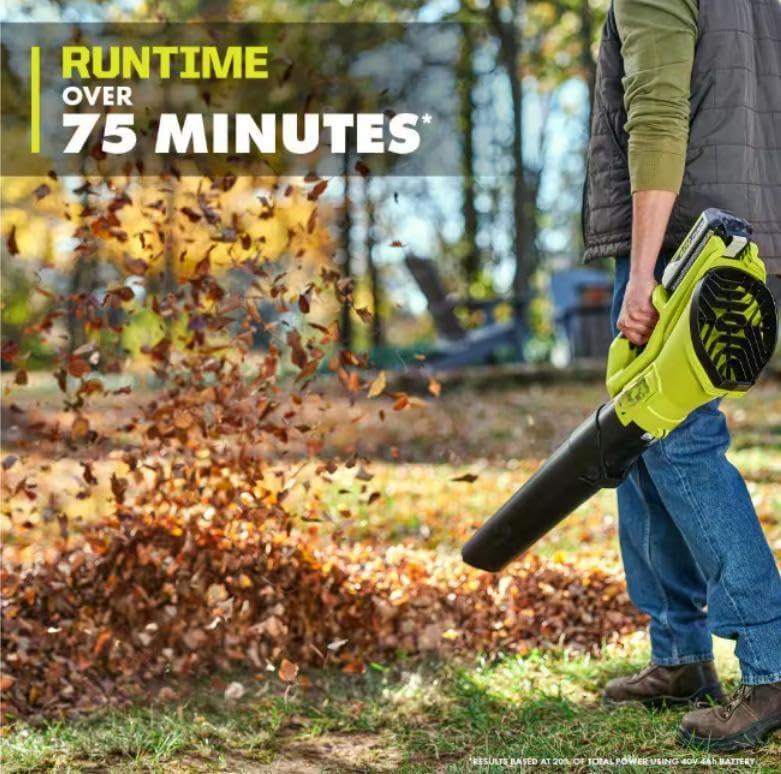

Figure 5.2: A user operating the CUSHYBITE 40V Cordless Blower to clear a pile of autumn leaves from a lawn.

Figure 5.3: A close-up view of the CUSHYBITE 40V Cordless Blower, highlighting the variable speed trigger for precise control during operation.

6. Maintenance

Regular maintenance ensures optimal performance and extends the life of your tools.

• Cleaning: After each use, clean the tools with a damp cloth. Remove any grass, dirt, or debris from vents and cutting heads. Do not use harsh chemicals.
• Trimmer Line Replacement:
  1. Ensure the battery is removed before replacing the line.
  2. Use only 0.080-inch diameter monofilament line.
  3. Follow the instructions on the trimmer head for proper line loading. The included pre-cut spiral co-extruded line simplifies this process.
• Battery Care: Store batteries in a cool, dry place. Do not store fully discharged batteries for extended periods. Charge them periodically if not in use.
• Storage: Store the tools and battery in a dry, secure location, away from direct sunlight and extreme temperatures.

7. Troubleshooting

8. Specifications

9. Warranty and Customer Support

For warranty information or technical support, please refer to the warranty card included with your product or contact CUSHYBITE customer service. Keep your purchase receipt as proof of purchase.

Manufacturer: CUSHYBITE

Date First Available: January 25, 2025
