CUSHYBITE RYOBI HP 18V Cordless Pet Stick Vacuum Cleaner Kit - Instruction Manual

1. Introduction

This manual provides comprehensive instructions for the safe and efficient operation, assembly, and maintenance of your CUSHYBITE RYOBI HP 18V Cordless Pet Stick Vacuum Cleaner Kit. This kit includes a powerful stick vacuum and a versatile multi-surface handheld vacuum, designed to effectively remove pet hair, dust, and debris from various surfaces.

Please read this manual thoroughly before using the product and retain it for future reference. Proper use and maintenance will ensure optimal performance and extend the lifespan of your vacuum cleaner kit.

2. Important Safety Instructions

WARNING: To reduce the risk of fire, electric shock, or injury, read all instructions before using this appliance.

• Always disconnect the charger from the power source before cleaning or performing any maintenance.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer’s recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without dust bag and/or filters in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Store the appliance indoors.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack, picking up or carrying the appliance.
• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

3. Package Contents

Carefully unpack all items and ensure you have received all components listed below. If any parts are missing or damaged, contact customer support.

• RYOBI HP 18V Cordless Pet Stick Vacuum (Main Unit)
• Cordless Multi-Surface Handheld Vacuum
• 18V Battery Pack
• Battery Charger
• User Manual (This document)

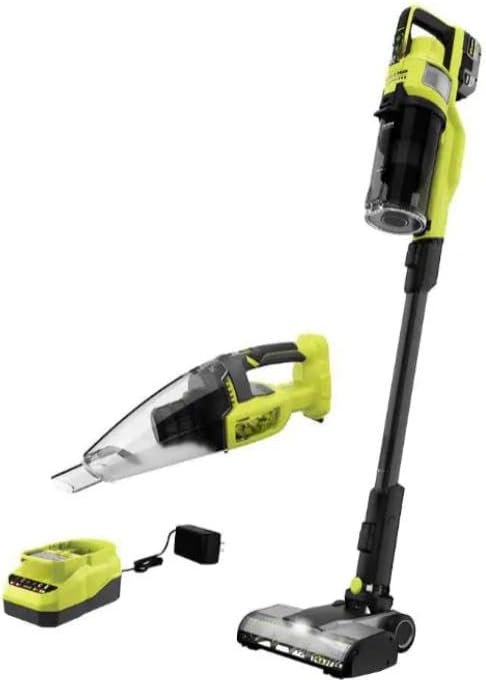

Figure 1: Complete CUSHYBITE RYOBI HP 18V Cordless Pet Stick Vacuum Cleaner Kit components, including the stick vacuum, handheld vacuum, battery, and charger.

4. Assembly and Setup

4.1 Charging the Battery

1. Connect the charger to a standard electrical outlet.
2. Slide the 18V battery pack onto the charger until it clicks into place.
3. Allow the battery to charge fully before first use. The indicator light on the charger will show the charging status.
4. Once fully charged, remove the battery from the charger.

4.2 Assembling the Stick Vacuum

1. Insert the extension wand into the main vacuum body until it securely locks.
2. Attach the floor nozzle to the other end of the extension wand, ensuring it clicks firmly into place.
3. Insert the charged 18V battery pack into the battery slot on the main vacuum body until it clicks.

4.3 Preparing the Handheld Vacuum

The handheld vacuum is a separate unit. Ensure its battery is charged by following the same charging procedure as the stick vacuum's battery, if it uses a separate battery, or ensure the main 18V battery is inserted if it's designed to be interchangeable.

5. Operating Instructions

5.1 Using the Stick Vacuum

1. Ensure the battery is fully charged and properly installed.
2. Press the power button located on the handle to turn on the vacuum. The LED light on the floor nozzle will illuminate.
3. Guide the vacuum across the desired surface. The motorized brush roll will agitate and lift dirt and pet hair from carpets and hard floors.
4. For optimal cleaning, move the vacuum in a steady, overlapping motion.
5. To turn off the vacuum, press the power button again.

Figure 2: The CUSHYBITE RYOBI HP 18V Cordless Pet Stick Vacuum being used on a carpeted surface, demonstrating its maneuverability and effective cleaning.

5.2 Using the Handheld Vacuum

1. Ensure the handheld vacuum's battery is charged and installed.
2. Press the power button on the handheld unit.
3. Use the handheld vacuum for quick cleanups, upholstery, car interiors, and hard-to-reach areas.
4. To turn off, press the power button again.

6. Maintenance

WARNING: Always remove the battery pack before performing any maintenance or cleaning.

6.1 Emptying the Dustbin

1. Locate the dustbin release button on the vacuum.
2. Press the button to detach the dustbin from the main unit.
3. Hold the dustbin over a trash receptacle and open the dustbin lid to empty its contents.
4. Close the lid and reattach the dustbin to the vacuum until it clicks securely.

6.2 Cleaning the Filters

1. Remove the dustbin as described above.
2. Carefully remove the filters from the dustbin.
3. Tap the filters gently over a trash can to remove loose dirt and debris.
4. If filters are washable (check product specific instructions, generally HEPA filters are not), rinse them under cool running water until the water runs clear.
5. Allow filters to air dry completely for at least 24 hours before reinserting them. Do not use a dryer or heat gun.
6. Reinsert the dry filters and reattach the dustbin.

6.3 Cleaning the Brush Roll

1. Turn the floor nozzle upside down.
2. Locate the brush roll access cover (if applicable) and open it.
3. Carefully remove any tangled hair, string, or debris from the brush roll using scissors or a brush.
4. Ensure the brush roll spins freely.
5. Reinstall the brush roll and close the access cover.

7. Troubleshooting

8. Specifications

• Model Number: PBLSV716K-PCL705B
• Brand: CUSHYBITE
• Power Source: 18V Battery
• Type: Cordless Stick Vacuum & Handheld Vacuum
• Manufacturer: CUSHYBITE
• Part Number: PBLSV716K-PCL705B
• ASIN: B0F3N6BTBD
• First Available: January 25, 2025

9. Warranty and Customer Support

For warranty information, please refer to the warranty card included with your product packaging or contact the retailer where the product was purchased. Keep your proof of purchase for warranty claims.

If you encounter any issues not covered in the troubleshooting section or require further assistance, please contact CUSHYBITE customer support through the contact information provided on the product packaging or the official brand website.
