Introduction
Thank you for choosing the Homtone CM1706WE Programmable Filter Coffee Machine. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your new coffee maker. Please read these instructions thoroughly before first use and retain them for future reference.
Important Safety Instructions
- Read all instructions before using the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against fire, electric shock, and injury to persons, do not immerse cord, plugs, or appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off," then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- Scalding may occur if the lid is removed during the brewing cycles.
Product Components
Familiarize yourself with the parts of your Homtone coffee machine:
Image: Detailed view of the coffee machine components.
- Brew Head Nozzle (B): Dispenses hot water over coffee grounds.
- Filter Holder (C1): Holds the permanent filter or disposable paper filter.
- Permanent Filter (C2): Reusable filter for coffee grounds.
- Measuring Spoon (C3): For accurate coffee ground measurement.
- Water Filter (C4): Filters water for improved coffee taste.
- Water Tank (D): Reservoir for water.
- Water Indicator (F): Shows the water level in the tank.
- Main Body (G): The primary housing of the coffee machine.
- Vacuum Thermal Carafe (H): Double-layered stainless steel carafe designed to keep coffee warm.
Setup
- Unpacking: Carefully remove all packaging materials and inspect the coffee machine for any damage.
- Initial Cleaning: Before first use, wash the thermal carafe, filter holder, and permanent filter in warm, soapy water. Rinse thoroughly and dry. Wipe the exterior of the machine with a damp cloth.
- First Brew Cycle (Cleaning): Fill the water tank to the maximum level with fresh water. Do not add coffee grounds. Place the empty thermal carafe on the warming plate. Run a full brew cycle to clean the internal components. Discard the water. Repeat this process once more.
- Placement: Place the coffee machine on a flat, stable, heat-resistant surface, away from the edge of the counter. Ensure adequate ventilation around the appliance.
Operating Instructions
Basic Coffee Brewing
- Fill Water Tank: Open the lid and fill the water tank with fresh, cold water up to the desired number of cups, indicated by the water level indicator.
- Add Coffee Grounds: Place the permanent filter (or a paper filter) into the filter holder. Add the desired amount of ground coffee. Use approximately one measuring spoon (7g) of coffee grounds per cup for a standard brew. Adjust to personal preference.
- Close Lid and Place Carafe: Close the top lid securely. Ensure the thermal carafe is correctly positioned on the warming plate.
- Select Brew Strength: Use the control panel to select your desired brew strength (Regular or Strong).
- Start Brewing: Press the BREW button to start the brewing process. The machine will begin to heat water and dispense it over the coffee grounds.
- Anti-Drip Function: The anti-drip system allows you to temporarily remove the carafe during brewing to pour a cup of coffee without drips. Return the carafe within 20 seconds to prevent overflow.
- Automatic Shut-off: The machine will automatically shut off after the brewing cycle is complete. The thermal carafe will keep the coffee warm for an extended period.
24-Hour Programmable Timer
The programmable timer allows you to set the machine to start brewing coffee automatically at a pre-set time.
Image: Control panel showing the 24-hour programmable timer feature.
- Set Current Time: When the machine is plugged in, the display will show '12:00 AM'. Press the 'HR' button to set the hour and the 'MIN' button to set the minutes. Hold the buttons for faster adjustment.
- Set Programmed Brew Time: Press the 'PROG' button. The display will flash. Use the 'HR' and 'MIN' buttons to set your desired start time for brewing.
- Activate Program: After setting the time, press the 'PROG' button again to confirm. The 'PROG' indicator light will illuminate, indicating that the timer is active.
- Prepare for Brewing: Ensure the water tank is filled and coffee grounds are in the filter holder before the programmed time.
- Cancel Program: To cancel the programmed brew, press the 'PROG' button until the indicator light turns off.

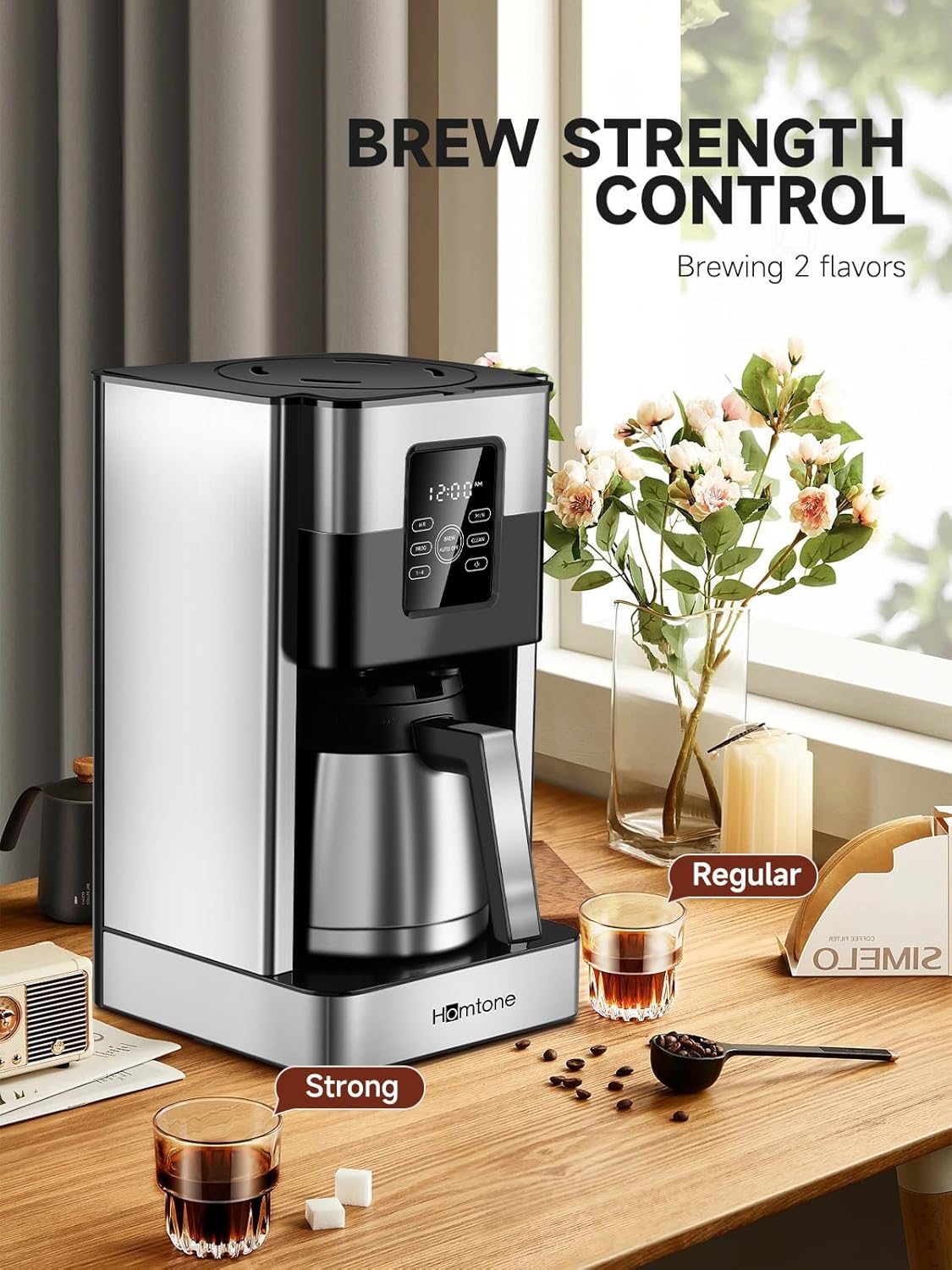

Brew Strength Control
Customize your coffee's intensity with the brew strength control feature.
Image: Visual representation of regular and strong brew options.
Before starting the brew cycle, select either Regular for a standard coffee or Strong for a more intense flavor. This setting adjusts the brewing process to extract more flavor from the coffee grounds.

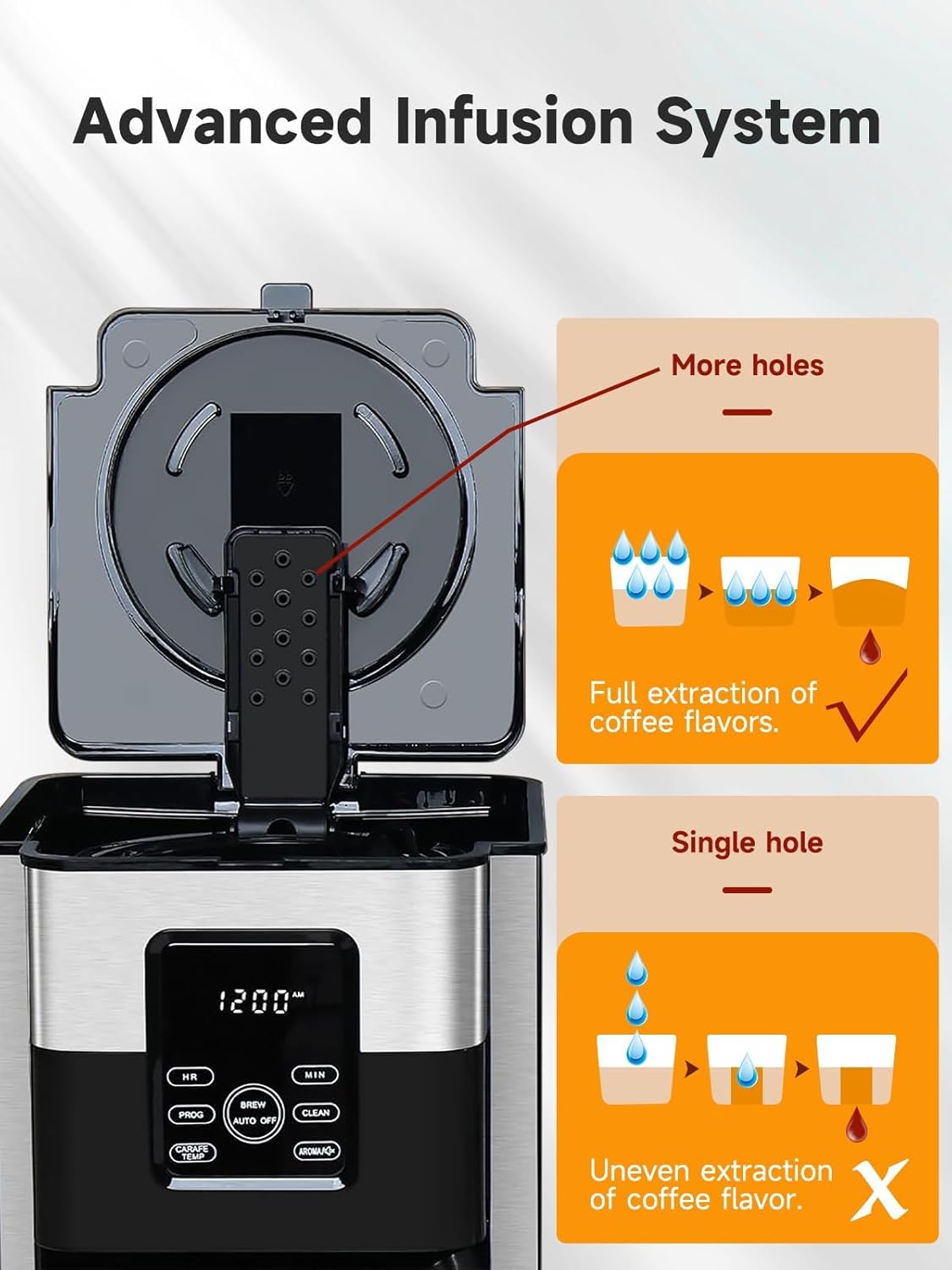

Advanced Infusion System
The Homtone coffee machine utilizes an advanced showerhead infusion system. This technology ensures that water is evenly distributed over the coffee grounds, leading to a more complete and optimal extraction of flavor and aroma compared to single-hole water dispersion.
Image: Comparison of advanced infusion system with multiple holes versus a single-hole system.
Maintenance and Cleaning
Regular cleaning ensures optimal performance and extends the lifespan of your coffee machine.
Image: Removing the permanent filter for cleaning.
Daily Cleaning
- Carafe and Filter: After each use, wash the thermal carafe, filter holder, and permanent filter in warm, soapy water. Rinse thoroughly and dry. These parts are generally not dishwasher safe unless specified.
- Exterior: Wipe the exterior of the coffee machine with a soft, damp cloth. Do not use abrasive cleaners or scouring pads.
- Drip Tray: Empty and clean the drip tray regularly.
Descaling (Automatic Cleaning Function)
Mineral deposits from water can build up in your coffee machine over time, affecting performance and coffee taste. The Homtone CM1706WE features an automatic cleaning function for descaling.
- Prepare Descaling Solution: Mix a descaling solution according to the manufacturer's instructions, or use a mixture of white vinegar and water (e.g., 1 part vinegar to 2 parts water). Fill the water tank with this solution up to the maximum level.
- Start Cleaning Cycle: Ensure the permanent filter is removed. Place the empty thermal carafe on the warming plate. Press the 'CLEAN' button on the control panel. The machine will initiate a descaling cycle.
- Rinse Cycles: After the descaling cycle is complete, discard the solution. Fill the water tank with fresh, clean water and run two full brew cycles (without coffee) to rinse the machine thoroughly.
- Frequency: Descale your coffee machine every 2-4 weeks, depending on water hardness and frequency of use.
Troubleshooting
If you encounter issues with your coffee machine, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Coffee does not brew. | Machine not plugged in; water tank empty; brew cycle not initiated; programmed timer not set correctly. | Ensure power cord is securely plugged in. Fill water tank. Press the BREW button. Check programmed timer settings. |
| Coffee is too weak. | Not enough coffee grounds; coffee grounds too coarse; 'Regular' strength selected; machine needs descaling. | Add more coffee grounds. Use finer ground coffee. Select 'Strong' brew strength. Perform a descaling cycle. |
| Coffee overflows from filter. | Too many coffee grounds; filter holder not seated correctly; carafe not on warming plate; anti-drip valve clogged. | Reduce coffee grounds. Ensure filter holder is properly inserted. Place carafe correctly. Clean the anti-drip valve. |
| Coffee is not hot enough. | Carafe lid not closed properly; machine needs descaling. | Ensure carafe lid is securely closed. Perform a descaling cycle. |
| Machine leaks. | Water tank overfilled; components not assembled correctly. | Do not exceed the MAX fill line. Reassemble all removable parts securely. |
If the problem persists after attempting these solutions, please contact customer support.
Specifications
- Model Number: CM1706WE
- Brand: Homtone
- Power: 1000 Watts
- Voltage: 220 Volts
- Capacity: 1.2 Liters (approximately 8 cups)
- Material: Stainless Steel
- Dimensions (L x W x H): 19 x 25 x 34 cm (7.48 x 9.84 x 13.39 inches)
- Weight: 3.2 Kilograms (7.05 lbs)
- Special Features: Automatic Shut-off, Permanent Filter, Adjustable Brew Strength, 24-Hour Programmable Timer, Anti-drip function.
Image: Dimensions and capacity details of the Homtone coffee machine.
Warranty and Support
Homtone products are manufactured to high-quality standards. For warranty information, technical support, or service inquiries, please refer to the warranty card included with your purchase or contact Homtone customer service through the retailer where the product was purchased. Please have your model number (CM1706WE) and purchase date available when contacting support.
