1. Introduction
Thank you for choosing the FORIOUS Kitchen Faucet with Pull Down Sprayer. This manual provides detailed instructions for the safe and efficient installation, operation, and maintenance of your new faucet. Please read this manual thoroughly before installation and keep it for future reference.
2. Product Specifications
| Feature | Description |
|---|---|
| Brand | FORIOUS |
| Model Name | Kitchen Faucet with Pull Down Sprayer (FF0043BCH) |
| Finish Type | Black Chrome |
| Material | Stainless Steel |
| Mounting Type | Deck Mount (1 or 3 Hole compatible with deck plate) |
| Number of Handles | 1 |
| Special Features | 360° Swivel, Dual Function Sprayer (Stream/Spray), Lead-Free, Pull Down Sprayer, Pull Out Sprayer |
| Maximum Flow Rate | 1.8 Gallons Per Minute |
| Spout Height | 6.69 Inches |
| Spout Reach | 8.26 Inches |
| Product Dimensions | 8.35"D x 10.04"W x 15.27"H |
| Certifications | LEAD FREE, NSF+ANSI+CAN 61, cUPC |
3. Safety Information
- Always shut off the water supply valves before beginning installation or any maintenance.
- Wear appropriate personal protective equipment, such as safety glasses and gloves, during installation.
- Ensure all connections are secure to prevent leaks.
- If you are unsure about any installation steps, consult a qualified plumber.
- Do not use abrasive cleaners or harsh chemicals on the faucet finish, as this may damage the surface.
4. Installation Guide
This section outlines the steps for installing your FORIOUS Kitchen Faucet. Ensure you have all necessary tools and components before starting.
4.1. Pre-Installation Checklist
- Verify that the mounting hole size is between ⌀1.30" - 1.58".
- Confirm water pressure is between 0.05MPa and 0.75MPa.
- Ensure working temperature is between 5°C and 85°C.
- Gather all included components: Faucet body, Deck Plate (optional), Installation Hardware, Sprayer, Instruction Manual.
4.2. Installation Steps
- Insert Faucet Body: Insert the faucet body into the countertop. If using a 3-hole sink, install the deck plate first. Ensure the gap between the faucet mounting holes and the back wall is more than 100mm (4 inches).
Video: FORIOUS Installation Instructions. This video demonstrates the step-by-step process of installing the faucet, including inserting the faucet body into the countertop.
Image: Faucet dimensions and compatibility for 1-hole or 3-hole sink installations. Note the maximum countertop thickness and required clearance from the back wall.
- Secure Faucet: From underneath the sink, locate the steel gasket, rubber gasket, and fixed mounting nuts. Screw the nut onto the faucet body and tighten it securely with a screwdriver.
Video: FORIOUS Installation Instructions. This video demonstrates securing the faucet body from underneath the sink.
- Connect Sprayer Hose: Put the sprayer hose into the fast-connect fitting until it clicks into place.
Video: FORIOUS Installation Instructions. This video demonstrates connecting the sprayer hose to the fast-connect fitting.
- Install Gravity Ball: Install the gravity ball near the top end of the hose connected to the sprayer. Ensure the weighted ball is placed in the air without any support underneath for proper retraction.
Image: Correct and incorrect placement of the gravity ball on the sprayer hose for optimal function.
Video: FORIOUS Installation Instructions. This video demonstrates installing the gravity ball on the sprayer hose.
- Flush Water Lines: Flush the hot and cold water lines to remove any debris by opening the angle stop valves for 30 seconds, then close them.
- Connect Water Hoses: Connect the hot and cold water supply hoses to the corresponding valves and tighten them with a wrench. Ensure a secure connection to prevent leaks.
5. Operating Instructions
5.1. Water Flow and Temperature Control
- Turn On/Off: Lift the single handle to turn on the water flow. Push down to turn off.
- Adjust Temperature: Move the handle left for hot water and right for cold water.
- Adjust Flow: Lift the handle higher for increased water flow.
5.2. Sprayer Functionality
- Pull-Down Sprayer: Gently pull the sprayer head down from the spout to extend the hose. The 18-inch pull-out hose provides a wider range of use.
- Dual Mode Settings: The sprayer features two modes:
- Stream Mode: Provides a soft, aerated stream for filling pots or general washing.
- Spray Mode: Delivers a powerful spray for rinsing stubborn stains from dishes or cleaning the sink.

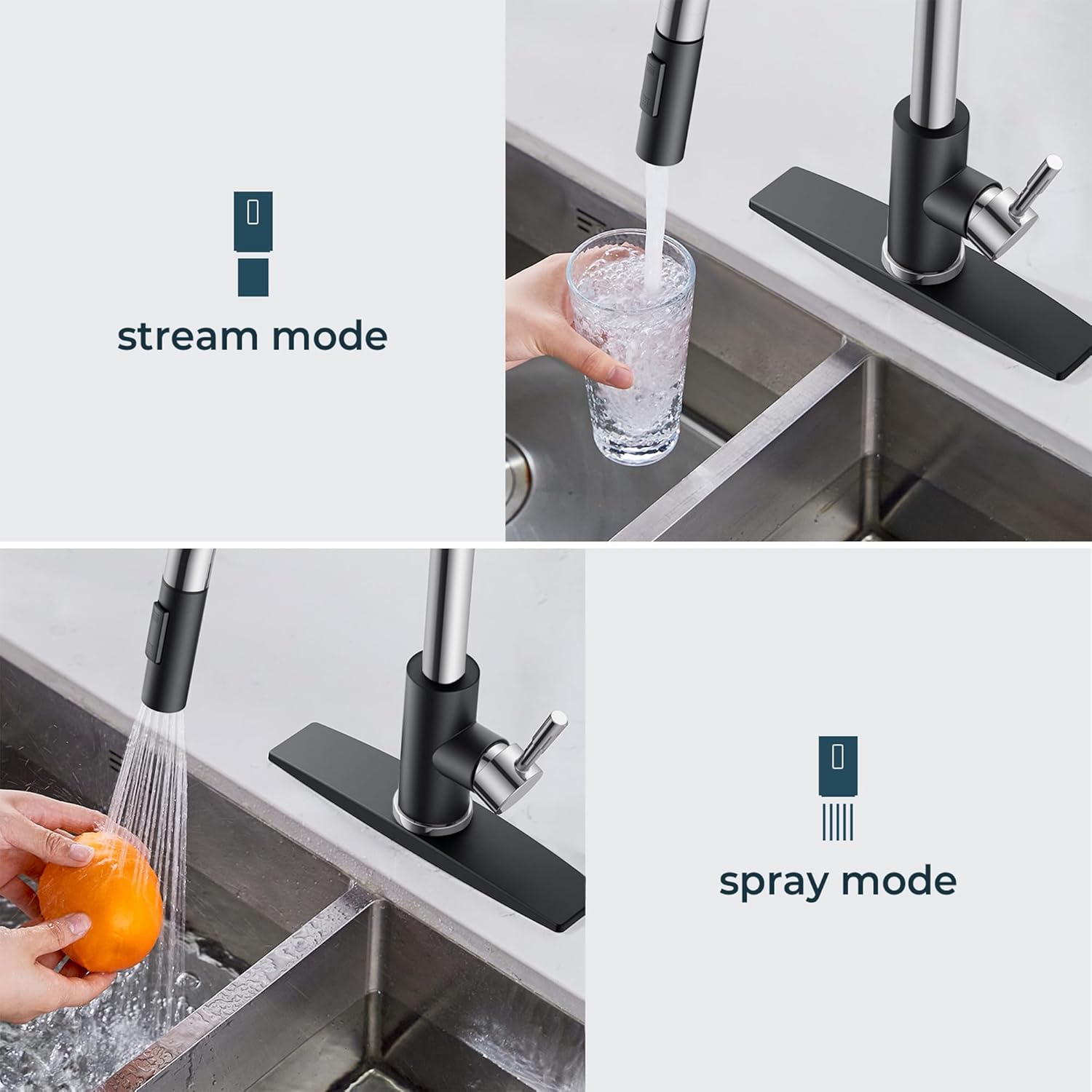

Image: Illustration of the dual-mode sprayer, showing both stream and powerful spray options for various kitchen tasks.
- 360° Swivel: The high-arc spout can swivel 360 degrees, allowing for flexible use across multiple sink basins.
6. Maintenance and Care
Proper maintenance will ensure the longevity and optimal performance of your FORIOUS Kitchen Faucet.
- Cleaning: Clean the faucet regularly with a soft cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish. Rinse thoroughly with water and dry with a soft cloth to prevent water spots.
- Drip-Free Ceramic Valve: The faucet is equipped with a diamond-coated ceramic valve core designed for durability and leak-free performance, tested for over 500,000 cycles.
Image: Diagram illustrating the drip-free ceramic valve technology, highlighting its smooth operation, durability, and leak prevention.
- Water Quality: The pull-down hose is made of crack-resistant and high-temperature resistant PEX material. The honeycomb aerator provides multi-layer filtration for cleaner water.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow | Clogged aerator or debris in water lines. | Remove and clean the aerator. Flush water lines as per installation step 5. |
| Leaks from Faucet Base | Loose mounting nuts or damaged gaskets. | Tighten mounting nuts. Inspect and replace gaskets if damaged. |
| Sprayer Does Not Retract Properly | Gravity ball improperly positioned or obstructed. | Ensure gravity ball is correctly installed and not obstructed by pipes or other items under the sink. |
| Water Temperature Issues | Incorrect hot/cold water line connection or issue with water heater. | Verify hot and cold lines are connected correctly. Check water heater settings. |
8. Warranty Information
FORIOUS products come with a limited warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. Keep your proof of purchase for warranty claims.
9. Customer Support
For further assistance, technical support, or warranty inquiries, please contact FORIOUS customer service. Contact information can be found on the FORIOUS website or on the packaging of your product.
