1. Safety Information
Always read and understand all safety warnings and instructions before operating this hedge trimmer. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.
General Safety Warnings:
- Wear Eye Protection: Always wear safety glasses or goggles with side shields that comply with current standards.
- Wear Gloves: Use heavy-duty work gloves to protect hands from blades and debris.
- Keep Work Area Clear: Ensure the area is free of obstacles, children, and bystanders.
- Dress Properly: Do not wear loose clothing or jewelry. Wear sturdy footwear.
- Avoid Dangerous Environments: Do not use in damp or wet locations. Do not expose to rain.
- Stay Alert: Do not operate when tired or under the influence of drugs, alcohol, or medication.
- Remove Battery When Not In Use: Always remove the battery pack from the tool before making adjustments, changing accessories, or storing the tool.
2. Product Overview
The CUSHYBITE HP 18V Brushless 24 in. Cordless Battery Hedge Trimmer is designed for efficient and comfortable hedge and shrub maintenance. It offers powerful, gas-like performance without the need for fuel or cords, providing a clean and convenient trimming experience.
Figure 2.1: Side view of the CUSHYBITE HP 18V Brushless 24 in. Cordless Battery Hedge Trimmer.

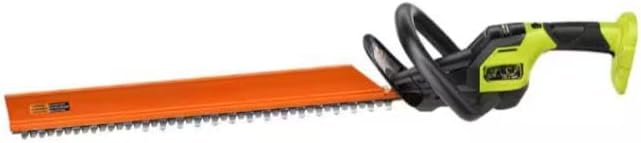

Figure 2.2: Angled view of the hedge trimmer, highlighting the blade and handle.

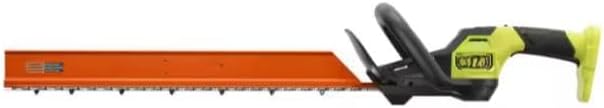

Figure 2.3: Top view of the hedge trimmer, showing the blade and ergonomic handle design.
Key Features:
- Delivers more power than a 20cc gas hedge trimmer, offering gas-like performance with the convenience of battery operation and zero emissions.
- Up to 25 minutes of runtime with an 18V 2Ah battery, and up to 78 minutes with an 18V 6Ah battery for extended trimming sessions.
- 24 in. dual-action hardened steel blades provide smooth, precise cuts with a 3/4 in. cut capacity, making it easy to handle hedges, bushes, and shrubs.
- Lightweight design with a wrap-around front handle ensures comfortable trimming from any angle, reducing fatigue during extended use.
- HEDGESWEEP Remover clears clippings as you trim for added convenience.
3. Setup
Battery Installation:
- Ensure the hedge trimmer is turned off and the trigger is disengaged.
- Align the ribs on the battery pack with the grooves in the tool's battery port.
- Slide the battery pack into the tool until it clicks securely into place.
- To remove, press the battery release button and pull the battery pack out.
Note: This product is a 'Tool Only' item. Battery and charger are sold separately. Use only compatible 18V batteries.
4. Operating Instructions
Starting and Stopping:
- To start the hedge trimmer, ensure the battery is installed. Grasp the rear handle firmly and depress the trigger.
- To stop, release the trigger.
Trimming Techniques:
For best results, use a smooth, sweeping motion. Avoid forcing the blades through thick branches. The 24-inch dual-action blades are designed for efficient cutting of hedges, bushes, and shrubs up to 3/4 inch in diameter.
Figure 4.1: User demonstrating proper trimming technique. The hedge trimmer offers significant runtime for extended use.
The integrated HEDGESWEEP Remover helps clear clippings from the top of hedges as you trim, maintaining a clear view of your work area and reducing cleanup time.
5. Maintenance
Blade Care:
- After each use, remove the battery pack and clean the blades with a stiff brush to remove debris.
- Apply a light coat of machine oil or blade lubricant to the blades to prevent rust and ensure smooth operation.
- Inspect blades for damage or dullness. Sharpen or replace as needed by a qualified service technician.
General Cleaning and Storage:
- Wipe down the exterior of the tool with a clean, damp cloth. Do not use strong detergents or solvents.
- Store the hedge trimmer in a dry, secure location, out of reach of children.
- Store the battery pack separately in a cool, dry place, away from direct sunlight and extreme temperatures.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Hedge trimmer does not start. | Battery not fully charged or not properly inserted. | Ensure battery is fully charged and securely inserted. |
| Reduced cutting performance. | Blades are dull or dirty. | Clean and lubricate blades. Consider sharpening or replacing blades. |
| Excessive vibration during operation. | Damaged or bent blade. | Inspect blades for damage. If damaged, discontinue use and have blades replaced by a qualified technician. |
| Motor runs but blades do not move. | Obstruction in blades or internal issue. | Remove battery, clear any obstructions. If problem persists, seek professional service. |
7. Specifications
| Specification | Detail |
|---|---|
| Manufacturer | CUSHYBITE |
| Part Number | PBLHG01B |
| Item Model Number | PBLHG01B |
| ASIN | B0F38SF3ZL |
| Blade Length | 24 inches |
| Cut Capacity | 3/4 inch |
| Power Source | 18V Battery (sold separately) |
| Blade Type | Dual-action hardened steel |
8. Warranty and Support
For warranty information or technical support, please refer to the documentation included with your purchase or contact CUSHYBITE customer service directly. Keep your proof of purchase for warranty claims.
Customer Service: Please visit the official CUSHYBITE website or contact their support line for assistance with product registration, troubleshooting beyond this manual, or parts replacement.
