MZK 20V Cordless Hedge Trimmer & Grass Shears User Manual

1. Product Overview

The MZK 20V Cordless Hedge Trimmer and Grass Shears is a versatile 2-in-1 tool designed for efficient garden maintenance. Its cordless design provides freedom of movement, while the lightweight yet powerful motor ensures effective trimming of hedges and grass. This tool is part of the MZK 20V lithium-ion battery system, allowing for battery compatibility across various MZK tools.

Figure 1.1: MZK 20V Cordless Hedge Trimmer and Grass Shears, including the main unit, hedge trimmer blade, grass shear blade, 20V battery, and charger.

Figure 1.2: The MZK 2-in-1 tool highlights its dual functionality for both grass and hedge trimming.

2. Safety Information

Always prioritize safety when operating power tools. Read and understand all safety warnings and instructions before use.

• Personal Protective Equipment (PPE): Always wear safety glasses or goggles, gloves, and sturdy footwear when operating the trimmer. Consider hearing protection if operating for extended periods.
• Work Area Safety: Keep the work area clean and well-lit. Do not operate in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Keep children and bystanders away while operating the tool.
• Electrical Safety: Use only the specified battery and charger. Do not expose the tool to rain or wet conditions. Avoid accidental starting; ensure the switch is in the off-position before inserting the battery pack or picking up the tool.
• Tool Use and Care: Do not force the tool. Use the correct tool for your application. Disconnect the battery pack before making any adjustments, changing accessories, or storing the tool. Store idle tools out of the reach of children.
• Blade Safety: The blades are sharp. Handle them with care. Ensure the blade is securely attached before operation. Never touch the blades while the tool is running.
• Double Lock Design: The MZK trimmer features a double lock design for enhanced safety. Ensure both safety mechanisms are engaged before starting the tool.

Figure 2.1: Illustration of the safety switch and ON/OFF switch, highlighting the double lock safety design for quick and easy start while ensuring user protection.

3. Components

The MZK 20V Cordless Hedge Trimmer and Grass Shears comes with the following main components:

• Main Unit: The motor housing and ergonomic handle, which accommodates the battery.
• Hedge Trimmer Blade: A longer blade (7.8 inches) designed for shaping hedges and shrubs.
• Grass Shear Blade: A shorter blade designed for precise grass trimming and edging.
• 20V Lithium-Ion Battery: Provides cordless power to the tool.
• Battery Charger: For recharging the 20V battery.

Figure 3.1: The MZK trimmer showcasing both the long blade for shrub and hedge trimming, and the short blade for grass cutting, illustrating its 2-in-1 functionality.

4. Setup

4.1. Battery Charging

Before first use, fully charge the 20V lithium-ion battery. Connect the charger to a standard power outlet and insert the battery pack into the charger. The indicator light on the charger will show the charging status. A full charge typically takes 45 to 60 minutes.

4.2. Battery Installation

Align the battery pack with the battery port on the main unit and slide it in until it clicks securely into place. Ensure it is firmly seated before operation.

4.3. Blade Attachment and Replacement

The MZK trimmer features a quick blade replacement system:

1. Ensure the tool is off and the battery is removed.
2. Press the release button located on the side of the blade assembly.
3. Carefully slide off the current blade.
4. Align the desired blade (hedge trimmer or grass shear) with the slot and slide it into place until it clicks securely.

Figure 4.1: Step-by-step guide for quick blade replacement, illustrating how to press the release button, remove the blade, and install a new one securely.

Figure 4.2: Visual representation of the quick blade replacement process, emphasizing ease of use and secure attachment.

5. Operating Instructions

5.1. Starting and Stopping the Tool

To start the MZK trimmer, engage the safety switch (usually a button or lever that needs to be pressed) and then press the ON/OFF switch. Release the ON/OFF switch to stop the tool. Always ensure both safety mechanisms are properly engaged for operation.

5.2. Using the Grass Shear Blade

Attach the grass shear blade for precise trimming around obstacles, along edges, or in tight spaces where a lawnmower cannot reach. Hold the tool firmly and guide the blade along the desired cutting path. The compact size and ergonomic handle make it ideal for detailed work.

Figure 5.1: The MZK trimmer demonstrating its use for both hedge trimming (top) and precise grass trimming (bottom), showcasing its dual functionality in action.

Figure 5.2: The MZK tool shown in use as a cordless grass trimmer for detailed edging and as a mini hedge trimmer for shaping small shrubs.

5.3. Using the Hedge Trimmer Blade

Attach the hedge trimmer blade for shaping and maintaining hedges and shrubs. Hold the tool with both hands if necessary for better control. Move the trimmer smoothly along the hedge, cutting small amounts at a time. Avoid cutting branches thicker than the recommended capacity (typically 0.3-0.5 inches for this type of tool).

Figure 5.3: The MZK trimmer demonstrating its use for both hedge trimming (top) and precise grass trimming (bottom), showcasing its dual functionality in action.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your MZK trimmer.

• Blade Cleaning: After each use, remove the battery and carefully clean the blades with a stiff brush to remove sap, leaves, and debris. For stubborn residue, use a mild solvent or blade cleaner. Lubricate the blades with light machine oil to prevent rust and ensure smooth operation.
• General Cleaning: Wipe down the main unit with a damp cloth. Do not use harsh chemicals or abrasive cleaners. Keep ventilation openings clear of debris.
• Battery Care: Store the battery in a cool, dry place away from direct sunlight and extreme temperatures. Do not store the battery fully discharged for long periods.
• Storage: Store the tool in a dry, secure location out of reach of children. Use the blade cover (if provided) to protect the blades during storage.

7. Troubleshooting

8. Specifications

• Brand: MZK
• Model Number: SG2210
• Power Source: Battery Powered (20V Lithium-Ion)
• Blade Length: 7.8 Inches (Hedge Trimmer Blade)
• Blade Material: Metal
• Item Weight: 4.8 pounds
• Product Dimensions: 4.92"L x 4.72"W x 13.19"H
• Motor Speed: Up to 1400 RPM
• Battery Life: Approximately 50 minutes (Hedge Trimmer), 100 minutes (Grass Trimmer)

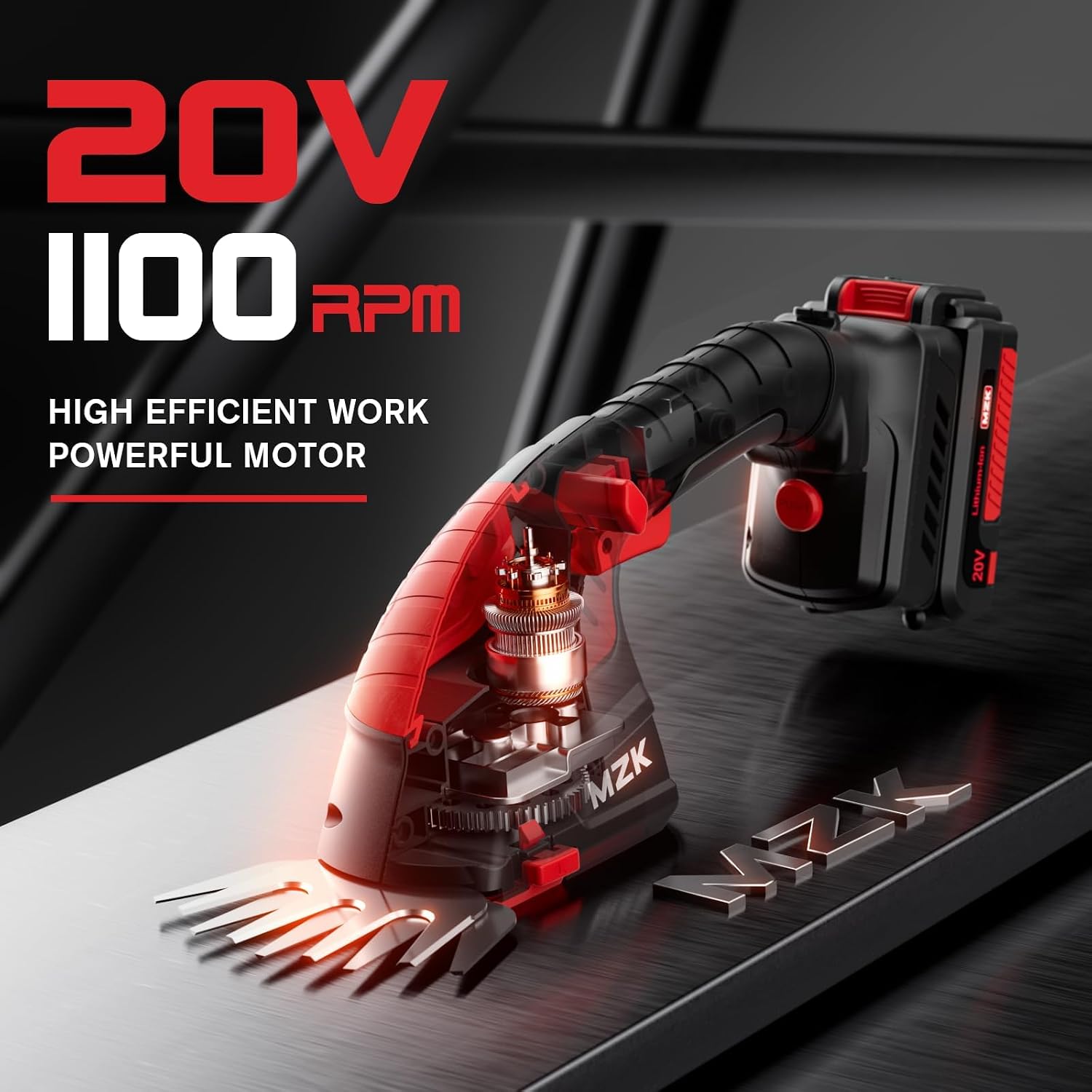

Figure 8.1: Illustration highlighting the 20V power and 1100 RPM motor, indicating high efficiency and powerful performance.

Figure 8.2: Diagram showing the 7.8-inch cutting length and 3.9-inch cutting width for the hedge trimmer blade.

9. Warranty and Support

MZK is committed to providing efficient and economic garden tools. If you have any questions or encounter problems with your MZK tool, please do not hesitate to contact us. We are dedicated to helping you resolve any issues you may experience.

For support, please refer to the contact information provided with your product packaging or visit the official MZK website.

Note: Specific warranty details may vary. Please refer to the warranty card included with your purchase for complete terms and conditions.
