Kingdura 11ft Offset Cantilever Patio Umbrella Instruction Manual

1. Introduction and Overview

Thank you for choosing the Kingdura 11ft Offset Cantilever Patio Umbrella. This manual provides essential information for the safe assembly, operation, and maintenance of your new outdoor umbrella. Please read these instructions carefully before use and retain them for future reference.

This umbrella is designed to provide extensive shade coverage for various outdoor settings such as patios, decks, poolsides, and backyards. Key features include a 360° rotation mechanism, infinite tilt adjustment, and a robust aluminum frame with 8 reinforced ribs for enhanced stability and durability.

2. Safety Information

• Always close the patio umbrella and secure it with the provided strap during strong winds, heavy rain, or when not in use. Failure to do so may result in damage to the umbrella or personal injury.
• The umbrella base must be properly weighted for stability. It requires a minimum of 220 lbs of wet sand. Sand is not included and must be purchased separately.
• Ensure all components are securely fastened before and during use.
• Do not attempt to use the umbrella in extreme weather conditions.

3. Package Contents

Verify that all components are present before beginning assembly:

• Umbrella Canopy Assembly
• Main Pole Assembly
• Cross-shaped Base
• 4 Sandbags (for weighting the base)
• Fabric Cover for Base
• Assembly Hardware and Tools (Allen wrench, Phillips screwdriver)

Image: Components of the umbrella base, including the cross-shaped base and sandbags, highlighting triangular stability and customer support information.

4. Setup and Assembly

Assembly is generally straightforward. It is recommended to perform assembly on a soft surface like cardboard to prevent scratches to components. While written instructions are provided, visual aids such as assembly videos can be very helpful if available from the manufacturer.

1. Prepare the Base: Place the cross-shaped base in the desired location. Fill the four included sandbags with approximately 220 lbs of wet sand in total. Distribute the weight evenly among the sandbags. Place the filled sandbags onto the cross-shaped base to provide stability. Cover the weighted base with the provided fabric cover.
2. Attach the Main Pole: Securely attach the main pole assembly to the weighted cross-shaped base using the provided hardware. Ensure all bolts are tightened.
3. Mount the Umbrella Canopy: Carefully attach the umbrella canopy assembly to the main pole. Follow the specific instructions for aligning and securing the canopy.
4. Final Checks: Before opening the umbrella, ensure all connections are tight and the base is stable.

Note: Some users have reported minor discrepancies in part labeling within written instructions. Referencing visual guides or product videos, if available, can assist in clarifying steps.

5. Operating Instructions

5.1 Opening and Closing the Umbrella

• To open the umbrella, locate the crank handle on the main pole. Rotate the crank clockwise until the canopy is fully extended.
• To close the umbrella, rotate the crank handle counter-clockwise until the canopy is fully retracted. Secure the closed canopy with the attached strapping tape.

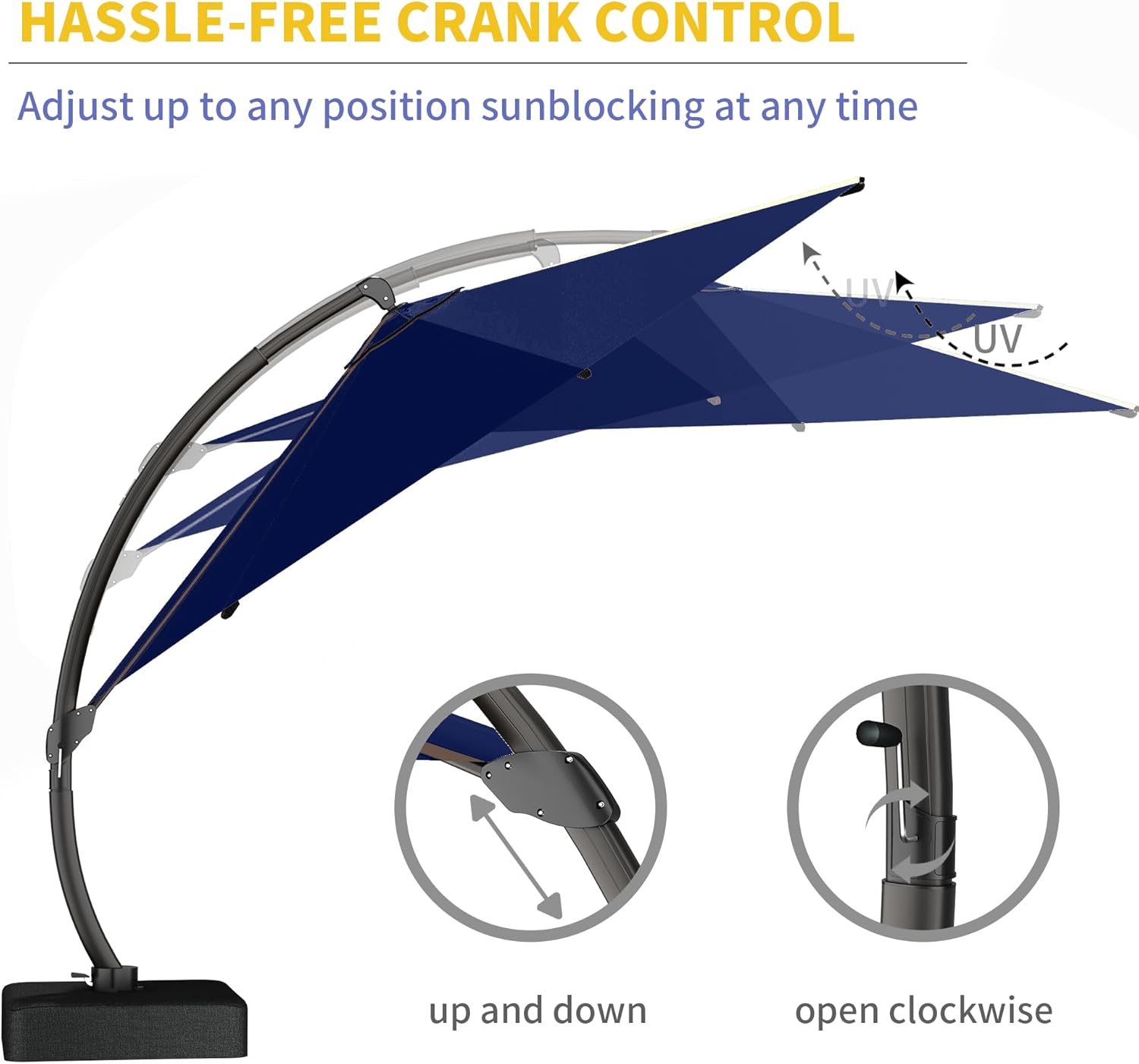

Image: Illustration of the crank control for adjusting the umbrella's height and tilt, showing 'up and down' and 'open clockwise' actions.

5.2 360° Rotation

• To rotate the umbrella canopy, locate the foot pedal at the base of the main pole. Depress the foot pedal to unlock the rotation mechanism.
• Gently rotate the umbrella to the desired position. Release the foot pedal to lock the umbrella in place. This allows for continuous shade adjustment as the sun moves.

Image: Diagram illustrating the 360-degree rotation capability of the umbrella canopy and the foot pedal mechanism for easy adjustment.

5.3 Infinite Tilt Adjustment

• The umbrella features an infinite tilt mechanism to block sunlight from various angles. Use the crank control to adjust the canopy's angle.
• Adjust the tilt to optimize shade coverage throughout the day.

6. Maintenance

• Cleaning the Canopy: The canopy is made from premium UV-resistant and water-repellent polyester fabric. Clean with mild soap and water. Rinse thoroughly and allow to air dry completely before closing or storing. Do not use harsh chemicals or abrasive cleaners.
• Frame Care: The aluminum frame is rust-proof. Wipe down the frame with a damp cloth periodically to remove dirt and debris.
• Storage: When not in use for extended periods or during off-season, close the umbrella, secure it with the strap, and store it in a dry, protected area. A protective cover (not included) is recommended to prolong the life of the canopy and frame.
• Inspection: Regularly inspect all bolts and connections to ensure they remain tight.

Image: Close-up details of the umbrella, showing the water-resistant polyester fabric, 8-rib sturdy steel frame, durable aluminum alloy umbrella pole, and strapping tape for securing the umbrella.

7. Troubleshooting

• Umbrella is unstable: Ensure the base is filled with the recommended 220 lbs of wet sand. Verify that the main pole is securely attached to the base. Close the umbrella in windy conditions.
• Difficulty with assembly: If written instructions are unclear, refer to any available assembly videos or detailed product images for visual guidance. Ensure all parts are correctly identified before proceeding.
• Crank mechanism is stiff: Check for any obstructions or debris in the mechanism. Apply a silicone-based lubricant if necessary, avoiding oil-based products that can attract dirt.
• Canopy not opening/closing smoothly: Inspect the ribs and fabric for any damage or entanglement. Ensure the crank is operated smoothly without excessive force.

8. Specifications

Image: Technical drawing showing the dimensions of the 11ft offset cantilever umbrella, including height, canopy diameter, and base measurements.

9. Warranty and Support

While specific warranty details are not provided in this manual, Kingdura products are typically covered by a manufacturer's warranty. For any questions regarding warranty claims, product support, or replacement parts, please contact Kingdura customer service through your purchase platform or the official brand website.

For immediate assistance, refer to the customer support options available where you purchased this product.
