MUDDY Mitigator 2.0 24MP Cellular Camera User Manual

Introduction

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your MUDDY Mitigator 2.0 24MP Cellular Camera. Please read this manual thoroughly before using your camera to ensure optimal performance and longevity. Keep this manual for future reference.

Image: The MUDDY Mitigator 2.0 Cellular Camera bundle, showcasing multiple cameras, batteries, and SD cards.

1. Setup

1.1. Unboxing and Initial Inspection

Carefully remove all components from the packaging. Verify that all items are present: MUDDY Mitigator 2.0 camera(s), 16 AA batteries per camera, and 2 SD cards per camera. Inspect each camera for any visible damage.

1.2. Battery Installation

The Mitigator 2.0 camera requires 8 AA batteries. For best performance, use high-quality alkaline or lithium batteries.

1. Open the camera's battery compartment, typically located on the back or bottom.
2. Insert 8 AA batteries into the 8-piece battery tray, ensuring correct polarity (+/-) as indicated inside the compartment.
3. Securely close the battery compartment door.

Image: A single MUDDY Mitigator 2.0 camera shown with AA batteries and an SD card, illustrating their placement.

1.3. SD Card Installation

The camera supports standard SD cards. Two SD cards are included with your camera bundle.

1. Locate the SD card slot, usually on the side or inside the camera.
2. Insert an SD card into the slot with the metal contacts facing the correct direction until it clicks into place.
3. Ensure the SD card is not write-protected.

1.4. SIM Card Installation

As a cellular camera, the Mitigator 2.0 requires a compatible SIM card for cellular data transmission. A SIM card is typically provided by your cellular service provider.

1. Locate the SIM card slot, often near the SD card slot or within the battery compartment.
2. Insert the activated SIM card into the slot, ensuring correct orientation.
3. Close any covers securely.

1.5. Mounting the Camera

The Mitigator 2.0 offers versatile mounting options:

• Integrated Multi-Position Mount: Use the built-in strap or bracket to secure the camera to a tree or post.
• 1/4-20 Threaded Insert: Attach the camera to a tripod or other compatible mounting accessories using the standard threaded insert.
• Python Cable Provision: For added security, a python cable can be threaded through the designated provision to deter theft.

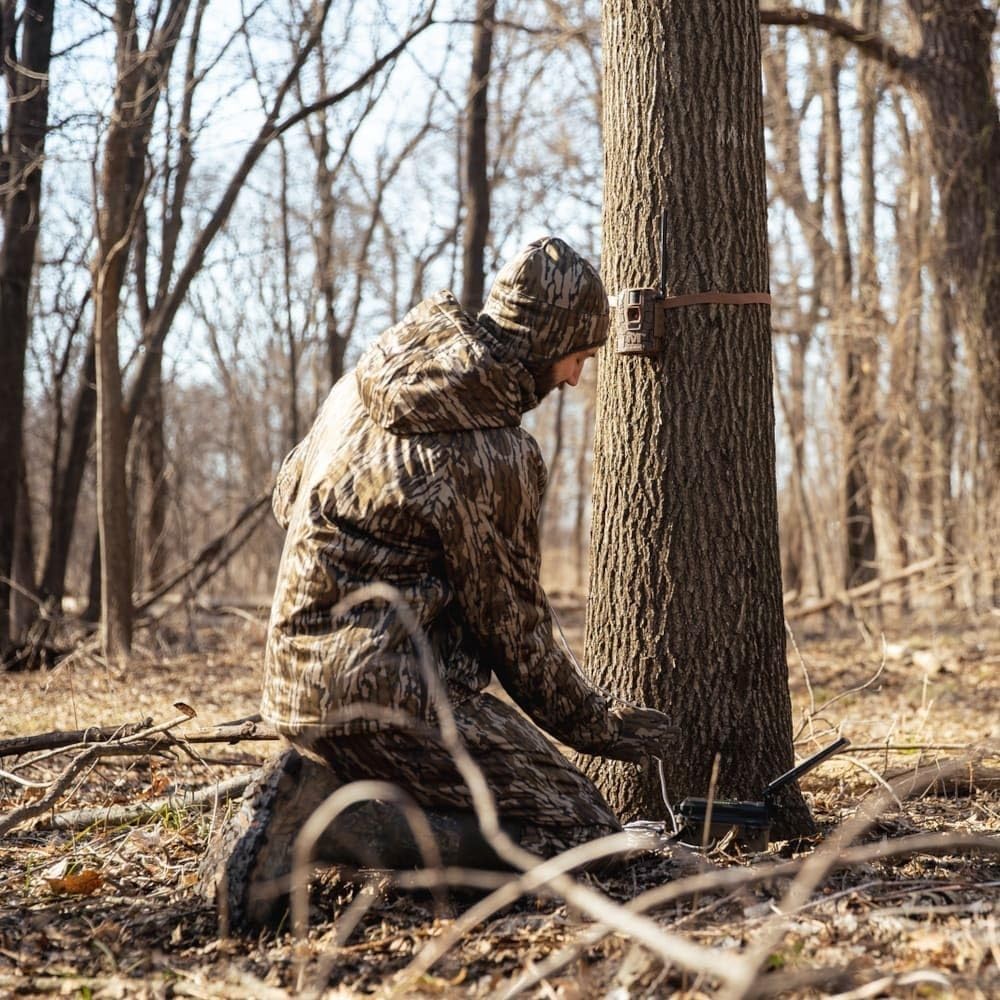

Image: A person installing a MUDDY Mitigator 2.0 cellular camera on a tree using a strap, demonstrating a common mounting method.

1.6. Powering On and Initial Configuration

After installing batteries and cards:

1. Turn the camera's power switch to the 'ON' position.
2. The camera will typically display a startup sequence. Follow any on-screen prompts for initial date, time, and basic settings.
3. Ensure the cellular antenna is properly attached and oriented for optimal signal reception.

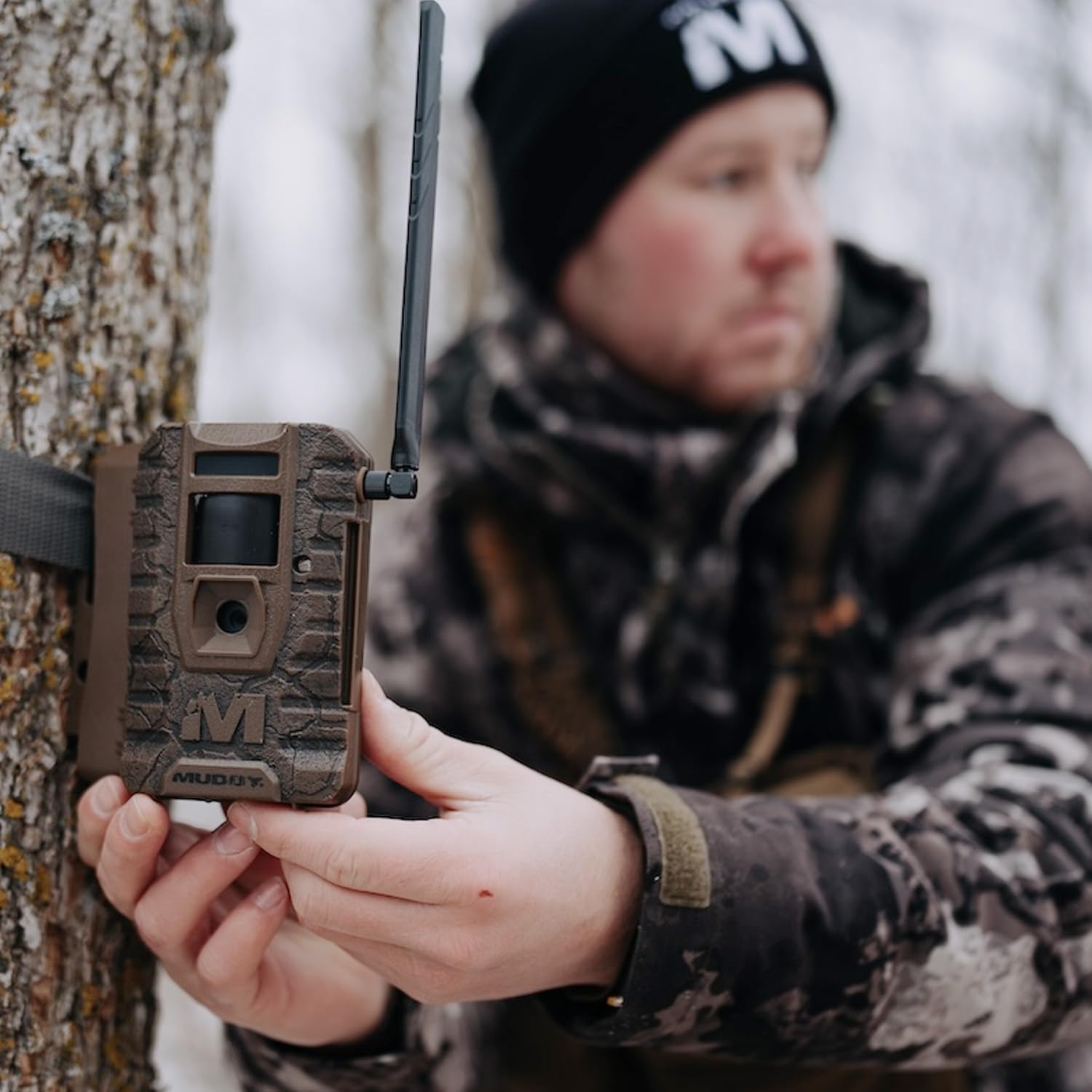

Image: A person holding the MUDDY Mitigator 2.0 camera, highlighting its compact design and external antenna.

1.7. Command Pro App Connection

The Mitigator 2.0 is compatible with the Command Pro App for remote control and monitoring.

1. Download the Command Pro App from your device's app store.
2. Create an account and follow the in-app instructions to add your camera. This usually involves scanning a QR code on the camera or entering its serial number.
3. Once connected, you can manage settings and view captured media remotely.

2. Operating Your Mitigator 2.0 Camera

2.1. Understanding Camera Modes

The camera typically operates in various modes:

• Photo Mode: Captures still images when triggered.
• Video Mode: Records video clips when triggered.
• Photo + Video Mode: Captures a still image followed by a video clip when triggered.

2.2. Photo and Video Settings

Customize your camera's performance through its settings:

• Photo Resolution: Selectable between 4MP, 8MP, 16MP, or 20MP. The default is 24MP.
• Video Resolution: Records in 720p.
• Trigger Speed: Fast 0.5-second trigger speed for quick capture.
• Photo Burst Mode: Capture 1-3 photos in rapid succession per trigger event.
• Time-Out Delay: Customizable delay between triggers, from 2 to 59 seconds or 1 to 59 minutes.

Image: An infographic highlighting key features of the MUDDY Mitigator 2.0 camera, including 24MP resolution, 80ft detection, <0.5s trigger speed, and 80ft flash range.

Image: Another view of the MUDDY Mitigator 2.0 camera with an overlay of detailed specifications such as detection range, burst mode, recovery time, trigger speed, and photo resolution.

2.3. Detection and Flash Range

The camera features an 80-foot detection range and an 80-foot flash range, ensuring effective coverage for monitoring wildlife or property.

2.4. Remote Management via Command Pro App

The Command Pro App allows for convenient remote control:

• Photo and Video On Demand: Request and receive photos or videos from your camera in real-time.
• Settings Adjustment: Modify camera settings remotely without physically accessing the camera.
• Status Monitoring: Check battery life, SD card space, and cellular signal strength.

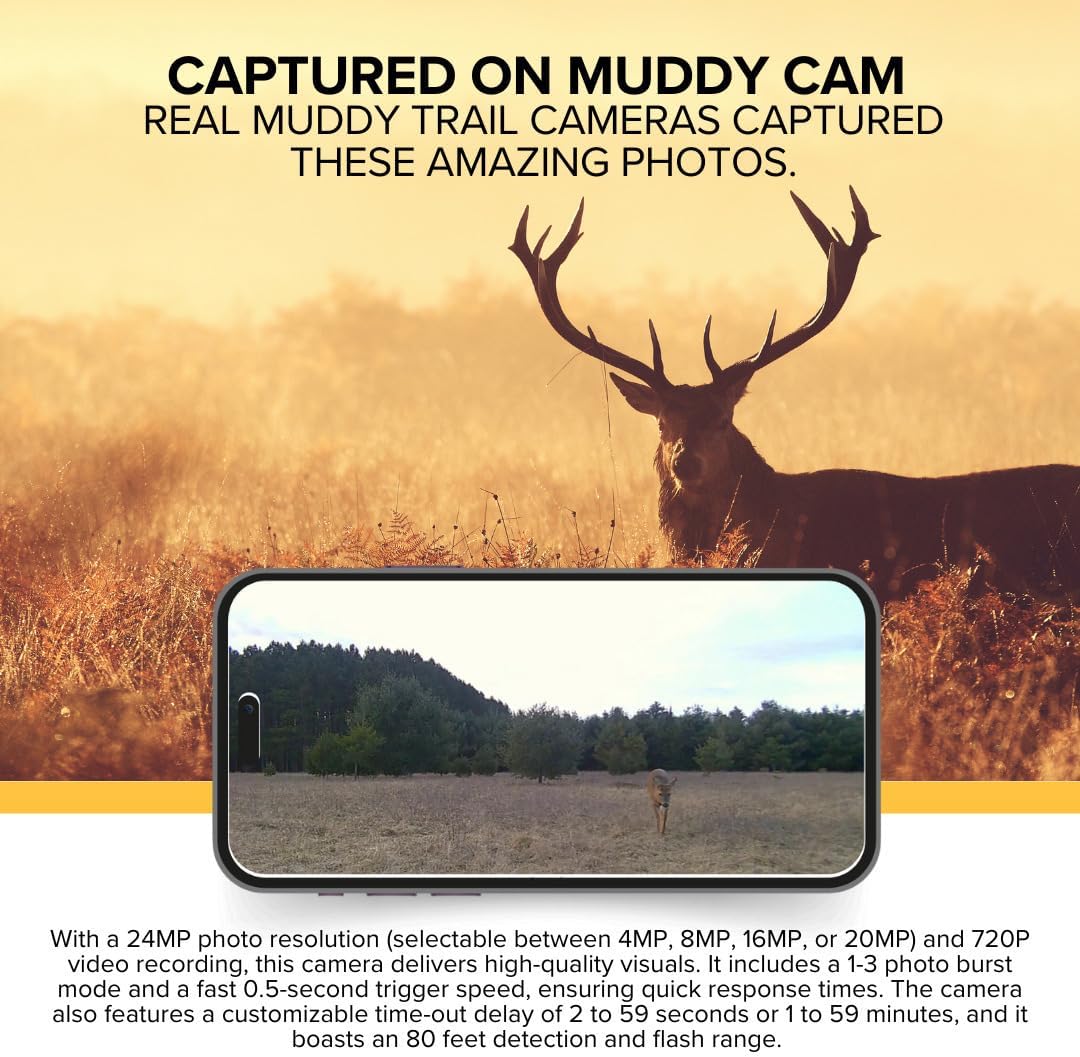

Image: A smartphone screen displaying images captured by a MUDDY trail camera, demonstrating the quality of photos and the app's viewing capability.

3. Maintenance

3.1. Battery Management

Regularly check battery levels via the Command Pro App or the camera's display. Replace all 8 AA batteries simultaneously to ensure consistent power. For extended power, a 12V DC auxiliary jack is available for external power packs.

3.2. SD Card Management

Periodically check the remaining storage on your SD card. Format the SD card regularly (after backing up important data) to maintain optimal performance and prevent data corruption. Replace full SD cards as needed.

3.3. Cleaning the Camera

Use a soft, dry cloth to clean the camera's lens, sensors, and housing. Avoid abrasive cleaners or solvents. Ensure the camera is off and battery compartment is sealed before cleaning.

3.4. Firmware Updates

Check the MUDDY website or Command Pro App periodically for available firmware updates. Firmware updates can improve camera performance, add new features, or fix bugs. Follow the provided instructions carefully when performing updates.

4. Troubleshooting

• Camera Not Powering On:
  Ensure batteries are correctly installed with proper polarity and are not depleted. Check if the power switch is fully in the 'ON' position.
• No Photos/Videos Captured:
  Verify the SD card is inserted correctly and not full or write-protected. Check camera settings for trigger delay and detection sensitivity. Ensure the camera is in an active mode (Photo, Video, or Photo+Video).
• Poor Cellular Connection/No Image Transmission:
  Check the SIM card activation and data plan status. Ensure the camera's antenna is securely attached and positioned for optimal signal. Relocate the camera to an area with better cellular coverage.
• App Connection Issues:
  Ensure your smartphone has an active internet connection. Verify the camera is powered on and has cellular signal. Re-link the camera to the Command Pro App if necessary.
• Blurred Images/Videos:
  Clean the camera lens. Ensure the camera is securely mounted to prevent movement. Check for condensation inside the lens.

5. Specifications

6. Warranty and Customer Support

For warranty information, technical support, or service inquiries, please contact GSM Outdoors, the manufacturer of MUDDY products. Refer to the product packaging or the official MUDDY website for the most current contact details and warranty policy.
