1. Introduction
Thank you for choosing the DCA ADYD02-35 Cordless Pruning Shears. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new tool. Please read this manual thoroughly before first use and keep it for future reference.
2. General Safety Instructions
Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury.
- Read All Instructions: Familiarize yourself with the controls and proper use of the tool.
- Wear Eye Protection: Always wear safety glasses or goggles to protect your eyes from flying debris.
- Wear Protective Gloves: Use sturdy work gloves to protect your hands from cuts and abrasions.
- Keep Work Area Clear: Ensure the area around you is free from obstacles and bystanders.
- Avoid Accidental Starting: Ensure the switch is in the off position before inserting the battery pack or carrying the tool.
- Do Not Overreach: Maintain proper footing and balance at all times.
- Store Safely: When not in use, store the tool in a dry, secure place out of reach of children.
- Use Correct Battery and Charger: Only use the battery pack and charger specified by the manufacturer.
- Inspect Before Use: Check for damaged parts before each use. Do not use if any part is damaged.
- Keep Blades Sharp: Sharp blades cut more efficiently and safely.
3. Product Overview and Components
The DCA ADYD02-35 Cordless Pruning Shears are designed for efficient and effortless pruning tasks. Below are the main components included with your purchase.

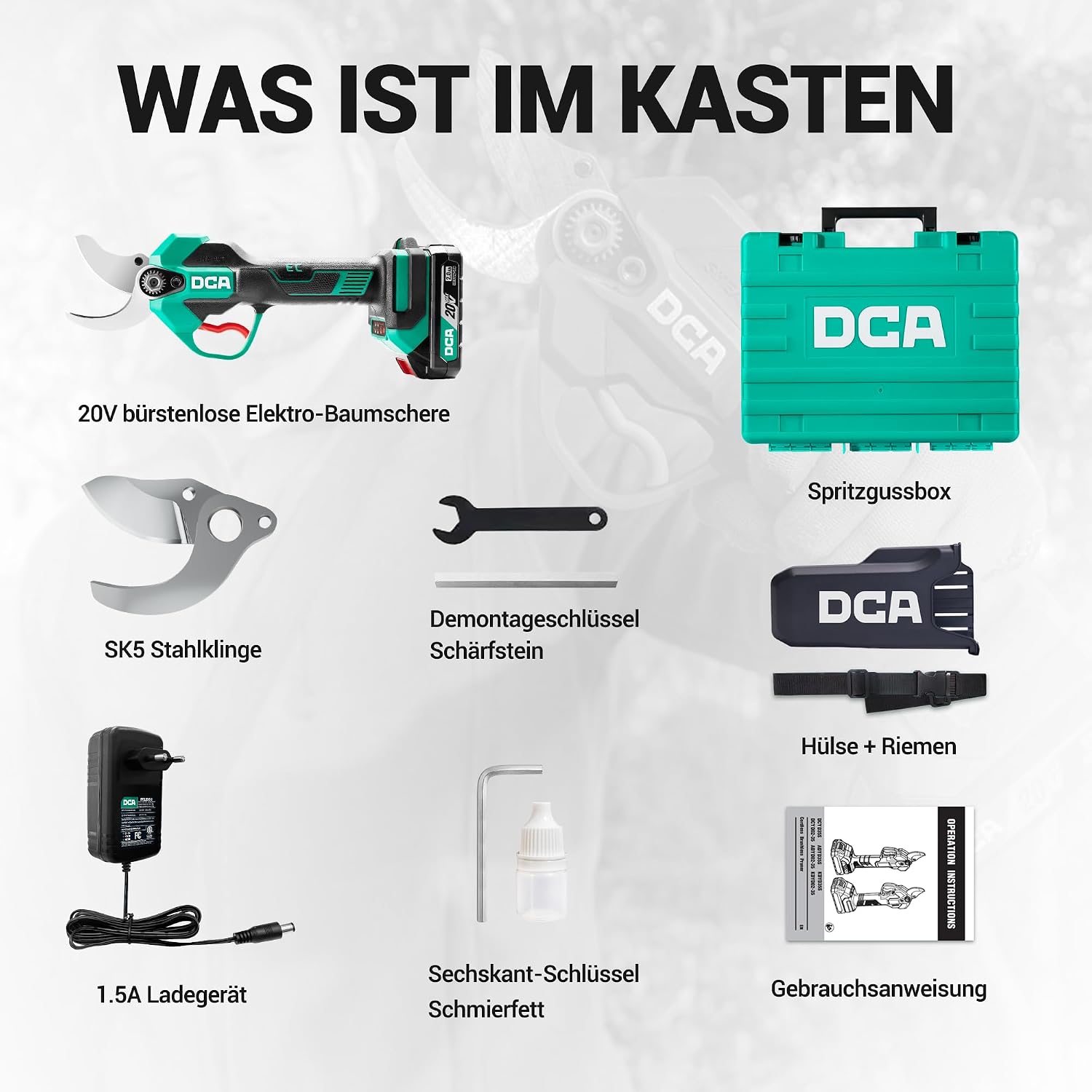

Figure 1: What's in the Box. This image illustrates the complete set of items you will receive, including the 20V brushless electric pruning shears, SK5 steel blades, disassembly wrench, sharpening stone, holster + strap, 1.5A charger, hex key, lubricant, and user manual.
- Cordless Pruning Shears: The main unit with brushless motor.
- Battery Pack: Rechargeable Li-ion battery (20V, 2.0Ah).
- Charger: For recharging the battery pack.
- SK5 Steel Blades: High-strength, durable cutting blades.
- Disassembly Wrench: For blade replacement and maintenance.
- Sharpening Stone: For maintaining blade sharpness.
- Hex Key: For adjustments.
- Lubricant: For blade and mechanism maintenance.
- Holster and Strap: For convenient carrying during use.
- User Manual: This instruction guide.
4. Setup and Initial Use
4.1 Charging the Battery
Before first use, fully charge the battery pack.
- Connect the charger to a standard power outlet.
- Insert the battery pack into the charger. Ensure it clicks into place.
- The charger indicator light will show the charging status (e.g., red for charging, green for fully charged).
- Once fully charged (approximately 1 hour), remove the battery from the charger.
Figure 2: Battery Charging. The image displays the 20V, 2.0Ah Li-ion battery connected to its charger, indicating a charging time of approximately 1 hour. Battery status indicators show charge levels (25%, 50%, 75%, 100%) and charger status (red for charging, green for fully charged).
4.2 Attaching the Battery
Align the charged battery pack with the battery slot on the bottom of the pruning shears handle and slide it in until it locks securely.
5. Operating Instructions
5.1 Activating the Shears
The DCA ADYD02-35 features a double safety lock mechanism to prevent accidental activation.
- Ensure the battery is securely attached.
- Press the trigger three times in quick succession to unlock the blades. The blades will open.
- The shears are now ready for use.
Figure 3: Safety Activation. This image highlights the safe and ergonomic design, instructing users to press the trigger three times to unlock the shears and prevent accidental activation. It also shows a user wearing the portable safety holster.
5.2 Pruning Technique
Position the branch to be cut between the blades. Press the trigger to close the blades and make the cut. Release the trigger to open the blades.
- Cutting Capacity: The shears can cut soft branches up to 35mm (1-3/8") and hard branches up to 25mm (1").
- Cutting Speed: Up to 105 cuts per minute.
- Adjustable Cutting Diameter: The shears offer 4 adjustable cutting diameters (20mm, 25mm, 30mm, 35mm). Refer to the tool's display or manual for adjustment instructions.
Figure 4: Cutting Capacity. This diagram shows the maximum cutting diameter of 35mm for soft branches and 25mm for hard branches. It also highlights the 4-gear adjustable cutting diameter (20-35mm), 105 cuts/min speed, lightweight design (1.36kg), and double safety lock.
Figure 5: Pruning in Action. This collage shows the DCA ADYD02-35 pruning shears being used to cut branches on fruit trees, flowering bushes, and other garden plants, demonstrating its versatility.
5.3 Brushless Motor Technology
The shears are equipped with a brushless motor, offering high efficiency, stable power output, and extended lifespan compared to traditional brushed motors.
Figure 6: Brushless Motor. This image details the brushless motor technology, emphasizing its high-efficiency operation, stable power output, and extended lifespan. It also mentions the lab-tested toughness after 32,373 continuous cuts on 20-25mm branches.
6. Maintenance
Regular maintenance ensures optimal performance and extends the life of your pruning shears. Always remove the battery pack before performing any maintenance.
6.1 Blade Cleaning and Lubrication
- After each use, clean the blades with a damp cloth to remove sap and debris.
- Apply a few drops of the provided lubricant to the blade pivot point and cutting edges to prevent rust and ensure smooth operation.
6.2 Blade Sharpening
Use the provided sharpening stone to keep the SK5 high-strength steel blades sharp. Follow the original blade angle when sharpening.
Figure 7: SK5 High-Strength Steel Blades. This image highlights the durable SK5 high-strength steel blades, noting a potential upgrade to black Teflon-coated blades for enhanced wear and rust resistance, and improved sharpness and longevity. It also states a maximum cutting speed of 105 soft branches per minute.
6.3 Blade Replacement
If blades become dull or damaged beyond sharpening, they can be replaced. Use the disassembly wrench to carefully remove and replace the blades. Refer to the "What's in the Box" diagram for the wrench.
7. Troubleshooting
If you encounter issues with your pruning shears, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Shears do not activate. | Battery not charged or not properly inserted. Safety lock engaged. | Ensure battery is fully charged and securely inserted. Press the trigger 3 times quickly to unlock. |
| Blades cut poorly or get stuck. | Blades are dull, dirty, or not lubricated. Cutting material is too thick. | Clean and sharpen blades. Apply lubricant. Do not attempt to cut branches exceeding the maximum capacity. |
| Battery drains quickly. | Battery not fully charged. Old or damaged battery. | Ensure battery is fully charged before use. Consider replacing the battery if it's old or shows signs of damage. |
| Unusual noise during operation. | Debris in mechanism. Loose parts. | Remove battery and inspect for debris. Tighten any loose screws. If noise persists, contact customer support. |
8. Specifications
| Feature | Specification |
|---|---|
| Brand | DCA |
| Model Number | ADYD02-35(ADW-EU01) |
| Item Weight | 1.36 Kilograms |
| Blade Material | High Carbon Steel (SK5) |
| Handle Material | Rubber |
| Hand Orientation | Ambidextrous |
| Cutting Width (Max) | 35 Millimeters |
| Battery Type | Li-ion (20V, 2.0Ah) |
| Charging Time | Approx. 1 hour |
| Included Components | Charger, SK5 Steel Blades, Disassembly Wrench, Sharpening Stone, Hex Key, Lubricant, Holster + Strap |
9. Warranty and Support
DCA products are manufactured to high-quality standards. For warranty information, please refer to the warranty card included with your product or visit the official DCA website.
If you require technical assistance, replacement parts, or have any questions regarding your DCA ADYD02-35 Cordless Pruning Shears, please contact DCA customer support through their official channels.
- Online Support: Visit the official DCA website for FAQs and support contact information.
- Email Support: Refer to your product packaging or warranty card for email contact.
