MELOKEA F047 Office Chair Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective use of your MELOKEA F047 Office Chair. Designed for comfort and durability, this XXL ergonomic chair is built to support users up to 200 kg and is certified to European standard EN 12520 for household chairs, ensuring high standards of safety and performance. Please read these instructions carefully before assembly and use.

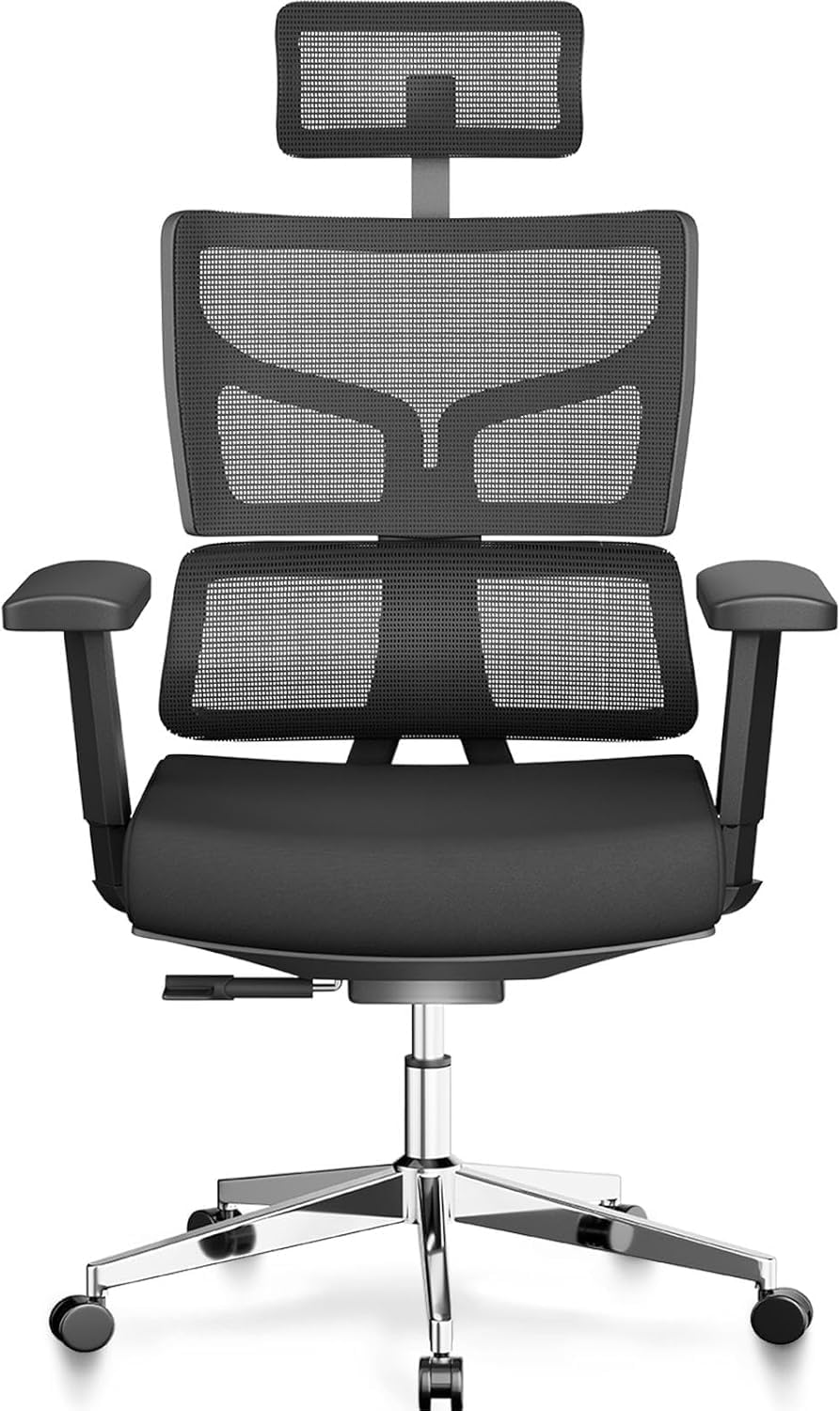

Figure 1: Front view of the MELOKEA F047 Office Chair, showcasing its ergonomic design and robust build.

2. Safety Information

• Maximum Load Capacity: This chair is designed to support a maximum weight of 200 kg (approximately 440 lbs). Do not exceed this limit to prevent damage or injury.
• User Height Range: The chair is suitable for individuals with a body height between 160 cm and 202 cm.
• Stability: The chair has successfully passed EN 12520 stability tests. Ensure all components are securely fastened before use.
• Assembly: Follow the provided assembly instructions precisely. Incorrect assembly can lead to instability and potential hazards.
• Maintenance: Regularly inspect all bolts and connections to ensure they remain tight. Tighten as necessary.

3. Setup and Assembly

Your MELOKEA F047 Office Chair requires assembly. A detailed, easy-to-understand assembly manual is included in the product packaging. Please refer to this manual for step-by-step instructions and diagrams. An official video tutorial for assembly is also available to guide you through the process. Ensure all parts are present before beginning assembly.

4. Operating Instructions

The MELOKEA F047 Office Chair offers multiple adjustment options for personalized comfort and support.

4.1. Seat Height Adjustment

• To adjust the seat height, locate the lever on the right side beneath the seat.
• To raise the seat: Lift the lever while taking your weight off the seat. Release the lever at the desired height.
• To lower the seat: Lift the lever while seated. Release the lever at the desired height.
• The seat height can be adjusted between 47 cm and 56 cm.

4.2. Dynamic Lumbar Support

The MELOKEA ReliefBack Max ergonomic chair features dynamic lumbar support that automatically adapts to the curve and movements of your lower back. This system provides continuous, precise support without manual adjustment, promoting a healthy posture during extended periods of sitting.

4.3. Weight-Activated Mechanism

This desk chair incorporates an innovative weight-activated mechanism. It automatically detects the user's weight and intelligently adjusts the tilt resistance of the backrest. This eliminates the need for manual tension adjustments, providing a smooth and natural recline experience. The system has passed EN 12520 stability tests, ensuring safe operation.

4.4. Custom Settings for Comfort

• Headrest Adjustment: The headrest can be adjusted in height by up to 5 cm and swiveled by 60° to provide optimal cervical support. Adjust by gently pushing or pulling the headrest to the desired position.
• 3D PU Armrest Adjustment: The armrests are 10 cm wide and offer three-dimensional adjustments:
  • Height: Adjustable by 7 cm. Locate the button on the side of the armrest and press to adjust.
  • Depth: Adjustable by 5 cm. Slide the armrest pad forward or backward.
  • Rotation: Rotates by 30°. Twist the armrest pad to the desired angle.
• Reclining Backrest with Three-Angle Lock: The backrest can be reclined and locked into three distinct angles: 95° (upright for work), 110° (relaxed posture), and 122° (deep recline for rest). Use the lever on the left side beneath the seat to unlock, recline to the desired angle, and then push the lever back to lock.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your MELOKEA F047 Office Chair.

• Cleaning: Use a soft, damp cloth to wipe down plastic and metal parts. For the breathable mesh fabric, a mild soap solution and a soft brush can be used for spot cleaning. Avoid harsh chemicals or abrasive cleaners.
• Inspection: Periodically check all screws, bolts, and connections to ensure they are tight. Re-tighten any loose fasteners to maintain stability and safety.
• Wheels: Keep the heavy-duty PU wheels clean from debris (hair, dust) to ensure smooth movement.
• Gas Lift: The SGS and TÜV certified gas lift is maintenance-free under normal use. Do not attempt to disassemble it.

6. Troubleshooting

If you encounter any issues with your MELOKEA F047 Office Chair, please refer to the following common solutions:

• Chair feels wobbly: Check all assembly screws and bolts. Tighten any that are loose. Ensure the base is correctly attached to the gas lift.
• Seat height adjustment not working: Ensure the lever is fully engaged. Check for any obstructions beneath the seat mechanism. If the gas lift is faulty, contact customer service.
• Backrest recline not locking: Ensure the recline lock lever is fully pushed into the locked position. Check for any obstructions in the mechanism.
• Squeaking noises: Apply a small amount of silicone-based lubricant to moving parts or connection points, avoiding the gas lift. Ensure all bolts are tight.

For issues not resolved by these steps, please contact MELOKEA customer service for assistance.

7. Specifications

8. Warranty and Support

MELOKEA is committed to providing high-quality products and excellent customer service.

• After-Sales Service: We offer a 5-year after-sales service for your MELOKEA F047 Office Chair.
• Defective Parts: In the event that your product presents any problems or defective parts, we offer a free replacement of the affected components.
• Contact Support: If you have any questions, require assistance with assembly, or need to claim warranty service, please contact MELOKEA customer service through the retailer's platform or our official website. Our team is available to offer a satisfactory solution.
