KU XIU K2 3-in-1 Magnetic Portable Charger User Manual

1. Introduction

Thank you for choosing the KU XIU K2 3-in-1 Magnetic Portable Charger. This device is a versatile Qi2 certified 15W fast charging power bank designed to charge your iPhone 16-12 series, Apple Watch, and AirPods simultaneously. Its compact, foldable design and integrated stand make it an ideal companion for daily use and travel. Please read this manual carefully to ensure proper use and optimal performance.

Image: The KU XIU K2 3-in-1 Magnetic Portable Charger in Space Gray, shown with an iPhone magnetically attached and an Apple Watch charging on its dedicated pad. The device is compact and features a foldable stand.

2. Package Contents

Please check the package for the following items:

• 1 x KU XIU K2 5000mAh Magnetic Power Bank
• 1 x USB-C Cable
• 1 x User Manual (this document)

Note: A 20W+ adapter is recommended for optimal performance and is not included.

3. Product Features

• Qi2 Certified 15W Wireless Charging: Supports 15W fast wireless charging for compatible iPhones (iPhone 16-12 series), offering twice the speed of older Qi standards.
• 3-in-1 Charging Station: Combines a 5000mAh power bank with a charging station for iPhone, Apple Watch Ultra 2/Ultra/S10/9/8/7/6/5/4/3/2/SE, and AirPods 4/3/2/Pro/Pro 2.
• 90° Rotation & Adjustable Stand: Features a rotating watch charging area and an adjustable stand for convenient viewing while charging.
• Pocket-Sized & Portable: Ultra-slim design (0.55 inches thick, 0.4 lbs weight) for easy portability, meeting aviation standards.
• Multi-Protect Safety System: Equipped with a high-quality smart chip and multiple protections including over-voltage, over-charge, over-current, and short-circuit protection.

Image: The KU XIU K2 charger demonstrating its Qi2 certification and magnetic alignment with an iPhone, highlighting its advanced wireless charging capabilities.

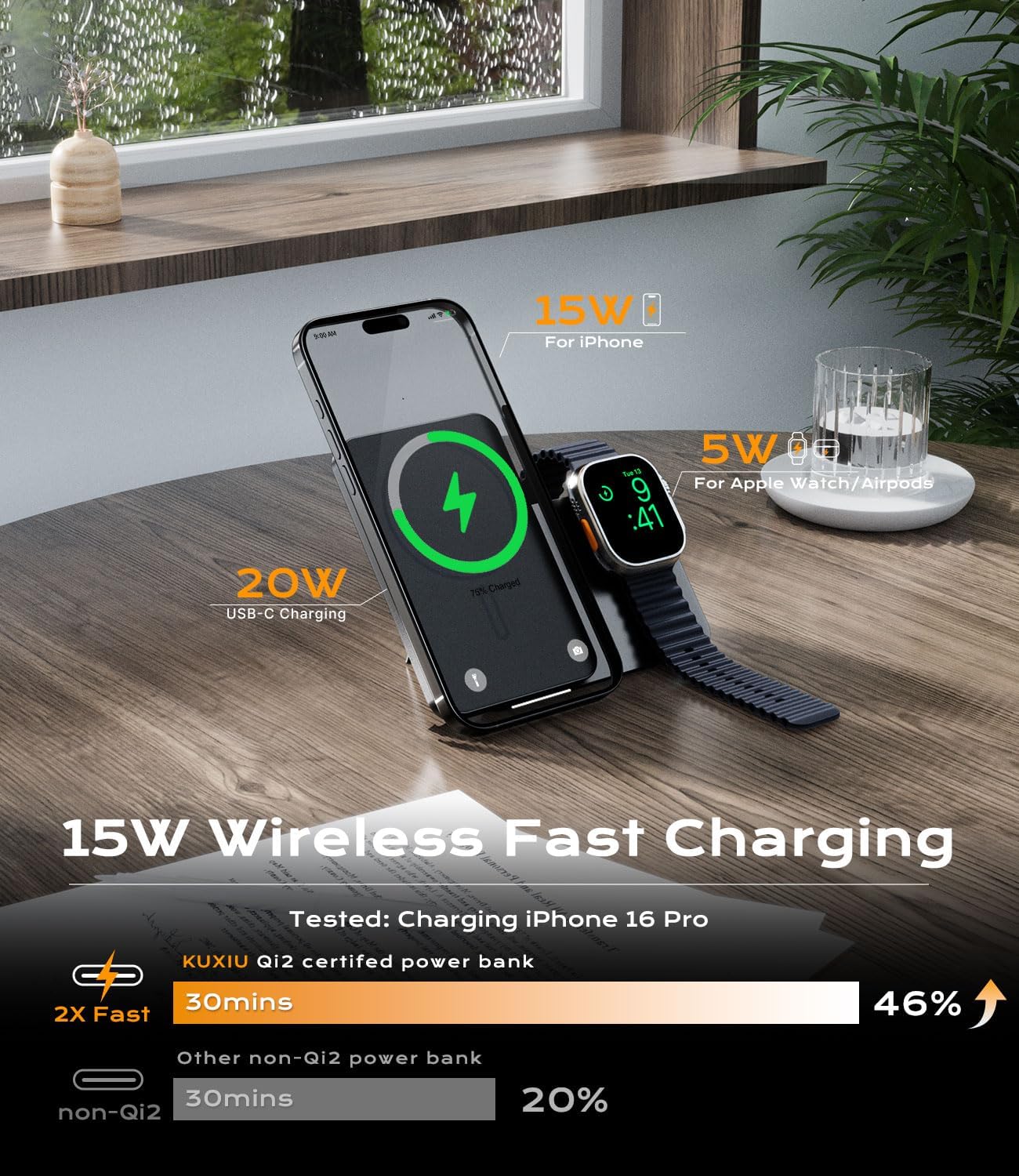

Image: A graphic illustrating the official Qi2 certification and a comparison of 15W fast charging speed (46% in 30 minutes) versus non-Qi2 charging (20% in 30 minutes).

4. Setup

4.1 Initial Charging of the Power Bank

Before first use, fully charge your KU XIU K2 power bank. Connect the provided USB-C cable to the power bank's USB-C port and the other end to a 20W or higher power adapter (not included). The indicator lights on the power bank will show the charging progress.

4.2 Preparing for Use

Ensure your devices (iPhone, Apple Watch, AirPods) are compatible with wireless charging and MagSafe for optimal magnetic attachment.

5. Operating Instructions

5.1 Charging an iPhone (Magnetic Wireless Charging)

Align your MagSafe-compatible iPhone (iPhone 16-12 series) with the magnetic charging area on the power bank. The magnets will snap into place, and charging will begin automatically. The power bank supports 15W wireless charging for fast power delivery.

5.2 Charging an Apple Watch

To charge your Apple Watch, rotate the watch charging area out from the main body of the power bank. Place your Apple Watch on the dedicated charging puck. Press the power button once on the power bank to initiate charging for the Apple Watch. The watch charging area supports Apple Watch Ultra 2/Ultra/S10/9/8/7/6/5/4/3/2/SE.

5.3 Charging AirPods

The watch charging area also supports AirPods 4 noise-canceling version. Additionally, the phone charging area works with AirPods Pro/Pro 2/3. Place your AirPods case on the appropriate charging area. For the watch/AirPods charging area, remember to press the power button once to activate charging.

5.4 Using as a Charging Stand

The power bank features an adjustable kickstand. Extend the stand to prop up your iPhone for hands-free viewing while it charges. This is ideal for video calls or media consumption.

Image: The KU XIU K2 charger in its unfolded state, simultaneously charging an iPhone via magnetic wireless connection and an Apple Watch on its dedicated charging pad.

Image: A collage showing the KU XIU K2 in different scenarios: being used as a stand for an iPhone, held in hand while charging, and being used on a desk for charging multiple devices.

Image: A visual representation of the KU XIU K2's multiple charging options, including charging an iPhone and Apple Watch, an iPhone and AirPods, and an iPhone alone, highlighting its versatility.

Important Note: The device does not support simultaneous charging of all three devices (iPhone, Apple Watch, and AirPods) at the same time. It can charge two devices concurrently (e.g., iPhone + Apple Watch, or iPhone + AirPods).

6. Maintenance

• Keep the device dry. Do not expose it to moisture or extreme temperatures.
• Clean the surface with a soft, dry cloth. Do not use harsh chemicals or abrasive materials.
• Store the power bank in a cool, dry place when not in use.
• Avoid dropping or subjecting the device to strong impacts.

7. Troubleshooting

7.1 Device Not Charging / Slow Charging

• Ensure the power bank itself is sufficiently charged.
• Verify that your power adapter is 20W or higher for optimal charging speed.
• Check the USB-C cable for any damage and ensure it is securely connected.
• For Apple Watch/AirPods charging, remember to press the power button once to activate the charging area.
• Ensure proper alignment of your iPhone on the magnetic charging pad.
• Remove any thick phone cases that might interfere with wireless charging.

7.2 Device Getting Hot During Use

It is normal for charging devices to generate some heat. However, if the device becomes excessively hot to the touch, discontinue use immediately and allow it to cool down. Ensure adequate ventilation around the charger and connected devices. Avoid charging in direct sunlight or enclosed spaces. If overheating persists, contact customer support.

7.3 Not Charging All Three Devices Simultaneously

As stated in the features, this charger supports charging two devices concurrently (e.g., iPhone + Apple Watch, or iPhone + AirPods), but not all three at the exact same time.

7.4 Inaccurate Battery Gauge

The battery indicator provides an approximate charge level. For precise battery status, it is recommended to fully charge and discharge the power bank periodically to recalibrate the gauge.

8. Specifications

Image: The KU XIU K2 power bank being slipped into a pocket, illustrating its ultra-slim profile (0.55 inches) and light weight (0.4 lbs) for easy portability.

Image: A diagram showing the KU XIU K2's compatibility with iPhone 16/15/14/13/12 series, Apple Watch Ultra 2/Ultra/S10/Series 9-2/SE, and AirPods 4/3/2/Pro/Pro 2, with a note about activating watch charging.

9. Safety Information

• Do not disassemble, modify, or repair the device yourself.
• Avoid exposing the device to extreme temperatures (above 45°C/113°F or below 0°C/32°F) or direct sunlight for prolonged periods.
• Keep the device away from water, fire, and corrosive substances.
• Do not use the device if it is damaged or has been dropped.
• Keep out of reach of children.
• Use only the provided or certified cables.
• If the device becomes excessively hot during charging, disconnect it immediately and contact customer support.

10. Warranty and Support

KU XIU offers 12 months of professional after-sales support for this product. If you encounter any issues or have questions, please contact KU XIU customer service through your purchase platform or the official KU XIU website for assistance.
