Product Overview
The GoYeel Bathroom Light Fixture is a modern vanity light designed to enhance the illumination and aesthetic of your bathroom, living room, or bedroom. Featuring a sleek black and gold finish with clear glass cylindrical shades, this fixture supports E26 base bulbs (not included) and is dimmable when used with compatible bulbs and dimmer switch. Its versatile design allows for both upwards and downwards installation.
Image: The GoYeel Black and Gold 4-Light Vanity Fixture, showcasing its modern design with clear glass shades and exposed bulbs.
Setup and Installation
Before beginning installation, ensure the power supply to the area is turned off at the circuit breaker. It is recommended to have a qualified electrician perform the installation if you are not familiar with electrical wiring.
Components Included:
- Light Fixture Body (Black and Gold)
- Clear Glass Shades (4 pieces)
- Mounting Hardware (screws, wire nuts, mounting plate)
- Instruction Manual
Note: E26 base bulbs are NOT included and must be purchased separately.
Installation Steps:
- Prepare the Area: Turn off power at the main circuit breaker. Clear the installation area.
- Attach Mounting Plate: Secure the mounting plate to the junction box in the wall using the provided screws. Ensure it is firmly attached.
- Wire Connections: Connect the fixture's wires to the corresponding household wires (black to black, white to white, ground to ground) using wire nuts. Ensure all connections are secure.
- Mount the Fixture: Carefully align the fixture body with the mounting plate and secure it with the decorative nuts or screws.
- Install Glass Shades: Gently attach each clear glass cylindrical shade to its respective lamp holder.
- Insert Bulbs: Screw in four E26 base bulbs (max 60W each) into the sockets.
- Restore Power: Turn the power back on at the circuit breaker and test the light fixture.
Image: Diagram showing the dimensions of the GoYeel 4-Light Vanity Fixture. The fixture measures approximately 27.6 inches in length, 7.9 inches in height, and extends 4.7 inches from the wall, with each glass shade being 3.9 inches wide.

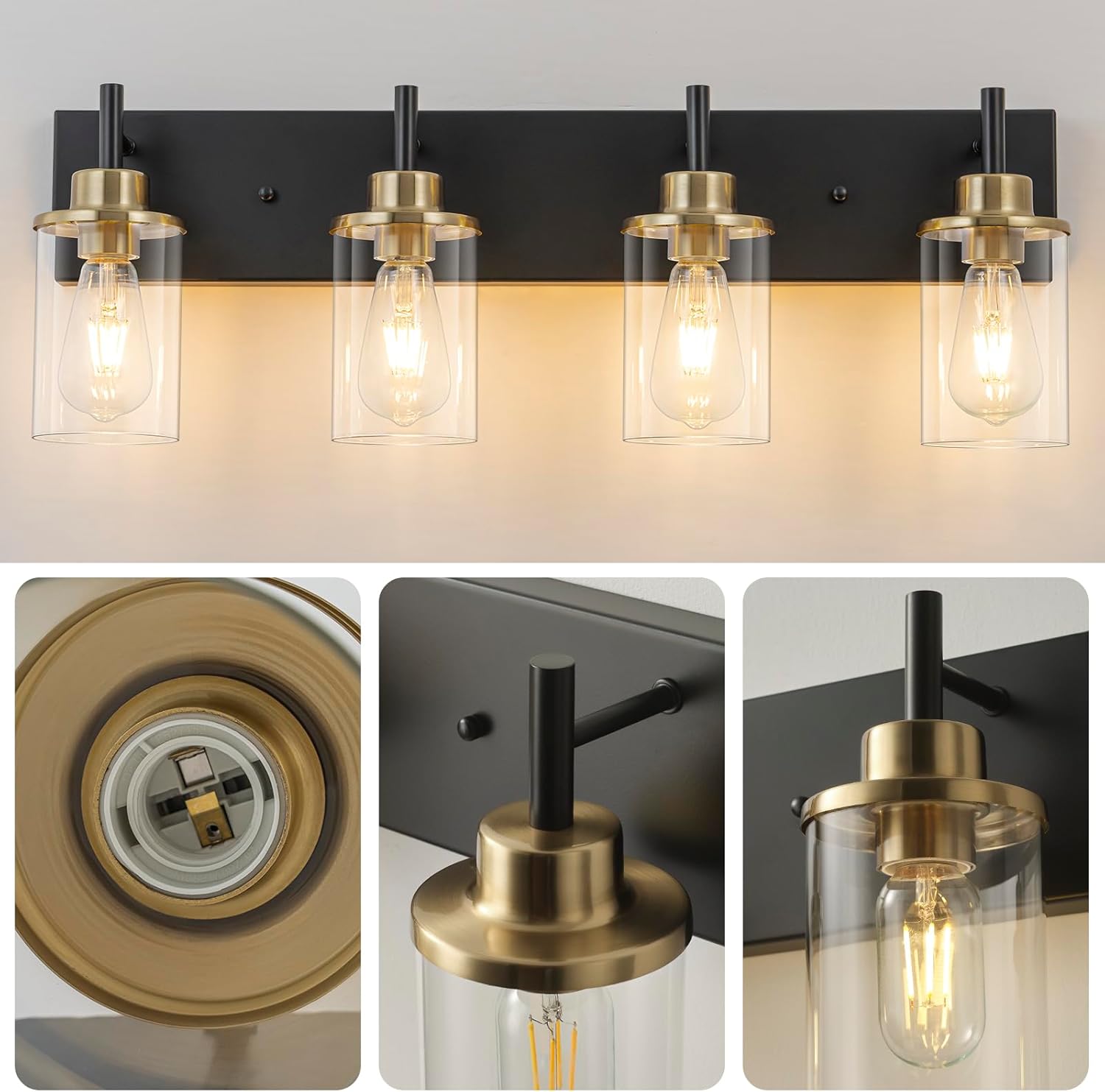

Image: Detailed view of the light fixture's components, including the E26 bulb base, the black metal arm, and the brass-finished socket, highlighting the quality of materials.
Operating Instructions
Once installed, the GoYeel Bathroom Light Fixture operates like any standard wall-mounted light. It is controlled by your wall switch.
Dimmable Functionality:
This vanity light fixture is fully dimmable. To utilize the dimming feature, you must use dimmable E26 base bulbs and a compatible dimmer switch (both sold separately). Install the dimmable bulbs and connect the fixture to a dimmable circuit with the appropriate switch to control the light intensity.
Image: A side-by-side comparison showing the GoYeel vanity light fixture in an "OFF" state (left) and an "ON" state (right), demonstrating the illumination provided when active.
Maintenance
Regular maintenance will help preserve the appearance and functionality of your light fixture.
Cleaning:
- Always turn off the power to the fixture before cleaning.
- Wipe the metal parts with a soft, dry cloth. Avoid abrasive cleaners or polishes as they may damage the finish.
- The glass shades can be removed and washed with mild soap and water, then thoroughly dried before reinstallation.
Bulb Replacement:
- Ensure the fixture is cool and the power is off before replacing bulbs.
- Unscrew the old E26 base bulb counter-clockwise.
- Screw in a new E26 base bulb (LED, CFL, or incandescent) clockwise. Do not exceed 60 watts per bulb.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. |
|
|
| Light flickers or dims improperly. |
|
|
| Glass shade is loose. |
|
|
If issues persist after attempting these solutions, please consult a qualified electrician or contact GoYeel customer support.
Specifications
| Feature | Detail |
|---|---|
| Brand | GoYeel |
| Model Name | Vanity Light Light (Model 01) |
| Color | BlackGold 4 L |
| Material | Glass, Metal |
| Style | Modern |
| Light Fixture Form | Vanity |
| Product Dimensions | 8"L x 6"W x 27"H |
| Indoor/Outdoor Usage | Indoor |
| Power Source | Corded Electric |
| Installation Type | Semi Flush Mount |
| Special Feature | Dimmable |
| Light Source Type | Edison/Incandescent/LED/Energy Saving |
| Shade Material | Glass |
| Number of Light Sources | 4 |
| Voltage | 110 Volts |
| Wattage | 60 watts (per bulb, max) |
| Bulb Base | E26 |
| Mounting Type | Wall Mount |
| Assembly Required | Yes |
| Item Weight | 7.04 pounds |
Warranty and Support
GoYeel is committed to customer satisfaction. While specific warranty details are not provided in this manual, if you have any questions or encounter issues with your 4-light bathroom vanity light, please contact GoYeel customer service. Refer to your purchase documentation or the seller's contact information for support.
