1. Safety Information
Please read and understand all instructions before beginning installation. Failure to follow these instructions may result in electric shock, fire, or other hazards that could cause property damage or personal injury.
- Always turn off power at the circuit breaker before installing or servicing the fixture.
- Ensure all electrical connections comply with local codes and ordinances, as well as the National Electric Code (NEC).
- Consult a qualified electrician if you are unsure about the installation process.
- Do not attempt to modify the fixture in any way.
- This fixture is designed for outdoor use only and is IP65 waterproof.
2. Product Overview
The ledmo Model EZ1329 is a 12W LED outdoor wall light designed for modern exterior lighting. It provides bright, energy-efficient illumination for areas such as porches, entryways, and patios. Constructed from durable double-layer aluminum, it features an IP65 waterproof rating for reliable performance in various weather conditions.
Image: The ledmo 12W LED Outdoor Wall Light, showcasing its modern square design and bright illumination.
Video: A brief overview highlighting the high quality and features of the ledmo LED wall light.
3. Specifications
| Feature | Detail |
|---|---|
| Brand | ledmo |
| Model Name | EZ1329 (LED porch light outdoor) |
| Wattage | 12 watts |
| Brightness | 1000 Lumens |
| Color Temperature | 6000K (Daylight) |
| Voltage | 110 Volts (AC) |
| Material | Acrylic, Aluminum (Die Cast Aluminum Frame) |
| Color | Black |
| Product Dimensions | 6.29"L x 6.29"W x 3.39"H |
| Item Weight | 1.23 pounds |
| Water Resistance Level | IP65 Waterproof |
| Installation Type | Semi Flush Mount |
| Special Features | Energy Efficient, Lightweight, Shatterproof, Waterproof |
| Indoor/Outdoor Usage | Outdoor |
Image: Visual representation of the light's dimensions and key specifications.
Image: Details on the double-layer PC protection and aluminum heat dissipation base.
Image: Illustrations of the light's waterproof, snowproof, heat-resistant, and windproof capabilities.
4. Package Contents
Verify that all components are present before beginning installation:
- 1 x ledmo 12W LED Outdoor Wall Light Fixture
- Mounting Hardware
- Instruction Manual
5. Setup and Installation
This LED wall light is designed for easy installation and can be completed by one person in approximately 5 minutes. Ensure power is OFF at the circuit breaker before starting.
- Prepare the Fixture: Carefully remove the bottom plate from the light fixture.
- Mount the Plate: Fix the bottom plate securely to the wall using the provided mounting hardware. Ensure it is level and stable.
- Connect Wiring: Connect the power cord wires according to standard electrical practices:
- Black wire: Connect to the Live/Hot wire.
- White wire: Connect to the Neutral wire.
- Green wire: Connect to the Ground wire.
- Attach Light Body: Carefully fix the main light body onto the mounted bottom plate, ensuring it clicks or screws into place securely.
- Restore Power: Once installation is complete and all connections are secure, restore power at the circuit breaker.

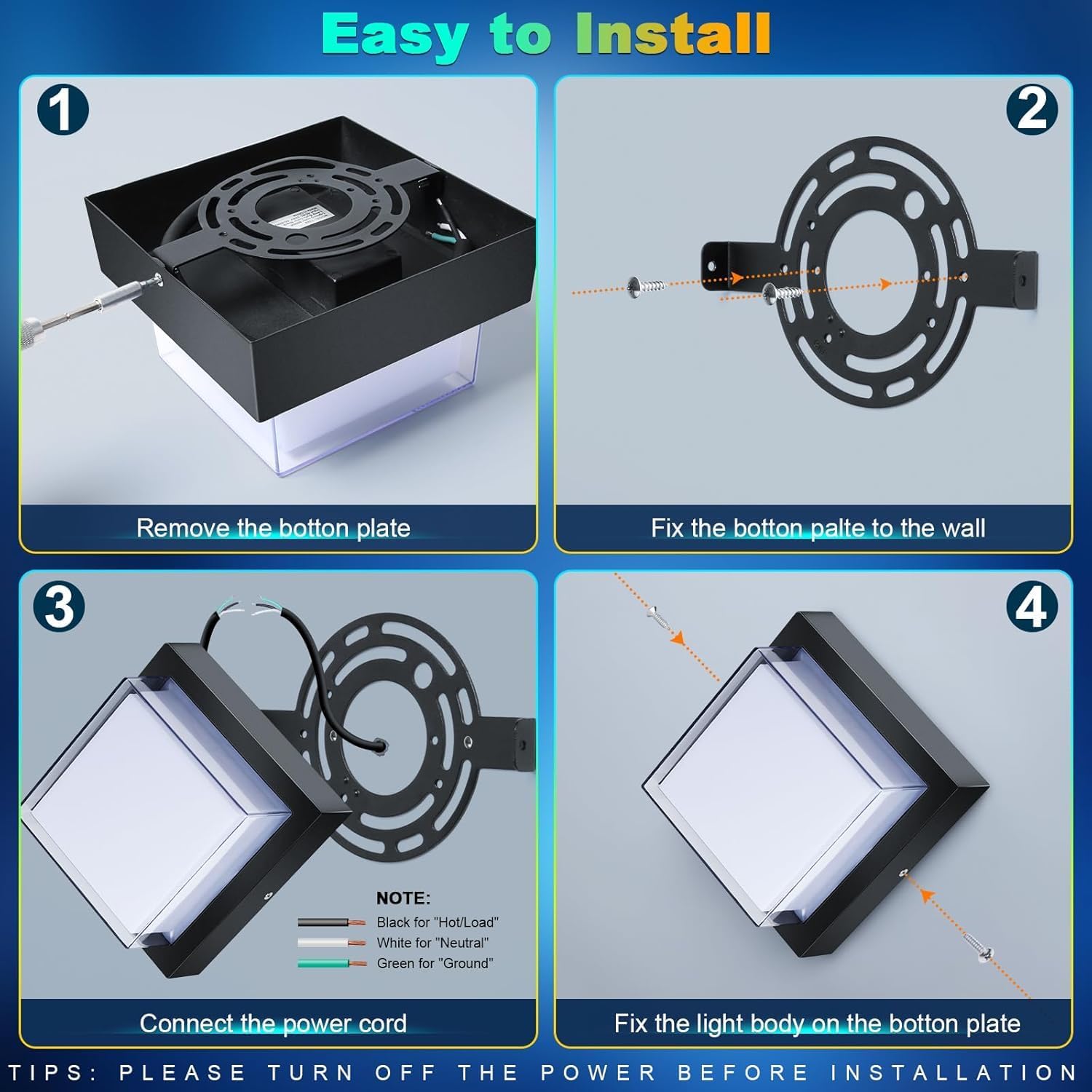

Image: Step-by-step visual guide for installing the ledmo LED wall light.
6. Operating Instructions
The ledmo 12W LED Outdoor Wall Light operates as a standard hardwired fixture. It is controlled by an external wall switch (not included).
- Turning On/Off: Use the connected wall switch to turn the light fixture ON or OFF.
- Light Output: The fixture provides a consistent 6000K daylight white light at 1000 lumens. It is not dimmable and does not offer color grading.
Image: The ledmo wall light installed on a porch, providing bright illumination.
Image: Examples of the ledmo wall light's versatile application in both indoor and outdoor environments.
7. Maintenance
Regular maintenance helps ensure optimal performance and longevity of your LED wall light.
- Cleaning: Periodically clean the exterior of the fixture with a soft, damp cloth. Do not use abrasive cleaners or solvents. Ensure power is OFF before cleaning.
- Inspection: Annually inspect the fixture for any signs of damage, loose connections, or wear. If any issues are found, consult a qualified electrician for repair or replacement.
- LED Longevity: LED components are designed for long life and do not require bulb replacement.
8. Troubleshooting
If your ledmo LED wall light is not functioning as expected, refer to the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power to the fixture. | Check the circuit breaker and wall switch. Ensure power is restored. |
| Light is dim or flickers. | Loose wiring connection or faulty power supply. | Turn off power at the circuit breaker. Inspect wiring connections for tightness. If the issue persists, consult a qualified electrician. |
| Water inside the fixture. | Improper sealing during installation or damage to the housing. | Turn off power immediately. Inspect the fixture for cracks or gaps. Ensure all screws are tightened and seals are intact. If damage is present, replace the fixture. |
9. Warranty and Support
This ledmo product comes with a 5-Year Protection period. If you encounter any problems after purchasing, please contact ledmo customer support for assistance.
For further support or inquiries, please visit the official ledmo store on Amazon: ledmo Store.
