Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your BOTLOG 67" Kitchen Pantry Cabinet. Designed for efficient kitchen storage, this cabinet features 5 doors, 2 drawers, a microwave stand, and 3-tier external shelves. Please read these instructions carefully before beginning assembly and retain them for future reference.

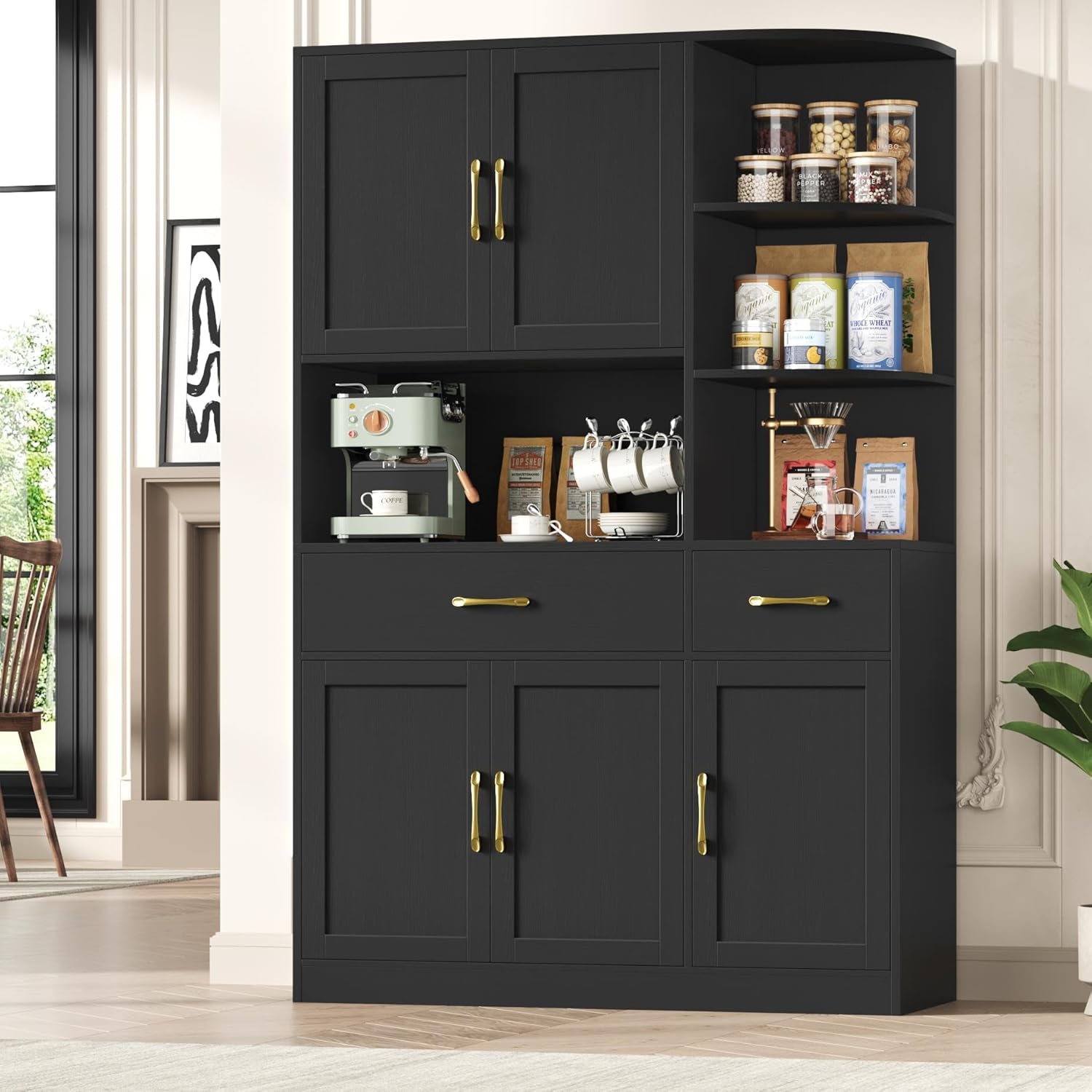

Image: The BOTLOG 67" Kitchen Pantry Cabinet in black, showcasing its design and storage capabilities in a kitchen environment.
Important Safety Information
- Always secure the cabinet to the wall using the provided anti-tip kit to prevent accidental tipping.
- Do not overload the cabinet shelves or drawers, as this may compromise stability. The maximum weight limit is 130 pounds.
- Ensure all screws and fasteners are securely tightened during assembly and periodically check for tightness.
- Keep small parts away from children during assembly to prevent choking hazards.
Image: Detail of the anti-toppling device, which must be installed to secure the cabinet to a wall for safety.
Setup and Assembly
The BOTLOG Kitchen Pantry Cabinet requires assembly. Each part is numbered, and detailed graphic instructions are included in the packaging to guide you through the process. It is recommended to have a second person assist with lifting and connecting larger components.
Assembly Steps Overview:
- Unpack all components and verify against the parts list provided in the instruction manual.
- Assemble the base frame according to the graphic instructions.
- Attach side panels and internal shelves.
- Install the drawers and their slides.
- Mount the doors and adjust hinges as needed (refer to Troubleshooting for hinge adjustment).
- Install the anti-tip kit to securely fasten the cabinet to a wall.
For detailed, step-by-step instructions, please refer to the separate assembly manual included with your product.
Operation and Features
Your BOTLOG Kitchen Pantry Cabinet is designed to maximize storage and organization in your kitchen or dining area. It features multiple compartments to accommodate various items.
Storage Areas:
- Upper Cabinets (2 doors): Ideal for storing items you wish to keep out of sight, such as pantry staples or less frequently used appliances.
- Microwave Stand: A dedicated open space for your microwave or other small kitchen appliances, featuring a cable management hole for neat wiring.
- Deep Drawers (2): Two central drawers of different sizes (Large: 11.3"D x 24.4"W x 4.5"H; Small: 11.3"D x 11.3"W x 4.5"H) provide concealed storage for utensils, snacks, or other small items.
- Lower Cabinets (3 doors): Offers additional enclosed storage for larger items like pots, pans, or dinnerware.
- 3-Tier External Shelf: Located on the side, these open shelves are perfect for displaying decorative items, cookbooks, or frequently accessed ingredients.

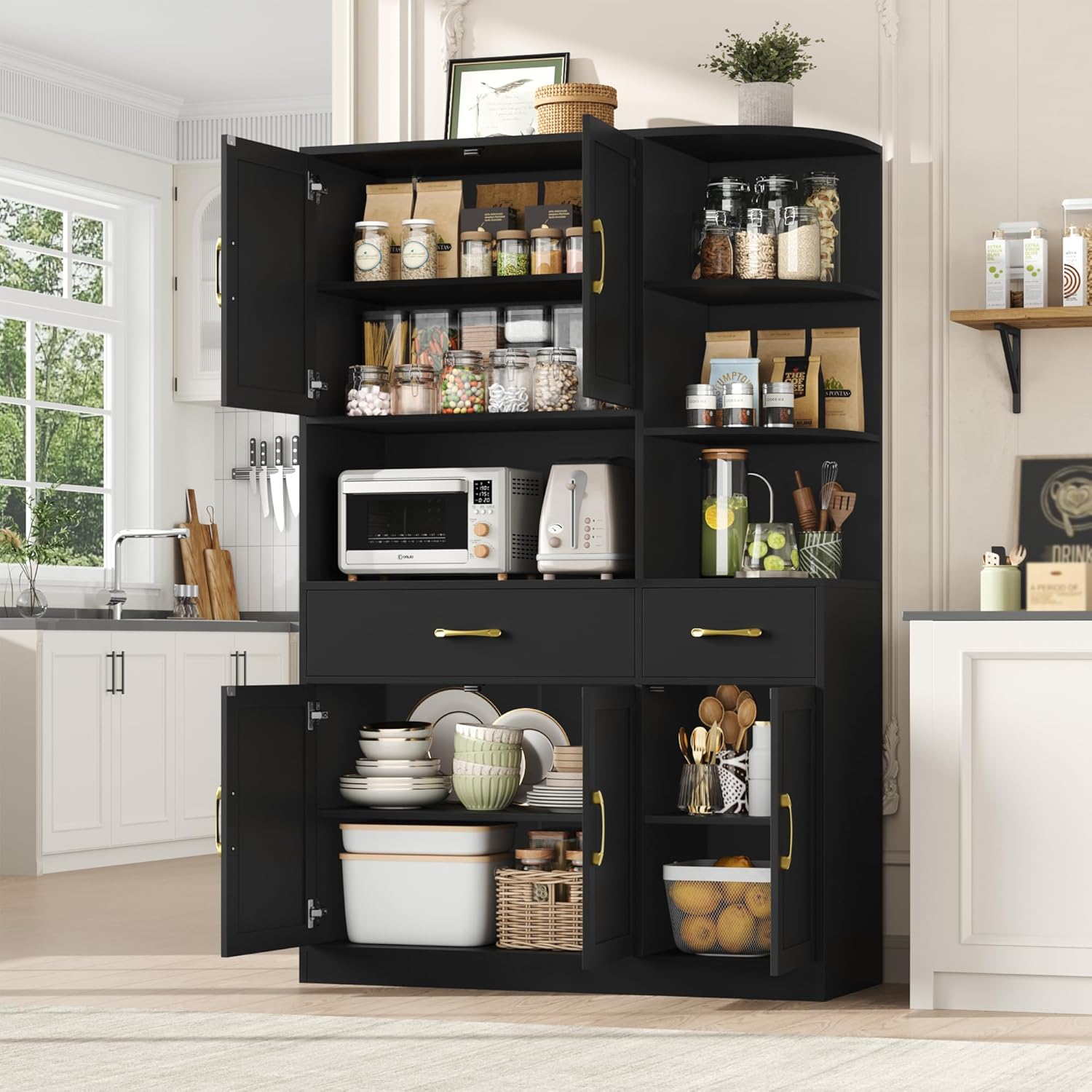

Image: The cabinet with doors open, demonstrating its versatile storage compartments for dishes, appliances, and pantry items.
Image: An illustrative diagram highlighting the different storage zones: upper cabinets, microwave stand, two deep drawers, lower cabinets, and 3-layer side shelves.
Image: Detail of the cable management hole, designed to keep appliance cords tidy within the microwave stand area.
Maintenance
Proper maintenance will ensure the longevity and appearance of your pantry cabinet.
- Cleaning: Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish. Dry immediately with a clean cloth.
- Hardware: Periodically check all screws, bolts, and hinges to ensure they remain tight. Tighten any loose hardware to maintain stability.
- Anti-Tip Kit: Regularly inspect the anti-tip kit to confirm it is securely attached to both the cabinet and the wall.
- Spills: Clean up spills immediately to prevent moisture damage to the MDF wood.
Troubleshooting
If you encounter issues with your cabinet, refer to the following common solutions:
- Doors are crooked or misaligned: The hinges are adjustable.
- Adjusting door depth (inward/outward): Use screw 1 on the hinge to adjust the door's position relative to the cabinet frame.
- Adjusting door horizontally (left/right): Use screw 2 on the hinge to move the door left or right, correcting gaps between doors.
Image: Hinge adjustment points. Screw 1 adjusts door depth, and Screw 2 adjusts horizontal alignment.
- Cabinet feels unstable: Ensure the anti-tip kit is properly installed and all assembly screws are tightened. Verify the cabinet is on a level surface.
- Drawers do not slide smoothly: Check that the drawer slides are correctly installed and free of obstructions. Ensure all screws on the slides are tight.
- Missing parts or damaged components: Refer to the contact information in the Support section to request replacement parts.
Specifications
| Feature | Detail |
|---|---|
| Brand | BOTLOG |
| Model Name | YSZ-PB |
| Color | Black |
| Product Dimensions | 13.4"D x 41.3"W x 67"H |
| Item Weight | 116.2 Pounds |
| Material | Engineered Wood (MDF) |
| Mounting Type | Freestanding |
| Number of Doors | 5 |
| Number of Drawers | 2 |
| Number of Shelves | 10 (including internal and external) |
| Weight Limit | 130 Pounds |
| Assembly Required | Yes |
Image: Dimensional drawing of the cabinet, showing overall height, width, depth, and internal compartment measurements, along with shelf weight limits.
Warranty and Support
Warranty Information:
Specific warranty details for the BOTLOG YSZ-PB Kitchen Pantry Cabinet are typically provided with your purchase documentation. Please refer to the warranty card or contact the manufacturer directly for information regarding coverage and terms.
Customer Support:
For assistance with assembly, missing parts, or any other product-related inquiries, please contact BOTLOG customer service. You can typically find contact information on the packaging, the manufacturer's official website, or through your retailer's support channels.
When contacting support, please have your model name (YSZ-PB) and purchase date available.
