EUGAD Swivel Bar Stool (Model 1091BY-1) Instruction Manual

Introduction

Thank you for choosing the EUGAD Swivel Bar Stool. This manual provides essential information for the safe assembly, operation, and maintenance of your new bar stool. Please read these instructions carefully before use and retain them for future reference.

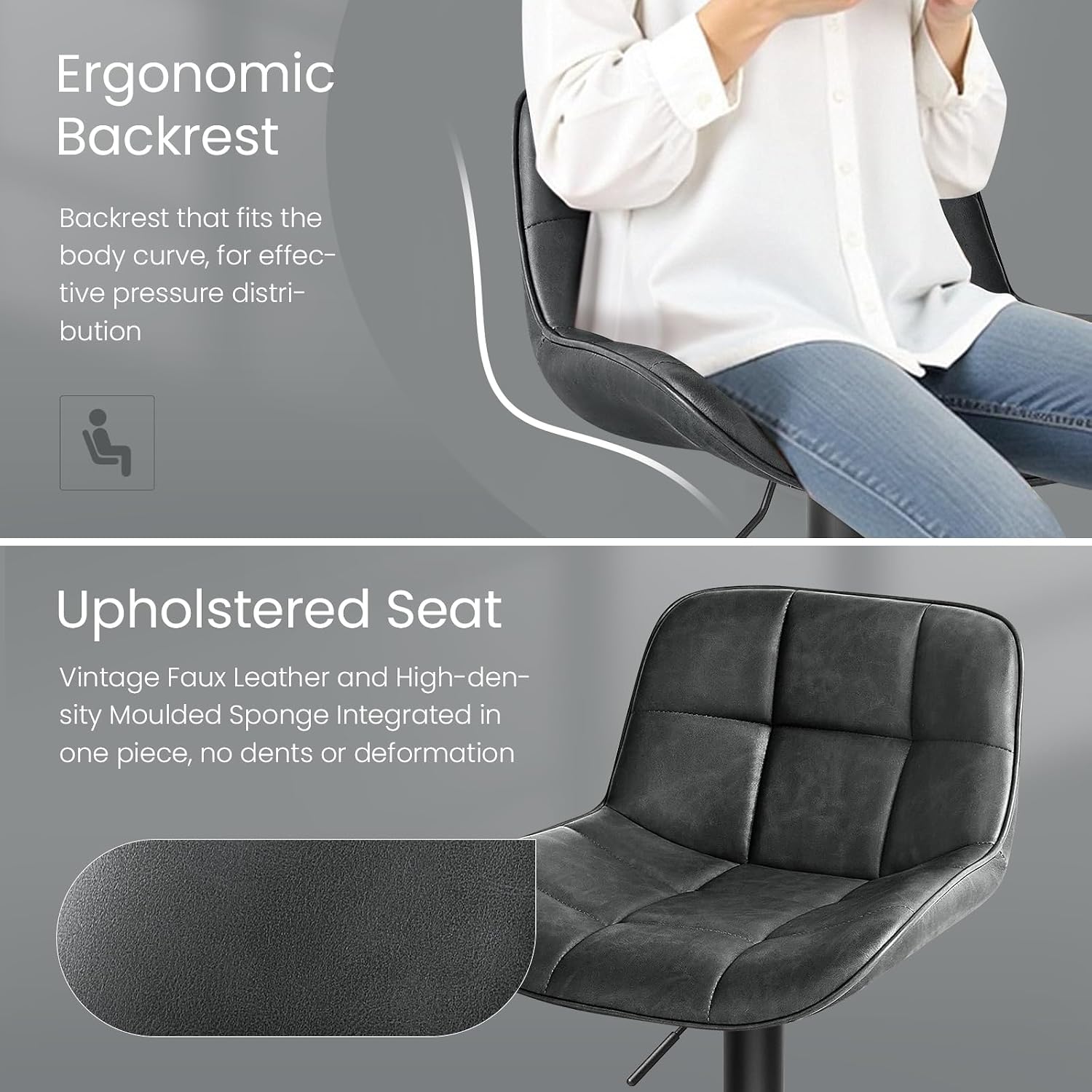

This bar stool is designed for enhanced comfort, featuring synthetic leather upholstery, high-density foam padding, and an ergonomic backrest and footrest. Its robust metal frame and wide base ensure stability and durability, making it suitable for various settings such as breakfast bars, kitchen islands, counters, restaurants, and cafes.

Image: Front view of the EUGAD Swivel Bar Stool in anthracite faux leather.

Setup and Assembly

The EUGAD Swivel Bar Stool is designed for easy assembly. An assembly kit and the necessary tool are provided with your purchase. Please follow the illustrated step-by-step instructions included in the packaging for proper and safe assembly.

Assembly Tips:

• Ensure all components are present before beginning assembly. Refer to the parts list in your included manual.
• Assemble the stool on a soft, clean surface to prevent scratches.
• Do not overtighten screws until all components are loosely fitted, then tighten securely.
• If you encounter any difficulties, refer to the detailed assembly guide provided in the product packaging.

Image: Various components of the EUGAD Swivel Bar Stool, including the seat, base, gas lift, and footrest ring, laid out for assembly.

Operating Instructions

Height Adjustment:

The bar stool features a quality gas lift mechanism for easy height adjustment. To adjust the height:

1. To raise the seat: While standing, pull the lever upwards. The seat will automatically rise. Release the lever at the desired height.
2. To lower the seat: While seated, pull the lever upwards. The seat will lower under your weight. Release the lever at the desired height.

The seat height is adjustable between 60 cm and 81.5 cm, accommodating various bar counter heights.

Swivel Function:

The stool is designed to swivel freely 360 degrees, allowing for easy movement and interaction without needing to reposition the entire stool.

Image: Diagram illustrating the adjustable height mechanism and 360-degree swivel function of the bar stool, along with icons for skin-friendly, water-repellent, and heavy-duty (150 kg) features.

Maintenance

Cleaning the Faux Leather Upholstery:

• Wipe the faux leather surface with a soft, damp cloth.
• For stubborn stains, use a mild soap solution and then wipe clean with a damp cloth. Avoid harsh chemicals or abrasive cleaners, as these can damage the material.
• The material is water-repellent, making it easy to clean spills promptly.

Base and Anti-Slip Ring:

• Regularly check the anti-slip ring located under the base. This ring helps protect your floor from scratches and reduces noise. Ensure it is clean and intact.
• Wipe the metal base with a dry or slightly damp cloth to remove dust and dirt.

General Care:

• Periodically check all screws and connections to ensure they remain tight. Retighten if necessary.
• Avoid exposing the stool to direct sunlight or extreme temperatures for prolonged periods, as this may affect the material's longevity.

Image: Close-up views of the EUGAD Swivel Bar Stool highlighting the checkered pattern of the seat, the practical footrest, and the anti-slip rubber ring on the base.

Troubleshooting

Difficulty Adjusting Height:

• Ensure the gas lift lever is fully engaged when attempting to adjust the height.
• If the seat does not rise, ensure no weight is on the seat. If it does not lower, apply full body weight while pulling the lever.
• Check for any obstructions around the gas lift mechanism.

Stool Feels Unstable:

• Verify that all assembly screws are securely tightened.
• Ensure the stool is placed on a flat, even surface.
• Check the anti-slip ring under the base for any damage or uneven placement.

Squeaking Noises:

• Tighten all screws and bolts.
• Apply a small amount of silicone-based lubricant to moving parts if necessary, avoiding contact with upholstery.

Product Specifications

Image: Detailed diagram of the EUGAD Swivel Bar Stool showing key dimensions including seat width, backrest height, and overall adjustable height range.

Warranty and Support

Information regarding specific warranty terms and spare parts availability is not provided in the product details. For any warranty claims, technical support, or inquiries about spare parts, please contact the seller or manufacturer directly through your purchase platform.

Please retain your proof of purchase for any warranty-related requests.
