PET MARVEL Smart Self-Cleaning Cat Litter Box C1 User Manual

Introduction

The PET MARVEL Smart Self-Cleaning Cat Litter Box C1 is an automatic litter management system designed for convenience and pet well-being. This open-top unit features a 70L capacity, suitable for multiple cats weighing between 3.3 and 22 lbs (1.5–10 kg). It incorporates a 4-layer smart safety system, odor control, and smart app health monitoring capabilities. The design prioritizes ease of maintenance and compatibility with various clumping litters.

Figure 1: Overview of the PET MARVEL Smart Self-Cleaning Cat Litter Box C1.

Setup

1. Unboxing: Carefully remove all components from the packaging. Verify that all included items are present: the litter box unit, power adapter, odor control box, special garbage bag roll, and user manual.


Figure 2: Included components of the PET MARVEL C1 Litter Box.

2. Placement: Place the litter box on a flat, stable surface in a well-ventilated area. Ensure there is sufficient space around the unit for proper operation and cleaning.
3. Power Connection: Connect the power adapter to the litter box and plug it into a standard electrical outlet.
4. Litter Filling: Fill the litter compartment with clumping cat litter. The unit is compatible with most clumping litters under 15mm. Do not overfill; refer to the internal fill line.
5. Odor Control Installation: Install the enzyme deodorizer into its designated slot to activate the odor control system.
6. Waste Bag Installation: Place a special drawstring waste bag in the waste drawer. Ensure the bag is properly seated and the drawstrings are accessible for sealing.
7. App Connection (2.4GHz WiFi): Download the PET MARVEL app from your device's app store. Follow the in-app instructions to connect the litter box to your 2.4GHz WiFi network for smart monitoring and control.

Operating Instructions

The PET MARVEL C1 offers automatic cleaning and smart monitoring features to simplify litter management.

Automatic Cleaning Cycle

The litter box automatically initiates a cleaning cycle after your cat exits the unit. The internal mechanism sifts the litter, separating waste into the sealed waste drawer below. This process is designed to be quiet and efficient.

Smart Safety System

The unit is equipped with a 4-layer smart safety system to protect your pet:

• Infrared Sensors: Detect presence near the entrance.
• Gravity Sensors: Detect the cat's weight inside the litter box.
• Distance Sensors: Monitor the area around the unit.
• Anti-Pinch Sensors: Prevent injury during operation.

These sensors ensure that the cleaning cycle immediately stops if a cat is detected nearby or inside the litter box, resuming only when the area is clear.

Figure 3: The 4-layer smart safety system in action, detecting a cat's presence.

APP Health Monitoring

Connect the litter box to the PET MARVEL app via 2.4GHz WiFi to access real-time monitoring features:

• Track your cat’s toilet frequency and duration.
• Monitor litter levels.
• Receive instant alerts for abnormalities, such as a full waste bin or cleaning errors.

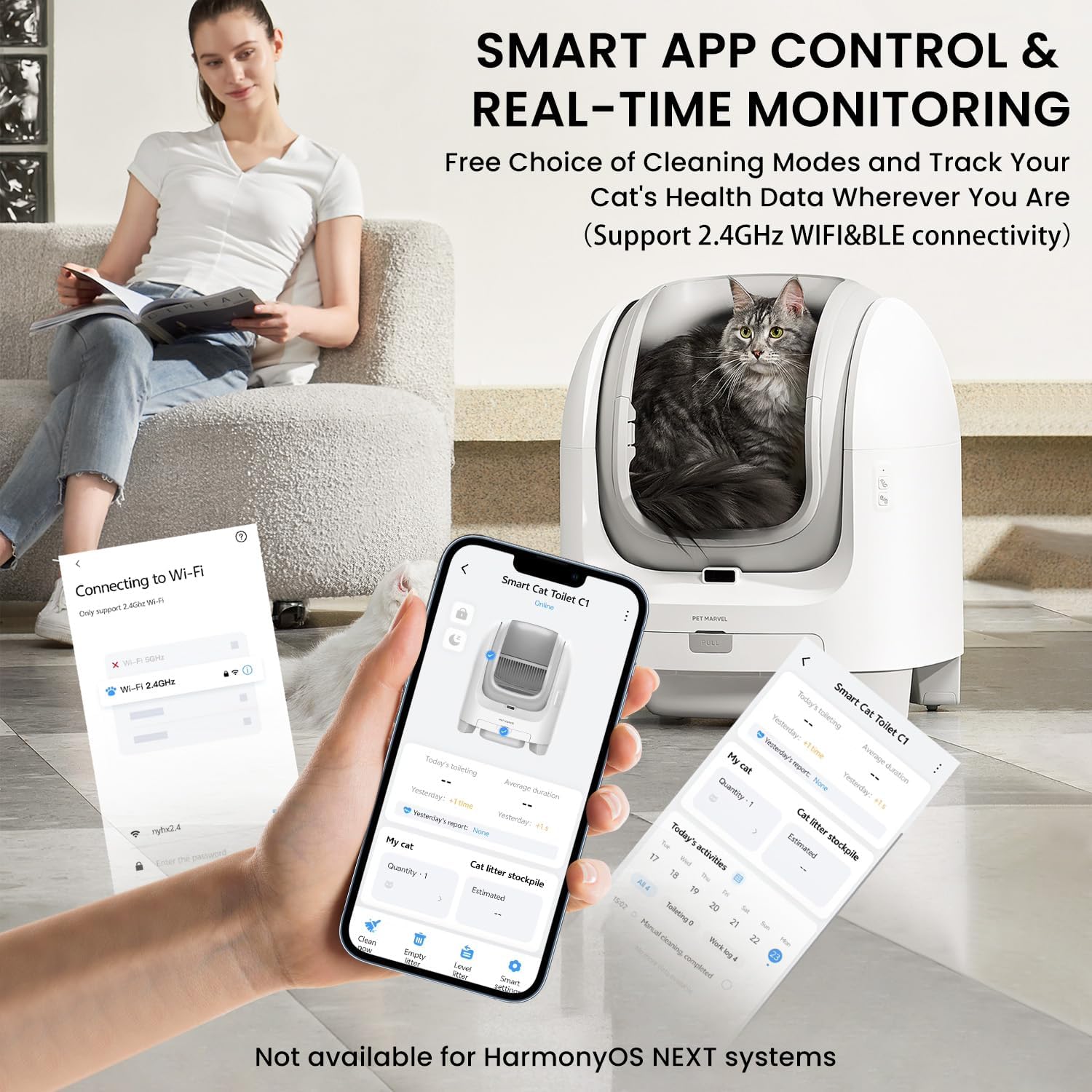

Figure 4: Smart app control and real-time monitoring features.

Maintenance

Regular maintenance ensures optimal performance and hygiene of your PET MARVEL C1 litter box.

Waste Disposal

The waste drawer utilizes drawstring bags for easy and hygienic disposal. When the app or indicator light signals a full bin, simply pull the drawstrings to seal the bag and remove it for disposal. Replace with a new bag.

Litter Replacement

To replace all litter, use the one-click empty function. This feature tilts the internal bucket to transfer all used litter into the waste drawer, eliminating the need for manual scooping.

Cleaning the Unit

The PET MARVEL C1 is designed for tool-free disassembly, allowing for thorough cleaning. The internal liner is leak-proof, scratch-resistant, and tear-resistant, making it durable and easy to clean with water and a brush.

Figure 5: Easy disassembly for thorough cleaning.

Figure 6: Key features highlighting the liner and cleaning process.

Troubleshooting

This section addresses common questions and issues you might encounter with your PET MARVEL C1 litter box.

Figure 7: Frequently Asked Questions for the C1 Litter Box.

• Q1: How do I replace the litter in the C1 litter box?
  A1: Activate the One-Touch Tilt Litter System. Press the button to tilt the bucket and transfer used litter directly into the waste drawer—no manual scooping required.
• Q2: How often should I clean it for two cats? Will odors develop?
  A2: The 9L waste drawer holds waste for two cats for up to 10 days. The triple-sealed odor control system (deodorizer + sealed waste bags) prevents daily smells.
• Q3: Will cats scratch the interior of the C1?
  A3: The C1 litter box is made of very hard-wearing ABS and triple-proof cloth, which has been tested for 10,000+ scratches, so you can rest assured that you will be able to use it.
• Q4: Can I use any bag in the waste drawer?
  A4: Yes, the waste drawer is compatible with most standard-sized bags. However, we recommend using C1-specific odor-lock bags (Search B0D8G8I6YV) for seamless fit and direct waste contact avoidance.

Specifications

Warranty and Support

Warranty Information

The PET MARVEL Smart Self-Cleaning Cat Litter Box C1 comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. Please retain your proof of purchase for warranty claims.

Customer Support

For technical assistance, troubleshooting, or warranty inquiries, please contact PET MARVEL customer support. Refer to the contact information provided on the product packaging or the official PET MARVEL website.
