WAYXIN M910 Motorcycle Headset Accessories User Manual

1. Product Overview

This manual provides detailed instructions for the WAYXIN M910 Motorcycle Headset Accessories. These components are designed to enhance your motorcycle intercom system, offering clear audio and secure mounting. Please note that this package includes only the accessories: microphone, speakers, and mounting bracket. The main intercom unit is sold separately.

2. Package Contents

Upon opening the package, verify that all the following components are present:

• Stereo Speakers (2 units) with integrated wiring and 3.5mm jack.
• Flexible Boom Microphone with noise cancellation.
• Mounting Bracket (clamp type) for secure helmet attachment.
• USB Type-C Charging Cable (for compatible intercom units, not for these accessories directly).

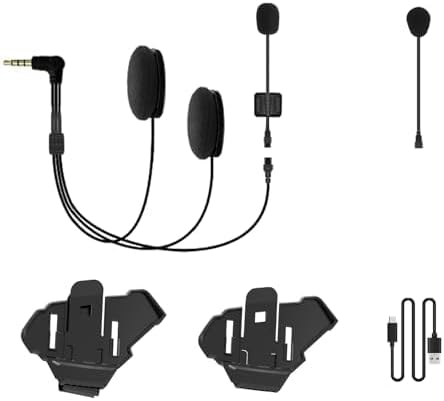

Figure 2.1: Components of the WAYXIN M910 Accessory Kit. This image displays the two helmet speakers connected to a 3.5mm audio jack, a flexible boom microphone, two clamp-style mounting brackets, and a USB Type-C charging cable.

3. Features

• Sound Quality: Clear stereo speakers with optimized sound reproduction for best communication on the go.
• Microphone: Flexible boom microphone with noise cancellation, ensuring clear voice transmission even at speed.
• Mounting: Heavy-duty clamp mount bracket for secure attachment, fitting different helmet types.
• Connection: Type C universal plug & play with standard communication systems (referring to the main intercom unit's compatibility).

4. Setup and Installation

Proper installation ensures optimal performance and safety. Follow these steps carefully:

1. Prepare Your Helmet: Clean the inner surface of your helmet where the speakers and microphone will be placed. Ensure it is dry and free of debris.
2. Install Speakers:
   • Identify the ear pockets inside your helmet.
   • Peel off the adhesive backing from the speakers (if applicable, or use provided Velcro).
   • Carefully position and press each speaker firmly into the ear pockets, ensuring they are centered over your ears for best audio.
   • Route the speaker wires neatly along the helmet's interior lining towards the intended location of your intercom unit.
3. Install Microphone:
   • Determine the best position for the boom microphone, typically on the left side of the helmet, extending towards your mouth.
   • Secure the microphone base using its adhesive or clip mechanism within the helmet's chin bar area.
   • Adjust the flexible boom so the microphone is approximately 1-2 cm from your mouth, avoiding direct contact.
4. Attach Mounting Bracket:
   • Select a suitable flat edge on the left side of your helmet for the clamp mount.
   • Loosen the screws on the clamp bracket and slide it onto the helmet edge, ensuring a secure grip.
   • Tighten the screws firmly but do not overtighten, as this may damage the helmet.
   • Alternatively, if using an adhesive mount (not included in this specific kit but common), clean the surface thoroughly before applying.
5. Connect to Intercom Unit: Plug the 3.5mm audio jack from the speaker/microphone assembly into the corresponding audio input port on your WAYXIN intercom unit. Ensure the connection is firm.

5. Operating Instructions

These accessories function as input/output devices for your main WAYXIN intercom unit. Once properly installed and connected, their operation is dependent on the intercom unit itself.

• Audio Output: Sound from your intercom unit (e.g., music, navigation, communication) will be played through the helmet speakers.
• Audio Input: Your voice will be captured by the boom microphone for communication with other riders or phone calls.
• Volume Control: Adjust volume directly on your WAYXIN intercom unit or connected device.
• Microphone Mute: If your intercom unit supports it, you can mute the microphone via the intercom's controls.

6. Maintenance

To ensure the longevity and optimal performance of your WAYXIN M910 accessories, follow these maintenance guidelines:

• Cleaning:
  • Wipe speakers and microphone with a soft, dry cloth.
  • For stubborn dirt, slightly dampen the cloth with water. Do not use harsh chemicals or abrasive cleaners.
  • Ensure all components are completely dry before re-installation or storage.
• Storage: Store the accessories in a cool, dry place away from direct sunlight and extreme temperatures when not in use.
• Cable Care: Avoid sharp bends or kinks in the cables. Do not pull on the cables to disconnect them; always grasp the plug.
• Mounting Bracket: Periodically check the mounting bracket for tightness and signs of wear. Re-tighten screws if necessary.

7. Troubleshooting

If you encounter issues with your WAYXIN M910 accessories, refer to the following common troubleshooting steps:

If the issue persists after trying these steps, please contact WAYXIN customer support or refer to the user manual of your main intercom unit.

8. Specifications

9. Warranty and Support

For warranty information and customer support, please refer to the documentation provided with your main WAYXIN intercom unit or visit the official WAYXIN website. Keep your purchase receipt as proof of purchase for any warranty claims.

For technical assistance or inquiries regarding the M910 accessories, please contact WAYXIN customer service directly.
