1. Introduction
Thank you for choosing the Renogy 200W ShadowFlux Solar Panel. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your solar panel. Please read this manual thoroughly before installation and keep it for future reference.
2. Safety Information
Always observe the following safety precautions to reduce the risk of electric shock, fire, or injury:
- Do not attempt to disassemble, repair, or modify the solar panel.
- Handle the solar panel with care. Avoid dropping or subjecting it to strong impacts.
- Ensure all electrical connections are secure and properly insulated to prevent short circuits.
- Wear appropriate personal protective equipment (PPE) including insulated gloves and eye protection during installation and maintenance.
- Do not touch the exposed ends of wires when the panel is exposed to sunlight, as it can generate voltage.
- Keep the panel away from flammable gases or liquids.
- Consult a qualified electrician or installer for complex installations or if you are unsure about any steps.
3. Product Overview
3.1 Key Features
- ShadowFlux Technology: Proprietary cell-level shadow countermeasure technology enhances power generation even under partial shading from buildings, vegetation, or dirt. This can increase power output by over 30% compared to conventional panels.
- Hotspot Prevention: Designed with an electrical structure that prevents hotspot formation, ensuring stable power supply even with varying sunlight angles.
- High Efficiency N-Type Cells: Utilizes N-type cells and 16 busbar technology to achieve up to 25% efficiency. Reduces light-induced degradation for high reliability and extended lifespan.
- Compact and Lightweight Design: Approximately 7% smaller and 10% lighter than traditional PERC panels, allowing for effective use of limited space and easier handling and installation.
- Durable and Weather-Resistant: Performs excellently in both high and low temperatures. IP67 rated for durability, capable of withstanding harsh weather conditions including snow, rain, and small hail.
3.2 Components and Construction
The Renogy ShadowFlux Solar Panel is constructed with advanced layered materials for longevity and high performance.
Image: Layered construction of the solar panel. Components include low-iron tempered glass, POE film, composite film, corrosion-resistant aluminum frame, A+ grade N-type cells, IP67 junction box, IP67 connectors, and a backsheet.

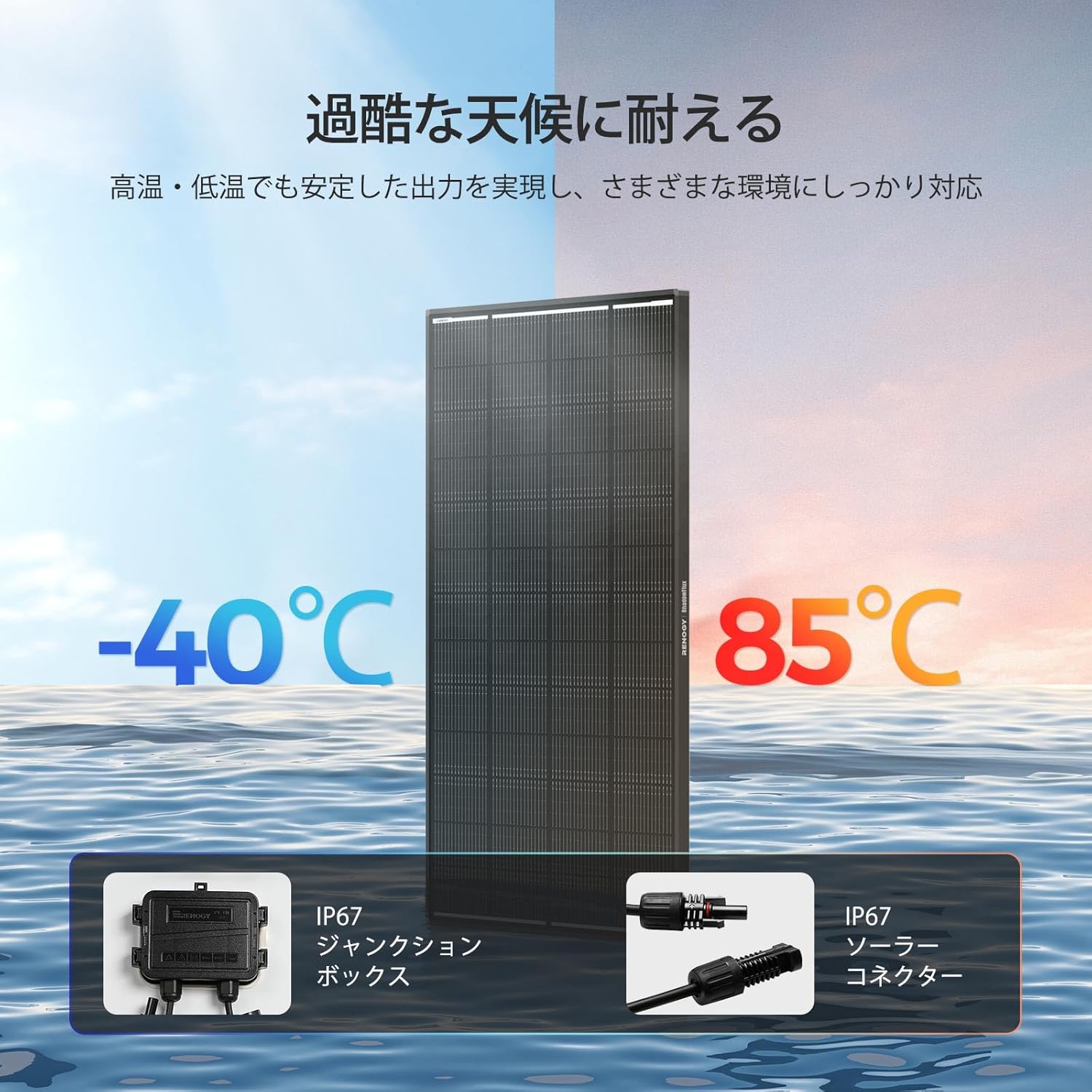

Image: The panel is designed to withstand temperatures from -40°C to 85°C and features an IP67 rated junction box and connectors for robust weather resistance.
4. Setup and Installation
The Renogy ShadowFlux Solar Panel is designed for easy setup with pre-drilled holes, allowing for various mounting options.
4.1 Site Selection
- Choose a location that receives maximum direct sunlight throughout the day.
- Minimize shading from trees, buildings, or other obstructions.
- Ensure the mounting surface is strong enough to support the weight of the panel and withstand wind loads.
4.2 Mounting Options
The panel can be installed in various configurations:
- Roof Mount: Securely attach to residential or commercial rooftops.
- Flat Mount: Ideal for flat surfaces, often using adjustable tilt mounts.
- Ground Mount: Installed on the ground using a support structure.
- Rack Mount: Suitable for RVs, boats, or custom installations.
Image: Examples of easy setup and installation methods for the solar panel, including roof, flat, ground, and rack mounting options.
4.3 Electrical Connection
- Connect the solar panel to a compatible charge controller and battery bank.
- Ensure correct polarity (+ to + and - to -) when making connections.
- Use appropriate gauge wiring for the distance and current to minimize power loss.
- All connections should be tight and weatherproof.
5. Operating Instructions
Once installed and connected, the Renogy ShadowFlux Solar Panel will automatically begin generating electricity when exposed to sunlight. The charge controller will regulate the power flow to your battery bank.
- Monitor your charge controller for system status and battery charge levels.
- Ensure the panel is not intentionally or unintentionally shaded for prolonged periods to maximize energy harvest.
- The ShadowFlux technology helps maintain output even with partial shading, but full sun exposure is always optimal.
Image: Output reduction comparison test showing the superior performance of the 200W ShadowFlux solar panel under shaded conditions compared to conventional 200W solar panels.
Image: Stable output in response to changing shadows, demonstrating excellent performance and consistent power supply even with varying sun angles, as shown on a boat installation.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your solar panel.
- Cleaning: Periodically clean the surface of the solar panel with a soft cloth and water to remove dust, dirt, leaves, bird droppings, or snow. Avoid abrasive materials or harsh chemicals.
- Inspection: Regularly inspect the panel for any physical damage, such as cracks in the glass, loose frames, or damaged cables.
- Connections: Check electrical connections for corrosion or looseness. Ensure all wiring is intact and properly secured.
- Shading: Trim any vegetation that may grow and cause shading on the panel.
Image: Examples of common obstructions like leaves, dust, snow, bird droppings, and shadows from trees or surrounding objects that can affect solar panel performance. Regular cleaning and maintenance are recommended.
7. Troubleshooting
If your solar panel system is not performing as expected, consider the following common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Low or no power output | Panel is shaded; dirty panel surface; loose or corroded connections; faulty charge controller or battery. | Remove shading; clean panel surface; check and tighten all connections; test charge controller and battery. |
| Hotspots on panel | Partial shading or damage to cells. | Ensure even sunlight exposure. The ShadowFlux technology minimizes hotspot risk, but severe shading can still cause issues. Inspect for physical damage. |
| System not charging | Incorrect wiring; faulty charge controller; discharged battery. | Verify wiring polarity; check charge controller settings and functionality; test battery voltage. |
If problems persist, contact Renogy customer support for assistance.
8. Specifications
Detailed technical specifications for the Renogy 200W ShadowFlux Solar Panel:
| Attribute | Value |
|---|---|
| Brand | Renogy |
| Model Number | RSP200DC-ASR |
| Product Dimensions | 76.4 x 3 x 126.2 cm |
| Weight | 10.81 kg |
| Maximum Power | 200 Watts |
| Efficiency | Ultra-high efficiency (up to 25% cell efficiency) |
| Included Components | Solar Panel |
| Waterproof Rating | IP67 |
| Cell Type | N-Type Cell with 16 Busbar Technology |
Image: Product dimensions (764mm width, 1262mm length, 30mm thickness) and weight (10.81kg). Illustrates diverse usage scenes including RVs, homes, boats, solar carports, and farms.
9. Warranty and Support
Renogy provides comprehensive warranty coverage for the ShadowFlux Solar Panel:
- 5-Year Product Warranty: Covers defects in materials and workmanship.
- 25-Year Performance Warranty: Guarantees power output retention over time:
- 95% power output retention for the first 5 years.
- 90% power output retention for the first 10 years.
- 80% power output retention for the first 25 years.
Image: Performance warranty details, highlighting 5 years of product warranty and 25 years of performance maintenance with specified output retention levels.
For technical support, warranty claims, or further inquiries, please contact Renogy customer service. Refer to the official Renogy website or your purchase documentation for contact details.
