AYJOIR Massage Recliner Power Lift Chair Instruction Manual

Introduction

Thank you for choosing the AYJOIR Massage Recliner Power Lift Chair. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new recliner. Please read all instructions carefully before use and retain this manual for future reference.

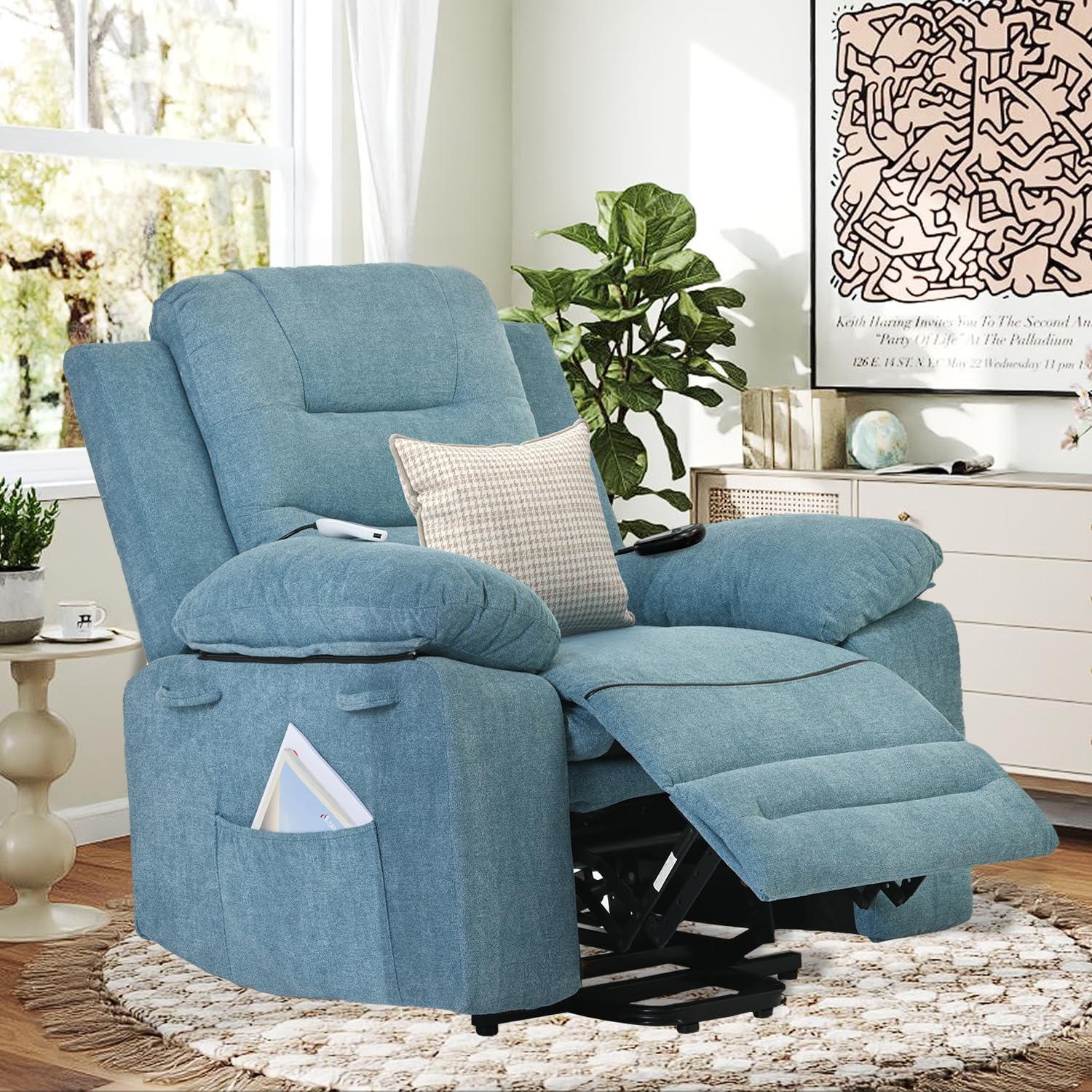

Figure 1: Assembled AYJOIR Massage Recliner Power Lift Chair.

Safety Information

• Ensure all components are securely assembled before use.
• Keep children and pets away from the chair's moving parts during operation.
• Do not place hands or feet under the chair while it is in motion.
• Avoid spilling liquids on the control panel or power connections.
• Unplug the chair from the power outlet before cleaning or maintenance.
• Do not exceed the maximum weight capacity of 250 lbs.
• If any unusual noise or malfunction occurs, discontinue use immediately and contact customer support.

Package Contents

Carefully unpack all items and ensure all parts are present. If any parts are missing or damaged, do not proceed with assembly and contact customer service.

• Main Chair Base
• Backrest
• Left Armrest
• Right Armrest
• Seat Cushion (Massage/Heating Pad)
• Headrest Cushion
• Lumbar Support Cushion
• Power Adapter
• Remote Control
• Instruction Manual (this document)

Figure 2: Key components of the recliner, including the main chair, seat cushion, and remote.

Setup and Assembly Instructions

Follow these steps to assemble your AYJOIR Massage Recliner Power Lift Chair. It is recommended to have two people for assembly.

1. Unpack Components: Carefully remove all parts from the packaging. Place the main chair base on a flat, stable surface.
2. Attach Armrests: Slide the left and right armrests onto the metal brackets on the sides of the main chair base until they click securely into place. Ensure the side pockets are facing outwards.
3. Prepare Seat Cushion: The massage and heating pad is integrated into the seat cushion. Carefully remove it from its vacuum-sealed packaging. Allow it to expand fully.
4. Install Backrest: Align the metal brackets on the backrest with the corresponding slots on the main chair base. Push down firmly until the backrest locks into position.
5. Connect Wires: Locate the power cables for the massage and heating functions. Connect the corresponding wires from the backrest and seat cushion to the main chair base. Ensure a secure connection.
6. Place Cushions: Insert the headrest and lumbar support cushions into their designated pockets on the backrest.
7. Connect Power: Connect the power adapter to the chair's power input, then plug the adapter into a standard electrical outlet. Connect the remote control cable to the designated port.

Figure 3: Detail of the armrest with storage pockets and the overstuffed headrest.

Operating Instructions

Your recliner is equipped with a remote control to manage its various functions. Ensure the chair is plugged into a power outlet before operation.

Remote Control Functions:

• Power Lift: Use the designated buttons on the remote to gently lift the chair, assisting you in standing up or sitting down.
• Recline Function: Press the recline buttons to adjust the backrest and footrest to your desired position, up to 135 degrees. The chair offers infinite positions for personalized comfort.
• Massage Modes: Select from 3 massage modes targeting the back, lumbar, thighs, and lower legs. Adjust the intensity between high and low settings.
• Heating Function: Activate the soothing warmth feature with 2 heat settings, concentrated around the lumbar area.
• USB Charging Port: A convenient USB port is located on the side of the chair for charging your electronic devices.

Figure 4: Recline positions, illustrating 95 degrees for reading and 135 degrees for napping.

Maintenance

Proper maintenance ensures the longevity and optimal performance of your recliner.

• Cleaning: For general cleaning, use a soft, damp cloth with mild soap. Avoid harsh chemicals or abrasive cleaners. For spills, blot immediately with a clean, dry cloth.
• Fabric Care: The chair is upholstered in premium velvet. Vacuum regularly using an upholstery attachment to remove dust and debris.
• Moving the Chair: When moving the chair, lift it rather than dragging to prevent damage to the base and flooring.
• Power Cord: Regularly inspect the power cord for any signs of damage. If damaged, contact customer support for a replacement.

Figure 5: Details of the chair's construction, highlighting high-density foam, premium velvet, and the metal reclining mechanism.

Troubleshooting

Specifications

Figure 6: Product dimensions for the AYJOIR Massage Recliner Power Lift Chair.

Warranty and Support

For warranty information, technical support, or to order replacement parts, please contact AYJOIR customer service. Refer to your purchase documentation for specific warranty terms and contact details.

You can also visit the official AYJOIR store on Amazon for more information: AYJOIR Store
