HoMedics SCL-BBC200-WT

HoMedics Digital Smart Scale User Manual

Model: SCL-BBC200-WT | Brand: HoMedics

1. Introduction and Overview

The HoMedics Digital Smart Scale is designed to provide accurate and comprehensive body composition analysis. Featuring a motion-sensing LED display and Bluetooth connectivity, it tracks 13 essential body metrics, helping you monitor your health and fitness journey with ease. The scale is built with a durable tempered glass platform and a base made from recycled materials, combining advanced technology with sustainable design.

HoMedics Digital Smart Scale in white with a smartphone displaying the companion app.
Figure 1: HoMedics Digital Smart Scale with companion app.

Key Features:

  • Best-in-Class Accuracy: Consistent, precise weight measurements with a high-visibility bright white LED display.
  • 13 Essential Body Measurements: Tracks weight, body fat, BMI, skeletal muscle, muscle mass, BMR, protein, subcutaneous fat, visceral fat, fat-free body weight, bone mass, body water, and metabolic age.
  • Comprehensive Health App: Free HoMedics Scales app for tracking daily metrics and progress.
  • Multi-User Friendly: Automatically recognizes multiple users, with specialized modes for babies and athletes. Supports up to 400 lbs.
  • Sustainability: Made with recycled materials.
  • Premium Materials: Large, high-strength tempered glass platform (11.8” x 11.8”).
  • Seamless Syncing: Bluetooth compatible with Apple Health, Google Fit, and Fitbit.

What's in the Box:

  • Homedics Glo Scale

2. Setup

2.1 Battery Installation

The HoMedics Smart Scale requires 4 AAA batteries (included). Open the battery compartment on the underside of the scale and insert the batteries, ensuring correct polarity (+/-). Close the compartment securely.

Diagram showing the HoMedics Smart Scale with four AAA batteries next to it, indicating battery installation.
Figure 2: Battery installation for the HoMedics Smart Scale.

2.2 App Download and Pairing

  1. Download the free HoMedics Scales app from the Apple App Store or Google Play Store.
  2. Enable Bluetooth on your smartphone.
  3. Open the HoMedics Scales app and follow the on-screen instructions to create your profile.
  4. Step onto the scale to activate it. The scale will automatically attempt to pair with your device via Bluetooth.
  5. Confirm the pairing within the app.
Multiple screenshots of the HoMedics Scales app interface on a smartphone, demonstrating Bluetooth compatibility and various tracking features for body metrics.
Figure 3: HoMedics Scales app interface and Bluetooth compatibility.

3. Operating Instructions

3.1 Taking a Measurement

  1. Place the scale on a hard, flat surface. Avoid carpets or uneven flooring.
  2. Step onto the scale barefoot. The motion-sensing ambient illumination will activate.
  3. Stand still on the scale until your weight is displayed on the LED screen.
  4. Your weight and other body composition data will automatically sync to the HoMedics Scales app on your paired smartphone.
HoMedics Smart Scale display showing weight in pounds, kilograms, and stone, highlighting the easy-to-read digital readout.
Figure 4: Easy-to-read digital display showing various weight units.

3.2 Understanding Body Metrics

The HoMedics Scales app provides detailed insights into 13 body composition metrics. Refer to the app for definitions and personalized tracking of each metric:

  • Weight
  • Body Fat
  • BMI (Body Mass Index)
  • Skeletal Muscle
  • Muscle Mass
  • BMR (Basal Metabolic Rate)
  • Protein
  • Subcutaneous Fat
  • Visceral Fat
  • Fat-Free Body Weight
  • Bone Mass
  • Body Water
  • Metabolic Age
HoMedics Smart Scale with icons representing the 13 essential body measurements: weight, body fat, BMI, skeletal muscle, muscle mass, BMR, protein, subcutaneous fat, visceral fat, fat-free body weight, bone mass, body water, and metabolic age.
Figure 5: Visual representation of the 13 essential body measurements.

3.3 Multi-User Recognition and Special Modes

The scale can automatically recognize multiple users based on their weight and body composition data. Ensure each user has a profile set up in the HoMedics Scales app. The app also offers specialized modes for babies and athletes to provide more accurate readings for specific user types.

4. Maintenance

4.1 Cleaning the Scale

To clean the scale, wipe the surface with a soft, damp cloth. Do not use abrasive cleaners or immerse the scale in water. Ensure the scale is completely dry before storage or next use.

4.2 Battery Replacement

When the display indicates low battery or becomes dim, replace all 4 AAA batteries. Always replace all batteries at the same time with new ones of the same type.

4.3 Storage

Store the scale in a cool, dry place. Avoid extreme temperatures or direct sunlight. For extended battery life, place the scale in a low-traffic area and use the low brightness setting for the ambient illumination.

Illustration of a foot approaching the HoMedics Smart Scale, demonstrating the ambient glow feature that illuminates from the center as a user approaches.
Figure 6: Ambient glow feature, which can be adjusted for brightness.

5. Troubleshooting

5.1 Common Issues and Solutions

  • Scale not turning on:
    Check battery installation. Ensure batteries are new and correctly inserted.
  • Inaccurate readings:
    Ensure the scale is on a hard, flat surface. Avoid carpets. Step onto the scale barefoot and stand still. Recalibrate by stepping on and off the scale quickly.
  • Bluetooth connection issues:
    Ensure Bluetooth is enabled on your smartphone. Make sure the scale is active (step on it briefly). Close and reopen the HoMedics Scales app. If issues persist, try unpairing and re-pairing the device in your phone's Bluetooth settings.
  • No body composition data in app:
    Ensure you are stepping on the scale barefoot. The bio-electrical impedance analysis (BIA) requires direct skin contact. Check that your profile is correctly set up in the app.
  • Display shows "Lo":
    Indicates low battery. Replace all batteries.
  • Display shows "Err":
    Indicates an error. Step off the scale, wait a few seconds, and step back on. If the error persists, contact customer support.

6. Specifications

FeatureSpecification
Model NumberSCL-BBC200-WT
Weight CapacityUp to 400 lbs (180 kg / 28 st 7 lb)
Display TypeBright White LED
Platform MaterialTempered Glass
Base Material100% Recycled Material
Dimensions11.8" x 11.8" x 0.2" (approx.)
Power Source4 x AAA Batteries
ConnectivityBluetooth
Compatible AppsHoMedics Scales App, Apple Health, Google Fit, Fitbit
HoMedics Smart Scale shown with dimensions (11.8 inches by 11.8 inches) and a side profile view, highlighting its thin design and large platform.
Figure 7: Scale dimensions and thin profile.

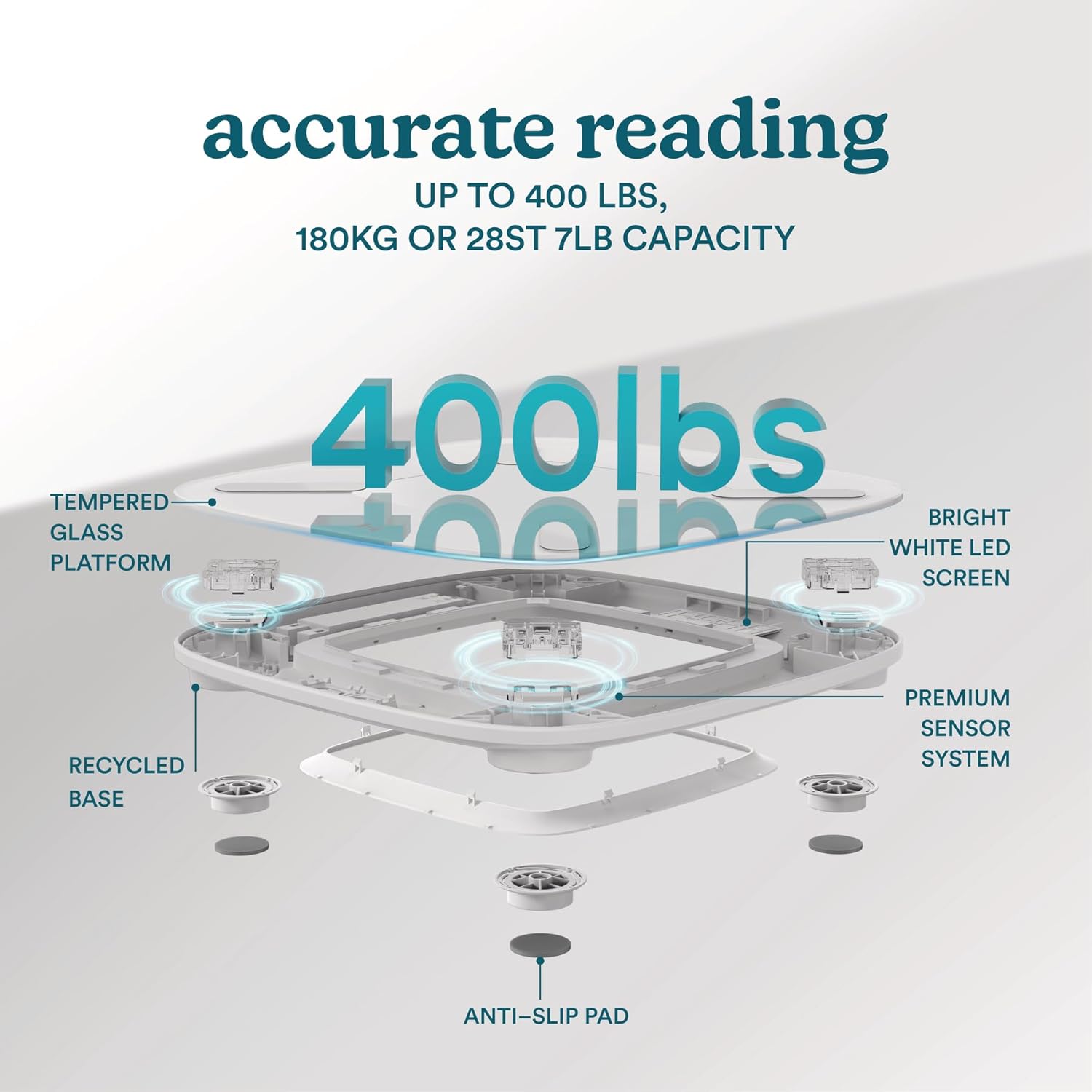

Diagram of the HoMedics Smart Scale's internal components, including tempered glass platform, bright white LED screen, premium sensor system, recycled base, and anti-slip pads, emphasizing its 400 lbs capacity.
Figure 8: Internal components and capacity details.

7. Warranty and Support

HoMedics products are manufactured with the highest quality standards. For detailed warranty information and customer support, please refer to the warranty card included with your product or visit the official HoMedics website. You can also find frequently asked questions and contact information for technical assistance there.

For further assistance, please visit: www.homedics.com/support
