1. Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your HUAYEE HY360C Mini Skid Steer Loader. Please read this manual thoroughly before operating the machine to ensure proper usage and to prevent injury or damage.
The HY360C is a compact, wheeled, stand-on mini skid steer loader designed for various tasks including landscaping, farming, and construction. It features a 13.5HP B&S gasoline engine, advanced hydraulic system, and a 525 lbs rated operating capacity.

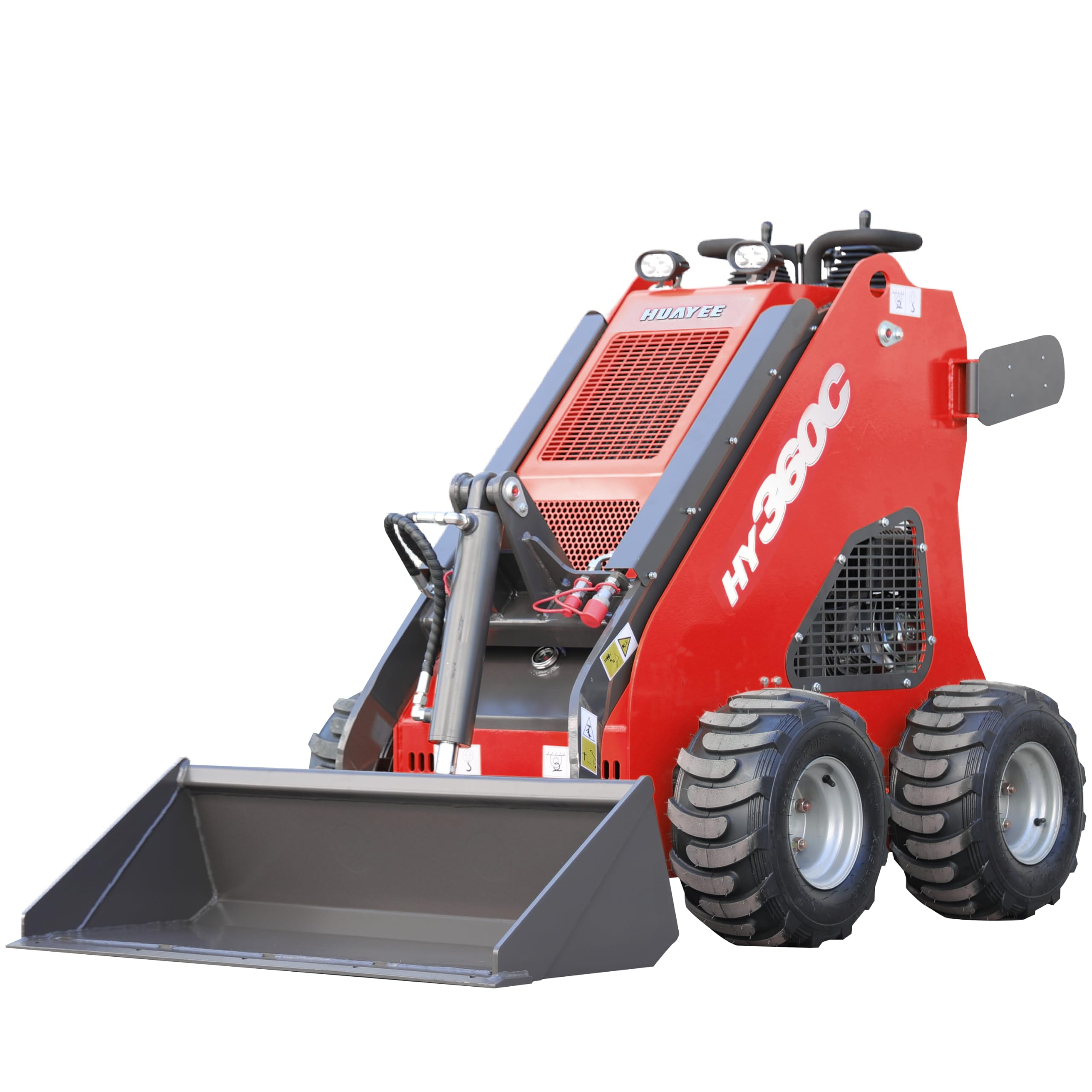

Image 1.1: The HUAYEE HY360C Mini Skid Steer Loader with bucket attachment.
2. Safety Information
Operating heavy machinery requires strict adherence to safety protocols. Failure to follow these guidelines can result in serious injury or death.
- Read the Manual: Always read and understand the entire operator's manual before starting, operating, or servicing the machine.
- Personal Protective Equipment (PPE): Wear appropriate PPE, including a hard hat, safety glasses, hearing protection, safety footwear, and high-visibility clothing.
- Operator Training: Ensure all operators are properly trained and familiar with the machine's controls and capabilities.
- Pre-Operation Check: Before each use, inspect the machine for any damage, loose parts, fluid leaks, or other issues. Do not operate if any defects are found.
- Work Area Safety: Keep bystanders, especially children and pets, away from the work area. Be aware of your surroundings, including overhead power lines and underground utilities.
- Stability: Operate on stable, level ground whenever possible. Avoid steep slopes or uneven terrain that could cause the machine to tip.
- Load Capacity: Do not exceed the rated operating capacity of 525 lbs (238 kg) or the maximum lifting capacity of 1,323 lbs (600 kg). Overloading can lead to instability and accidents.
- Engine Safety: Ensure proper ventilation when operating the engine. Fuel the machine in a well-ventilated area with the engine off and cool.
- Hydraulic System: Be aware of high-pressure hydraulic fluid. Leaks can cause serious injury. Do not use bare hands to check for leaks.
- Maintenance Safety: Always turn off the engine, remove the key, and engage the parking brake before performing any maintenance or adjustments.
Image 2.1: Overview of the operator controls, emphasizing the importance of familiarity for safe operation.
3. Setup
3.1 Unpacking and Initial Inspection
Upon receiving your HUAYEE HY360C Mini Skid Steer Loader, carefully inspect the packaging and the machine for any signs of shipping damage.
- Remove all packing materials.
- Verify that all included components are present: Mini Skid Steer Loader, Operator's Manual, and Accessories.
- Check for any visible damage to the frame, engine, hydraulic lines, tires, and controls. Report any damage to the carrier and supplier immediately.
- Ensure all fasteners are tight and secure.
3.2 Fuel and Fluid Checks
Before starting the engine, ensure all fluid levels are correct.
- Engine Oil: Check the engine oil level using the dipstick. Add recommended oil if necessary.
- Hydraulic Fluid: Verify the hydraulic fluid level. The system has a 20L (5.3 gal) hydraulic oil tank.
- Fuel: Fill the fuel tank with appropriate gasoline. The fuel tank capacity is 6.6L (1.7 gal).
Image 3.1: Detailed view of the hydraulic system, crucial for checking fluid levels.
Image 3.2: The 13.5HP Briggs & Stratton engine, showing components for fluid checks.
4. Operating Instructions
4.1 Starting the Engine
The HY360C is equipped with a 13.5HP B&S single-cylinder air-cooled gasoline engine with an electric start.
- Ensure the machine is on level ground and the parking brake is engaged.
- Stand on the ergonomic platform.
- Insert the key into the ignition and turn it to the "ON" position.
- If the engine is cold, apply choke as needed.
- Turn the key to the "START" position to engage the electric starter. Release the key once the engine starts.
- Allow the engine to warm up for a few minutes before operating.
4.2 Controls and Movement
The HY360C features responsive controls for precise maneuverability.
- Operating Handles: Use the operating handles to control forward, reverse, and turning movements. The stand-on design provides excellent visibility.
- Hydraulic Attachment Control Lever: This lever controls the movement of the loader arms and bucket.
- Accelerator: Adjust engine speed using the accelerator.
- Light Switch: Activates the work lights for low-light conditions.
- Vehicle Horn: Use to alert others in the work area.
Image 4.1: The operator's console and stand-on platform, showing control levers and switches.
4.3 Using the Bucket
The included 0.13 m³ utility bucket is designed for moving dirt, gravel, and mulch.
- Lowering the Bucket: Use the hydraulic control lever to lower the bucket to the ground.
- Loading Material: Drive the machine forward into the material, tilting the bucket to scoop.
- Lifting and Transporting: Once loaded, raise the bucket to a safe transport height. Avoid carrying loads too high, which can affect stability.
- Dumping Material: Position the machine at the desired dump location. Use the hydraulic control lever to tilt the bucket forward and release the material. The maximum dump height is 63 inches (1610mm).
Image 4.2: The HY360C in operation, demonstrating the bucket and work lights.
4.4 Video Demonstration
Video 4.1: Official HUAYEE video demonstrating the HY360C Mini Skid Steer Loader in operation, showcasing its maneuverability and bucket functions.
5. Maintenance
Regular maintenance is crucial for the longevity and optimal performance of your HY360C Mini Skid Steer Loader. Always refer to the engine manufacturer's manual for specific engine maintenance schedules.
5.1 Daily Checks
- Check engine oil and hydraulic fluid levels.
- Inspect tires for proper inflation and damage.
- Clean debris from the radiator and engine cooling fins.
- Check all hydraulic hoses and connections for leaks or damage.
- Ensure all safety decals are present and legible.
5.2 Scheduled Maintenance
- Engine Oil Change: Change engine oil after the first 5-10 hours of operation (break-in period), then every 50-100 hours or annually, whichever comes first.
- Hydraulic Oil Change: Change hydraulic oil after the first 50 hours, then every 200-300 hours or annually.
- Air Filter: Inspect and clean the air filter regularly. Replace as needed. The engine utilizes a dual-element cartridge air cleaner.
- Spark Plug: Inspect and clean the spark plug periodically. Replace annually or as recommended by the engine manufacturer.
- Greasing Points: Lubricate all grease fittings on the loader arms and pivot points regularly.
Image 5.1: The instrument panel includes an hour meter, essential for tracking maintenance intervals.
6. Troubleshooting
This section provides solutions to common operational issues. For problems not listed here, or if solutions do not resolve the issue, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine will not start | No fuel, low battery, spark plug issue, choke not applied (cold engine) | Check fuel level, charge/replace battery, inspect/replace spark plug, apply choke. |
| Loss of hydraulic power | Low hydraulic fluid, clogged filter, hydraulic pump issue | Check hydraulic fluid level, inspect/replace hydraulic filter, contact support for pump issues. |
| Machine lacks power during operation | Clogged air filter, old fuel, engine issue | Clean/replace air filter, use fresh fuel, check engine for proper function. |
| Overheating engine | Clogged radiator, low engine oil, prolonged heavy use | Clean radiator fins, check engine oil level, allow engine to cool down. |
7. Specifications
Key technical specifications for the HUAYEE HY360C Mini Skid Steer Loader.
| Feature | Detail |
|---|---|
| Model Number | HY360C |
| Brand | HUAYEE |
| Engine | 13.5HP Briggs & Stratton Single-Cylinder Air-Cooled Gasoline Engine |
| Rated Operating Capacity | 525 lbs (238 kg) |
| Maximum Lifting Capacity | 1,323 lbs (600 kg) |
| Bucket Volume | 0.13 m³ |
| Maximum Dump Height | 63 inches (1610 mm) |
| Hydraulic System Pressure | 17 Mpa |
| Lift Time | 5.5 seconds |
| Operating Weight | 1,510 lbs (685 kg) |
| Dimensions (L x W x H) | 83" x 41" x 52" (2110mm x 1050mm x 1345mm) |
| Climbing Ability | 30° |
| Material | Alloy Steel |
Image 7.1: A comprehensive table detailing the basic and performance parameters of the HY360C.
8. Warranty and Support
8.1 Manufacturer's Warranty
The HUAYEE HY360C Mini Skid Steer Loader comes with a 1-year manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. Specific terms and conditions may apply; refer to the warranty documentation included with your product.
8.2 Customer Support
For technical assistance, parts inquiries, or warranty service, please contact HUAYEE Mechanical customer support.
- Seller: HUAYEE MECHANICAL
- Contact Information: Refer to the contact details provided in your purchase documentation or visit the official HUAYEE website.
