Introduction
Thank you for choosing the tectake 2-in-1 Garden Chair and Lounger. This versatile outdoor furniture piece is designed to provide comfort and functionality, serving as both a garden chair and a comfortable rocking chair. Its ergonomic design, adjustable backrest, and durable, weather-resistant materials make it an ideal addition to your patio, balcony, garden, or camping setup. This manual provides essential information for assembly, operation, maintenance, and troubleshooting to ensure safe and optimal use of your product.
Safety Instructions
Please read and understand all safety instructions before assembling and using the product. Failure to follow these instructions may result in injury or damage to the product.
- Weight Limit: Do not exceed the maximum weight capacity of 120 kg (264 lbs).
- Stable Surface: Always place the chair on a flat, stable, and level surface to prevent tipping.
- Assembly: Ensure all components are correctly assembled and all fasteners are securely tightened before use. Periodically check fasteners for tightness.
- Children: Keep children away from the product during assembly. Supervise children when they are near or using the chair.
- Moving Parts: Be cautious of pinch points when adjusting the backrest or transforming the chair.
- Weather Conditions: While weather-resistant, prolonged exposure to extreme weather (heavy rain, strong winds, direct sun) may reduce product lifespan. Consider storing indoors or covering during harsh conditions.
- Sharp Objects: Avoid contact with sharp objects that could damage the fabric.
Package Contents
Please verify that all components are present before beginning assembly. If any parts are missing or damaged, contact tectake customer support.
- 1 x tectake 2-in-1 Garden Chair & Lounger
- Assembly Hardware (screws, nuts, washers, etc.)
- Assembly Instructions (this manual)
Setup and Assembly
Follow these steps carefully to assemble your tectake 2-in-1 Garden Chair & Lounger. It is recommended to have two people for assembly.
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent scratches.
- Identify Parts: Refer to the included parts list (if separate) or diagrams to identify each component (frame sections, fabric seat, armrests, footrest, hardware).
- Assemble Main Frame: Connect the main aluminum frame sections using the provided screws and tools. Do not fully tighten screws until all sections are loosely assembled.
- Attach Fabric Seat: Secure the Textilene fabric seat to the frame according to the design. Ensure it is taut and evenly distributed.
- Install Armrests: Attach the curved armrests to the designated points on the frame.
- Attach Footrest Mechanism: Secure the footrest and its folding mechanism to the main frame. Ensure it can pivot smoothly.
- Tighten All Fasteners: Once all components are in place, systematically tighten all screws and bolts. Do not overtighten.
- Check Stability: Gently rock and test the chair to ensure it is stable and all parts are securely fastened.
Figure 1: Illustration of the chair's structure and its transformation capability.
Operating Instructions
Your tectake 2-in-1 Garden Chair & Lounger offers versatile relaxation options.
2-in-1 Function: Lounger to Rocking Chair
The unique design allows you to easily switch between a comfortable lounger and a relaxing rocking chair.
- Lounger Mode: To use as a lounger, extend the footrest fully. The chair will rest on its anti-slip feet, providing a stable reclining position.
- Rocking Chair Mode: To transform into a rocking chair, gently fold the footrest inwards and tuck it underneath the main seat frame. The chair will then rest on its curved base, allowing for a smooth rocking motion. Ensure the footrest is fully secured in its folded position before rocking.

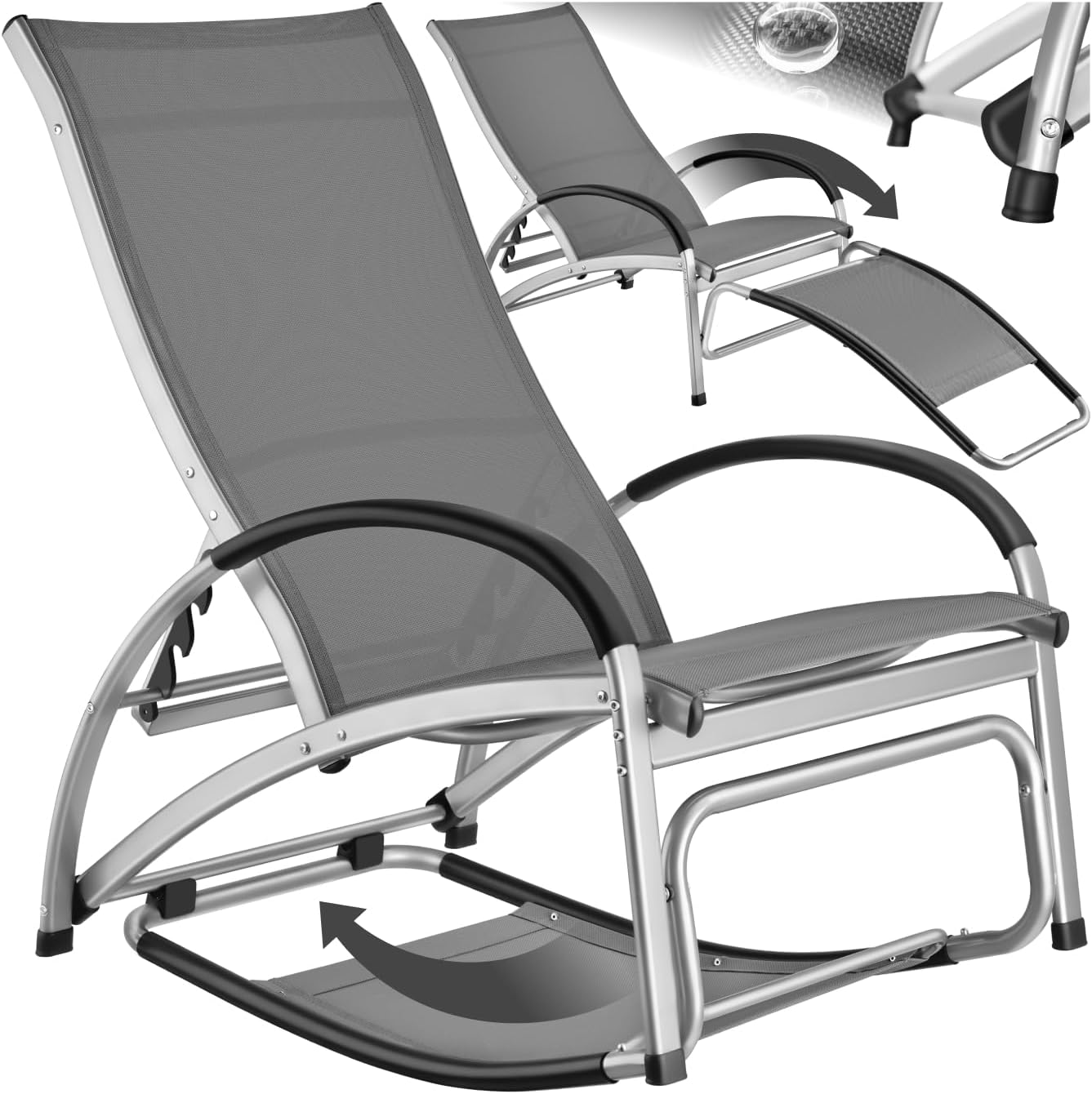

Figure 2: The tectake chair demonstrating its 2-in-1 functionality.
Adjusting the Backrest
The backrest can be adjusted to 4 different positions for optimal comfort, whether you are sitting upright, reclining, or lying down.
- To adjust the backrest, slightly lift the backrest while seated or standing beside the chair.
- Locate the adjustment mechanism on the side of the chair (typically a notched bar or lever).
- Move the backrest to your desired angle and ensure it locks securely into one of the four available positions.
- Always ensure the backrest is fully engaged in a notch before applying your full weight.

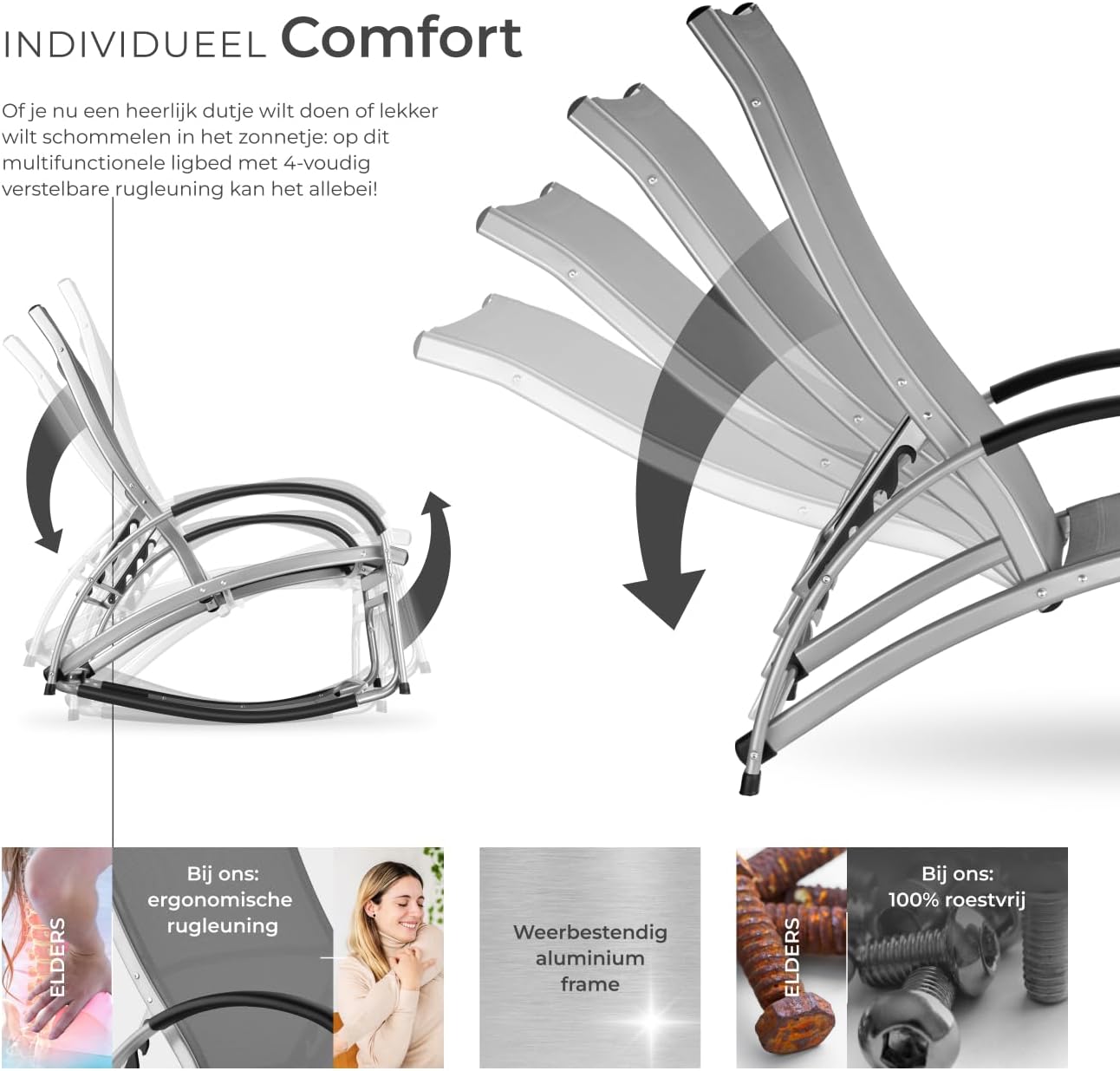

Figure 3: The adjustable backrest mechanism with four distinct positions.
Maintenance
Proper care and maintenance will extend the life of your tectake Garden Chair & Lounger.
- Cleaning:
- For the Textilene fabric, wipe with a damp cloth and mild soap solution. Rinse thoroughly with clean water and allow to air dry completely. Do not use harsh chemicals or abrasive cleaners.
- For the aluminum frame, wipe with a soft, damp cloth. Avoid abrasive materials that could scratch the powder coating.
- Inspection: Periodically inspect all bolts, screws, and connections to ensure they are tight. Retighten as necessary.
- Storage: During prolonged periods of non-use or in harsh weather conditions (winter, heavy rain), it is recommended to store the chair indoors or cover it with a protective outdoor furniture cover to prevent wear and tear.
- Anti-slip Feet: Ensure the plastic anti-slip feet are intact and not worn down to protect your flooring and maintain stability.
Figure 4: Detail of the durable Textilene fabric and floor-friendly anti-slip feet.
Troubleshooting
If you encounter any issues with your tectake Garden Chair & Lounger, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Chair feels unstable or wobbly. | Loose fasteners; uneven surface. | Ensure all assembly bolts and screws are securely tightened. Move the chair to a flat, level surface. |
| Backrest does not lock into position. | Mechanism obstructed or not fully engaged. | Check for any obstructions in the adjustment mechanism. Ensure the backrest is lifted slightly before attempting to adjust and that it clicks firmly into place. |
| Footrest does not fold smoothly. | Mechanism dirty or misaligned. | Clean the pivot points of the footrest mechanism. Check for any bent parts or obstructions. Apply a silicone-based lubricant if necessary (avoid oil-based lubricants). |
| Fabric appears stained or dirty. | Accumulated dirt or spills. | Clean the Textilene fabric as per the "Maintenance" section using mild soap and water. |
Specifications
Technical details for the tectake 2-in-1 Garden Chair & Lounger.
| Feature | Detail |
|---|---|
| Model Number | 405816 |
| Color | Anthracite (Antrazit) |
| Material | Powder-coated Aluminum frame, Textilene fabric, Steel, Polyvinyl chloride |
| Lounger Dimensions (L x W x H) | 195 x 62 x 53 - 91 cm (76.8 x 24.4 x 20.9 - 35.8 inches) |
| Rocking Chair Dimensions (L x W x H) | 62 x 95 x 91 cm (24.4 x 37.4 x 35.8 inches) |
| Seat Dimensions (W x H) | 52 x 43.5 cm (20.5 x 17.1 inches) |
| Backrest Height | 77.5 cm (30.5 inches) |
| Maximum Weight Recommendation | 120 kg (264 lbs) |
| Special Feature | Ergonomic, 2-in-1 Function, Adjustable Backrest (4 positions) |
Figure 5: Detailed dimensions of the tectake 2-in-1 Garden Chair & Lounger.
Warranty and Support
tectake stands behind the quality of its products. For any questions, concerns, or warranty claims, please contact tectake customer support.
Please have your model number (405816) and purchase information ready when contacting support.
For the most up-to-date contact information, please visit the official tectake website or refer to your purchase documentation.
