1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your Hzuaneri 4-Tier Narrow Tall Storage Cabinet. Please read this manual thoroughly before assembly and use to ensure proper function and safety. Keep this manual for future reference.

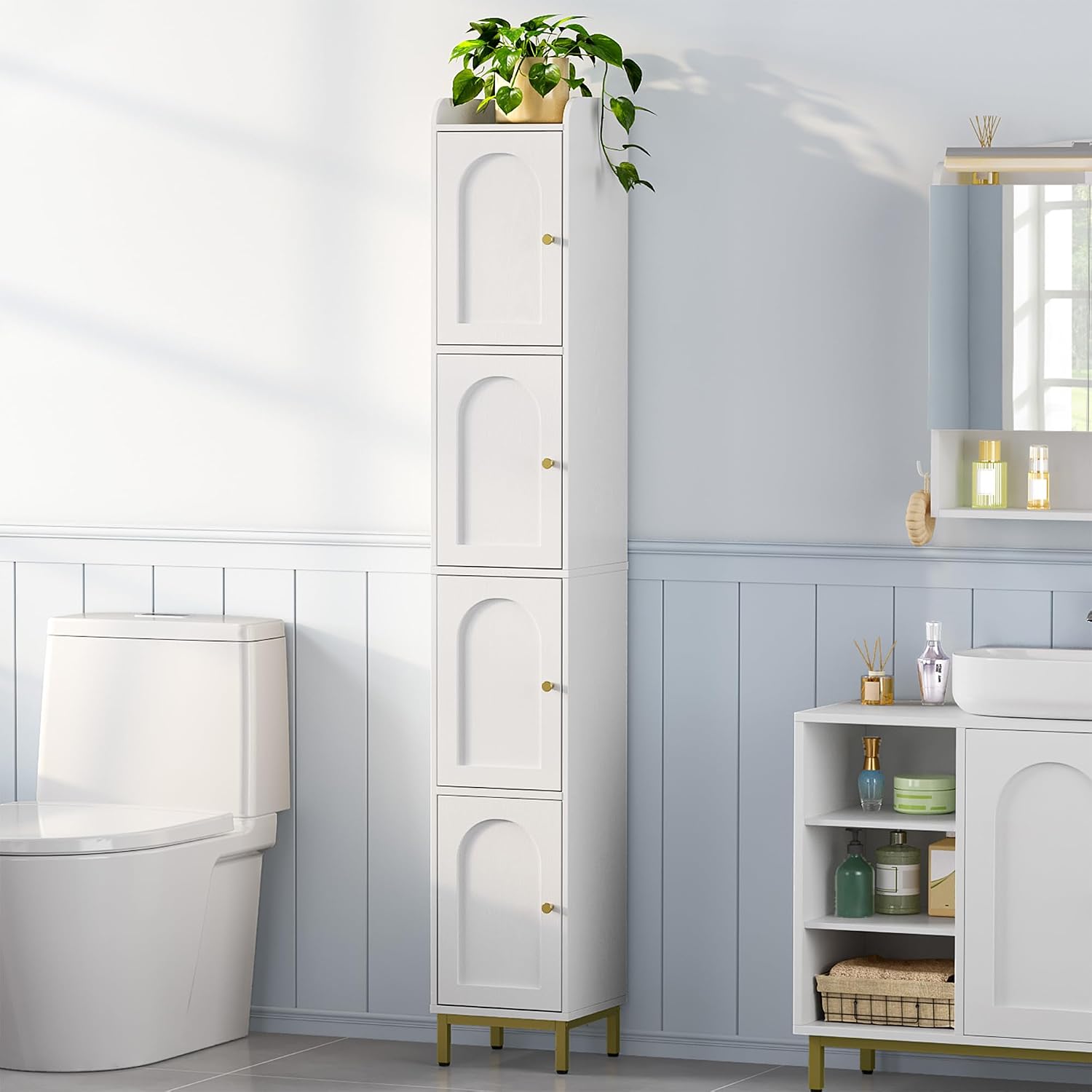

Figure 1.1: Front view of the Hzuaneri 4-Tier Narrow Tall Storage Cabinet.
2. Safety Information
WARNING: Failure to follow these safety instructions may result in injury or damage to the product.
- Ensure proper installation using the included anti-tip fitting to prevent tipping.
- Follow assembly instructions carefully to avoid injuries during setup.
- Do not overload shelves. Distribute weight evenly.
- Keep small parts away from children during assembly.
Figure 2.1: Safety features including the anti-tipping device and adjustable feet.
3. Package Contents
Verify that all components are present before beginning assembly. If any parts are missing or damaged, please contact customer support.
- 1 x Bathroom Cabinet (main unit)
- 1 x Accessory Kit (hardware, screws, etc.)
- 1 x Anti-Tip Fitting (for wall attachment)
- 1 x User Manual (this document)
4. Specifications
| Feature | Detail |
|---|---|
| Brand | Hzuaneri |
| Model Number | AEBC43313G |
| Color | White |
| Material | Alloy Steel, Engineered Wood |
| Product Dimensions (D x W x H) | 11"D x 11"W x 70.9"H (28cm x 28cm x 180cm) |
| Number of Shelves | 4 (adjustable) |
| Mounting Type | Floor Mount |
| Additional Features | Space-saving design, metal base, adjustable feet, anti-tipping kit, magnetic door locks |
Figure 4.1: Detailed product dimensions.
5. Setup and Assembly
Assembly instructions are included in the package. Each component is carefully labeled with a serial number. For optimal protection, components are housed in a sturdy box with thick foam and wooden boards. Typically, an adult can complete assembly in 40-50 minutes.
5.1 Assembly Steps Overview
- Unpack all components and verify against the parts list.
- Lay out all materials in an organized manner.
- Follow the step-by-step instructions provided in the included user manual.
- Attach the metal base and adjust the feet for stability.
- Install the anti-tipping kit to secure the cabinet to a wall.
Video 5.1: Detailed look at the Narrow Tall Storage Cabinet, demonstrating features and assembly aspects.
Figure 5.2: Illustration of the anti-drop device and the elevated metal base for floor space saving.
6. Operating Instructions
The Hzuaneri 4-Tier Narrow Tall Storage Cabinet is designed for versatile storage in tight spaces.
6.1 Adjusting Shelves
The cabinet features four adjustable shelves. To adjust a shelf, remove any items, then carefully lift the shelf and reposition the support pegs into the desired holes. Ensure the shelf is level and securely seated before placing items on it.
Figure 6.1: The cabinet features adjustable shelves for customized storage.
6.2 Door Operation
Each door is equipped with a magnetic lock to keep it securely closed. To open, gently pull the knob. To close, push the door until the magnetic catch engages.
Video 6.2: Demonstration of the cabinet's storage capacity and suitability for small bathrooms.
Figure 6.3: Example of items stored within the cabinet's compartments.
7. Maintenance
To ensure the longevity and appearance of your storage cabinet, follow these maintenance guidelines:
- Cleaning: Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that may damage the finish.
- Spills: Clean up spills immediately to prevent moisture damage to the engineered wood.
- Stability: Periodically check the adjustable feet and anti-tipping kit to ensure they remain secure. Re-tighten if necessary.
- Moisture Protection: The metal base elevates the cabinet, protecting it from ground moisture. Ensure the area beneath the cabinet is kept clean and dry.
8. Troubleshooting
If you encounter issues with your cabinet, refer to the following common solutions:
- Cabinet is wobbly: Ensure the adjustable feet are properly leveled on an even surface. Verify the anti-tipping kit is securely installed.
- Doors do not close properly: Check for any obstructions. Ensure the magnetic catches are aligned and functioning.
- Missing parts during assembly: Double-check the accessory kit and packaging. If parts are genuinely missing, contact customer support with your model number and a description of the missing part.
- Difficulty with assembly: Review the step-by-step instructions carefully. Ensure all components are oriented correctly. Do not force parts together.
9. Warranty and Support
For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official Hzuaneri website. Please have your model number (AEBC43313G) ready when contacting support.
