1. Product Overview
The UGREEN 25W 3-in-1 Foldable Magflow Wireless Charger (Model W757) is designed to provide simultaneous wireless charging for your iPhone, Apple Watch, and AirPods. Its compact, foldable design makes it suitable for travel and everyday use. This charger features Qi2 technology for efficient power delivery and magnetic alignment for secure device placement.
2. Package Contents
Verify that all items are present in your package:
- 1x UGREEN 25W 3-in-1 Foldable Magflow Wireless Charger
- 1x 45W USB-C Power Adapter
- 1x 1-meter USB-C to USB-C Charging Cable
- 1x User Manual
3. Setup Instructions
- Unfold the Charger: Gently unfold the charging pad and the Apple Watch charging module to their desired positions. The main charging pad can be tilted from 0 to 70 degrees.
- Connect Power: Insert one end of the provided USB-C to USB-C cable into the USB-C port on the charger. Connect the other end of the cable to the provided 45W USB-C Power Adapter.
- Plug into Power Outlet: Plug the 45W USB-C Power Adapter into a wall power outlet. The charger is now ready for use.
4. Operating Instructions
4.1 Charging Your iPhone
The main charging pad is designed for iPhones with MagSafe compatibility (iPhone 12 series and newer). It supports up to 25W fast charging for compatible models (iPhone 17/16 with iOS 26 or later).
- Placement: Place your iPhone directly onto the magnetic charging pad. The strong magnets will automatically align your device for optimal charging.
- Orientation: The iPhone can be rotated 360 degrees on the pad, allowing for both portrait and landscape viewing modes, including support for iPhone StandBy mode.
- Fast Charging: For 25W charging, ensure your iPhone model and iOS version are compatible. Use the included 45W power adapter for optimal performance.
4.2 Charging Your Apple Watch
The dedicated watch charging module provides up to 5W charging for compatible Apple Watch models.
- Placement: Place your Apple Watch onto the charging puck. Ensure it is centered for proper charging.
- Adjustability: The watch charging module can be adjusted to lie flat or stand upright.
4.3 Charging Your AirPods
The base of the charger includes a dedicated area for wirelessly charging your AirPods, providing up to 5W of power.
- Placement: Place your AirPods charging case onto the designated charging area on the base.
- Indicator: The charging indicator on your AirPods case will illuminate to confirm charging.

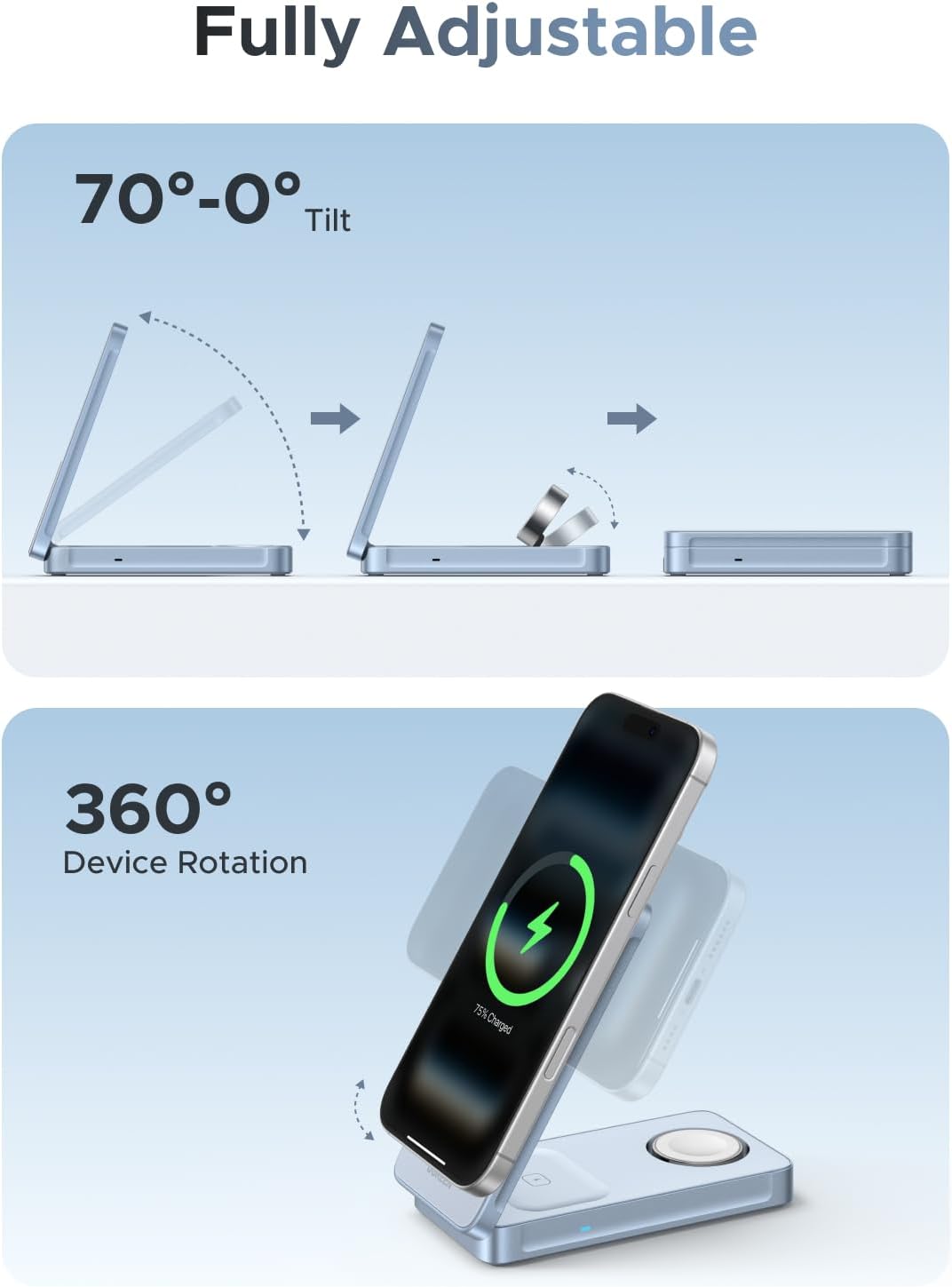

4.4 Adjustable Features
The charger offers flexibility for viewing and portability.
- Tilt Adjustment: The main charging pad can be tilted from 0 to 70 degrees for comfortable viewing angles.
- Device Rotation: Your iPhone can be rotated 360 degrees on the magnetic pad.
- Foldable Design: The entire charger folds into a compact form factor for easy storage and transport.
5. Compatibility
The UGREEN 25W 3-in-1 Foldable Magflow Wireless Charger is compatible with a range of devices:
- iPhones (25W Max): iPhone 17 Series, iPhone 16 Series. (Requires iOS 26 or later for 25W charging).
- iPhones (15W Max): iPhone 15 Series, iPhone 14 Series, iPhone 13 Series, iPhone 12 Series.
- Apple Watch (5W Max): Apple Watch Series Ultra/8/7/6/5/4/3/2/SE.
- AirPods (5W Max): AirPods Pro/Pro 2, AirPods 3, AirPods 4. (Not compatible with AirPods model A1602 released in 2017 and model A2897 released in 2022).
Note: Magnetic suction is primarily compatible with iPhones and select Google Pixel models. Other models may not align perfectly due to camera placement.
6. Safety Information
The UGREEN 25W 3-in-1 Foldable Magflow Wireless Charger incorporates multiple safety features to protect your devices and ensure safe operation.
- ThermalGuard™: Monitors temperature 200 times per second to prevent overheating.
- Fire-Retardant Silicone: Integrated for enhanced safety.
The charger includes an 8-layer safety system:
- Overcharge protection
- Input overvoltage protection
- High temperature protection
- Short circuit protection
- Overcurrent protection
- Static electricity protection
- Overpower protection
- Foreign object detection (FOD)
7. Maintenance
- Cleaning: Disconnect the charger from the power source before cleaning. Use a soft, dry cloth to wipe the surface. Do not use liquid cleaners or aerosols.
- Storage: When not in use, fold the charger into its compact form and store it in a cool, dry place away from direct sunlight and extreme temperatures.
- Avoid Damage: Do not drop, disassemble, or attempt to repair the charger yourself. Avoid exposing it to water or excessive moisture.
8. Troubleshooting
| Issue | Possible Cause | Solution |
|---|---|---|
| Device not charging | 1. Incorrect placement 2. Foreign object detected 3. Power adapter/cable issue 4. Device incompatibility | 1. Re-position device for proper alignment. 2. Remove any metal objects between device and charger. 3. Ensure cable and adapter are securely connected and functional. 4. Verify device compatibility with the charger. |
| Slow charging | 1. Insufficient power input 2. Device case thickness 3. Device not Qi2 compatible | 1. Ensure using the included 45W power adapter and cable. 2. Remove thick phone cases (over 5mm). 3. Check if your device supports Qi2 for faster charging. |
| Charger overheating | 1. Poor ventilation 2. Foreign object 3. Environmental temperature | 1. Ensure charger is in a well-ventilated area. 2. Remove any foreign objects. 3. Use in an environment within recommended temperature ranges. |
9. Specifications
| Feature | Detail |
|---|---|
| Model Number | W757 |
| Product Dimensions | 2.36 x 0.85 x 118.5 inches (folded) |
| Item Weight | 1.08 pounds |
| Input Voltage | 12 Volts (AC) |
| Max Wattage | 25 watts (iPhone), 5 watts (AirPods), 5 watts (Apple Watch) |
| Connector Type | USB Type C |
| Special Feature | Wireless Charging, Foldable, Magnetic Alignment |
| Color | Gray |
10. Warranty and Support
UGREEN products come with a standard manufacturer's warranty. For detailed warranty information, product support, or technical assistance, please refer to the official UGREEN website or contact UGREEN customer service directly. Keep your purchase receipt for warranty claims.
UGREEN Official Website: www.ugreen.com
