Important Safety Instructions
Before using your CONDERE PLUS 10L Electric Pressure Cooker, please read all instructions carefully. Failure to follow these instructions may result in electric shock, fire, or serious injury. Keep this manual for future reference.
- Do not immerse the appliance, cord, or plug in water or other liquids.
- Close supervision is necessary when the appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- Do not use outdoors.
- Always ensure the pressure release valve is clear before use.
- Do not fill the inner pot above the MAX fill line.
Product Overview
The CONDERE PLUS 10L Electric Pressure Cooker is a versatile kitchen appliance designed for efficient and safe cooking. It combines the functions of a pressure cooker, rice cooker, slow cooker, and soup pot, featuring 17 cooking presets and 8 advanced safety mechanisms.

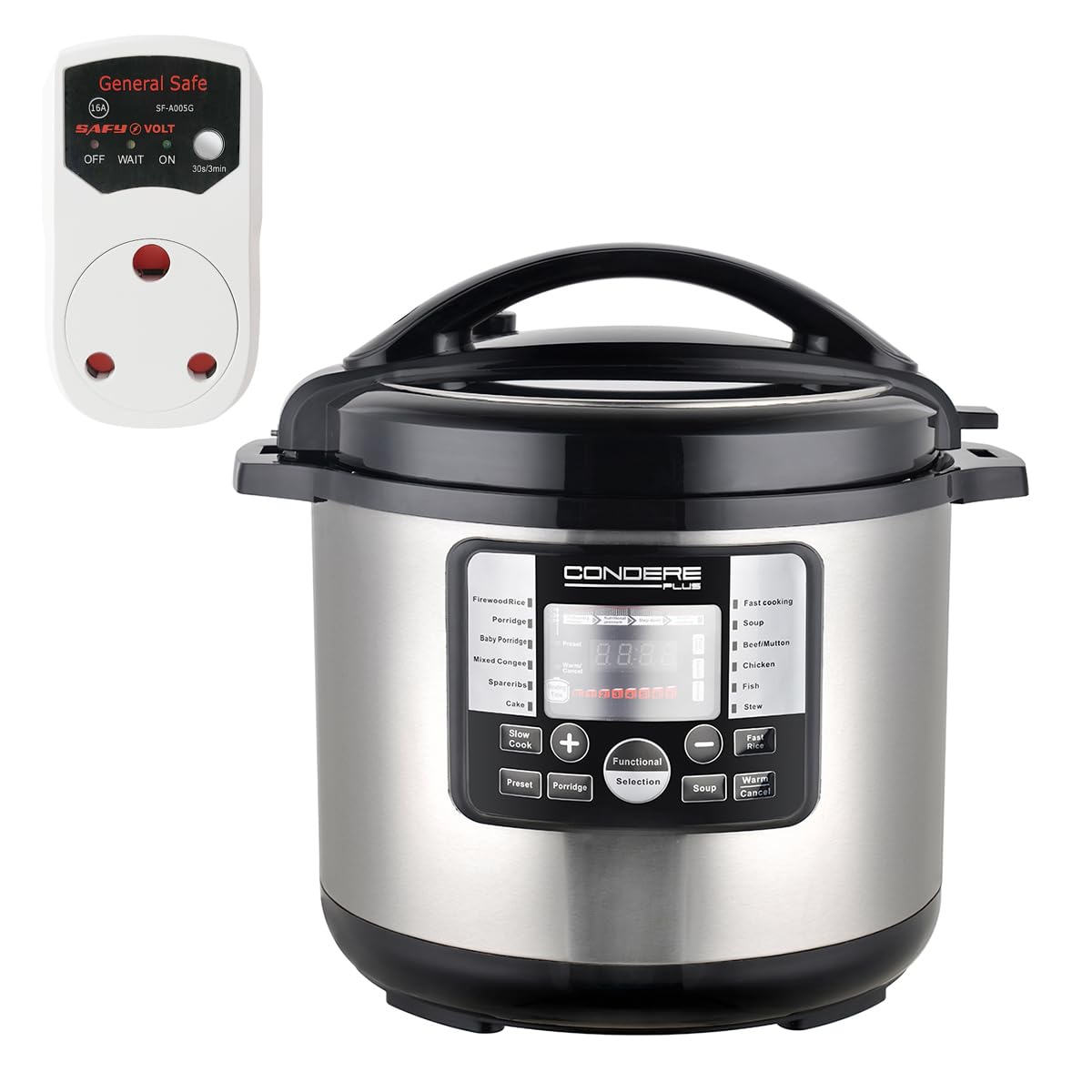

Image: Front view of the CONDERE PLUS 10L Electric Pressure Cooker, showing the digital display and various function buttons.
Components
- Main Unit: Stainless steel housing with control panel and digital display.
- Lid: Features a pressure release valve, float valve, and sealing gasket.
- Inner Pot: 10L capacity, stainless steel with non-stick coating.
- Condensation Collector: Attaches to the back of the unit to collect condensation.
- Accessories: Rice scoop, measuring cup, power cord.
Image: The electric pressure cooker with its lid open, revealing the inner pot and the interior of the lid.
Image: A close-up view of the pressure cooker's lid, highlighting the pressure release valve and handle.
Image: The removable stainless steel inner pot with measurement markings.
Setup and First Use
- Unpack: Remove all packaging materials and accessories.
- Clean: Wash the inner pot, sealing gasket, and condensation collector with warm, soapy water. Rinse thoroughly and dry. Wipe the exterior of the main unit with a damp cloth.
- Assemble: Place the inner pot into the main unit. Ensure the sealing gasket is properly seated in the lid. Attach the condensation collector to the back of the cooker.
- Test Run (Water Test): For first-time use, perform a water test to familiarize yourself with the pressure cooking function and ensure proper operation. Fill the inner pot with 3 cups of water, close the lid, and set the pressure release valve to 'Sealing'. Select a short pressure cooking program (e.g., 'Soup' for 5 minutes). Once complete, carefully release pressure.
Operating Instructions
Your pressure cooker features a digital display and 17 preset cooking functions for various dishes.
Basic Operation
- Add ingredients to the inner pot. Do not exceed the MAX fill line.
- Place the lid on the cooker and turn it clockwise until it locks into place.
- Ensure the pressure release valve is set to the 'Sealing' position for pressure cooking functions. For non-pressure functions like Slow Cook, it can be in 'Venting'.
- Plug in the power cord. The digital display will illuminate.
- Select a cooking function using the 'Selection' button or direct preset buttons (e.g., 'Rice', 'Soup', 'Slow Cook').
- Adjust cooking time if necessary using the '+' and '-' buttons.
- The cooker will automatically begin the preheating process. Once pressure is reached (for pressure cooking), the cooking timer will start.
- After cooking, the cooker will beep and may switch to 'Keep Warm' mode.
- Pressure Release: For pressure cooking, allow natural pressure release or use the quick release method by carefully turning the pressure release valve to 'Venting'. Always keep hands and face away from the steam vent.
- Once pressure is fully released (float valve drops), open the lid by turning it counter-clockwise.
17 Cooking Functions
The digital display allows selection from various presets, including:
- Firewood Rice
- Porridge
- Baby Porridge
- Mixed Congee
- Spareribs
- Cake
- Slow Cook
- Fast Cooking
- Soup
- Beef/Mutton
- Chicken
- Fish
- Stew
- Fast Rice
- Preset (Delay Start)
- Warm/Cancel
Safety Features
The CONDERE PLUS 10L Electric Pressure Cooker is equipped with 8 advanced safety mechanisms to ensure safe operation:
- Lid Lock Safety: Prevents opening the lid when the cooker is pressurized.
- Pressure Control System: Automatically regulates and monitors internal pressure.
- Anti-Block Shield: Prevents food particles from blocking the steam release valve.
- Pressure Release Device: Automatically releases excess pressure if it exceeds safe limits.
- Temperature Monitoring: Prevents overheating by monitoring the internal temperature.
- Automatic Power Off: Shuts off if internal temperature or pressure becomes unsafe.
- Float Valve: Indicates when the cooker is pressurized and prevents the lid from being opened.
- Voltage Protector: Protects the appliance from power fluctuations.
Maintenance and Cleaning
Regular cleaning ensures optimal performance and extends the life of your pressure cooker.
- Always unplug the cooker and allow it to cool completely before cleaning.
- Inner Pot: Wash with warm, soapy water and a non-abrasive sponge. The non-stick coating is durable but can be damaged by harsh scrubbing.
- Lid: Remove the sealing gasket and wash it with warm, soapy water. Clean the pressure release valve and float valve to ensure they are free of food debris.
- Main Unit: Wipe the exterior with a damp cloth. Do not immerse the main unit in water.
- Condensation Collector: Empty and wash after each use.
- Ensure all parts are thoroughly dry before reassembling and storing.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Cooker not building pressure | Lid not properly closed; Pressure release valve in 'Venting' position; Sealing gasket not installed correctly or damaged; Insufficient liquid. | Ensure lid is locked; Turn valve to 'Sealing'; Check/reinstall gasket; Add more liquid. |
| Steam leaking from lid | Sealing gasket dirty or damaged; Food debris on rim; Lid not closed properly. | Clean/replace gasket; Clean lid rim; Re-close lid. |
| Food not cooked thoroughly | Insufficient cooking time; Not enough liquid; Cooker did not reach full pressure. | Increase cooking time; Add more liquid; Refer to 'Cooker not building pressure' solution. |
| Error code on display | Specific internal issue. | Unplug the cooker, wait a few minutes, then plug it back in. If the error persists, contact customer support. |
Specifications
- Model Number: HD60-1010BHQ
- Capacity: 10 Liters
- Power: 1600W
- Dimensions (D x W x H): 35D x 36W x 41H centimetres
- Inner Pot Material: Stainless Steel with Non-Stick Coating
- Color: Silver
- Included Components: Cooker unit, inner pot, rice scoop, measuring cup, manual, power cord.
Warranty and Support
For warranty information or technical support, please refer to the warranty card included with your product or contact the retailer where the product was purchased. Keep your proof of purchase for any warranty claims.
