1. Introduction
Thank you for choosing the Garvee 10x13 ft Outdoor Pergola with Retractable Canopy. This manual provides essential information for the safe assembly, operation, and maintenance of your new pergola. Please read these instructions carefully before beginning assembly and retain them for future reference. This pergola is designed to enhance your outdoor living space by providing shade and a stylish architectural element.
2. Safety Information
- Read All Instructions: Ensure you understand all assembly and operating instructions before use.
- Assembly: Assembly requires at least two adults. Do not attempt to assemble alone. Wear appropriate safety gear, such as gloves, during assembly.
- Anchoring: The pergola must be securely anchored to a stable, level foundation to prevent tipping or movement, especially in windy conditions. Expansion bolts (not included) are required for hard surfaces like concrete or wood decks. Stakes are included for dirt ground.
- Canopy Use: The retractable canopy is designed for sun shade. It is not recommended to use the awning in extreme weather conditions such as strong winds, heavy rain, or snow. Retract the canopy during such conditions to prevent damage to the canopy and structure.
- Clearance: Ensure adequate clearance around the pergola for safe use and to prevent obstruction of the retractable canopy.
- Regular Inspection: Periodically check all bolts, screws, and connections to ensure they are tight and secure.
3. Package Contents
Before beginning assembly, verify that all parts listed in the included parts diagram are present and undamaged. If any parts are missing or damaged, please contact Garvee customer support immediately.
The product is packaged in one box. Key components include:
- Aluminum frame components (posts, beams, crossbars)
- Retractable canopy fabric
- Canopy sliding rails and carabiner clips
- Assembly hardware (screws, bolts, wrenches)
- Ground stakes for dirt installation
- Instruction manual
Image: Pergola Dimensions. This diagram illustrates the overall dimensions of the assembled pergola: 13 ft length, 10 ft width, and 7.6 ft height.
4. Assembly Instructions
Assembly of the Garvee pergola is designed to be straightforward, but requires careful attention to detail and the assistance of at least one other person. We recommend assembling on a flat, clear ground surface.
General Steps:
- Unpack all components and verify against the parts list.
- Assemble the main support posts and beams according to the included detailed instructions. Ensure all connections are secure.
- Attach the crossbars and canopy sliding rails to the main frame.
- Install the retractable canopy fabric onto the sliding rails, ensuring it moves freely.
- Securely anchor the pergola to your chosen foundation.
Image: Assembly Steps Overview. This visual guide demonstrates the general assembly process of the pergola frame and canopy, from unpacking to final canopy installation.
Anchoring the Pergola:
Proper anchoring is crucial for stability. The pergola features robust aluminum posts designed for secure installation.
- For dirt ground, use the provided ground stakes to firmly secure each post.
- For hard surfaces such as cement, concrete, or wood decks, expansion bolts (not included) are required. Drill appropriate holes and use suitable expansion bolts to fasten the pergola bases.
Image: Anchoring Base. This image illustrates the base of a pergola post with expansion bolts for securing it to hard surfaces.
Image: Ground Anchoring Options. This image shows stakes for dirt ground installation and mentions expansion bolts for cement, concrete, or wood deck surfaces.
5. Operating Instructions
Retracting and Extending the Canopy:
The Garvee pergola features a retractable canopy that allows you to adjust the amount of shade as needed. The canopy operates on a built-in sliding rail system.
- To Extend: Gently pull the canopy fabric outwards along the sliding rails until it reaches the desired extension. Secure the canopy at full extension using the integrated snap-lock design or carabiner clips to prevent swaying.
- To Retract: Release the snap-lock or carabiner clips. Gently push the canopy fabric back along the sliding rails towards the stored position.
Image: Canopy Operation. This image shows the retractable canopy in its fully open and fully closed positions, demonstrating its adjustability.
Image: Adjustable Canopy. This image shows the retractable canopy partially extended, with arrows indicating its adjustable movement along the beams.
Image: Carabiner Design. A close-up of the carabiner mechanism that secures the canopy to the pergola frame when fully deployed, preventing it from swaying in the wind.
Important Note on Weather:
Always retract the canopy in anticipation of strong winds, heavy rain, or snow. Leaving the canopy extended during adverse weather can lead to damage to the canopy fabric and the pergola structure.
Video: Outdoor Retractable Pergola Showcase. This video demonstrates the Garvee 10x13 ft Outdoor Pergola with Retractable Canopy in an outdoor setting, showcasing its overall appearance and the smooth operation of the retractable canopy mechanism.
6. Maintenance
Regular maintenance will prolong the life and appearance of your Garvee pergola.
- Frame Cleaning: Clean the aluminum frame with a mild soap and water solution. Rinse thoroughly with clean water and dry with a soft cloth. Avoid abrasive cleaners or harsh chemicals.
- Canopy Cleaning: The PA fabric canopy can be cleaned with a soft brush and mild soap and water. Allow it to air dry completely before retracting or storing. Do not machine wash or tumble dry.
- Fastener Check: Periodically inspect all bolts, screws, and anchoring points. Tighten any loose fasteners to ensure structural integrity.
- Winter Storage: In areas with heavy snow or prolonged freezing temperatures, it is recommended to remove and store the canopy fabric indoors to prevent damage and extend its lifespan.
Image: Waterproof Fabric. A close-up of the canopy fabric with water droplets, illustrating its waterproof and UV-resistant properties.
7. Troubleshooting
Here are some common issues and their potential solutions:
- Canopy not retracting/extending smoothly: Check the sliding rails for any obstructions or debris. Ensure the canopy fabric is properly aligned within the rails and not snagged. Apply a silicone-based lubricant to the rails if necessary.
- Pergola feels unstable: Re-check all assembly bolts and ensure they are tightened securely. Verify that the pergola is properly anchored to a stable, level surface using appropriate stakes or expansion bolts. Consider adding weights to the base columns for increased wind resistance.
- Missing or damaged parts upon arrival: Carefully inspect all package contents immediately after delivery. If any parts are missing or damaged, do not proceed with assembly. Contact Garvee customer support for assistance and replacement parts.
- Water pooling on canopy: Ensure the canopy is properly tensioned when extended. The canopy is designed with drainage holes to prevent significant water accumulation. If pooling occurs, gently push up from underneath to release the water.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Garvee |
| Model Number | B9p9rNOQQKA4pBT18PQSuQNhUfZ |
| Material | Aluminum frame, PA fabric canopy |
| Color | Khaki |
| Style | Modern |
| Product Dimensions (Assembled) | 13 ft (Length) x 10 ft (Width) x 7.6 ft (Height) |
| Item Weight | 85.65 Pounds |
| Water Resistance Level | Waterproof canopy |
| Ultraviolet Light Protection | UV-resistant canopy |
| Assembly Required | Yes |

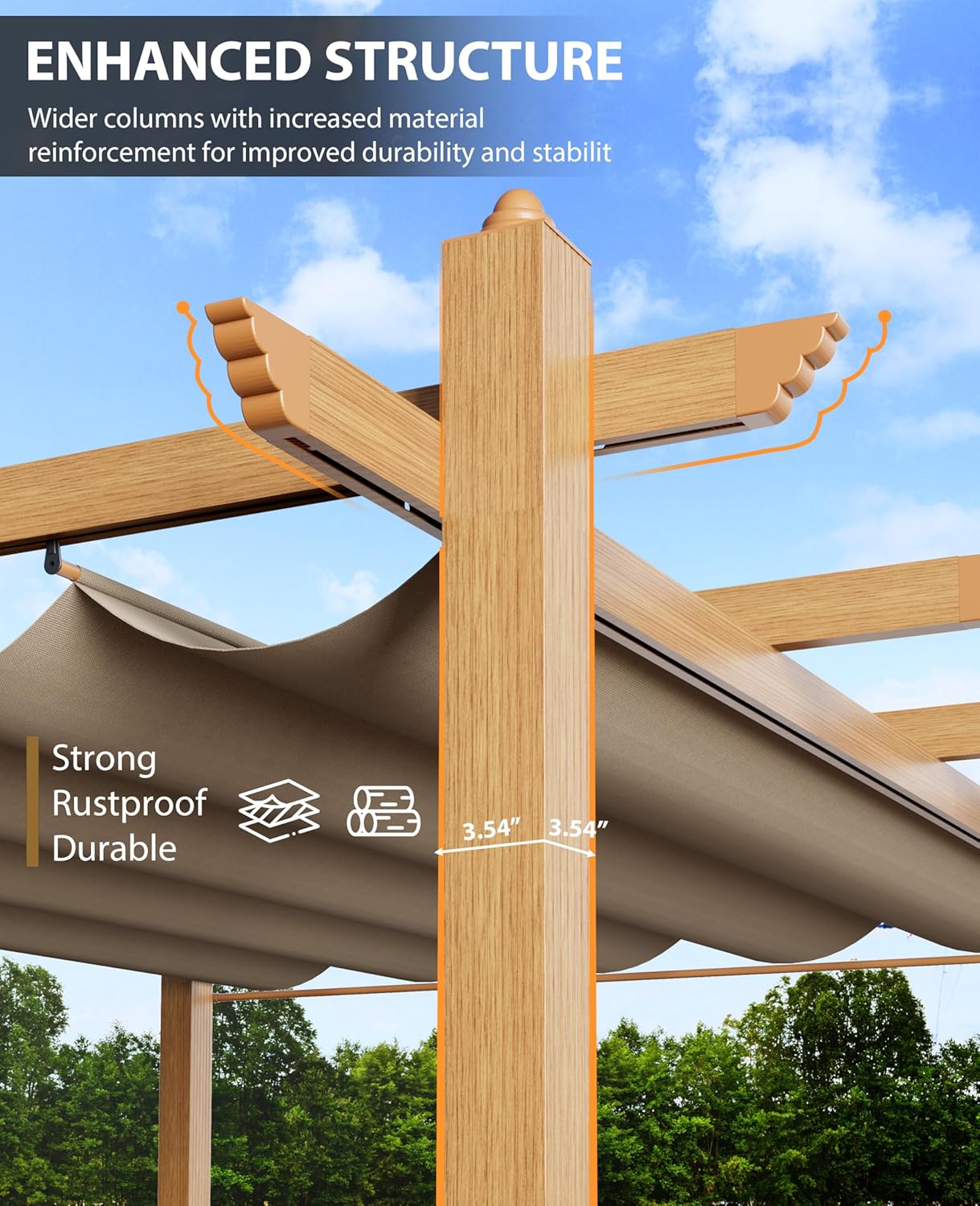

Image: Enhanced Structure. A close-up of a pergola post and beam, highlighting the faux wood grain finish and structural reinforcement for improved durability.
9. Warranty and Support
Garvee is committed to providing high-quality products. For any questions regarding assembly, operation, missing parts, or warranty claims, please contact Garvee customer support. Please have your model number (B9p9rNOQQKA4pBT18PQSuQNhUfZ) and purchase information ready when contacting support.
For further assistance, please visit the official Garvee Store: Garvee Store on Amazon
