Timex Waterbury 40mm Watch Instruction Manual

Introduction

Thank you for choosing the Timex Waterbury 40mm watch, model TW2Y28500. This timepiece combines classic design with reliable quartz movement and durable stainless steel construction. This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your watch to ensure its longevity and accurate performance.

Please read these instructions carefully before using your watch and retain them for future reference.

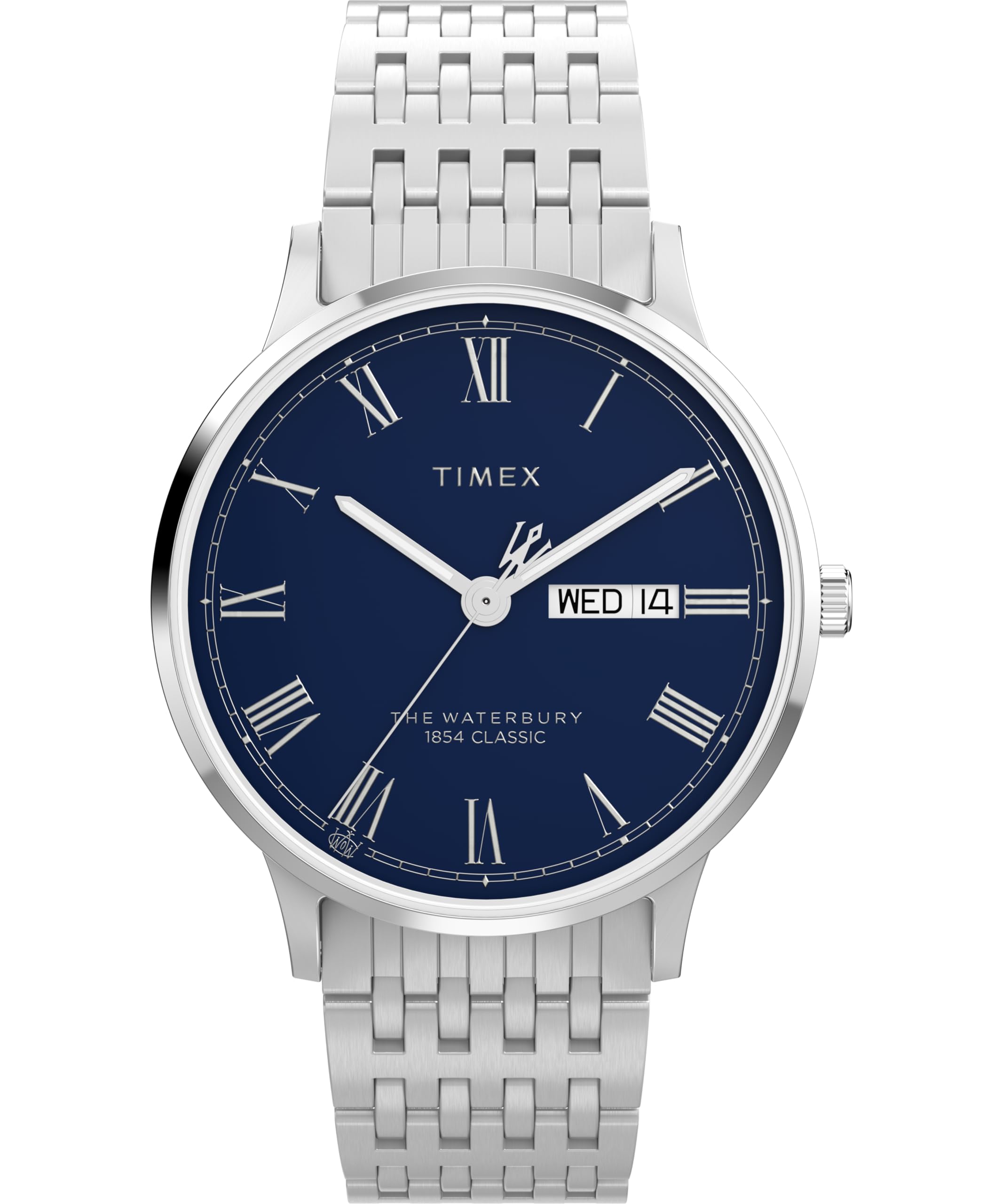

Image: Front view of the Timex Waterbury 40mm watch, featuring a blue dial, Roman numerals, and a stainless steel bracelet.

Setup

1. Setting the Time and Date

Your Timex Waterbury watch features a day and date display. The crown is located on the right side of the watch case.

1. To Set the Date: Pull the crown out to position 2 (first click). Rotate the crown clockwise or counter-clockwise until the correct date appears.
2. To Set the Day: Pull the crown out to position 2 (first click). Rotate the crown in the opposite direction until the correct day appears.
3. To Set the Time: Pull the crown out to position 3 (second click). Rotate the crown to move the hands clockwise until the correct time is displayed. Ensure the AM/PM is correctly set for the date change. The date will change around midnight.
4. Once the time and date are set, push the crown back into position 1 (normal operating position) to start the watch.

Image: Side view of the watch case, highlighting the crown used for setting time and date.

2. Adjusting the Bracelet

The stainless steel bracelet is designed to fit wrist circumferences between 150mm and 205mm. If adjustment is needed, it is recommended to have a professional jeweler or watch repair service remove or add links to ensure proper fit and prevent damage to the bracelet.

Image: Rear view of the watch, showing the stainless steel bracelet and its clasp mechanism.

Operating Your Watch

Water Resistance

Your Timex Waterbury watch is water resistant to 50 meters (165 feet). This rating means the watch is suitable for short periods of recreational swimming. It is not suitable for diving, snorkeling, or prolonged water activities. Avoid operating the crown while the watch is wet or submerged.

Luminant Hands

The watch features luminant hands for enhanced visibility in low-light conditions. These hands absorb light and glow in the dark after exposure to a light source.

Maintenance

Cleaning

To maintain the appearance of your stainless steel watch, wipe it regularly with a soft, dry cloth. For more thorough cleaning, a slightly damp cloth can be used, followed by immediate drying. Avoid harsh chemicals or abrasive materials.

Battery Replacement

The watch is powered by a quartz movement and requires a battery. When the watch stops or the second hand begins to jump erratically (indicating a low battery), it is time for a replacement. It is highly recommended to have the battery replaced by a qualified watch technician to ensure proper sealing and maintain water resistance.

Storage

When not wearing your watch, store it in a cool, dry place away from direct sunlight and extreme temperatures. Keeping it in its original box or a watch case can help protect it from dust and scratches.

Troubleshooting

• Watch Not Running:

  Ensure the crown is fully pushed into position 1. If the watch still does not run, the battery may need replacement. Refer to the "Battery Replacement" section.

• Date/Day Not Changing Correctly:

  The date and day change mechanism is typically linked to a 24-hour cycle. If the date changes at noon instead of midnight, you may have set the time incorrectly for AM/PM. Advance the time by 12 hours.

• Condensation Under Crystal:

  If condensation appears under the watch crystal, it indicates a potential breach in water resistance. Avoid further contact with water and seek professional service immediately.

Specifications

Image: Detailed view of the watch's stainless steel case back, showing "Waterbury Collection" and "WR 50M" engravings.

Warranty and Support

Timex watches are manufactured to high-quality standards and are covered by a limited warranty. For detailed warranty information, please refer to the official Timex website or the warranty card included with your purchase.

For customer support, service, or inquiries regarding your Timex Waterbury watch, please visit the official Timex support page or contact their customer service department directly. Contact information can typically be found on the Timex website.

Official Timex Website: www.timex.com
