1. Introduction
This manual provides detailed instructions for the safe and efficient operation, setup, and maintenance of your Sihao A3 DTF Powder Shaking Machine. This machine is designed to automate the powder application and drying process for Direct-to-Film (DTF) printing, ensuring uniform powder distribution and efficient curing for various textile applications.
2. Safety Instructions
Please read all safety warnings and instructions carefully before operating the machine to prevent injury or damage. Keep this manual for future reference.
- Always connect the machine to a grounded power outlet with the correct voltage (AC110V, 50hz/60hz, 1 phase).
- Do not operate the machine with wet hands or in damp environments.
- Ensure proper ventilation in the work area, especially during the drying process, to dissipate heat and fumes.
- Keep hands and loose clothing away from moving parts, especially the powder shaking mechanism and the automatic coiling system.
- Do not touch the heating elements during or immediately after operation, as they will be hot. Allow the machine to cool down before performing maintenance.
- Use only recommended DTF powder and film. Using incompatible materials may damage the machine or affect print quality.
- In case of malfunction or unusual noise, immediately turn off the machine and disconnect it from the power supply. Contact qualified service personnel.
- Keep children and unauthorized personnel away from the machine during operation.
3. Product Overview
The Sihao A3 DTF Powder Shaking Machine integrates powder application, shaking, drying, and automatic coiling functions into a single unit, streamlining the DTF printing workflow.
3.1 Key Features
- Automatic Induction Coiling: Tightly coils processed materials, improving production efficiency and allowing continuous operation.
- Enhanced Printing Efficiency: Our machine vibrates the powder application mechanism to ensure uniform distribution and prevent it from clumping.
- User-Friendly Interface: Simplifies the entire printing process with intuitive controls.
- Versatile Material Compatibility: Supports DTF film up to 13.4 inches (340mm) wide, suitable for nylon, chemical fiber, cotton, leather, swimsuits, wetsuits, PVC, and EVA.
- Efficient Drying System: Features a high-power heating pipe for uniform and stable temperature distribution, ensuring quick and even drying.
3.2 Components and Controls
Figure 3.2.1: Overall view of the Sihao A3 DTF Powder Shaking Machine, showing the main unit, powder application area, drying chamber, and front-mounted automatic coiling system.
Figure 3.2.2: Close-up of the control panel, featuring a digital temperature display (thermolato), power switch, heat switch, dual switch control, and dust speed control knobs. This panel allows for precise adjustment of machine parameters.

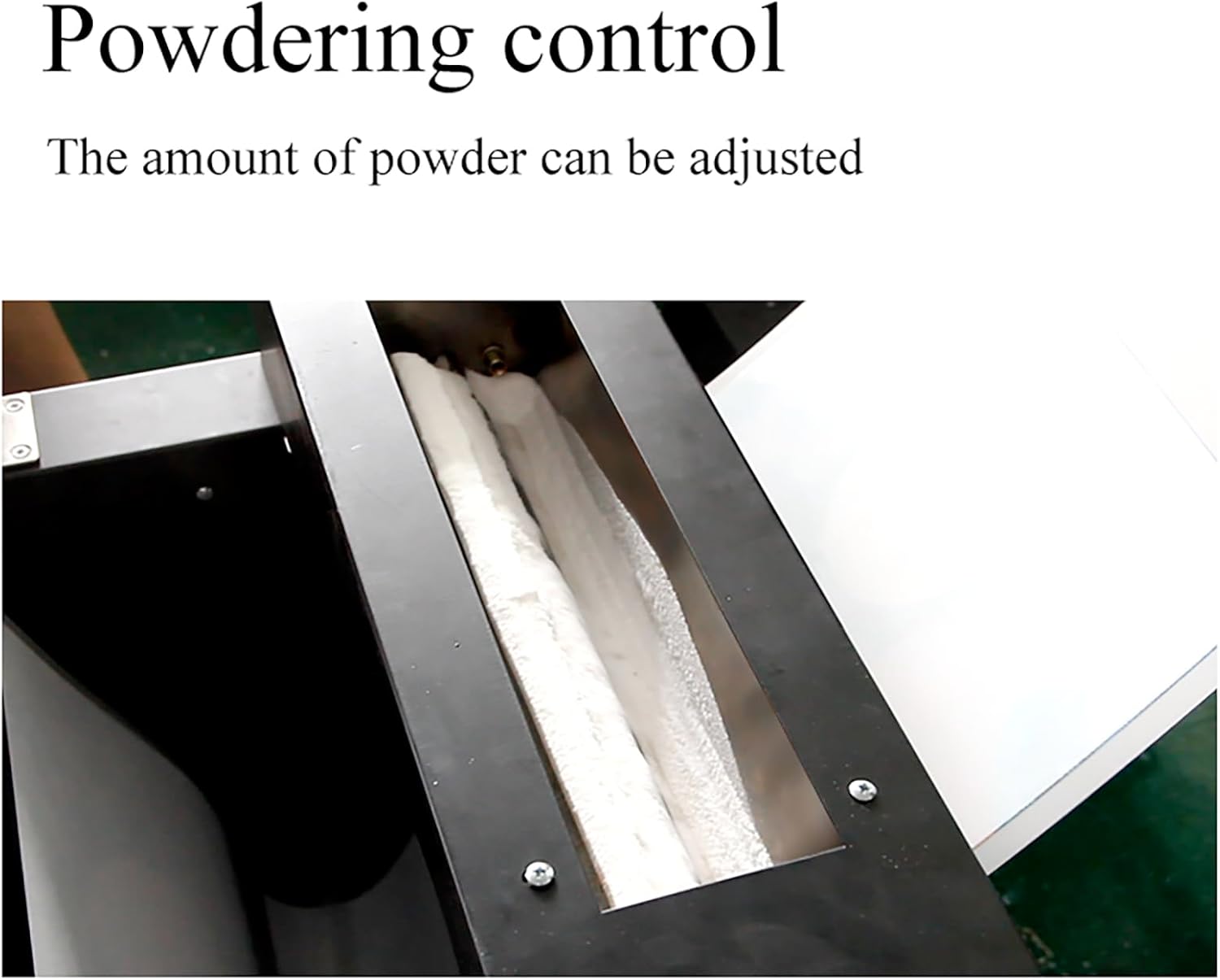

Figure 3.2.3: View of the powdering control mechanism, where the amount of DTF powder applied to the film can be adjusted for optimal coverage.
Figure 3.2.4: The automatic coiling system, demonstrating the machine's ability to automatically collect and tightly coil the processed DTF film, enhancing workflow efficiency.

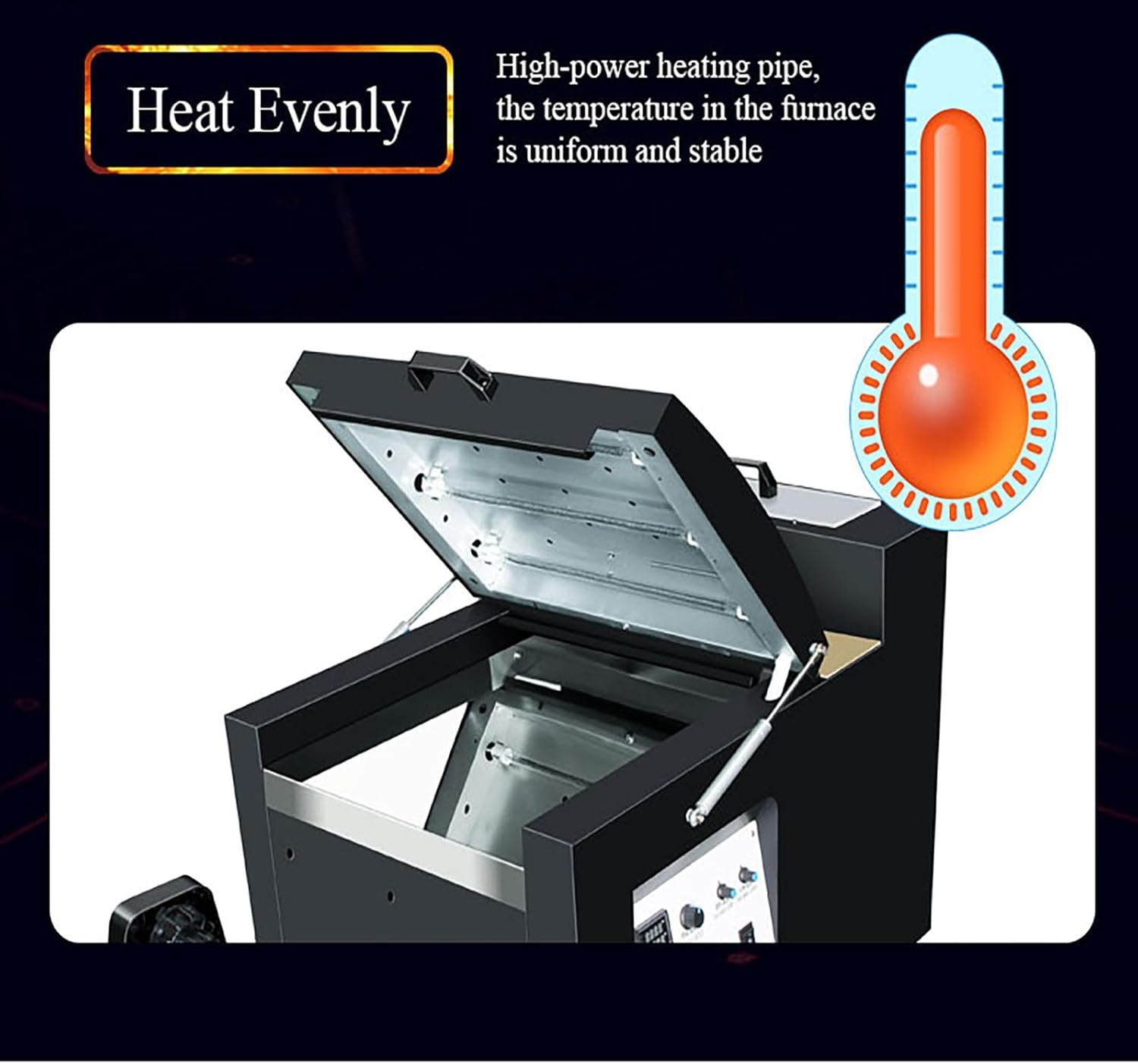

Figure 3.2.5: Illustration of the high-power heating pipe within the drying chamber, designed to provide uniform and stable temperature for effective curing of the DTF powder.
4. Setup
- Unpacking: Carefully remove the machine from its packaging. Inspect for any shipping damage. Retain packaging for future transport or storage.
- Placement: Place the machine on a stable, level surface in a well-ventilated area. Ensure sufficient space around the machine for operation and maintenance.
- Power Connection: Connect the power cord to the machine and then to a grounded AC110V, 50hz/60hz, 1 phase power outlet.
- Powder Loading: Open the powder reservoir and carefully pour the recommended DTF powder into it. Ensure the powder is evenly distributed.
- Film Loading: Load the DTF film onto the input roller, ensuring it is properly aligned and secured. The film should feed smoothly into the powdering section.
- Initial Checks: Before powering on, ensure all covers are closed and there are no obstructions in the film path or powdering area.
5. Operating Instructions
Follow these steps for optimal performance and safety.
- Power On: Turn on the main power switch on the control panel. The digital display should illuminate.
- Set Temperature: Adjust the "thermolato" (temperature control) to the desired drying temperature. The recommended dry temperature is 160°C, but this can be adjusted based on the specific DTF powder and film used, and print speed.
- Activate Heat: Turn on the "Heat" switch to begin preheating the drying chamber. Allow sufficient time for the temperature to stabilize.
- Adjust Powdering: Use the "Powdering control" knob to set the desired amount of powder application. Start with a moderate setting and adjust as needed for uniform coverage.
- Set Shaking Speed: Adjust the "Shaking Speed" control to ensure proper powder distribution and removal of excess powder.
- Start Operation: Once the temperature is stable and settings are configured, initiate the film feed. The machine will automatically apply powder, shake off excess, dry the film, and coil it.
- Monitor Process: Continuously monitor the film as it passes through the machine to ensure proper powder application and drying. Adjust settings if necessary.
- Automatic Coiling: The machine will automatically coil the processed film. Ensure the take-up reel is properly installed and the film is securely attached to it.
- Power Off: After completing the printing job, turn off the "Heat" switch first, then the main power switch. Allow the machine to cool down before cleaning or maintenance.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your DTF powder shaking machine.
- Daily Cleaning: After each use, clean any residual powder from the powdering area and the drying chamber. Use a soft, dry cloth or a vacuum cleaner designed for fine particles.
- Roller Cleaning: Periodically inspect and clean the rollers to prevent powder buildup, which can affect film feeding and coiling.
- Heating Element Inspection: Regularly check the heating elements for any signs of damage or excessive powder accumulation. Clean carefully when the machine is cool.
- Dust Filter Cleaning: If applicable, clean or replace the dust filter to maintain proper airflow and prevent overheating.
- Lubrication: Refer to the machine's specific lubrication points (if any) and apply appropriate lubricants as recommended by the manufacturer.
- Storage: When not in use for extended periods, store the machine in a clean, dry environment, protected from dust and extreme temperatures.
7. Troubleshooting
This section addresses common issues you might encounter. For problems not listed here, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not power on. | No power supply; Power cord loose; Main switch off. | Check power outlet; Ensure power cord is securely connected; Turn on main power switch. |
| Powder not shaking or unevenly distributed. | Powder reservoir empty; Shaking mechanism obstructed; Incorrect shaking speed setting. | Refill powder; Clear any obstructions; Adjust shaking speed. |
| Film not feeding or coiling properly. | Film misaligned; Rollers dirty; Coiling mechanism obstructed. | Realign film; Clean rollers; Clear obstructions from coiling system. |
| Drying temperature not reaching set value. | Heat switch off; Heating elements faulty; Poor ventilation. | Turn on heat switch; Contact service for element replacement; Ensure adequate ventilation. |
| Excessive powder on film after shaking. | Shaking speed too low; Powdering amount too high. | Increase shaking speed; Reduce powdering amount. |
8. Specifications
Technical specifications for the Sihao A3 DTF Powder Shaking Machine.
| Parameter | Value |
|---|---|
| Product Name | Automatic shake powder machine |
| Model | A3 DTF Powder Shaking Machine (340mm) |
| Maximum Powder Width | ≤13.4 inches (340mm) |
| Applicable Media | PET DTF roll |
| Working Voltage | AC110V, 50hz/60hz, 1 phase (220V/110V Optional) |
| Current | 5A |
| Rated Power | 800W |
| Drying Size | ≤300mm |
| Dry Temperature | 160°C (Adjustable according to demand) |
| Dry Time | Adjustable according to print speed |
| Shaking Speed | Adjustable |
| Amount of Powder | Adjustable |
| Dimensions (L x W x H) | 950mm x 540mm x 560mm (37.4 x 21.3 x 22 inches) |
| Weight | 35 kg (77.2 pounds) |
| Product Application | PET film automatic powder shake powder heating dissolution white ink quickly dry, automatic roll up |
Figure 8.1: Detailed product information table, outlining key specifications such as voltage, power, and drying capabilities.
Figure 8.2: Dimensional diagram of the DTF Powder Shaking Machine, showing its length (950mm), width (540mm), and height (560mm).
9. What's in the Box
The following items are included with your Sihao A3 DTF Powder Shaking Machine:
- 1 x Powder Shaking Machine
Note: Additional accessories or consumables (e.g., DTF powder, DTF film) are sold separately.
10. Warranty and Support
Sihao is committed to providing high-quality products and customer satisfaction. For any questions, technical assistance, or warranty inquiries, please contact Sihao customer support.
Please refer to your purchase documentation for specific warranty terms and conditions. Keep your proof of purchase for warranty claims.
For further assistance, you may visit the official Sihao store or contact the seller directly.
Sihao Store: https://www.amazon.com/stores/Sihao/page/FD7D17AA-2D5F-4A6C-8E48-C2B3BF3D380C
