1. Introduction
This manual provides essential instructions for the safe and effective use of your Yinleader JP-5000 (YL-USJP-5000) 5000W Step Up/Down Voltage Converter. This device is designed to convert voltage between 120V and 100V, allowing you to use appliances from Japan in 120V regions (such as the US, Canada, and Mexico) and vice versa.
Please read this manual thoroughly before operating the converter and retain it for future reference.
2. Safety Instructions
WARNING: Failure to follow these safety instructions may result in electric shock, fire, or damage to the converter or connected appliances.
- Always ensure the total wattage of all connected appliances does not exceed 80% of the converter's rated capacity (5000W). For this 5000W model, the safe continuous operating load is approximately 4000W.
- Before connecting any appliance, verify that the Input Voltage Selector switch on the back of the converter is set to match your local wall outlet voltage (e.g., 120V for North America, 100V for Japan). Incorrect selection will result in no output voltage or damage.
- The converter changes voltage but does not alter frequency (Hz). Ensure your appliance is compatible with the local power frequency (50Hz or 60Hz).
- Do not use the converter in wet or damp conditions. Keep it away from water and other liquids.
- Place the converter on a stable, flat surface with adequate ventilation. Do not block the ventilation openings.
- Do not open the converter casing. There are no user-serviceable parts inside. Refer all servicing to qualified personnel.
- Unplug the converter from the wall outlet when not in use.
- Keep out of reach of children.
3. Package Contents
Verify that all items are present in the package:
- Yinleader JP-5000 5000W Step Up/Down Voltage Converter
- Power Cord with USA Grounded 3-Prong Plug
- Instruction Manual (this document)
Image: The Yinleader JP-5000 voltage converter shown with its detachable power cord.
4. Product Overview
Familiarize yourself with the components of your voltage converter:
Image: Front and rear views of the converter with key components labeled.
- 120V Output Sockets: For connecting appliances requiring 120V.
- 100V Output Sockets: For connecting appliances requiring 100V.
- Power LED: Illuminates when the converter is powered on.
- On/Off Switch: Controls the power to the converter.
- Resettable Circuit Breaker: Provides overload protection. Automatically trips if the load exceeds capacity.
- AC Input Select Switch: Critical switch to select between 100V and 120V input voltage.
- AC Input Port: Where the detachable power cord connects to the converter.
- Efficient Heat Output: Ventilation grilles for heat dissipation.
Image: An internal view highlighting the high-efficiency toroidal transformer.
5. Setup
- Place the Converter: Position the converter on a flat, stable surface in a well-ventilated area, away from direct sunlight, heat sources, and moisture.
- Select Input Voltage: Locate the AC Input Select Switch on the back of the unit. CRITICALLY, set this switch to match the voltage of your wall outlet (e.g., 120V for North America, 100V for Japan).
- Connect Power Cord: Plug the provided power cord into the AC Input Port on the converter, then plug the other end into your wall outlet.
- Power On: Flip the On/Off switch on the front panel to the 'ON' position. The Power LED should illuminate.
Image: The rear panel of the converter, showing the input voltage selector switch. Ensure it is set correctly before use.
Image: Step-by-step guide for setting up the converter to provide 100V output from a 120V input.
6. Operating Instructions
- Connect Appliance: With the converter powered on, plug your appliance into the appropriate output socket (100V or 120V) on the front panel. Ensure the appliance's power requirement matches the selected output.
- Monitor Load: Do not exceed the converter's maximum continuous load (approximately 4000W for the 5000W model). If using multiple appliances, ensure their combined wattage remains below this limit.
- High-Power Appliances: For high-power appliances like hair dryers or coffee makers, it is recommended to choose a converter with a wattage rating at least 2 times higher than the appliance's rating to ensure safe operation and prevent overloading.
- Turn Off: When finished, turn off the appliance, then flip the converter's On/Off switch to 'OFF', and finally unplug the converter from the wall outlet.
Image: The converter connected to a wall outlet, illustrating how 120V input can provide both 100V and 120V output for various appliances.
Image: A visual representation of Japanese 100V appliances being used in a different voltage environment with the Yinleader converter.
7. Maintenance
- Cleaning: Disconnect the converter from power before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or aerosols.
- Storage: Store the converter in a cool, dry place when not in use.
- Ventilation: Ensure the ventilation openings remain clear of dust and debris to prevent overheating.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No power to converter (Power LED off) | Converter not plugged in; Wall outlet not active; On/Off switch is off. | Ensure power cord is securely plugged into both converter and wall outlet. Check wall outlet with another device. Flip On/Off switch to 'ON'. |
| No output voltage to appliance | Incorrect Input Voltage Selector setting; Resettable Circuit Breaker tripped; Appliance not plugged into correct output socket. | Verify the AC Input Select Switch matches your wall outlet voltage. Press the Resettable Circuit Breaker button to reset it. Ensure appliance is plugged into the correct 100V or 120V output socket. |
| Converter stops working during use | Overload (total wattage of connected appliances exceeds capacity). | Unplug appliances. Press the Resettable Circuit Breaker button to reset. Reduce the total load before reconnecting and powering on. |
| Appliance not functioning correctly | Appliance frequency incompatibility; Appliance faulty. | Confirm your appliance is compatible with the local power frequency (50Hz/60Hz). Test the appliance directly if possible or with another power source. |
Image: A finger pressing the resettable circuit breaker button. This button pops out automatically when overloaded and can be pressed to reset.
9. Specifications
| Feature | Specification |
|---|---|
| Model Number | JP-5000 (YL-USJP-5000) |
| Power Rating | 5000 Watts (Max) |
| Input Voltage | 100V / 120V (Selectable) |
| Output Voltage | 100V / 120V |
| Frequency | 50Hz / 60Hz (Pass-through, not converted) |
| Dimensions (L x W x H) | Approximately 25 cm x 19 cm x 16 cm (9.84 in x 7.48 in x 6.3 in) |
| Weight | 6.8 kg (14.43 lbs) |
| Certifications | CE, FCC, UL |

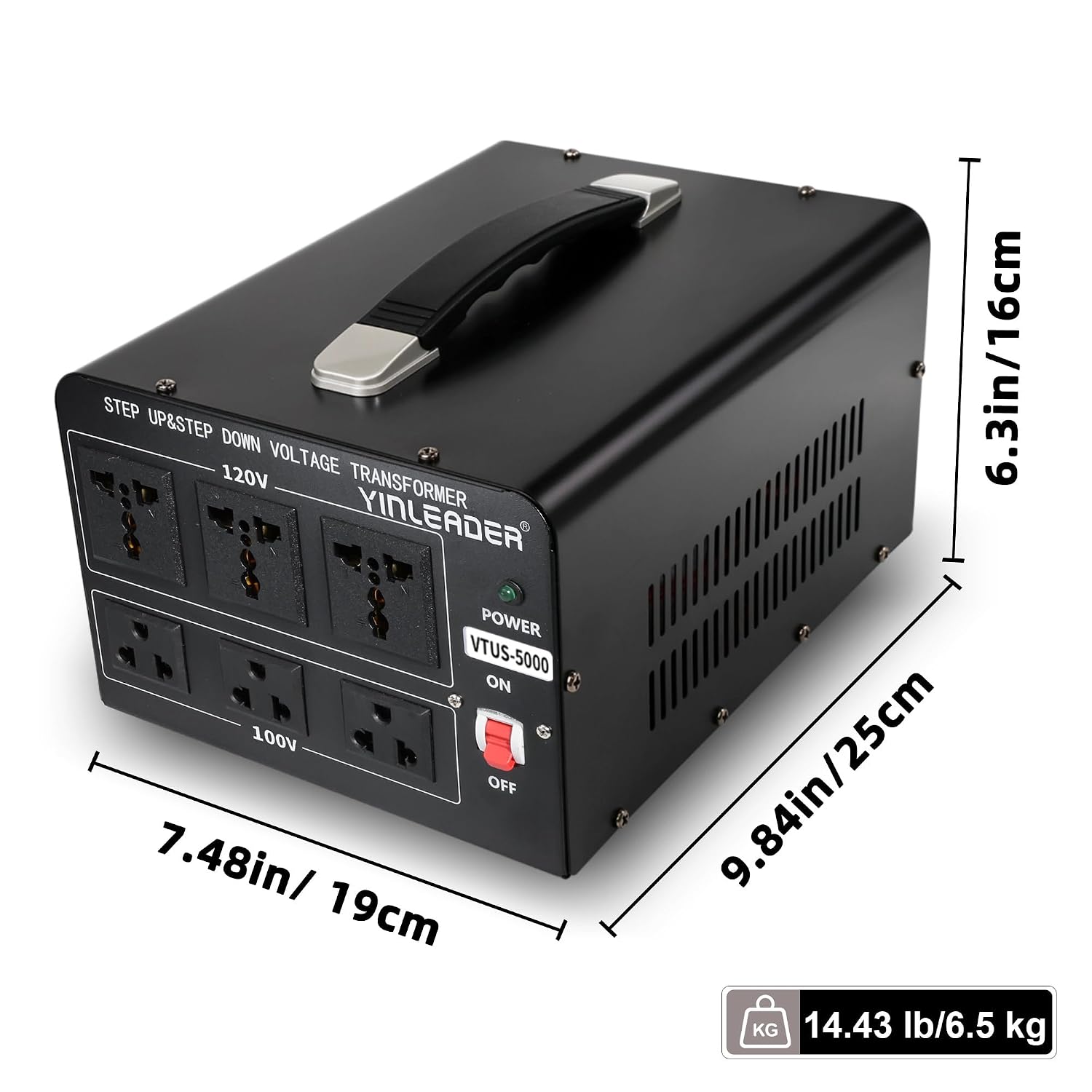

Image: The physical dimensions of the converter, showing its length, width, and height, along with its weight.
10. Warranty and Support
Yinleader products are manufactured to high-quality standards. For warranty information, technical support, or service inquiries, please contact the manufacturer or your point of purchase. Please have your model number (JP-5000 or YL-USJP-5000) and purchase date available when contacting support.
