1. Introduction
This manual provides essential information for the safe and effective installation, operation, and maintenance of your Fisher & Paykel 848320P PC 3W Fan Assembly JST/DCT. This fan assembly is an Original Equipment Manufacturer (OEM) part designed to ensure optimal performance and compatibility with specific Fisher & Paykel refrigerator models.
Compatible Models: E402BRXFD4, E402BLXFD4, E402BRXFDU4, RF610ADUSX4, RF522ADUSX4, RF610ADX4, RF522ADX4, RF522BRPW6.
2. Safety Information
WARNING: Before attempting any installation or maintenance, ensure the appliance is disconnected from the main power supply to prevent electric shock or injury.
- Always wear appropriate personal protective equipment (PPE), such as gloves and eye protection.
- Installation should ideally be performed by a qualified technician.
- Handle the fan assembly with care to avoid damage to components or personal injury.
- Do not modify the fan assembly or any related components. Use only genuine Fisher & Paykel replacement parts.
3. Package Contents
Verify that all components are present and undamaged before proceeding with installation.
- 1 x Fisher & Paykel 848320P PC 3W Fan Assembly JST/DCT
- 1 x Instruction Sheet

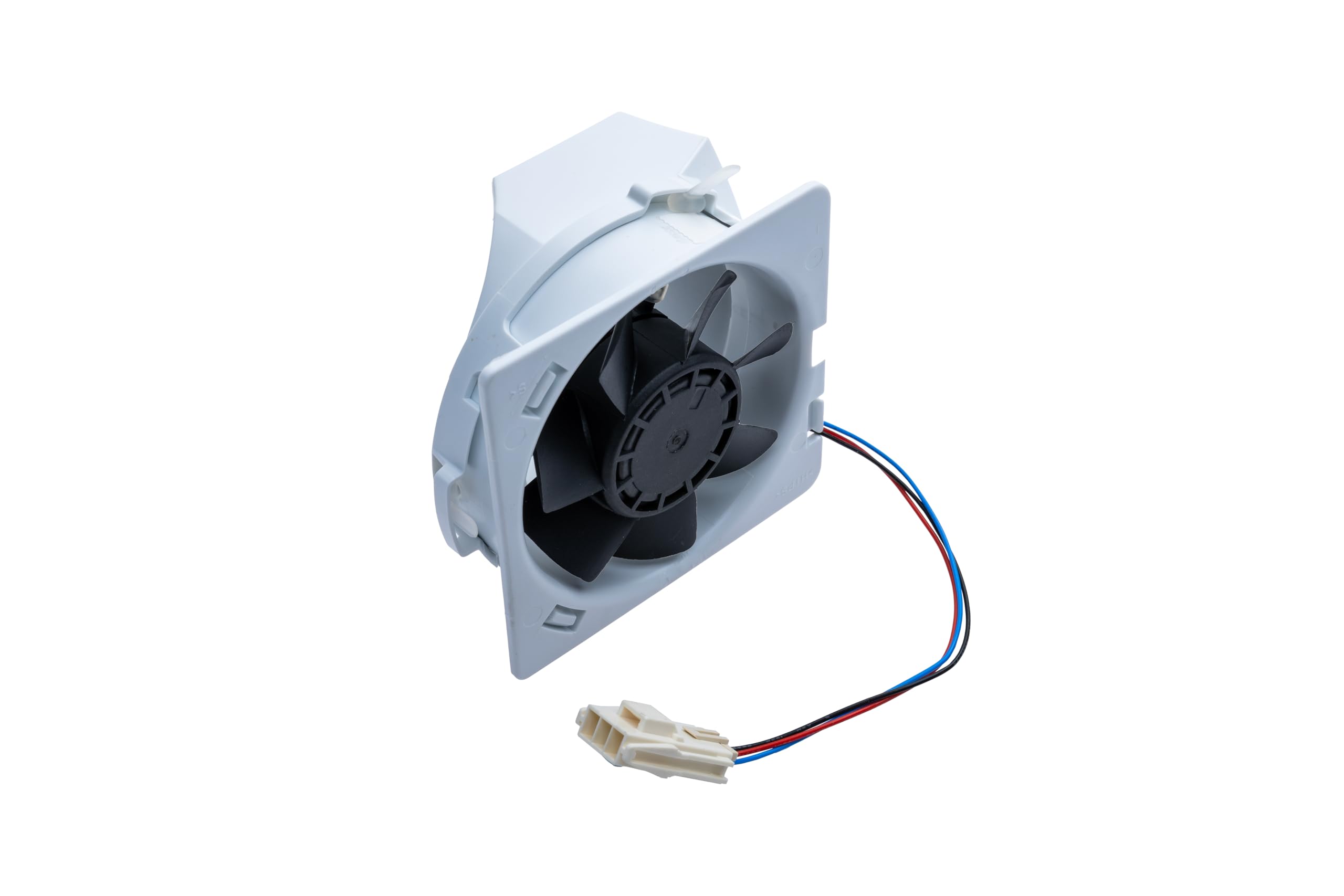

Figure 3.1: The Fisher & Paykel 848320P PC 3W Fan Assembly JST/DCT. This image shows the fan unit with its electrical connector, ready for installation into a compatible refrigerator model.
4. Setup and Installation
This fan assembly is designed for seamless integration and easy installation as a direct replacement part. Refer to your appliance's specific service manual for detailed, model-specific installation instructions.
- Disconnect Power: Unplug the refrigerator from the electrical outlet or turn off the circuit breaker supplying power to the appliance.
- Access Fan Location: Depending on your refrigerator model, you may need to remove panels or covers to access the existing fan assembly. Consult your appliance's service manual for exact procedures.
- Remove Old Fan: Carefully disconnect the wiring harness from the old fan assembly. Unmount the old fan from its housing. Note the orientation and mounting points for the new fan.
- Install New Fan: Position the new Fisher & Paykel 848320P fan assembly in the same orientation as the old one. Secure it using the original mounting hardware.
- Connect Wiring: Connect the JST/DCT power connector of the new fan assembly to the corresponding wiring harness in the appliance. Ensure a secure connection.
- Reassemble: Replace any panels or covers that were removed.
- Restore Power: Plug the refrigerator back into the electrical outlet or turn on the circuit breaker.
- Test Operation: Verify that the fan operates correctly and that the refrigerator is cooling as expected.
5. Operating Instructions
The Fisher & Paykel 848320P PC 3W Fan Assembly operates automatically as part of your refrigerator's cooling system. Its primary function is to circulate air, ensuring efficient temperature regulation within the appliance. No direct user interaction is required for its operation once correctly installed.
6. Maintenance
Regular maintenance of the fan assembly is generally not required beyond ensuring it remains free from obstructions and excessive dust buildup.
- Inspection: Periodically inspect the fan blades for any accumulation of dust or debris. If accessible, gently clean the blades with a soft brush or cloth.
- Obstructions: Ensure that no items inside the refrigerator or freezer compartment are obstructing the fan's airflow.
- Noise: If the fan begins to make unusual noises, it may indicate a need for further inspection or replacement.
Always disconnect power to the appliance before performing any inspection or cleaning.
7. Troubleshooting
If you experience issues with your refrigerator's cooling or fan operation, consider the following:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan not running | No power to appliance; faulty wiring connection; fan motor failure. | Check power supply; verify wiring connections; if power is present and connections are secure, the fan may need replacement. |
| Unusual noise from fan | Obstruction in fan blades; worn bearings; loose mounting. | Disconnect power and inspect for obstructions; if no obstruction, the fan may be failing and require replacement. Ensure mounting is secure. |
| Refrigerator not cooling efficiently | Fan not circulating air; other refrigeration system issues. | Ensure fan is running and not obstructed. If fan is operating correctly, consult a qualified technician for further diagnosis of the refrigeration system. |
If troubleshooting steps do not resolve the issue, contact a qualified appliance service technician.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Fisher & Paykel |
| Model Number | 848320P |
| Power Connector Type | JST/DCT |
| Wattage | 3 watts |
| Cooling Method | Forced Air |
| Compatible Devices | Refrigerator (Specific Fisher & Paykel models) |
| UPC/GTIN | 822843967247 |
| Number of Items | 1 |
9. Warranty and Support
As an Original Equipment Manufacturer (OEM) part, this fan assembly is subject to Fisher & Paykel's standard warranty terms for replacement parts. Specific warranty details may vary by region and purchase date. Please retain your proof of purchase.
For warranty claims, technical support, or to locate an authorized service provider, please visit the official Fisher & Paykel website or contact their customer service department. You can find contact information on the Fisher & Paykel Store on Amazon or their official corporate website.
