BARWING BW-SPN06 Stationary Exercise Bike Instruction Manual

1. Important Safety Information

Please read this entire manual before assembling or operating the BARWING BW-SPN06 Stationary Exercise Bike. Keep this manual for future reference.

• Consult a Physician: Before starting any exercise program, consult your physician, especially if you have pre-existing health conditions.
• Assembly: Ensure all parts are correctly assembled and tightened before use. Refer to the assembly instructions carefully.
• Placement: Place the exercise bike on a flat, stable surface. Ensure adequate space around the bike for safe operation.
• Weight Limit: Do not exceed the maximum user weight of 160 kg (350 lbs).
• Children and Pets: Keep children and pets away from the exercise bike during operation.
• Moving Parts: Keep hands, feet, and clothing clear of all moving parts.
• Maintenance: Regularly inspect the bike for wear and tear. Do not use if any parts are damaged.
• Proper Attire: Wear appropriate exercise clothing and athletic shoes. Avoid loose clothing that could get caught in moving parts.

2. Product Overview

The BARWING BW-SPN06 is a versatile, foldable stationary exercise bike designed for home workouts. It features 16 levels of magnetic resistance and multiple adjustable components for a customized exercise experience.

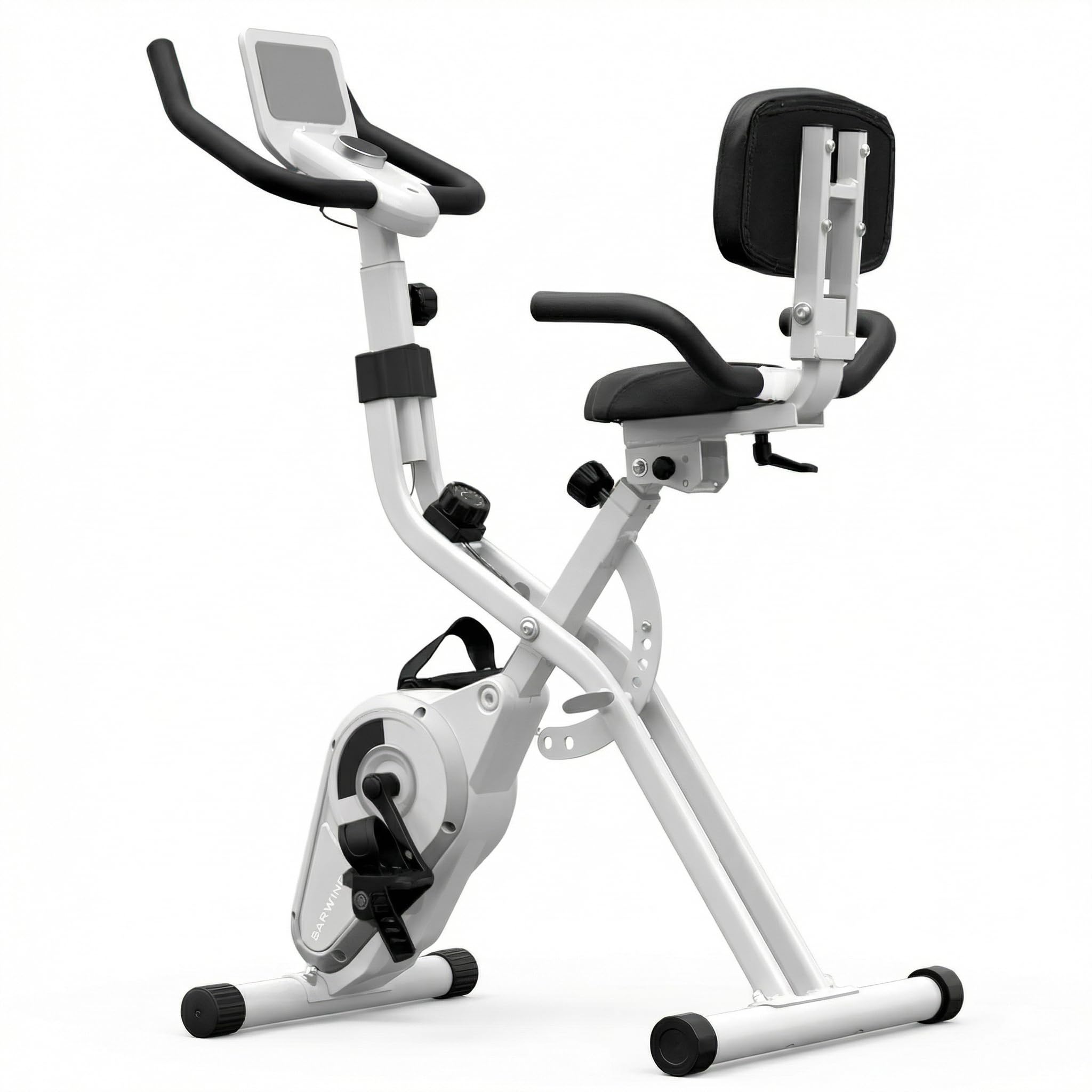

Image: Front-side view of the BARWING BW-SPN06 Stationary Exercise Bike, showcasing its compact design and integrated monitor.

3. Setup and Assembly

Unpack all components and ensure you have all necessary parts before beginning assembly. Follow the step-by-step instructions provided in the separate assembly guide included with your purchase. Key steps typically include:

1. Attach the front and rear stabilizers to the main frame.
2. Install the pedals, ensuring they are tightened securely (left pedal is reverse-threaded).
3. Mount the seat post and saddle, then attach the backrest.
4. Install the handlebar post and handlebars.
5. Connect the monitor cables and mount the monitor.

Ensure all bolts and nuts are securely fastened. The bike features a robust 4cm wide crescent part for enhanced stability, secured with T-bolts for easy handling during assembly and adjustments.

Image: A close-up view of the bike's frame, highlighting the 4cm wide crescent support and the T-bolt mechanism for secure adjustments.

4. Operating Instructions

4.1 Adjusting Resistance

The BARWING BW-SPN06 offers 16 levels of magnetic resistance. To adjust the resistance, turn the tension control knob located on the main frame. Turn clockwise for higher resistance and counter-clockwise for lower resistance.

4.2 Riding Positions

This bike supports multiple riding positions to target different muscle groups and provide varied workout intensities:

• Recumbent Riding: Low load, ideal for rehabilitation and aerobic exercise.
• Relaxed Riding: Moderate load, suitable for daily exercise and maintaining health.
• Road Riding: Higher load, mimics road cycling for endurance and calorie burning.
• Powerful Riding: High load, targets abdominal fat reduction and lower body strengthening.

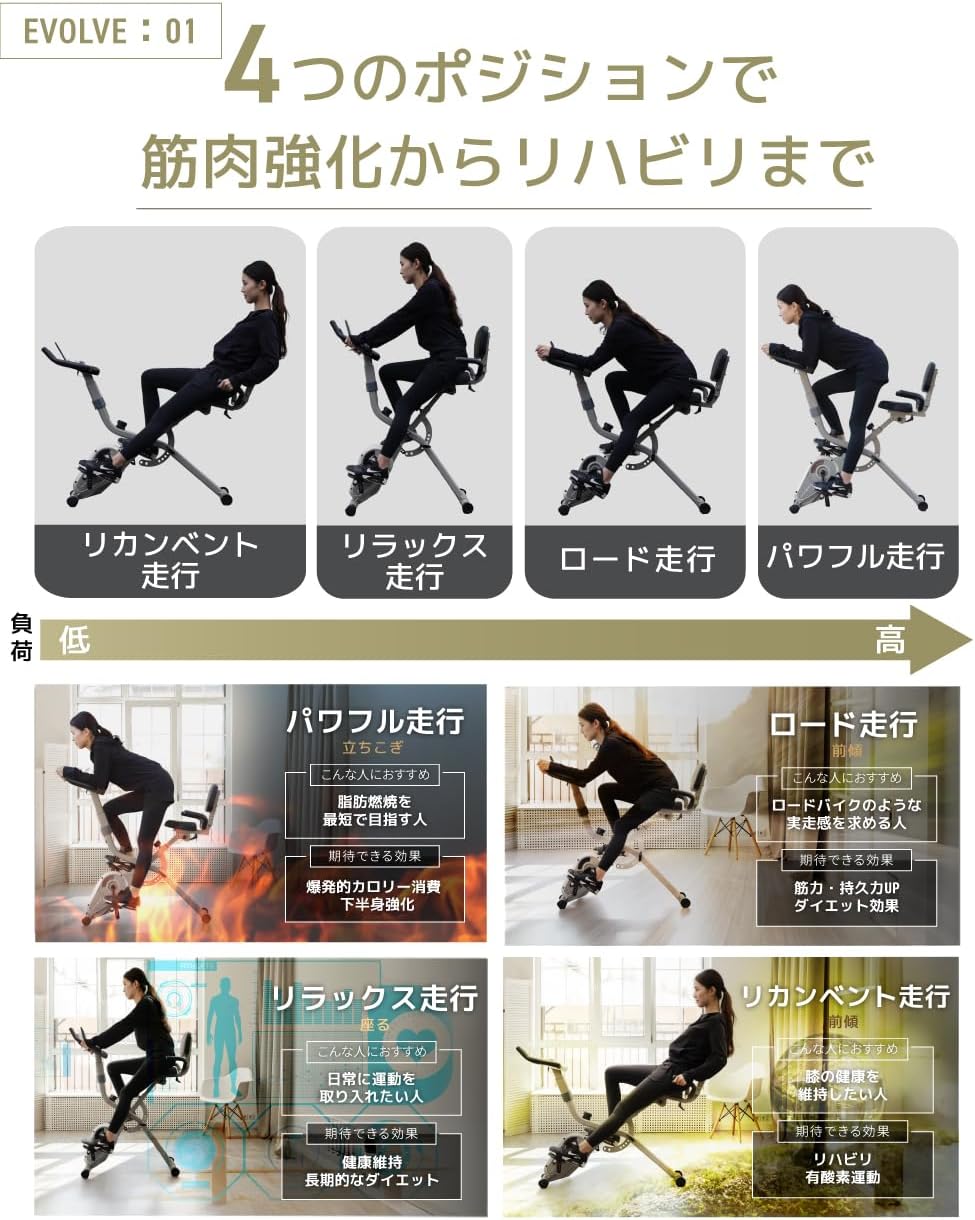

Image: Illustration showing four distinct riding positions (Recumbent, Relaxed, Road, Powerful) and their corresponding load levels and benefits.

4.3 Monitor Functions

The integrated touch monitor displays key workout data. Simply touch the screen to cycle through different metrics or activate the pulse function.

Image: A detailed view of the bike's touch monitor, showing readouts for Distance (DIS), Time, Speed, Calories (CAL), and Pulse. The monitor is designed for clear readability and single-finger operation.

• DIS (Distance): Displays the distance covered during your workout.
• TIME: Shows the duration of your exercise session.
• SPEED: Indicates your current cycling speed.
• CAL (Calories): Estimates the calories burned during your workout.
• PULSE: Measures your heart rate via the integrated touch sensors.

5. Adjustments

5.1 Seat Height and Position

The saddle is slide-adjustable to accommodate various user heights and preferences. Adjust the saddle forward or backward to find your optimal pedaling position.

Image: A view of the bike's saddle and backrest, illustrating the slide adjustment mechanism that allows users to find a comfortable position.

5.2 Seat Backrest Angle

The backrest offers 6 stages of angle adjustment, allowing you to switch between upright and more reclined positions, including a maximum angle of 135 degrees for a comfortable recumbent experience.

Image: A diagram illustrating the six adjustable angles of the seat backrest, ranging from 75 to 135 degrees, providing flexibility for different riding styles.

Additionally, the saddle itself can be adjusted to 3 distinct angles: incline mode, flat mode, and decline mode, further enhancing comfort and workout variety.

Image: A graphic detailing three adjustable saddle angles (incline, flat, decline) and highlighting the bike's 160 kg load capacity.

5.3 Handlebar Height

The handlebars can be adjusted to 5 different height levels (79cm, 80cm, 84cm, 87cm, 92cm) to suit your body and exercise goals.

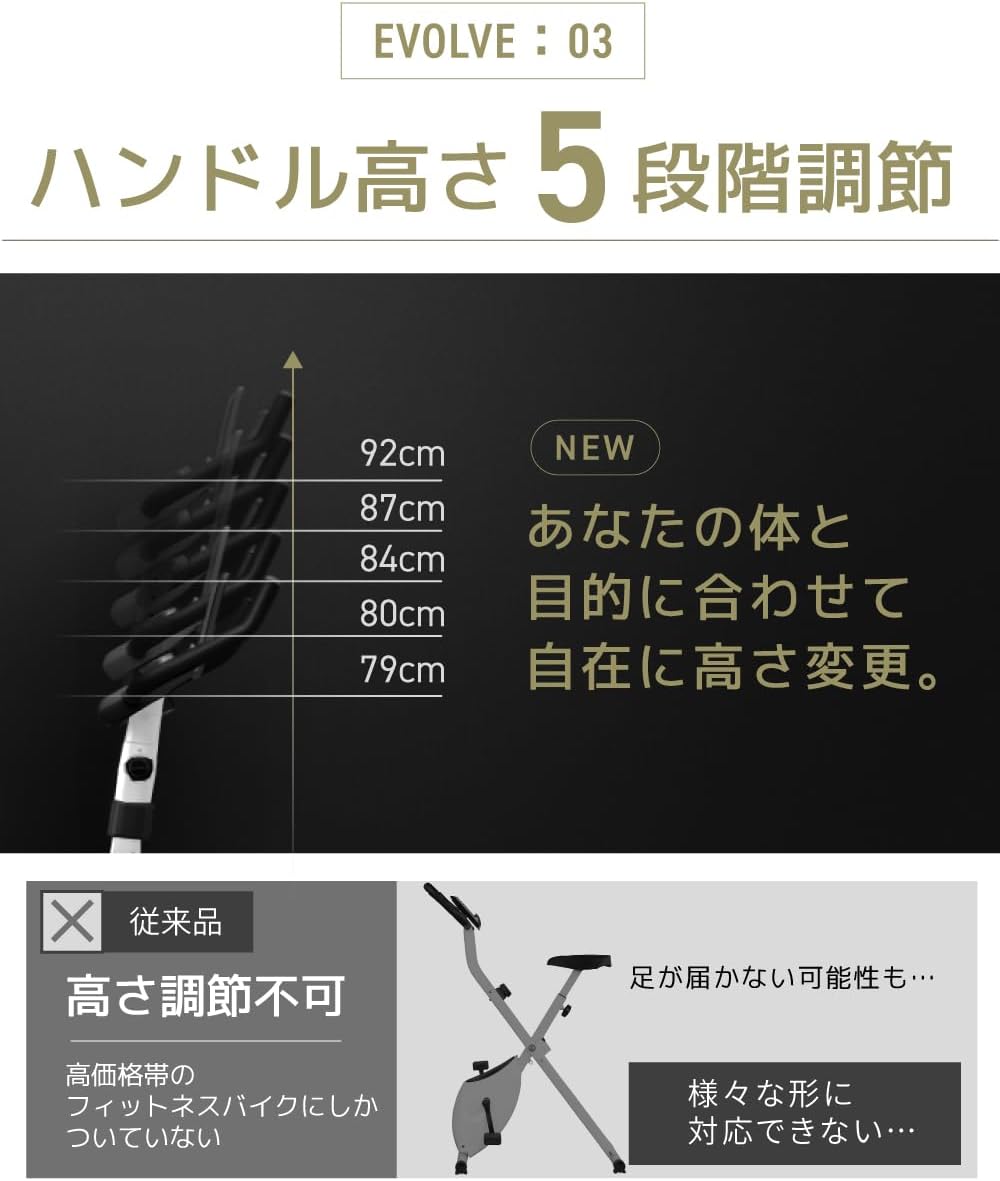

Image: A visual representation of the handlebar height adjustment, showing five distinct settings from 79cm to 92cm to accommodate various user preferences.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your exercise bike.

• Cleaning: Wipe down the bike with a damp cloth after each use to remove sweat and dust. Avoid abrasive cleaners.
• Inspection: Periodically check all bolts, nuts, and moving parts for tightness and wear. Tighten any loose fasteners.
• Lubrication: No specific lubrication is required for the magnetic resistance system.
• Storage: When not in use, the bike can be folded for compact storage. Use the integrated casters for easy movement.

The BARWING BW-SPN06 is designed for quiet operation, maintaining a low noise level even after extended use.

Image: A graphic demonstrating the low noise output of the bike, indicating 36dB on the first day of purchase and 40dB after 3 years, comparable to a library environment.

7. Troubleshooting

If you encounter issues with your BARWING BW-SPN06, refer to the following common problems and solutions:

• Monitor Not Displaying Data:
  Solution: Check the battery compartment for proper battery installation and ensure all cables are securely connected. Replace batteries if necessary.
• Resistance Not Changing:
  Solution: Ensure the tension control knob is functioning correctly and the resistance cable is not obstructed or disconnected.
• Unusual Noise During Operation:
  Solution: Stop exercising immediately. Inspect all connections and moving parts for looseness or foreign objects. Tighten any loose bolts.
• Bike Feels Unstable:
  Solution: Ensure the bike is on a flat surface. Check that all stabilizer feet are properly adjusted and all frame connections are tight.

For issues not covered here, please contact customer support.

8. Specifications

Image: A diagram illustrating the key dimensions of the exercise bike in both its unfolded and folded states, including height, width, and depth measurements.

9. Warranty and Support

For warranty information and customer support, please refer to the warranty card included with your product or contact the retailer where you purchased the BARWING BW-SPN06 Stationary Exercise Bike. You may also visit the official BARWING website for further assistance.
