1. Overview
This manual provides instructions for the assembly, operation, and maintenance of your COMHOMA Adjustable Overbed Bedside Table, Model LT002-222. This versatile table is designed for use over beds, sofas, or as a portable workstation, featuring pneumatic height adjustment and lockable wheels for mobility and stability.
Figure 1: COMHOMA Adjustable Overbed Bedside Table in a living room setting.
Key features include:
- Adjustable Height: Pneumatic lift system for effortless height adjustment from 28 inches to 41 inches.
- Mobile Design: Four 360-degree swivel wheels for smooth movement.
- Lockable Wheels: Two wheels feature locking mechanisms for secure positioning.
- Sturdy Construction: Steel frame supports up to 150 pounds.
- FSC-Certified Tabletop: Made from engineered wood.
Figure 2: Product dimensions, including adjustable height range (28" to 41"), width (27.6"), and depth (15.7").
2. Setup and Assembly
The COMHOMA Adjustable Overbed Bedside Table is designed for quick and easy assembly, typically taking about 10 minutes. All necessary tools and clear instructions are included in the package.
2.1 Unpacking
Carefully remove all components from the packaging. Verify that all parts listed in the included assembly guide are present and undamaged. Keep packaging materials until assembly is complete.
2.2 Assembly Steps
Follow the step-by-step instructions provided in the assembly guide included with your product. A general overview of the assembly process is provided below:
- Attach the casters (wheels) to the base frame. Ensure the two lockable casters are installed as indicated in the guide.
- Secure the vertical support column to the base frame.
- Attach the tabletop to the top of the vertical support column, ensuring the pneumatic lift mechanism is correctly aligned and connected.
Video 1: COMHOMA Adjustable Overbed Table Installation Guide. This video demonstrates the step-by-step assembly process for the table.
Figure 3: Illustration of attaching the casters to the table's base frame.
Figure 4: Illustration of connecting the vertical column to the base and tabletop.
3. Operating Instructions
3.1 Height Adjustment
The table features a pneumatic lift system for easy height adjustment. To adjust the height:
- Locate the pneumatic control lever, typically found on the underside of the tabletop.
- Press and hold the lever.
- Gently raise or lower the tabletop to your desired height (between 28 and 41 inches).
- Release the lever to lock the table in position.

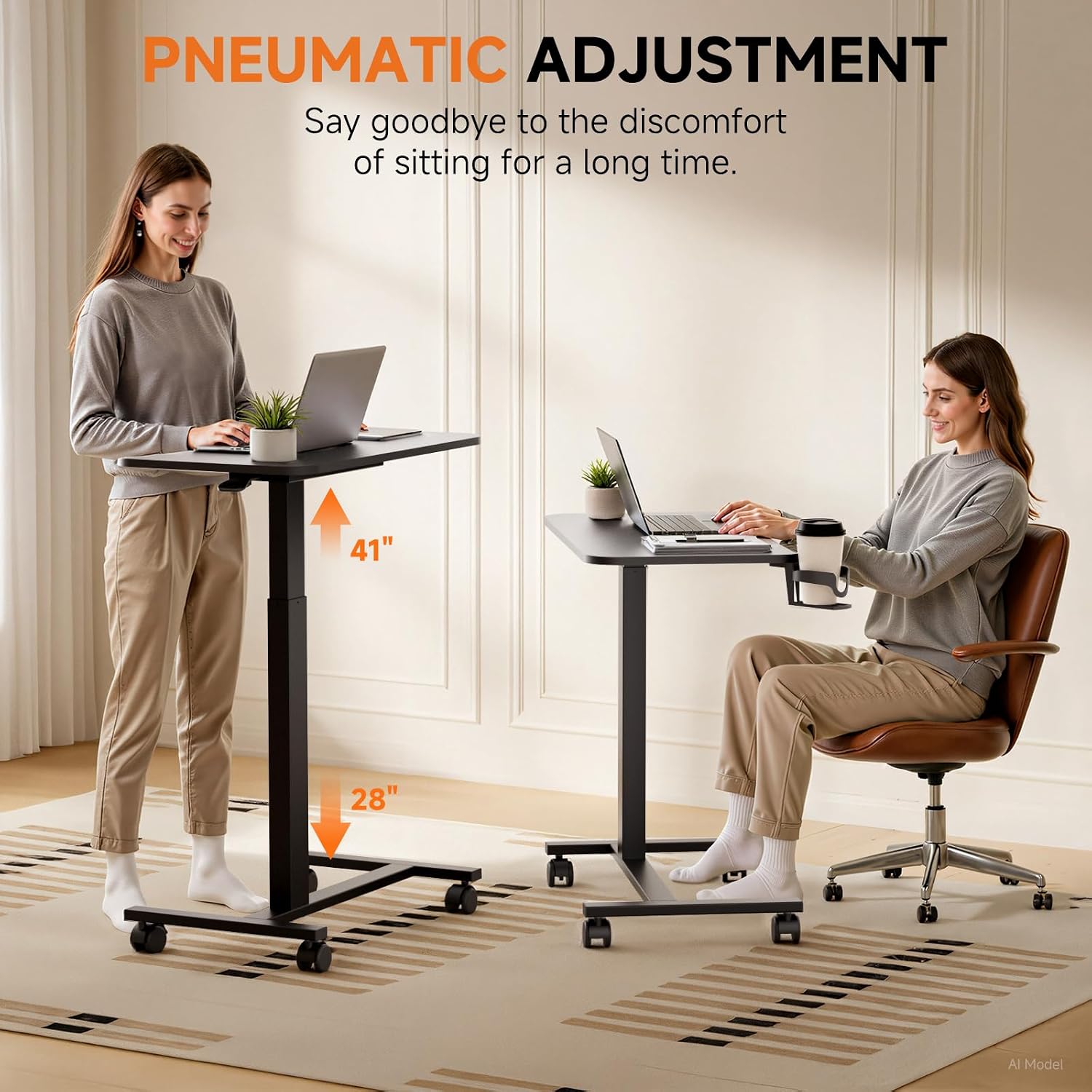

Figure 5: Demonstrating the pneumatic height adjustment for both sitting and standing use.
Figure 6: Detail of the pneumatic control lever and the lockable wheel mechanism.
3.2 Mobility and Locking Wheels
The table is equipped with four 360-degree swivel wheels for easy movement. Two of these wheels include locking mechanisms for stability.
- To Move: Ensure both locking mechanisms on the wheels are disengaged. The table can then be rolled smoothly across various surfaces.
- To Secure: Once the table is in the desired position, engage the locking mechanisms on the two designated wheels by pressing down on the lever. This will prevent the table from moving.
Figure 7: The table's base is designed to slide under furniture, making it ideal for overbed or over-sofa use.
Video 2: COMHOMA Overbed Table with Wheels and Adjustable Height. This video showcases the table's mobility and height adjustment features.
Video 3: COMHOMA Adjustable Overbed Bedside Table with Wheels. This video highlights the table's versatility and ease of movement.
3.3 Versatile Use
This overbed table is suitable for various activities and environments:
- Bedside Table: Ideal for meals, reading, or using a laptop while in bed.
- Laptop Desk: Provides a comfortable surface for working from a sofa or recliner.
- Standing Desk: Adjust the height to use as a standing workstation for improved posture.
Figure 8: The table provides a convenient surface for meals in bed.
4. Maintenance
To ensure the longevity and proper function of your COMHOMA Adjustable Overbed Bedside Table, follow these simple maintenance guidelines:
- Cleaning: Wipe the tabletop and frame with a dry, soft cloth. Avoid abrasive cleaners or harsh chemicals that may damage the finish.
- Caster Care: Periodically check the wheels for any accumulated debris (hair, dust, etc.) and clean as needed to ensure smooth rolling.
- Fasteners: Occasionally check all screws and bolts to ensure they are tight. Retighten if necessary to maintain stability.
- Pneumatic Lift: The pneumatic mechanism is designed for long-term use and generally requires no special maintenance. If you notice any issues with height adjustment, refer to the troubleshooting section.
5. Troubleshooting
If you encounter any issues with your overbed table, please refer to the following common problems and solutions:
5.1 Height Adjustment Not Working Smoothly or Locking
- Check Assembly: Ensure that the pneumatic lift mechanism was correctly installed and connected during assembly. Refer to the assembly guide and video (Video 1) for verification.
- Lever Engagement: Confirm that the pneumatic control lever is fully engaged when attempting to adjust the height and fully released to lock the table in place.
- Obstructions: Check for any obstructions or debris around the pneumatic column that might hinder its movement.
- Weight Load: Ensure the table is not overloaded beyond its maximum weight capacity of 150 pounds, as excessive weight can affect the pneumatic system.
5.2 Table Does Not Roll Easily
- Unlock Wheels: Verify that the locking mechanisms on the two designated wheels are disengaged.
- Caster Obstructions: Inspect the casters for any hair, lint, or other debris that may be preventing them from rotating freely. Clean as necessary.
- Surface Type: While designed for smooth movement, very thick carpets or uneven surfaces may impede rolling.
5.3 Table Feels Unstable or Wobbly
- Tighten Fasteners: Check all screws and bolts on the base, column, and tabletop connections. Tighten any loose fasteners.
- Lock Wheels: Ensure the two lockable wheels are engaged when the table is stationary to prevent unwanted movement.
- Even Surface: Place the table on a flat, even surface. Uneven flooring can cause instability.
6. Specifications
| Feature | Detail |
|---|---|
| Brand | COMHOMA |
| Model Number | LT002-222 |
| Product Dimensions (D x W x H) | 15.7" x 27.6" x 28" (minimum height) |
| Adjustable Height Range | 28" to 41" |
| Item Weight | 20.7 pounds |
| Maximum Weight Capacity | 150 pounds |
| Frame Material | Alloy Steel |
| Top Material Type | Engineered Wood (FSC-Certified) |
| Color | Black (Rustic Maple finish) |
| Wheels | 4 x 360-degree swivel casters (2 lockable) |
| Assembly Required | Yes (Assembly Guide and Installation Tool included) |
7. Safety Information
WARNING: To prevent injury or damage, adhere to the following safety guidelines:
- Do not exceed the maximum weight limit of 150 pounds on the tabletop.
- Always engage the lockable wheels to secure the table in place when it is in use and not being moved.
- Exercise caution when adjusting the height using the pneumatic lift system to avoid sudden movements or pinching.
- Ensure the table is assembled correctly according to the provided instructions before use. Improper assembly can lead to instability and potential hazards.
- Keep children and pets away from the table during height adjustment or movement.
- Do not stand or sit on the table.
8. Warranty and Support
8.1 Warranty Information
This COMHOMA product comes with a standard manufacturer's warranty. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty card included in your product packaging or visit the official COMHOMA website.
8.2 Customer Support
Should you require assistance with assembly, operation, troubleshooting, or need to order replacement parts, please contact COMHOMA customer support. Contact information can typically be found in your product packaging or on the official COMHOMA website.
Please have your model number (LT002-222) and purchase date ready when contacting support.
