Bosch CMA583MB0 Series 4 Combined Built-in Microwave Oven User Manual

1. Introduction

This manual provides essential information for the safe and efficient use of your Bosch CMA583MB0 Series 4 combined built-in microwave oven. Please read these instructions carefully before installation and operation, and keep them for future reference.

The Bosch CMA583MB0 is a versatile appliance combining microwave and oven functions, designed for seamless integration into your kitchen cabinetry. It features multiple cooking modes, automatic programs, and user-friendly controls to assist in preparing a variety of dishes.

2. Safety Instructions

General Safety:

• Read all instructions before using the appliance.
• Do not operate the oven if the door is damaged or if the seals are broken. Contact authorized service personnel.
• Do not heat liquids or other foods in sealed containers, as they are liable to explode.
• Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.
• Regularly clean the oven and remove any food deposits.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

Electrical Safety:

• Ensure the appliance is properly earthed.
• Do not immerse the cord, plugs, or appliance in water or other liquid.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.

3. Setup and Installation

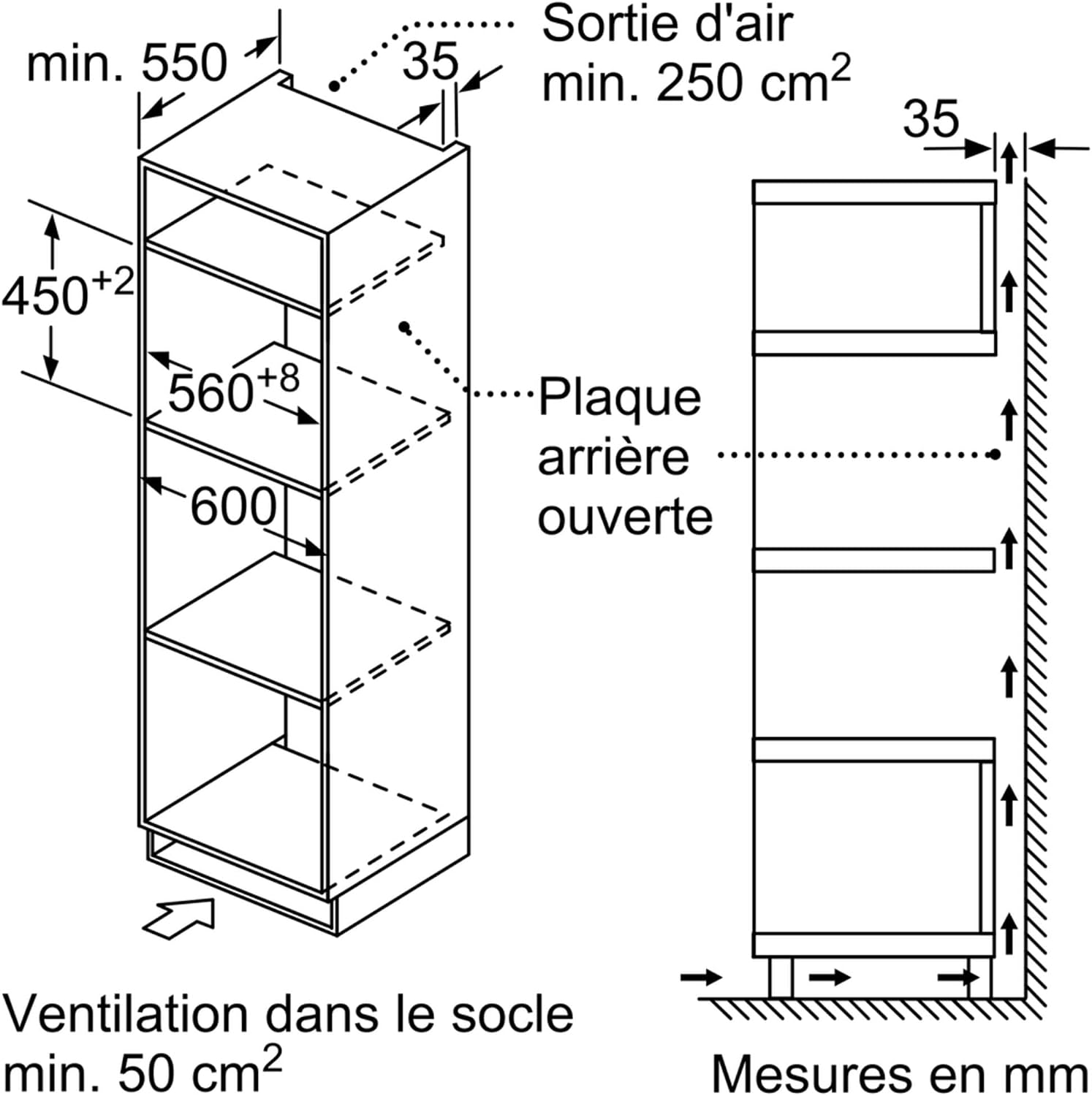

The Bosch CMA583MB0 is designed for built-in installation in a tall cabinet. Proper ventilation is crucial for optimal performance and safety. Refer to the installation diagrams for precise measurements and ventilation requirements.

Appliance Dimensions:

• Height (H): 454 mm
• Width (W): 594 mm
• Depth (D): 570 mm

Niche Dimensions for Installation:

• Height (H): 450 - 452 mm
• Width (W): 560 - 568 mm
• Depth (D): 550 mm (minimum)

Ventilation: Ensure that the installation cabinet allows for adequate airflow. A minimum ventilation opening of 50 cm² in the plinth area is required. The rear panel of the niche should be open to allow air circulation.

4. Product Components and Control Panel

Your Bosch CMA583MB0 oven comes with the following accessories:

• 1 x High Rack
• 1 x Low Rack
• 1 x Turntable (36 cm diameter)

The control panel features an LCD screen, two rotary knobs, and TouchControl buttons for intuitive operation.

5. Operating Instructions

The Bosch CMA583MB0 offers a variety of cooking modes and automatic programs to simplify your cooking process.

Cooking Modes:

• Microwave Hot Air Standard: For even cooking and baking.
• Pulsed Air Grill: For crispy results.
• Large Surface Grill: Ideal for grilling larger quantities.
• Pizza Setting: For perfectly browned pizzas.

Power and Temperature Settings:

• Microwave Power: 5 levels, ranging from 90 W to 900 W.
• Temperature Range: Adjustable from 40°C to 230°C.
• Grill Power: 1.75 kW.
• Maximum Heating Power: 3.35 kW.

Automatic Programs (AutoPilot 15):

The appliance features 15 automatic programs for various cooking needs, including:

• 4 Defrost programs.
• 3 Microwave cooking programs.
• 8 Combined programs (microwave and oven).

Example Operation: Using Oven Mode with Preheating

1. Turn the left rotary knob to select an oven mode.
2. Turn the right rotary knob to select the desired temperature.
3. Press the "rapid preheating" button located near the LCD screen.
4. Press the "Start/Stop" button to begin preheating. The red line on the screen will indicate the heating progress.
5. Once the oven reaches the set temperature, an audible signal will sound. Insert your dish into the oven.
6. Press the "clock" button near the screen to set the cooking duration.
7. Press "Start/Stop" again to begin the cooking process. The oven will signal when the program is complete.

6. Cleaning and Maintenance

Regular cleaning ensures the longevity and hygienic operation of your appliance.

Interior Cleaning:

The oven cavity is made of stainless steel, which facilitates easy cleaning. Wipe down the interior with a soft cloth and mild detergent after each use to prevent food residue buildup.

Cleaning Assistance by Hydrolysis:

For stubborn dirt, utilize the Cleaning Assistance function:

1. Add a small amount of water to the oven cavity.
2. Select and start the Cleaning Assistance program.
3. The steam generated will loosen food residues, making them easier to wipe away once the program is complete and the oven has cooled.

Exterior Cleaning:

Clean the exterior surfaces with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the finish.

7. Troubleshooting

This section addresses common issues you might encounter. For problems not listed here, contact Bosch customer service.

Initial Odor:

During the first few uses, a new appliance may emit an odor. To mitigate this, run the oven at its highest temperature for at least 30 minutes before first use, ensuring the room is well-ventilated.

Low End-of-Program Chime:

The audible signal at the end of a program may be low and is not adjustable. Monitor the cooking time or remain within hearing range if a louder alert is required.

Ventilation Noise:

The ventilation fan may occasionally produce a slight grinding noise for 2-3 seconds. This is generally normal operation and does not indicate a fault unless persistent or excessively loud.

Turntable Placement:

Ensure the turntable is correctly seated on its support. If it does not rotate smoothly, check for proper alignment with the three small indentations on the drive shaft.

8. Technical Specifications

9. Warranty and Support

Warranty Information:

The Bosch CMA583MB0 comes with a 2-year manufacturer's warranty. Please retain your proof of purchase for warranty claims.

Customer Support:

For technical assistance, spare parts, or service requests, please contact Bosch customer support. You can also refer to the official user manual for more detailed information:
