Homtone Conical Burr Coffee Grinder

1. Introduction

Thank you for choosing the Homtone Conical Burr Coffee Grinder. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new coffee grinder. Please read it thoroughly before first use and keep it for future reference.

Image 1: The Homtone Conical Burr Coffee Grinder, showcasing its sleek design and compact footprint on a kitchen counter.

2. Product Components

Familiarize yourself with the various parts of your Homtone coffee grinder:

Image 2: Exploded view diagram illustrating the main components of the Homtone coffee grinder, including the bean hopper, burrs, and collection container.

1. Bean Hopper Lid: Covers the bean hopper.
2. Hopper Bellow: Helps clear residual grounds.
3. Bean Hopper: Holds whole coffee beans.
4. Top Burr: Removable for cleaning.
5. Cleaning Brush: For maintenance.
6. 53mm Dosing Ring: For portafilters.
7. 58mm Dosing Ring: For portafilters.
8. Removable Cradle (58mm): For most 58mm portafilters.
9. Removable Cradle (51-53mm): For most 51-53mm portafilters.
10. Storage Jar Lid with Sealing Plug: For ground coffee container.
11. Transparent Coffee Grounds Jar: Collects ground coffee.

3. Setup

Before first use, ensure all packaging materials are removed and the unit is clean. Place the grinder on a stable, flat surface.

1. Install Bean Hopper: Align the bean hopper with the base and twist to lock it into place. Ensure the arrows on the hopper and base align for a secure fit.
2. Fill with Beans: Open the bean hopper lid and pour whole coffee beans into the hopper. Replace the lid.
3. Connect Power: Plug the power cord into a 120V electrical outlet.

Watch this video for a visual guide on setting up the grinder:

4. Operating Instructions

The Homtone coffee grinder offers precise control over your coffee grinding experience.

4.1 Grind Settings

The grinder features 51 adjustable grind settings, allowing you to customize the coarseness for various brewing methods. Rotate the bean hopper to select your desired grind size, from very fine for espresso to very coarse for French press.

Image 3: Close-up of the grinder's top section, highlighting the 51 grind settings dial for various coffee preparations like French Press, Pour Over, Filter, Siphon, Moka Pot, and Espresso.

4.2 Cup Mode and Timer Control

Use the intuitive digital display and knob settings to select the number of cups (1 to 12) or adjust the grind time in 0.1-second increments, up to 60 seconds, for precise dosing.

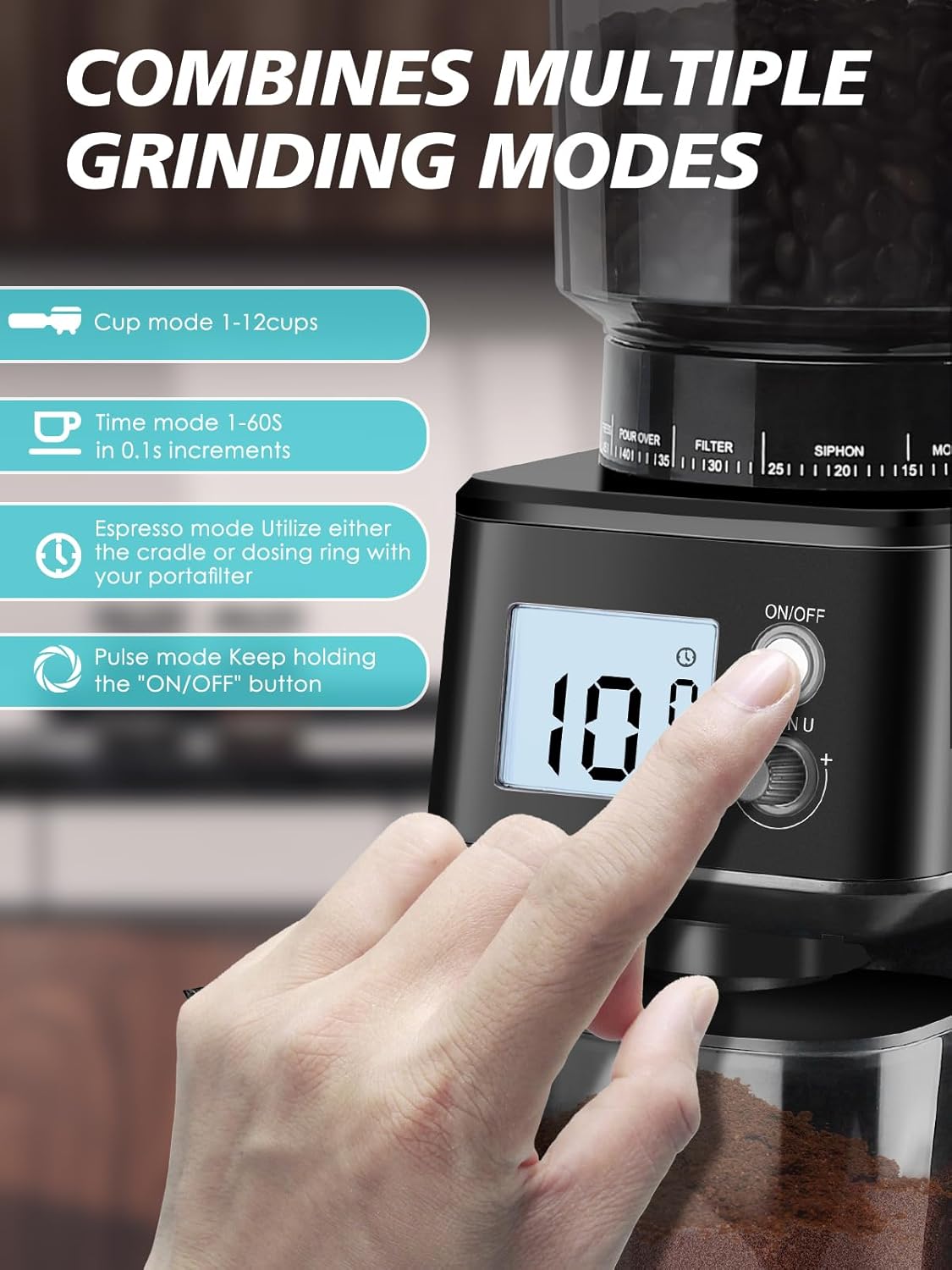

Image 4: The digital display panel of the grinder, illustrating the cup mode (1-12 cups) and time mode (1-60 seconds in 0.1s increments) for precise grinding control.

4.3 Espresso Grinding

The grinder is engineered for espresso, compatible with 51mm, 53mm, 54mm, and 58mm portafilters. It includes two cradles and dosing rings for direct grinding into your portafilter. A micro switch enables automatic grinding when the portafilter activates it.

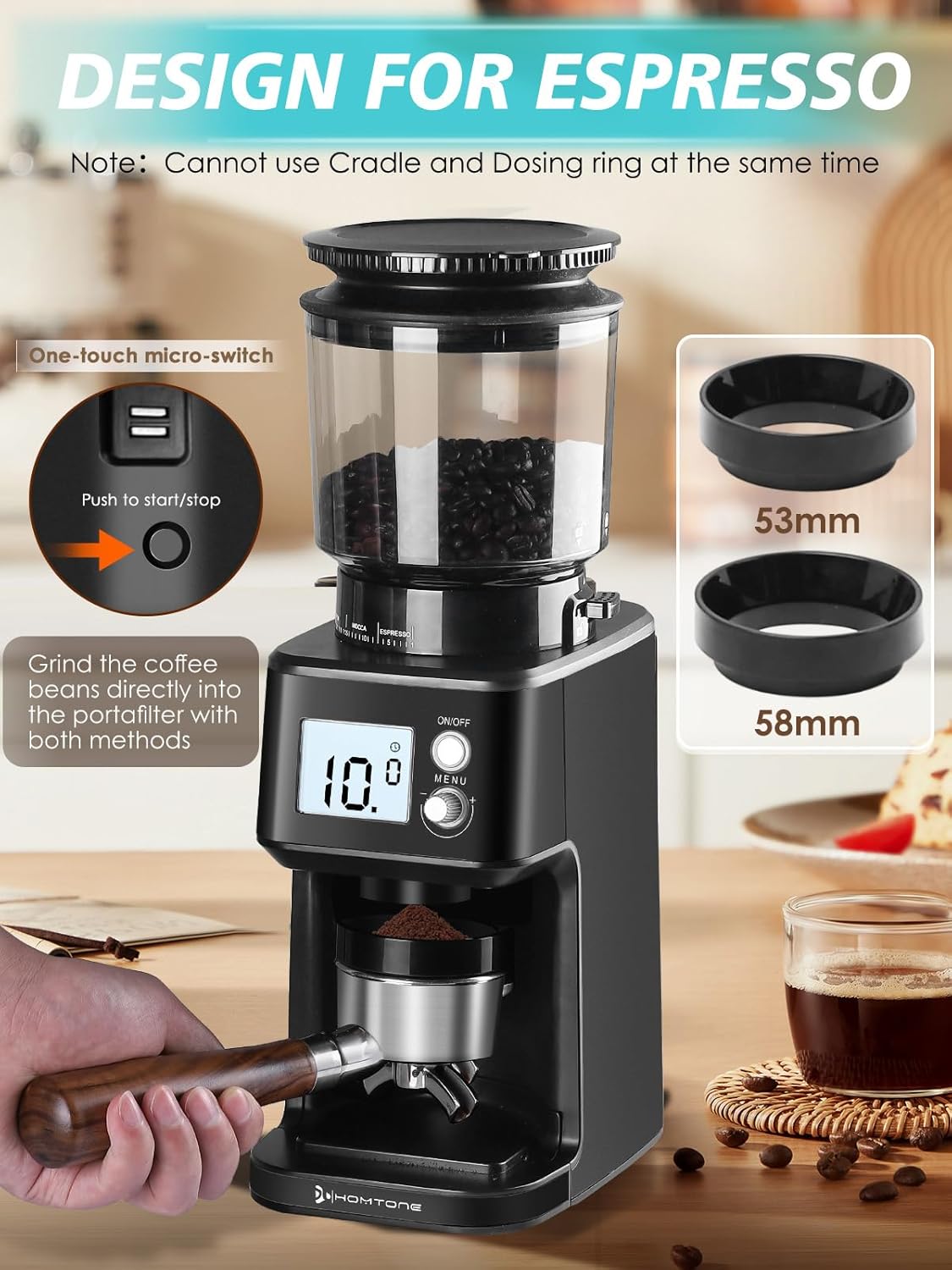

Image 5: The grinder configured with different portafilter cradles, demonstrating its adaptability for various espresso machine portafilter sizes (51-54mm and 58mm).

Alternatively, you can grind directly into a filter paper for drip coffee.

Image 6: The grinder in action, dispensing freshly ground coffee directly into a filter paper, suitable for various drip coffee makers.

Watch this video for a visual guide on using the grinder for espresso:

5. Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the lifespan of your grinder.

5.1 Conical Burr Cleaning

The 40mm stainless steel conical burrs are designed to minimize heat and maximize aroma. To clean, unlock and remove the bean hopper, then use the provided cleaning brush to clear any residual coffee grounds from the burrs.

Image 7: Detailed view of the conical burr mechanism, emphasizing its role in producing a consistent grind while preserving coffee bean flavor.

5.2 Anti-Static Design

The grinder features an anti-static design in the coffee grounds jar to reduce mess and ensure clean dispensing of ground coffee.

Image 8: Visual comparison highlighting the effectiveness of the anti-static powder jar in preventing coffee grounds from clinging to the sides, ensuring a cleaner experience.

For thorough cleaning, ensure the grinder is unplugged. Disassemble removable parts and wash them with warm, soapy water. Dry completely before reassembling.

6. Troubleshooting

• Grinder not starting: Ensure the power cord is securely plugged in and the bean hopper is correctly locked into place. Check if the digital display is active.
• Inconsistent grind: Verify that the burrs are clean and free of obstructions. Adjust the grind setting to a finer or coarser level as needed.
• Coffee grounds clogging: Ensure the burrs are clean. The anti-static feature helps prevent clogging, but excessive moisture or very oily beans can sometimes cause issues.
• Excessive noise: Check for any foreign objects in the bean hopper or burr area. Ensure all components are properly assembled.

7. Specifications

8. Warranty and Support

For warranty information, product support, or to purchase replacement parts, please refer to the contact information provided with your product packaging or visit the official Homtone website. Keep your purchase receipt as proof of purchase for warranty claims.
