1. Introduction
This manual provides essential information for the proper use and maintenance of your Wellclima remote control. This remote is designed as a replacement for original Argo ceramic fan heater remote controls. It is pre-programmed and includes batteries for immediate use.
Image 1: Wellclima remote control and its retail packaging, indicating "Ready to Use".
2. Compatibility
The Wellclima remote control is specifically designed to be compatible with the following Argo ceramic fan heater models:
- Argo Chic (White, Silver, Berry) - Note: Not compatible with older Chic models. Refer to images for visual identification.
- Argo Clover
- Argo Ghost
- Argo Kompass
- Argo Sleek
This remote control is not compatible with other models not listed above.
Image 2: Visual guide illustrating compatible Argo fan heater remote controls (Chic White, Chic Silver, Chic Berry, Sleek, Clover, Ghost, Kompass) and an incompatible older Chic model.
3. Setup
The Wellclima remote control is designed for immediate use. No programming or configuration is required.
- Unpack: Remove the remote control from its packaging.
- Batteries: The remote control comes with 2 AAA alkaline batteries already installed.
- Ready to Use: The remote is pre-programmed at the factory. Simply point it at your compatible Argo fan heater and begin operation.
Image 3: A user enjoying a comfortable climate, highlighting the remote's "Ready to Use" feature with pre-installed batteries and no programming required.
4. Operating Instructions
The remote control provides essential functions for your fan heater. The display on the remote control remains off, similar to the original remote, to ensure compatibility and avoid displaying non-corresponding symbols.

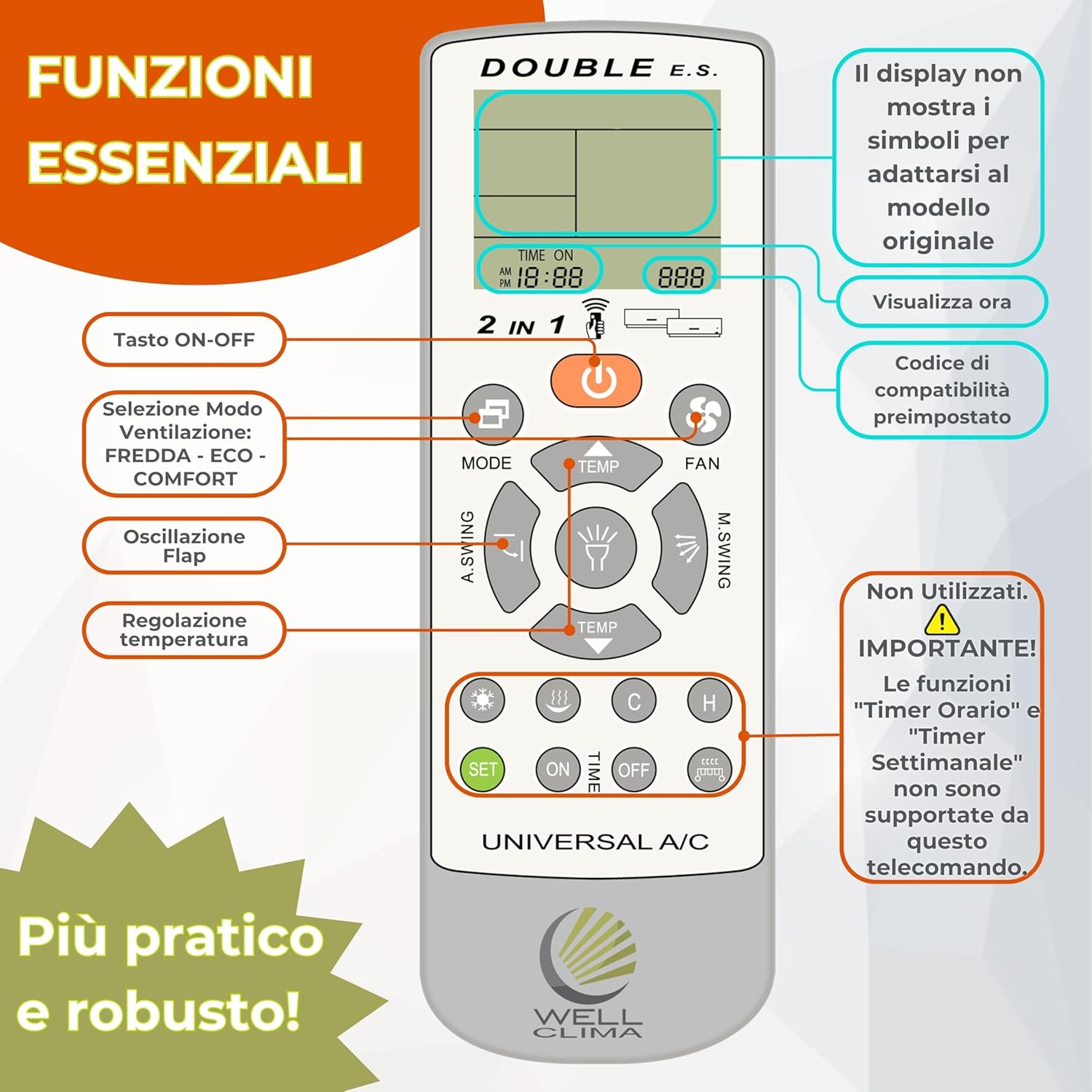

Image 4: Detailed diagram of the remote control, labeling the ON/OFF button, mode selection (Cool, Eco, Comfort), flap oscillation, and temperature adjustment. It also notes that the display remains off and timer functions are not supported.
Available Functions:
- Power ON/OFF: Use the orange power button to turn the fan heater on or off.
- Mode Selection: Press the MODE button to cycle through ventilation modes:
- Cool (Fredda)
- Eco
- Comfort
- Temperature Adjustment: Use the TEMP ▲ / ▼ buttons to increase or decrease the desired temperature.
- Flap Oscillation: Activate or deactivate the oscillation of the fan heater's flap using the A.SWING / M.SWING buttons.
Important Limitations:
This remote control does not support the following functions:
- Hourly Timer
- Weekly Timer
5. Special Features
Integrated Flashlight:
The remote control includes an integrated flashlight, useful for navigating in low-light conditions without disturbing others. This feature provides a convenient light source when needed.
Image 5: The remote control's integrated flashlight illuminating a dark room, demonstrating its utility for nighttime use.
6. Maintenance
To ensure the longevity and proper functioning of your Wellclima remote control, follow these simple maintenance guidelines:
- Cleaning: Wipe the remote control regularly with a soft, dry cloth. Avoid using abrasive cleaners or solvents, as these can damage the surface and buttons.
- Battery Replacement: While the included batteries are long-lasting, replace them with new AAA alkaline batteries when the remote's performance diminishes or the flashlight becomes dim. Ensure correct polarity when inserting new batteries.
- Storage: Store the remote control in a dry place, away from direct sunlight and extreme temperatures.
- Avoid Drops: Although designed to be robust, avoid dropping the remote control to prevent internal damage.
7. Troubleshooting
If you encounter issues with your Wellclima remote control, consider the following troubleshooting steps:
- Remote Not Responding:
- Ensure the remote is pointed directly at the fan heater's infrared receiver.
- Check if there are any obstructions between the remote and the fan heater.
- Verify that the batteries are correctly inserted and not depleted. Replace batteries if necessary.
- Fan Heater Not Responding to Commands:
- Confirm that your fan heater model is listed as compatible in Section 2.
- Ensure the fan heater itself is powered on and functioning correctly.
- Limited Functions:
- Remember that timer functions (hourly and weekly) are not supported by this remote control.
If problems persist after following these steps, please contact Wellclima customer support for further assistance.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Wellclima |
| Model Name | Double-C-ArgoChic |
| Product Dimensions | 15.6 x 5.6 x 1.8 cm |
| Item Weight | 110 grams |
| Batteries Required | 2 AAA batteries (included) |
| Battery Type | Alkaline |
| Connectivity Technology | Infrared |
| Maximum Range | 8 Meters |
| Special Features | Batteries included, No programming required, Pre-programmed, Integrated flashlight |
| Compatible Devices | Argo Chic (White, Silver, Berry), Clover, Ghost, Kompass, Sleek fan heaters |
Image 6: Diagram showing the dimensions (height 15.6 cm, width 5.6 cm, thickness 1.8 cm, weight 90g) and construction materials (solid ABS casing, silicone keypad) of the Wellclima remote control, along with included batteries.
9. Warranty and Support
Wellclima is committed to providing quality products and reliable customer support. For any questions, concerns, or assistance with your remote control, please refer to the following:
- Customer Assistance: Wellclima offers dedicated assistance. If you have uncertainties about compatibility or need help, do not hesitate to contact us.
- Quality Assurance: Wellclima guarantees compatibility after thorough verification and testing in their equipped laboratory.
For specific contact details or to access further support resources, please visit the official Wellclima website or refer to the contact information provided with your product packaging.
