Introduction
This manual provides comprehensive instructions for the safe and efficient operation, maintenance, and troubleshooting of your AlfaBot X7 Pro Intelligent Robot Window Cleaner. Please read this manual thoroughly before using the device and retain it for future reference.
Safety Instructions
Always adhere to the following safety guidelines to prevent injury or damage to the device and property:
- Ensure the safety rope is securely attached to a fixed object before operation, especially when cleaning exterior windows or at heights.
- The device must always be connected to a power source during operation. The internal battery is for backup power only in case of power interruption.
- Do not use the device on cracked, damaged, or uneven glass surfaces.
- Keep hands, hair, and loose clothing away from moving parts.
- Do not use the device in rainy or extremely humid conditions.
- Keep the device out of reach of children and pets.
- Use only recommended cleaning solutions or plain water in the water tank.
- Regularly inspect the device, power cable, and safety rope for any signs of damage. Do not operate if damaged.
- The device is designed for smooth, vertical surfaces. Avoid using it on sloped or horizontal surfaces unless specified.
Package Contents
Verify that all items are present in the package:
- AlfaBot X7 Pro Robot Window Cleaner
- Remote Control
- Power Adapter
- AC Power Cord
- DC Extension Cable
- Safety Rope
- Microfiber Cleaning Pads (6 pieces)
- Spray Bottle
- User Manual
Product Overview

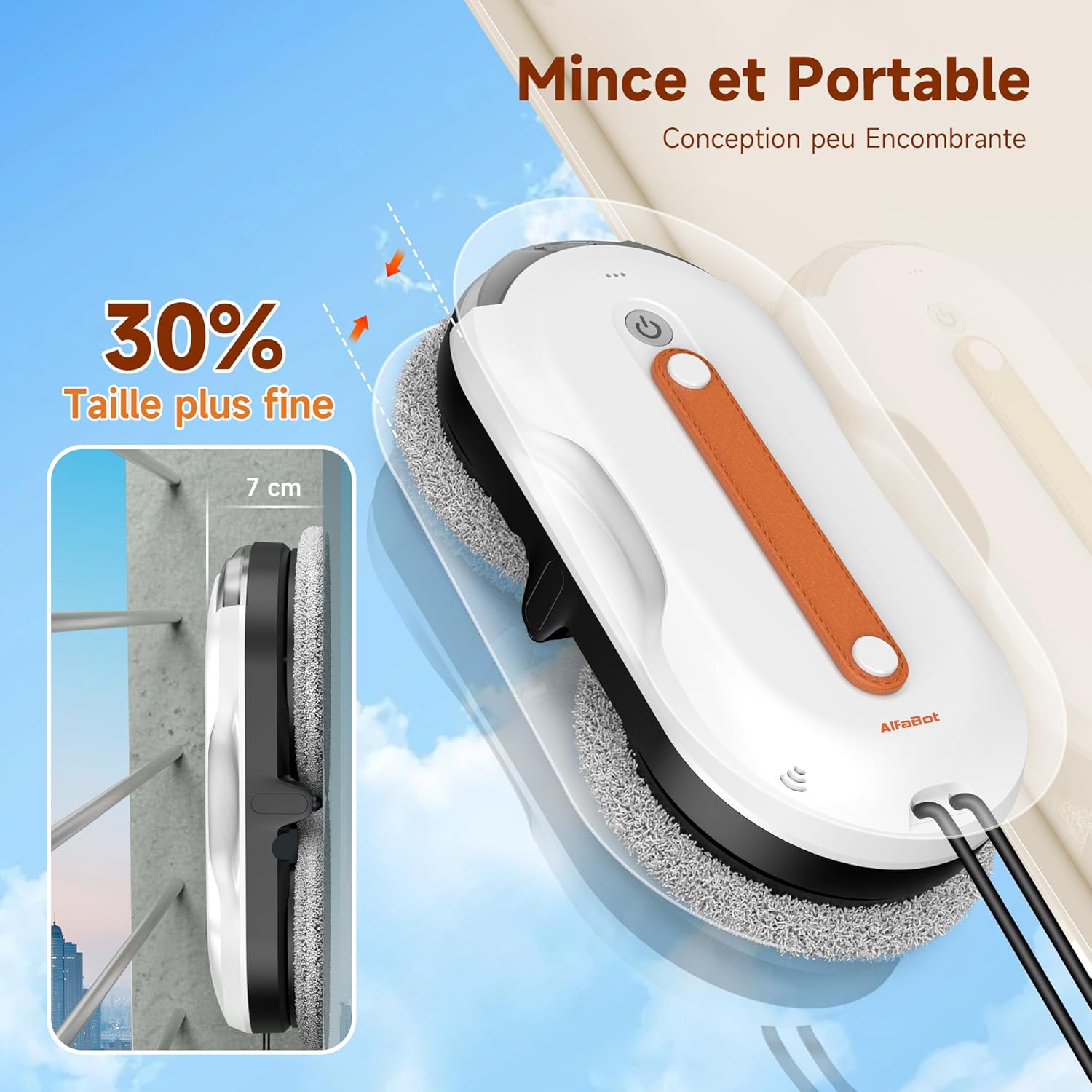

The AlfaBot X7 Pro is an intelligent robot designed for automated window cleaning. It features a compact design and advanced navigation for efficient cleaning.
Setup
- Prepare the Cleaning Pads: Attach clean microfiber pads to the bottom of the robot. Ensure they are securely fastened.
- Fill the Water Tank: Open the water tank cap and fill the 100 ml transparent reservoir with clean water or a recommended window cleaning solution. Close the cap securely.
Image: Illustration of the dual-sided automatic spray system and how to fill the integrated 100 ml water reservoir. - Connect Power: Connect the power adapter to the robot and then to a power outlet. The device requires continuous power during operation.
- Attach Safety Rope: Securely attach the safety rope to a sturdy indoor fixture, such as a table leg or window frame. This is a critical safety measure to prevent the robot from falling.
Operating Instructions
- Placement: Place the robot on the window surface, ensuring it is flat against the glass. Press the power button on the robot or the remote control to activate the suction.
- Start Cleaning: Once the robot is securely attached, press the start button on the remote control to begin the cleaning cycle. The robot will use its intelligent AI navigation to map the surface and clean systematically.

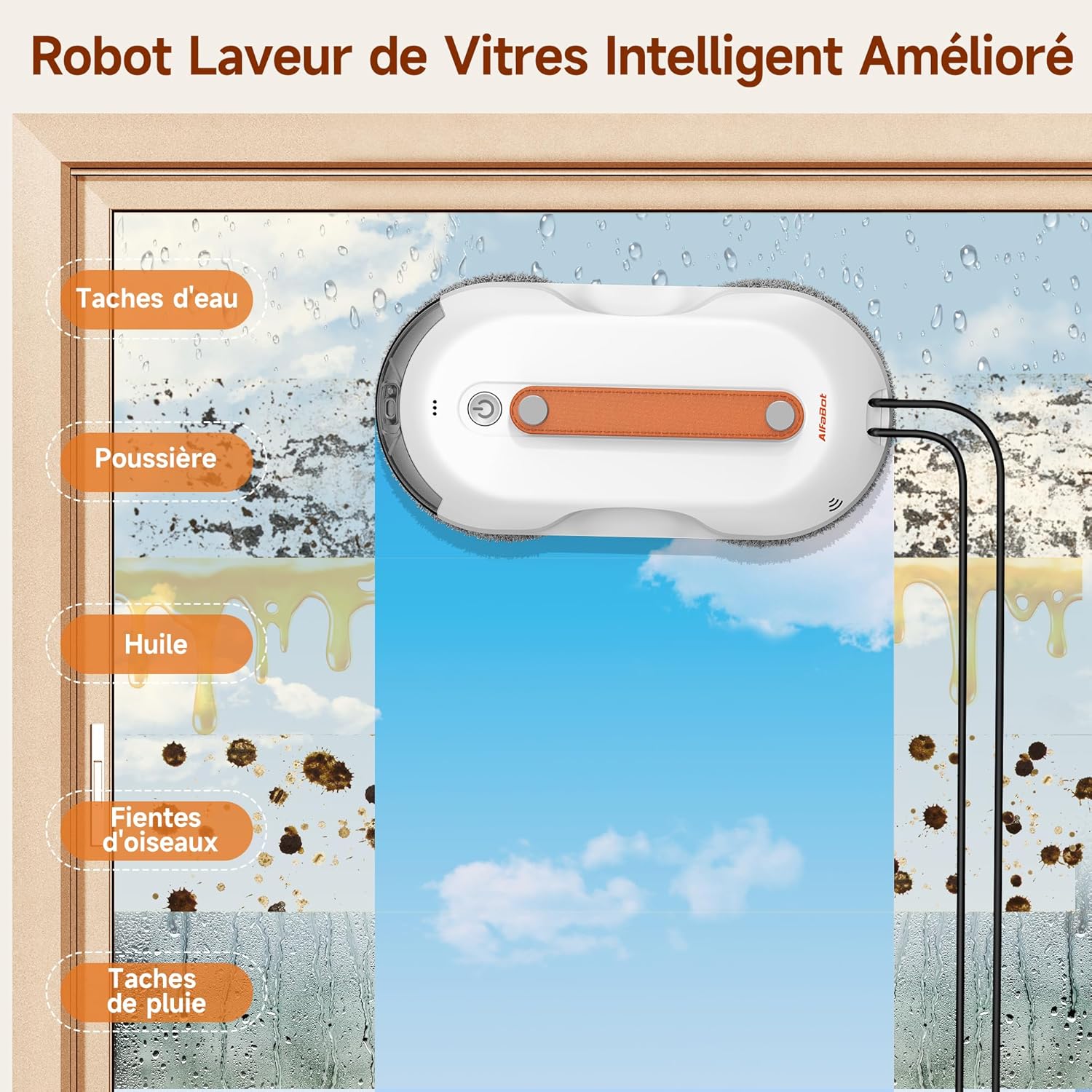

Image: The robot cleaning various types of stains such as water spots, dust, oil, bird droppings, and rain marks from a window. - Dual-Sided Spray: The AlfaBot X7 Pro features an automatic dual-sided spray system that humidifies the cleaning pads as it moves, ensuring streak-free results.
Image: The robot demonstrating its high-pressure dual-sided water spray system for effective cleaning. - Edge Detection: The robot is equipped with high-precision edge detection sensors to prevent falls and navigate around obstacles, making it suitable for frameless windows.
Image: Visual representation of the robot's edge detection and anti-collision sensors, showing its ability to clean frameless windows and avoid obstacles. - Manual Control: Use the remote control to manually direct the robot if needed, or to select specific cleaning modes.
- Completion: The robot will automatically stop and alert you upon completion of the cleaning cycle. Carefully remove the robot from the window by holding it firmly and pressing the release button (if applicable) or turning off the suction.
Maintenance
- Cleaning Pads: Remove and wash the microfiber cleaning pads after each use. They are reusable and can be hand-washed or machine-washed.
- Water Tank: Empty and rinse the water tank after each use to prevent residue buildup.
- Robot Body: Wipe the exterior of the robot with a soft, dry cloth to remove any dust or debris.
- Sensors: Periodically clean the sensors on the robot to ensure optimal performance.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Robot does not stick to the window. | Insufficient suction; dirty pads; power issue. | Ensure power cable is securely connected. Check if pads are clean and properly attached. Ensure the surface is clean and dry. |
| Robot leaves streaks. | Dirty pads; incorrect cleaning solution; too much solution. | Replace or clean pads. Use plain water or a suitable window cleaning solution. Do not over-spray. |
| Robot stops unexpectedly. | Power interruption; obstacle detected; low battery (backup). | Check power connection. Remove any obstacles. Ensure the internal battery is charged (it's for backup, not primary power). |
| Robot does not move in a straight line. | Dirty sensors; uneven surface. | Clean the robot's sensors. Ensure the window surface is smooth. |
Specifications
- Brand: AlfaBot
- Model Number: X8 (Note: Product is marketed as X7 Pro in the title and description.)
- Color: White
- Product Dimensions (L x W x H): 12.7 x 10.16 x 10.16 cm (5 x 4 x 4 inches); 29.5 x 14.5 x 6.5 cm (11.6 x 5.7 x 2.6 inches)
Note: Two different sets of dimensions are provided in the source data. - Item Weight: 1.2 Kilograms (2.65 lbs)
- Water Tank Capacity: 100 Milliliters
- Voltage: 220 Volts
- Noise Level: 60 Decibels
- Product Compatibility: Windows, Glass Doors, Smooth Surfaces, Tiles
- Special Features: Intelligent Mapping, Large Water Tank, Intelligent Navigation, Automatic Cleaning, Streak-Free Cleaning, Dual-Sided Spray Technology
- Cleaning Path Width: 30 Centimeters
- Filter Type: Spray Filter
- Automatic Stop Function: No (as per specifications). However, feature bullets mention "arrêt automatique" (automatic stop). Please refer to the product packaging or official website for clarification.
- Spare Parts Availability: 5 Years
Warranty and Support
For warranty information, technical support, or service inquiries, please refer to the contact details provided on the AlfaBot official website or your purchase documentation. Spare parts are available for 5 years from the date of purchase.
Important Note on Videos
No official product videos specifically for the AlfaBot X7 Pro from the seller were found in the provided data. Videos from other brands or related products have been excluded to maintain accuracy and avoid misrepresentation.
