1. Introduction
The TOTAL Silent Diesel Generator TP250001-58 is engineered to provide reliable and efficient backup power. This manual contains essential information for the safe and effective operation, maintenance, and troubleshooting of your generator. Please read this manual thoroughly before operating the unit and keep it for future reference.
2. Safety Information
Operating a generator can be hazardous if proper safety precautions are not followed. Always prioritize safety to prevent injury or damage.
- Carbon Monoxide Hazard: Generator exhaust contains carbon monoxide, a colorless, odorless, poisonous gas. Operate the generator outdoors in a well-ventilated area, far from windows, doors, and vents. Never operate indoors or in partially enclosed spaces.
- Fire Hazard: Fuel is highly flammable. Refuel in a well-ventilated area with the engine off and cool. Do not smoke or allow open flames near the generator. Store fuel in approved containers away from living areas.
- Electrical Shock Hazard: Never operate the generator in wet conditions. Ensure all electrical connections are secure and properly grounded. Do not touch live electrical components.
- Moving Parts Hazard: Keep hands, feet, and clothing away from moving parts during operation.
- Hot Surfaces Hazard: The engine and muffler become very hot during operation and remain hot for some time after shutdown. Avoid contact with hot surfaces.
3. Product Features
The TOTAL Silent Diesel Generator TP250001-58 offers several key features for reliable power generation:
- Powerful Engine: Equipped with a robust 9.0 HP diesel engine (418ml displacement) for consistent power output.
- High Output: Provides a maximum output of 5.0 kW and a rated output of 4.5 kW.
- Low Noise Operation: Designed for reduced noise levels, making it suitable for various environments.
- Electric Start: Features an electric start system for convenient and easy ignition.
- Copper Coil Alternator: Utilizes a durable 100% copper coil alternator for efficient power conversion and longevity.
- Air-Cooling System: Integrated air-cooling system to maintain optimal engine temperature.
- Extended Run Time: A 17-liter fuel tank allows for prolonged operation.
- Maintenance-Free Battery: Includes a 30Ah maintenance-free battery for enhanced reliability.
- Portable Design: Compact and portable for easy transport and storage.

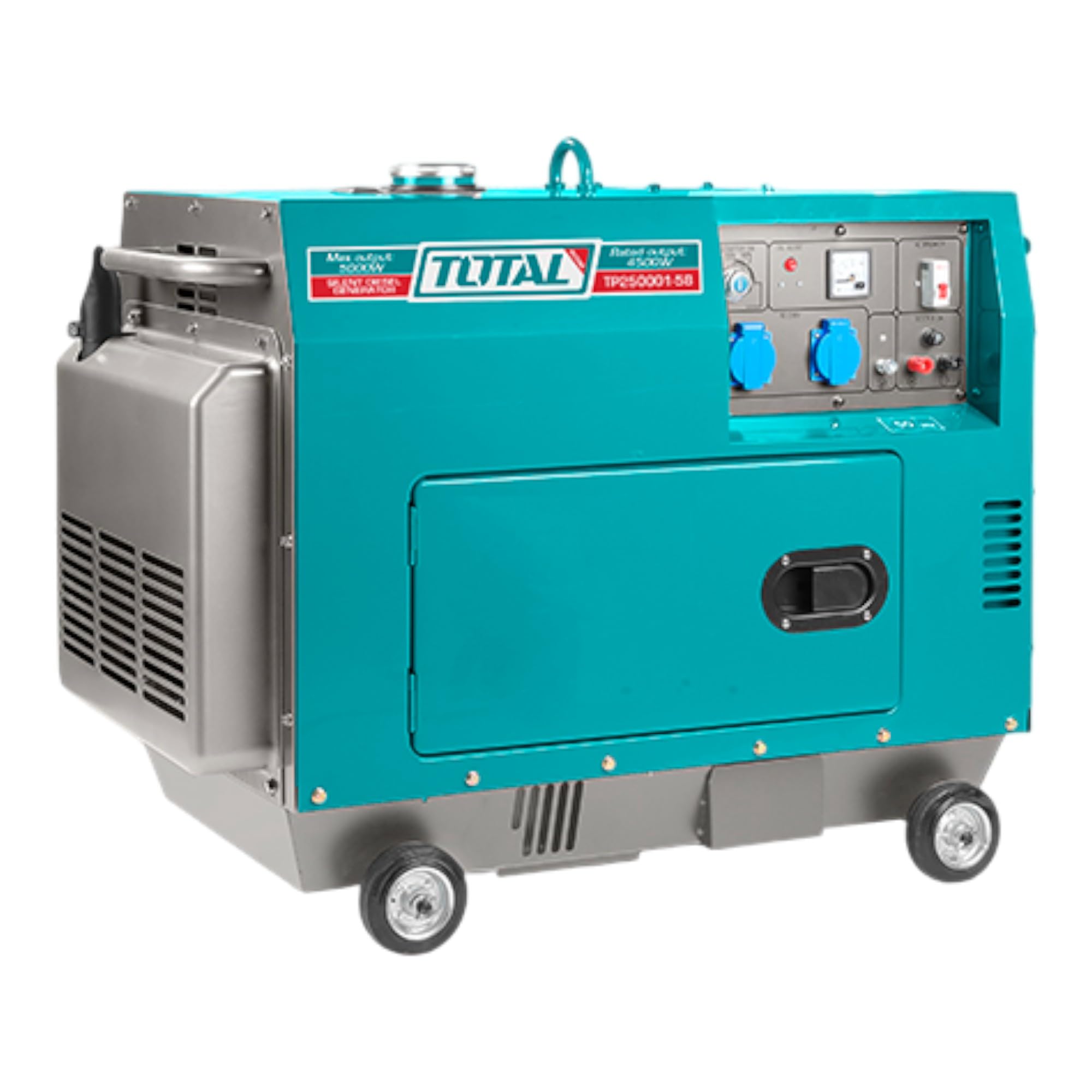

Image: The TOTAL Silent Diesel Generator TP250001-58, showcasing its compact design and key features such as 5.5kW output, single-phase operation, low noise, diesel fuel type, electric start, and a 100% copper coil alternator.
4. Setup
Follow these steps to prepare your generator for first use:
- Unpacking: Carefully remove the generator from its packaging. Inspect for any shipping damage.
- Positioning: Place the generator on a firm, level surface outdoors, away from any combustible materials and at least 20 feet from any building openings. Ensure adequate ventilation.
- Add Engine Oil: Remove the oil fill cap/dipstick. Add the recommended type and amount of engine oil (refer to specifications for oil type and capacity) until it reaches the upper mark on the dipstick. Do not overfill.
- Connect Battery: Connect the battery cables to the battery terminals, ensuring correct polarity (red to positive, black to negative).
- Add Diesel Fuel: Fill the fuel tank with clean, fresh diesel fuel. Do not overfill. Leave space for fuel expansion. Wipe up any spills immediately.
- Grounding: Connect a grounding wire from the generator's grounding terminal to a suitable earth ground.
5. Operating Instructions
To start and operate your generator:
Starting the Generator (Electric Start)
- Ensure all electrical loads are disconnected from the generator.
- Turn the fuel valve to the 'ON' position.
- If the engine is cold, engage the choke (if applicable).
- Insert the key into the ignition switch and turn it to the 'START' position. Hold until the engine starts, then release. Do not crank for more than 5 seconds at a time. Wait 10 seconds before trying again if it doesn't start.
- Once the engine starts, slowly disengage the choke (if applicable).
- Allow the generator to warm up for a few minutes before connecting electrical loads.
Connecting Electrical Loads
- Ensure the generator is running smoothly.
- Plug in your appliances or extension cords into the appropriate outlets on the control panel.
- Do not overload the generator. Monitor the wattage of connected devices to stay within the generator's rated output.
Stopping the Generator
- Disconnect all electrical loads from the generator.
- Allow the generator to run for a few minutes without load to cool down.
- Turn the ignition key to the 'OFF' position.
- Turn the fuel valve to the 'OFF' position.
6. Maintenance
Regular maintenance is crucial for the longevity and optimal performance of your generator. Refer to the maintenance schedule in your full product manual for specific intervals.
- Engine Oil: Check oil level before each use. Change engine oil after the first 20 hours of operation, then every 100 hours or annually.
- Air Filter: Inspect the air filter regularly and clean or replace it as needed, especially in dusty conditions.
- Fuel Filter: Inspect and replace the fuel filter periodically to ensure clean fuel delivery.
- Battery: Check battery terminals for corrosion and ensure connections are tight. The included battery is maintenance-free, but regular inspection is still recommended.
- Cleaning: Keep the generator clean and free of debris. Ensure cooling fins are not obstructed.
- Spark Plug (if applicable): Inspect and clean or replace the spark plug as per the maintenance schedule.
7. Troubleshooting
This section addresses common issues you might encounter with your generator.
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine will not start | No fuel; Low oil level; Battery discharged; Choke not set correctly; Faulty ignition switch | Add fuel; Add oil to correct level; Recharge/replace battery; Adjust choke; Contact service |
| Low power output | Overload; Dirty air filter; Stale fuel; Incorrect engine speed | Reduce load; Clean/replace air filter; Drain and refill with fresh fuel; Contact service |
| Unusual noise/vibration | Loose components; Engine malfunction; Generator not on level surface | Check and tighten fasteners; Contact service; Move generator to level surface |
| No electrical output | Circuit breaker tripped; Faulty outlet; Wiring issue | Reset circuit breaker; Test other outlets; Contact service |
8. Specifications
Key technical specifications for the TOTAL Silent Diesel Generator TP250001-58:
| Specification | Value |
|---|---|
| Manufacturer | TOTAL |
| Item Model Number | TP250001-58 |
| Power Source Type | Diesel |
| Wattage | 5000 Watts (5.0 kW Max Output) |
| Rated Output | 4.5 kW |
| Engine Power | 9.0 HP |
| Displacement | 418 ml |
| Voltage/Frequency | 220-240V / 50Hz |
| Fuel Tank Capacity | 17 Liters |
| Battery | 30Ah Maintenance-Free |
| Item Weight | 143 Kilograms |
| Product Dimensions (L x W x H) | 95 cm x 56.5 cm x 75 cm |
| Special Feature | Portable |
| Recommended Uses | Residential |
| Included Components | 1 × TOTAL Silent Diesel Generator TP250001-58 |
9. Warranty and Support
For warranty information, please refer to the warranty card included with your product or contact TOTAL customer support. Keep your purchase receipt as proof of purchase.
For technical assistance, spare parts, or service inquiries, please visit the official TOTAL website or contact their authorized service centers. Contact details can typically be found on the product packaging or the brand's official website.
