BYSAUD Castle Vanity Desk with Mirror and Lights

1. Important Safety Information

Please read and understand all safety instructions before assembly and use. Retain this manual for future reference.

Always follow the assembly instructions provided with the product.
Keep electrical components, such as the charging station and LED lights, away from water and moisture.
Exercise caution during assembly and use to avoid sharp edges and pinch points.
Do not exceed the weight limit of the vanity desk or its shelves.
Unplug the vanity from the power source when not in use or during cleaning.
Ensure the anti-tipping device is properly installed and secured to prevent accidental tipping.

2. Product Overview

The BYSAUD Castle Vanity Desk is designed for makeup application and storage, featuring an integrated mirror with LED lighting, multiple storage compartments, and a built-in charging station. Its unique design includes retractable side cabinets for flexible placement.

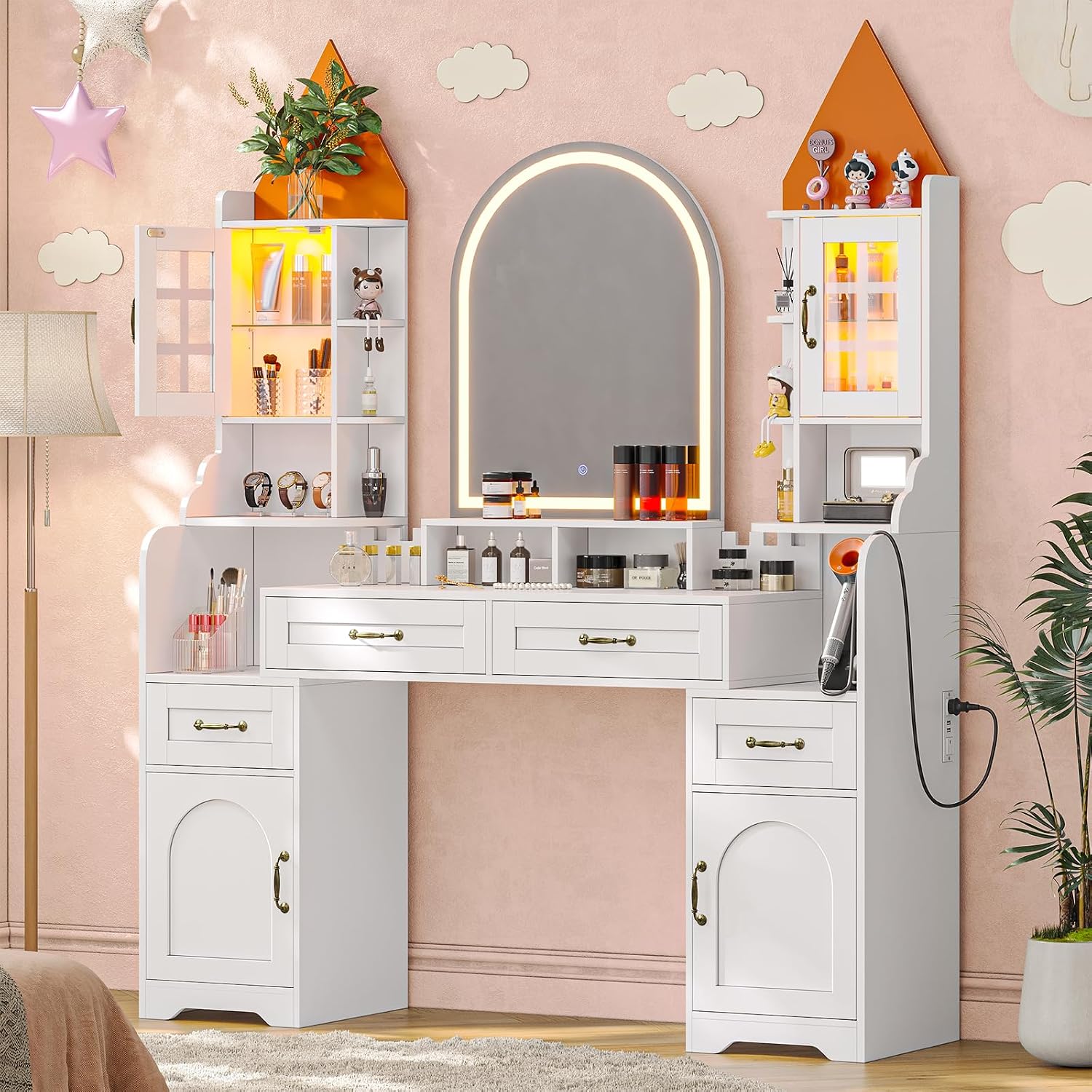

BYSAUD Castle Vanity Desk with Mirror and Lights — Figure 2.1: Overview of the BYSAUD Castle Vanity Desk.

This vanity desk offers a spacious tabletop, four large-capacity drawers, fourteen open shelves, and four practical cabinets, including two with glass doors. The design prioritizes both aesthetics and functionality.

Vanity Desk with various storage options labeled — Figure 2.2: Detailed view of the vanity desk's storage features, including drawers, open shelves, and cabinets.

3. Setup and Assembly

The BYSAUD Castle Vanity Desk requires assembly. All necessary hardware and instructions are included. It is recommended to assemble the unit in the room where it will be used.

3.1 Unpacking and Component Identification

Carefully unpack all components and hardware from the packaging.
Verify that all parts are present by comparing them against the included parts list in the assembly manual. Each part and accessory is labeled.
Place components on a soft, clean surface to prevent scratches during assembly.

Diagram showing dimensions and individual components of the vanity desk — Figure 3.1: Dimensions and key components of the vanity desk.

3.2 Assembly Steps

Follow the step-by-step instructions provided in the separate assembly manual. General steps typically include:

Assemble the main desk frame.
Attach the side cabinets and drawers. Ensure drawers slide smoothly.
Install the mirror and its lighting components.
Secure the anti-tipping device to a wall stud to prevent the vanity from falling.
Connect the power cord for the LED lights and charging station.

3.3 Adjustable Cabinet Span

The side cabinets of the vanity desk are designed with an extendable feature, allowing the overall width to be adjusted from approximately 3.61 feet (43.32 inches) to 4.59 feet (55.1 inches). This adjustability helps integrate the vanity with various room layouts.

Images showing the vanity desk in both pulled-out and retracted states, illustrating the adjustable width — Figure 3.2: The vanity desk with side cabinets in both extended and retracted positions.

4. Operating Instructions

4.1 LED Lighted Mirror

The large HD makeup mirror is equipped with LED lights offering three distinct color modes and adjustable brightness.

Power On/Off: Locate the touch sensor on the mirror surface to turn the lights on or off.
Change Color Mode: Tap the touch sensor to cycle through the three color modes: Cool White, Natural Light, and Warm Yellow.
Adjust Brightness: Press and hold the touch sensor to adjust the brightness level within the selected color mode. Release when the desired brightness is achieved.

Diagram showing the three color modes (Cool White, Warm White, Warm Yellow) of the LED mirror and brightness adjustment — Figure 4.1: LED mirror with 3 color modes and adjustable brightness.

4.2 RGB Ambient Lighting (Glass Door Cabinets)

The two cabinets with glass doors feature RGB LED strips, offering a wide range of static light colors and dynamic modes.

Control: The RGB lighting can be controlled via a dedicated key or through a smartphone application.
Color Selection: Choose from over 60,000 static light colors.
Brightness Adjustment: Adjust the intensity of the RGB lights.
Dynamic Modes: Includes Music Mode (lights react to sound), Mic Mode (lights react to voice), and a Timing Function for scheduled operation.

Image showing the RGB ambient lighting in the glass cabinets with control options like app control, music mode, and timing function — Figure 4.2: RGB ambient lighting features and control options.

4.3 Built-in Charging Station

The vanity desk includes a convenient charging station to power your electronic devices.

AC Outlets: Two standard 125V/12A AC outlets are provided for appliances like hair dryers or curling irons.
USB Ports: Two 5V/2.1A USB ports are available for charging mobile devices such as smartphones or tablets.
Power Cord: The charging station is connected via a 5.91-foot power cord.

Close-up image of the built-in charging station with two AC outlets and two USB ports — Figure 4.3: Details of the integrated charging station.

5. Maintenance

Proper care and maintenance will ensure the longevity of your vanity desk.

Cleaning: The desk is made of high-quality MDF board, which is waterproof and scratch-resistant. Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
Mirror Cleaning: Use a glass cleaner specifically designed for mirrors and a lint-free cloth to clean the mirror surface.
Drawer Slides: The drawers are equipped with high-quality slides. If they become stiff, a small amount of silicone-based lubricant can be applied.
Electrical Components: Ensure all electrical connections are secure. Do not attempt to repair electrical components yourself. Contact qualified personnel if issues arise.

Close-up images showing sliding drawers, adjustable glass shelves, retro brass handle, and anti-tipping device — Figure 5.1: Details of construction, including drawer slides and adjustable shelves.

6. Troubleshooting

This section addresses common issues you might encounter.

LED Mirror Lights Not Working:
- Ensure the vanity is properly plugged into a working power outlet.
- Check if the power cord is securely connected to the vanity.
- Verify that the touch sensor on the mirror is clean and unobstructed.
RGB Cabinet Lights Not Functioning:
- Confirm the vanity is powered on.
- Check the connection of the RGB light strips.
- If using the app, ensure your device is properly paired and within range.
Charging Station Not Providing Power:
- Ensure the vanity is plugged in and receiving power.
- Test the outlet with another device to confirm it is functional.
- Check the device you are trying to charge to ensure it is working correctly.
Drawers Sticking or Not Sliding Smoothly:
- Ensure the drawers are not overloaded.
- Check for any obstructions in the drawer slides.
- Apply a small amount of silicone lubricant to the slides if necessary.

If you encounter issues not covered here, please refer to the original assembly manual or contact customer support.

7. Specifications

Feature	Specification
Brand	BYSAUD
Model Number	Castle Vanity Desk
Product Dimensions	15.8"D x 55.1"W x 70.08"H (Extended)
Adjustable Width Range	43.32" to 55.1"
Item Weight	116 pounds
Frame Material	Engineered Wood
Color	White
Assembly Required	Yes
LED Mirror Modes	3 Color Modes (Cool White, Natural Light, Warm Yellow), Adjustable Brightness
RGB Lighting	60,000+ Colors, Brightness Adjustable, Music Mode, Mic Mode, Timing Function
Charging Station	2 AC Outlets (125V/12A), 2 USB Ports (5V/2.1A)
Power Cord Length	5.91 feet

8. Warranty Information

Specific warranty details for the BYSAUD Castle Vanity Desk are not provided in this manual. Please refer to the product packaging, purchase documentation, or contact the retailer or manufacturer directly for information regarding warranty coverage and terms.

9. Customer Support

For assistance with assembly, missing parts, or any other product-related inquiries, please contact BYSAUD customer support through the channel provided at the point of purchase or on the official BYSAUD website. Please have your model number (Castle Vanity Desk) and purchase date available when contacting support.
