Important Safety Information
Please read this manual carefully before installing or using your Hermitlux HVC2T02 ceramic hob. Keep these instructions for future reference. Incorrect installation or use can cause injury or damage.
- Ensure the appliance is installed by a qualified person.
- Do not touch hot surfaces. Use handles or knobs.
- Never leave the hob unattended during operation.
- Keep children away from the appliance during use.
- Do not use abrasive cleaners or sharp metal scrapers to clean the hob surface.
- Disconnect the appliance from the power supply before cleaning or maintenance.
- This appliance is for domestic use only.
1. Setup and Installation
1.1 Unpacking
Carefully remove the hob from its packaging. Inspect the appliance for any damage. Do not install if damaged. Retain packaging for transport if needed.
1.2 Dimensions and Cut-out
The Hermitlux HVC2T02 ceramic hob is designed for built-in installation. Ensure your countertop cut-out matches the specified dimensions for a proper fit.
- Product Dimensions (L x W x H): 520 mm x 288 mm x 55 mm
- Cut-out Dimensions (L x W x H): 490 mm x 268 mm x 101 mm

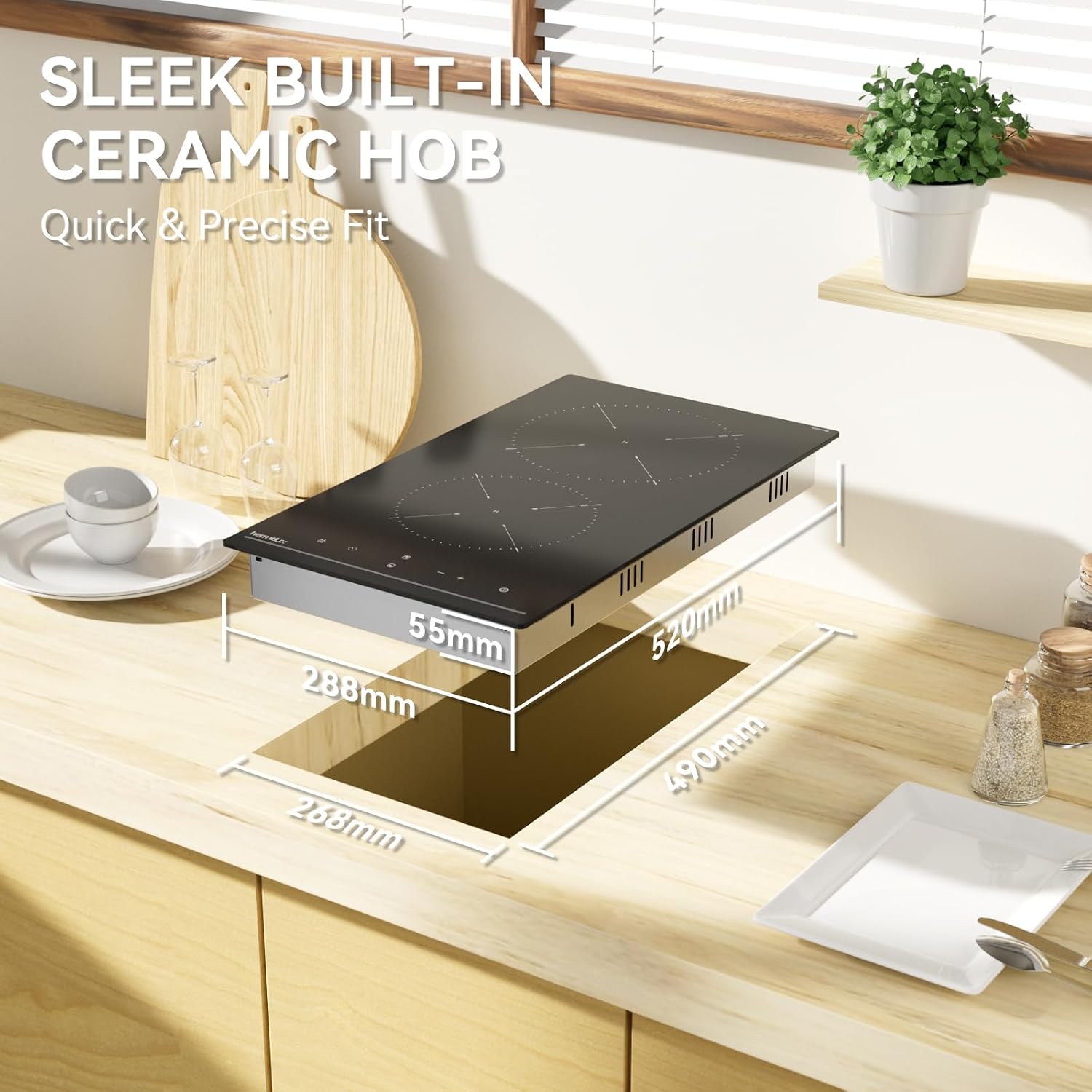

Image: Diagram showing the dimensions of the Hermitlux HVC2T02 ceramic hob and the required countertop cut-out for installation. The hob measures 520mm in length, 288mm in width, and 55mm in height. The cut-out should be 490mm in length and 268mm in width.
1.3 Electrical Connection
This appliance operates on 220V - 240V / 50/60 Hz. It comes with a plug for direct connection to a 220V socket outlet. Ensure the electrical supply is compatible and properly grounded. Installation should be performed by a qualified electrician.
Image: Close-up of the power cord and plug for the Hermitlux HVC2T02 ceramic hob, indicating it is ready for direct connection to a 220V socket.
2. Operating Instructions
2.1 Control Panel Overview
The hob features a sensitive touch control panel for easy operation. The main controls include power on/off, power level adjustment, timer settings, and a child safety lock.
Image: Close-up of the touch control panel on the Hermitlux HVC2T02 ceramic hob, highlighting the 'Key Lock' button, 'Heat or Timer Setting Control' area, and 'Timer Setting' buttons.
2.2 Powering On and Adjusting Heat
- Touch the Power On/Off button (ⓘ) to activate the hob.
- Place suitable cookware on the desired cooking zone. The hob features automatic pot recognition.
- Select the cooking zone by touching its corresponding control.
- Adjust the power level using the "+/-" buttons. There are 9 power levels available.
- The display will show the selected power level.
2.3 Cooking Zones and Power Levels
The hob has two independent cooking zones with varying power outputs:
- Front Zone: Maximum 1200W (165mm diameter)
- Rear Zone: Maximum 1800W (200mm diameter)
- Total Power: 3000W
Image: The Hermitlux HVC2T02 ceramic hob showing its two cooking zones. The front zone has a maximum power of 1200W and a diameter of 165mm. The rear zone has a maximum power of 1800W and a diameter of 200mm. The total power output is 3000W.
2.4 Timer Function
The integrated timer can be set for up to 99 minutes. To use the timer:
- Select the desired cooking zone.
- Touch the Timer button.
- Use the "+/-" buttons to set the desired cooking time.
- The cooking zone will automatically switch off once the timer expires.
2.5 Safety Features
- Child Safety Lock: Activates to prevent accidental operation. To activate/deactivate, press and hold the lock button for a few seconds.
- Overheat Protection: The hob will automatically shut down if it detects excessive temperatures.
- Residual Heat Indicator: A "H" will appear on the display when a cooking zone is still hot after use, even if turned off.
- Automatic Shut-off: The hob will automatically turn off after a period of inactivity or if a pot is removed.
2.6 Compatible Cookware
The ceramic hob is compatible with various types of cookware that have a flat, smooth bottom. This includes:
- Ceramic pots
- Casseroles
- Iron cookware
- Copper pots
- Stainless steel pots
- Glass cookware
Image: An illustration showing the Hermitlux HVC2T02 ceramic hob alongside various types of cookware that are compatible, including ceramic, casserole, iron, copper, stainless steel, and glass pots and pans.
3. Maintenance and Cleaning
Regular cleaning and maintenance will ensure the longevity and optimal performance of your ceramic hob.
- Always ensure the hob is cool and disconnected from the power supply before cleaning.
- Wipe the ceramic surface with a damp cloth and a mild detergent.
- For stubborn stains, use a specialized ceramic hob cleaner and a non-abrasive sponge.
- Do not use abrasive pads, scourers, or harsh chemical cleaners, as these can scratch or damage the surface.
- Clean spills immediately to prevent them from baking onto the surface.
4. Troubleshooting
If you encounter issues with your Hermitlux HVC2T02 ceramic hob, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Hob does not turn on. | No power supply; Child lock activated. | Check power connection; Deactivate child lock by pressing and holding the lock button. |
| Cooking zone not heating. | Incorrect cookware; Overheat protection activated. | Ensure cookware has a flat, smooth bottom and is suitable for ceramic hobs; Allow hob to cool down. |
| "H" displayed after use. | Residual heat indicator. | This is normal. The zone is still hot. Do not touch. |
| Hob beeps continuously. | Spill on control panel; Object on control panel. | Clean the control panel; Remove any objects from the control panel. |
If the problem persists after trying these solutions, please contact customer support.
5. Technical Specifications
| Model Number | HVC2T02 |
| Brand | Hermitlux |
| Type | Built-in Ceramic Hob |
| Number of Cooking Zones | 2 |
| Power Supply | 220V - 240V / 50/60 Hz |
| Total Power Output | 3000W |
| Front Zone Power | 1200W |
| Rear Zone Power | 1800W |
| Power Levels | 9 |
| Control Type | Touch Control |
| Timer Range | Up to 99 minutes |
| Product Dimensions (L x W x H) | 520 mm x 288 mm x 55 mm |
| Cut-out Dimensions (L x W x H) | 490 mm x 268 mm x 101 mm |
| Weight | 4.6 kg |
| Surface Material | Black Glossy Glass and Ceramic |
| Special Features | Child Safety Lock, Overheat Protection, Residual Heat Indicator, Automatic Shut-off, Pause Function, Automatic Pot Recognition |
6. Warranty Information
Hermitlux products are manufactured to high-quality standards. This product comes with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms, conditions, and duration. Keep your proof of purchase for warranty claims.
The warranty typically covers defects in materials and workmanship under normal household use. It does not cover damage resulting from improper installation, misuse, abuse, accidents, or unauthorized repairs.
7. Customer Support
For technical assistance, spare parts, or any questions regarding your Hermitlux HVC2T02 ceramic hob, please contact Hermitlux customer support.
- Website: Visit the official Hermitlux website for support resources and contact information.
- Email: Refer to your product documentation for the customer service email address.
- Phone: Refer to your product documentation for the customer service phone number.
When contacting support, please have your model number (HVC2T02) and purchase date ready.
