HSHa 21V Cordless Drill Set Instruction Manual

1. Introduction

The HSHa 21V Cordless Drill Set is a powerful and versatile tool designed for a wide range of drilling and driving applications. Its cordless design provides freedom of movement, while features like variable speed, adjustable torque, and a built-in LED light enhance precision and ease of use. This manual provides essential information for safe and effective operation, setup, and maintenance of your new drill set.

Image: The HSHa 21V Cordless Drill Kit, showcasing the drill and its accompanying accessories, ready for various household needs.

2. Important Safety Instructions

Always follow basic safety precautions when using electric tools to reduce the risk of fire, electric shock, and personal injury.

• Wear Eye Protection: Always wear safety goggles or safety glasses with side shields when operating the drill.
• Secure Workpiece: Clamp or otherwise secure the workpiece to a stable platform. Holding the workpiece by hand or against your body may cause loss of control.
• Keep Work Area Clean: Cluttered areas and benches invite injuries.
• Avoid Dangerous Environment: Do not use power tools in damp or wet locations, or expose them to rain. Keep work area well lit.
• Stay Alert: Watch what you are doing, use common sense. Do not operate tool when you are tired.
• Store Idle Tools: When not in use, tools should be stored in a dry, high, or locked-up place, out of reach of children.
• Maintain Tools With Care: Keep cutting tools sharp and clean for better and safer performance. Follow instructions for lubricating and changing accessories.

3. Included Components

Your HSHa 21V Cordless Drill Set comes with the following items:

• 1 x 21V Cordless Drill
• 1 x 21V 1.5AH Lithium-ion Battery
• 1 x Fast Charger
• 1 x User Manual
• 1 x Storage Case
• 29 Pcs Accessories (various drill/driver bits, flexible shaft, gloves)

Image: A complete view of the HSHa 21V Cordless Drill Set, including the drill, battery, charger, and the comprehensive 29-piece accessory kit.

4. Setup

4.1. Charging the Battery

The 21V 1.5AH lithium-ion battery provides durable power for your projects. Before first use, fully charge the battery. The fast charger can fully charge the battery in approximately 45 minutes.

1. Connect the charger to a power outlet.
2. Slide the battery onto the charger until it clicks into place.
3. The indicator light on the charger will show the charging status.
4. Once fully charged, remove the battery from the charger.

Image: The 1500mAh Li-ion battery connected to its fast charger, illustrating the quick 45-minute charging process.

4.2. Installing/Removing Drill Bits

The drill features a 3/8-inch keyless automatic chuck for quick and easy bit changes.

1. To open the chuck, rotate the chuck collar counter-clockwise until the jaws are wide enough to insert the bit.
2. Insert the desired drill bit or driver bit into the chuck. Ensure the bit is fully seated.
3. Rotate the chuck collar clockwise to tighten the jaws securely around the bit.
4. To remove a bit, rotate the chuck collar counter-clockwise until the jaws release the bit.

Video: A demonstration of how to install and remove drill bits using the keyless chuck, highlighting the ease of changing accessories.

5. Operating Instructions

5.1. Variable Speed Control

The drill offers two variable speed settings (0-400 RPM for low speed and 0-1400 RPM for high speed) to match the application. The speed is controlled by the pressure applied to the trigger.

Image: Illustration of the two variable speed settings (0-400 RPM for screw driving and 0-1400 RPM for drilling) available on the HSHa cordless drill.

5.2. Torque Adjustment (25+1 Position)

The drill features a 25+1 position torque setting, allowing you to adjust the torque to prevent over-driving screws or damaging materials. The '1' setting is for drilling mode, providing maximum torque.

Image: Diagram highlighting the 25+1 torque setting on the HSHa cordless drill, which helps in making precise holes in different materials.

5.3. Forward/Reverse Control

The drill's rotation direction can be easily switched between clockwise (forward) for driving screws and drilling, and counter-clockwise (reverse) for removing screws or backing out bits. The control button is located above the trigger.

Image: Visual guide to the forward and reverse control on the drill, showing its application for both screwing and unscrewing tasks.

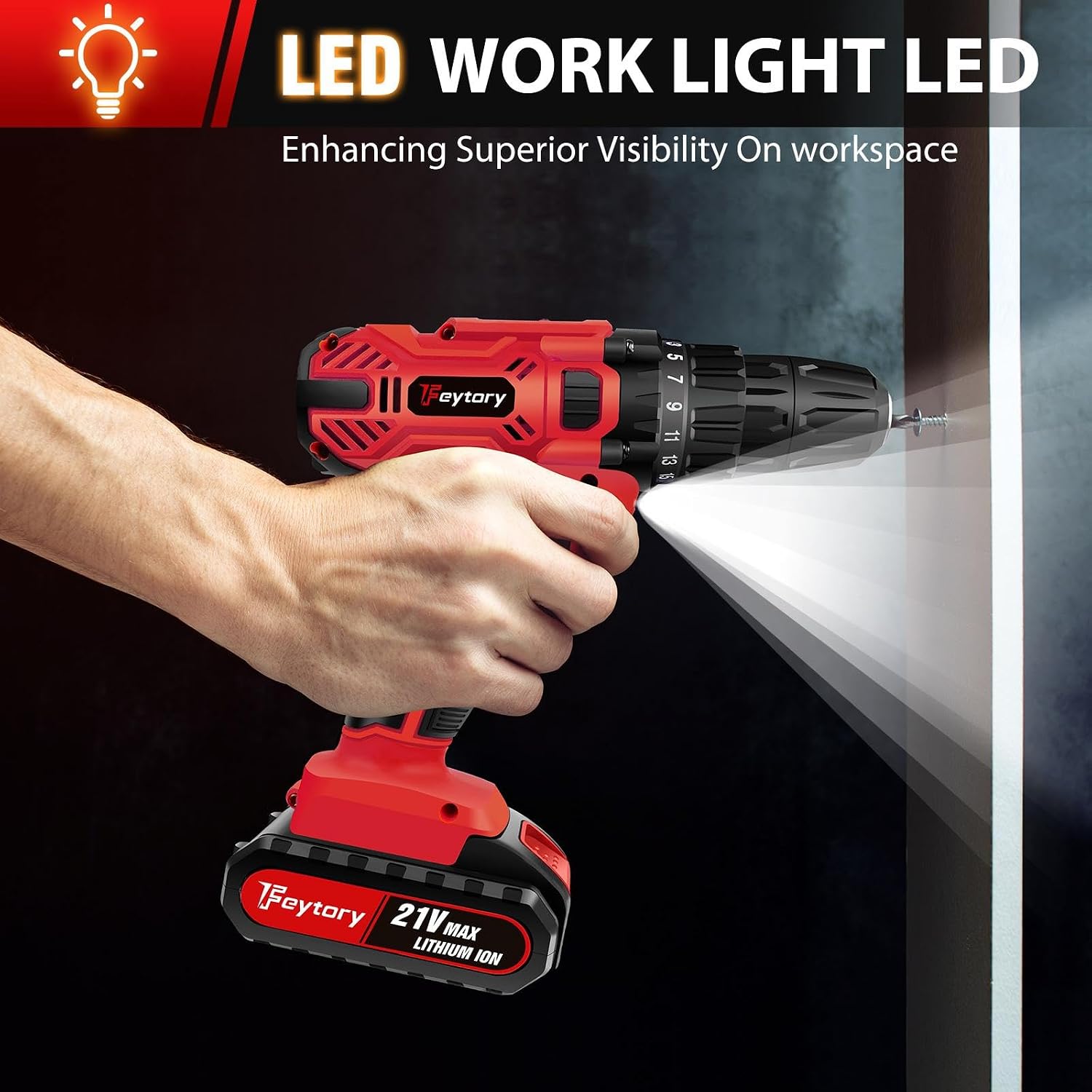

5.4. Built-in LED Work Light

The integrated LED light automatically illuminates the work surface when the trigger is pressed, providing enhanced visibility in dimly lit areas.

Image: The powerful LED work light on the HSHa cordless drill, demonstrating its ability to illuminate the workspace for superior visibility.

5.5. Usage Scenarios

The HSHa Cordless Drill is suitable for various tasks, including drilling into wood, metal, and plastic, as well as driving and removing screws for furniture assembly, appliance repair, and general household projects.

Image: A collage illustrating diverse applications of the drill, including appliance repair, furniture installation, wall drilling, and screw driving/removal.

Video: A detailed guide on how to operate the 21V cordless drill, demonstrating its various functions and controls.

Video: Showcase of various practical usage scenarios for the cordless drill, demonstrating its versatility in different tasks.

6. Maintenance

Proper maintenance ensures the longevity and optimal performance of your HSHa Cordless Drill.

• Cleaning: Regularly clean the drill's exterior with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners. Keep ventilation openings clear of dust and debris.
• Battery Care: Store batteries in a cool, dry place away from direct sunlight. Do not store fully discharged batteries for extended periods.
• Bit Maintenance: Keep drill bits and driver bits clean and sharp. Replace worn or damaged bits to ensure efficient operation and prevent damage to the workpiece.
• Storage: When not in use, store the drill and its accessories in the provided storage case to protect them from dust and damage.

7. Troubleshooting

If you encounter issues with your HSHa Cordless Drill, refer to the following common troubleshooting tips:

• Drill Not Starting: Ensure the battery is fully charged and properly inserted. Check the forward/reverse switch is not in the center (locked) position.
• Loss of Power During Operation: The battery may be low. Recharge the battery. If the issue persists, the battery may need replacement.
• Bit Slipping in Chuck: Ensure the chuck is tightened securely around the bit. The bit shank might be dirty or damaged; clean or replace the bit.
• Overheating: Avoid continuous heavy-duty use. Allow the drill to cool down. Ensure ventilation slots are not blocked.
• Screw Head Stripping: Adjust the torque setting to a lower value. Ensure you are using the correct bit type and size for the screw.

For persistent issues not covered here, please contact customer support.

8. Specifications

9. Warranty and Support

HSHa is committed to providing high-quality products. For information regarding warranty coverage, technical support, or replacement parts, please refer to the contact information provided with your purchase documentation or visit the official HSHa website. Please retain your proof of purchase for warranty claims.
