KOOLUX BK6
KOOLUX BK6 20" Fat Tire Folding Electric Bike User Manual
Model: BK6 | Brand: KOOLUX
Introduction
Welcome to the KOOLUX BK6 Electric Bike User Manual. This manual provides essential information for the safe and efficient operation, assembly, maintenance, and troubleshooting of your new electric bicycle. Please read this manual thoroughly before your first ride to ensure proper usage and to maximize the lifespan of your bike. Retain this manual for future reference.

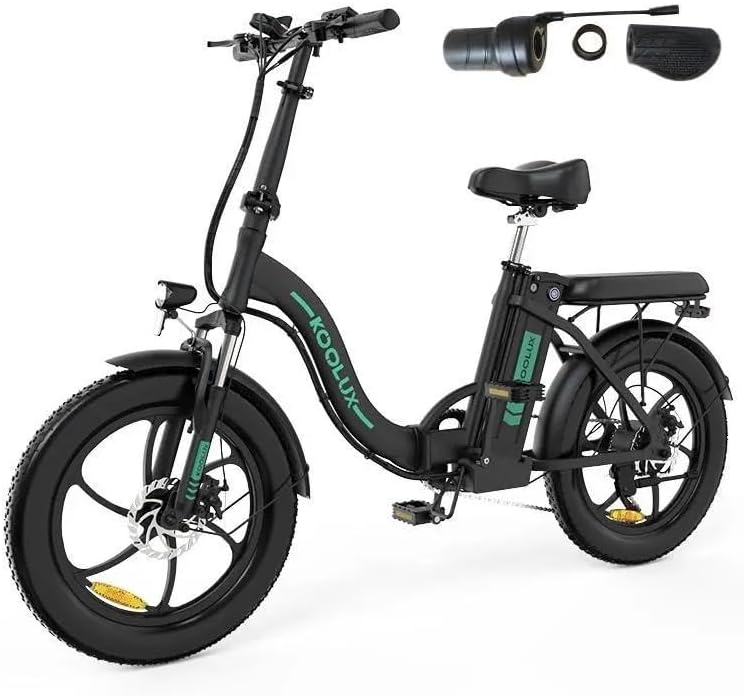

Image: The KOOLUX BK6 electric bike, showcasing its compact design and fat tires.
Safety Information
- Always wear a helmet and appropriate safety gear when riding.
- Familiarize yourself with local traffic laws and regulations regarding electric bicycles.
- Perform a pre-ride inspection before each use, checking brakes, tires, and battery level.
- Do not ride under the influence of alcohol or drugs.
- Avoid riding in extreme weather conditions or on excessively slippery surfaces.
- Ensure all quick releases and fasteners are securely tightened before riding.
- Do not modify the bike's electrical system or motor.
Components Overview
The KOOLUX BK6 is equipped with high-quality components designed for performance and durability.
- Frame: Foldable Aluminum Alloy
- Motor: 250W 36V Brushless Motor (52Nm torque)
- Battery: Removable 36V 15AH Lithium-ion Battery
- Tires: 20" x 3.0 Puncture-Resistant Fat Tires
- Brakes: Dual Disc Brakes (Front and Rear)
- Gears: Shimano 7-Speed Transmission System
- Display: LCD Multifunction Display
- Lighting: LED Headlights and Taillights
- Suspension: Front Suspension

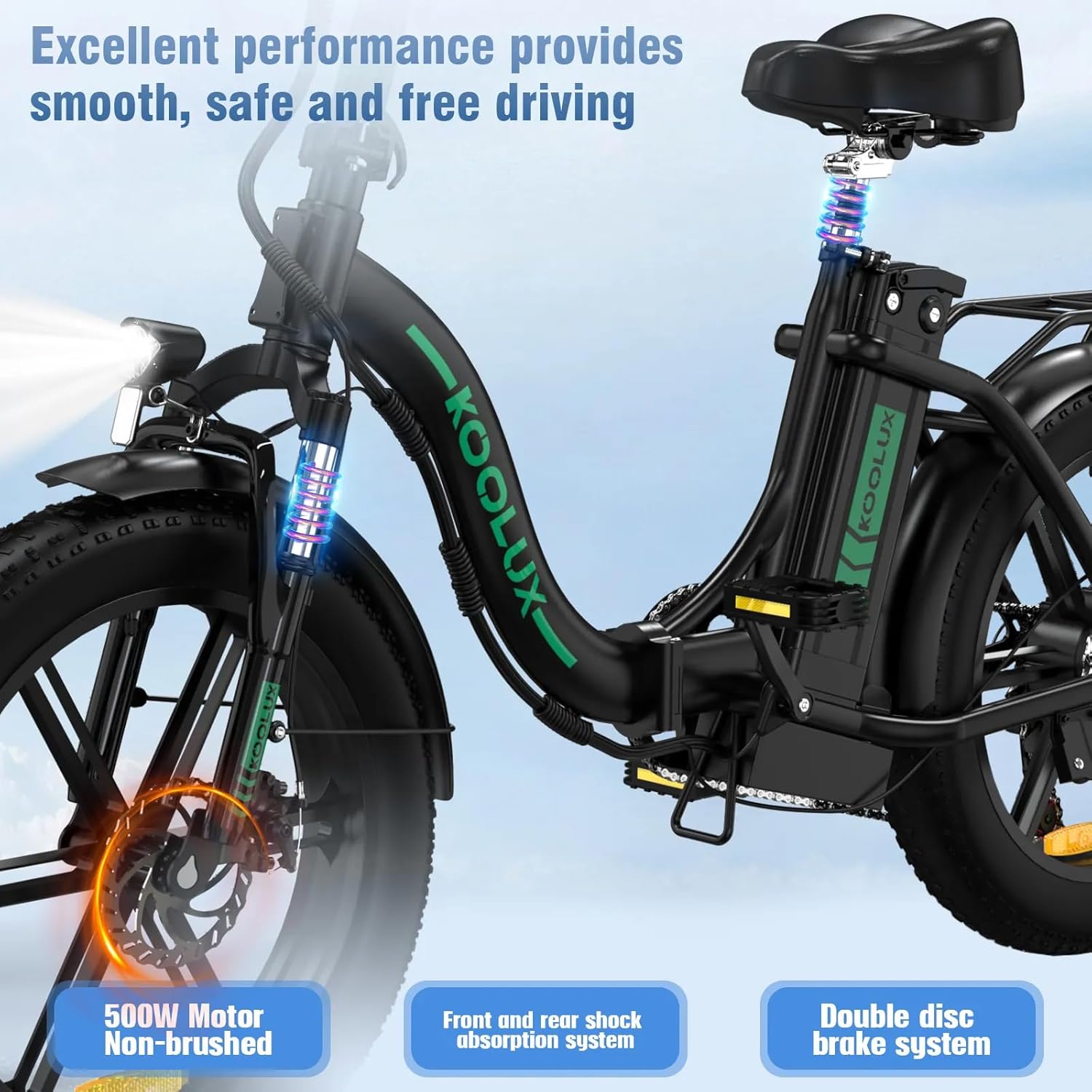

Image: Close-up view of the bike's motor, dual disc brakes, and front suspension system.
Image: Detailed view of the 20" x 3.0 fat tires, highlighting their robust tread for various terrains.
Setup
1. Unpacking and Initial Inspection
Carefully remove all components from the packaging. Inspect the bike for any signs of damage during transit. Ensure all included accessories (battery, charger, tools, keys, locks, pump, throttle) are present as listed in the product specifications.
2. Handlebar and Pedal Installation
Your bike may arrive with the handlebars folded or detached. Unfold or attach the handlebars, ensuring they are securely fastened. Install the pedals, noting that the left pedal (L) and right pedal (R) are threaded differently. Tighten them firmly using the provided tool.
3. Battery Installation and Charging
The battery is typically located within the frame or on the rear rack. To install or remove the battery:
- Open the lock and lift the seat to access the battery compartment.
- Insert the key into the battery lockhole and rotate it to the left to unlock it.
- Carefully pull the battery out or insert it until it clicks into place.
Before first use, fully charge the battery. Connect the charger to the battery charging port and then to a power outlet. The indicator light on the charger will change when charging is complete. Charging time may vary.
Image: Visual guide demonstrating the process of unlocking, removing, and installing the removable battery.
Image: A person demonstrating the installation of the removable battery into the bike frame.
4. Seat and Handlebar Adjustments
Adjust the seat height and handlebar position to ensure a comfortable and ergonomic riding posture. Ensure the seat post is inserted past the minimum insertion line. Tighten all quick releases securely after adjustment.
Operating Instructions
1. Powering On/Off and LCD Display
To power on the bike, ensure the battery is installed and locked, then press and hold the power button on the LCD display. The display will illuminate, showing information such as speed, battery level, and mileage. To power off, press and hold the power button again.
Image: The bike's LCD display, illustrating its various readouts including speed, battery status, and total mileage.
Image: Overview of the handlebar controls, including the smart display, brake levers, and the Shimano 7-speed gear shifter.
2. Riding Modes
The KOOLUX BK6 offers three riding modes:
- Pedal-Assist Mode: The motor provides assistance as you pedal. Use the '+' and '-' buttons on the display to adjust the level of assistance.
- Pure Electric Mode (Throttle): Engage the throttle for motor power without pedaling. This mode is ideal for quick acceleration or when you need a break from pedaling.
- Manual Mode: Ride the bike like a traditional bicycle, without any motor assistance.
3. Gear Shifting
The Shimano 7-speed system allows you to adjust your pedaling effort to suit different terrains. Shift gears smoothly by pedaling lightly while operating the shifter. Downshift for climbing hills and upshift for flat terrain or descents.
4. Braking
The bike is equipped with dual disc brakes for reliable stopping power. Apply both brake levers simultaneously for effective and controlled braking. Practice braking in a safe area to get accustomed to the bike's stopping distance.
5. Folding and Unfolding
The KOOLUX BK6 features a quick-fold design for easy storage and transport. Follow the instructions in the quick-start guide or refer to online tutorials for the specific folding mechanism. Ensure all folding latches are securely engaged when unfolding the bike before riding.

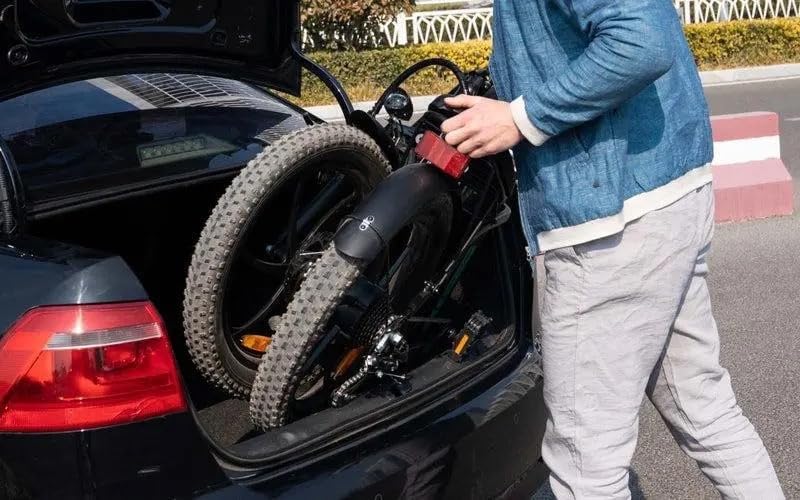

Image: A person demonstrating the compact size of the folded bike as it is placed into the boot of a car.
Maintenance
Regular maintenance ensures the longevity and safe operation of your KOOLUX BK6 electric bike.
- Battery Care:
- Charge the battery regularly, even if not in use, to maintain its health.
- Avoid fully discharging the battery.
- Store the battery in a cool, dry place away from direct sunlight.
- Do not expose the battery to extreme temperatures.
- Tire Care:
- Check tire pressure before each ride. Refer to the tire sidewall for recommended pressure.
- Inspect tires for wear, cuts, or embedded objects.
- Brake Maintenance:
- Regularly check brake pads for wear and replace them when necessary.
- Ensure brake levers have proper tension and respond effectively.
- Keep disc rotors clean and free of oil or grease.
- Chain and Drivetrain:
- Keep the chain clean and lubricated to ensure smooth gear changes and prevent rust.
- Inspect the chain for excessive wear or damage.
- General Cleaning:
- Clean the bike regularly with a damp cloth and mild soap. Avoid high-pressure washing, especially near electrical components.
- Dry the bike thoroughly after cleaning.
- Fasteners:
- Periodically check all bolts, nuts, and quick releases for tightness.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bike does not power on | Battery not installed correctly; Battery discharged; Loose electrical connection; Power button not pressed long enough. | Ensure battery is fully inserted and locked; Charge the battery; Check all visible cable connections; Press and hold the power button for 3-5 seconds. |
| Motor not assisting | Pedal-assist level set to zero; Battery low; Brake levers engaged; Motor or sensor issue. | Increase pedal-assist level on display; Charge battery; Ensure brake levers are fully released; Consult support if issue persists. |
| Short battery range | Under-inflated tires; Riding uphill frequently; Heavy load; Frequent use of pure electric mode; Cold weather. | Inflate tires to recommended pressure; Use lower assist levels or pedal more; Reduce load; Use pedal-assist more often; Battery performance is reduced in cold weather. |
| Brakes feel weak | Worn brake pads; Loose brake cable; Contaminated rotors. | Inspect and replace brake pads; Adjust brake cable tension; Clean rotors with disc brake cleaner. |
| Gears not shifting smoothly | Dirty or unlubricated chain; Derailleur out of adjustment; Bent hanger. | Clean and lubricate chain; Adjust derailleur (consult a bike mechanic if unsure); Inspect hanger for damage. |
Specifications
| Feature | Detail |
|---|---|
| Model | BK6 |
| Motor | 250W 36V Brushless Motor, 52Nm Torque |
| Battery | 36V 15AH Removable Lithium-ion |
| Max Range | Up to 90 km (65 miles) |
| Tires | 20" x 3.0 Fat Tires (Puncture-Resistant) |
| Brakes | Dual Disc Brakes |
| Gears | Shimano 7-Speed |
| Frame Material | Aluminum Alloy (Foldable) |
| Folded Dimensions | 90 x 50 x 79 cm |
| Display | LCD Multifunction Display |
| Suspension | Front |
| Included Components | Battery, Battery Charger, 16 in 1 Simple Tool, 2 Keys, User Manual, Bicycle Locks, Bicycle Pumps, Throttle |
Warranty and Support
For warranty information, please refer to the warranty card included with your purchase or contact KOOLUX customer support. Keep your proof of purchase for any warranty claims.
For technical assistance, spare parts, or any questions not covered in this manual, please contact KOOLUX customer service through the retailer where you purchased the product or visit the official KOOLUX website for contact details.
Manufacturer: Koolux
