DazzlingStage 180W Dual-Color COB LED Par Light (Model ZQ01321) Instruction Manual

Model: ZQ01321 | Brand: DazzlingStage

1. Introduction

This manual provides detailed instructions for the safe and efficient operation of your DazzlingStage 180W Dual-Color COB LED Par Light. This high-performance stage light features two 90W COB LEDs, offering both cool white (6500K) and warm white (3200K) illumination. It is designed for various applications including stage lighting, events, and parties. Please read this manual thoroughly before use and retain it for future reference.

DazzlingStage 180W Dual-Color COB LED Par Light

Figure 1: DazzlingStage 180W Dual-Color COB LED Par Light. This image shows the front view of the black stage light with two circular COB LED elements, one emitting cool white light and the other warm white light.

2. Safety Information

To ensure safe operation, please observe the following precautions:

3. Package Contents

Verify that all items are present in the package:

Package contents of DazzlingStage COB LED Par Light

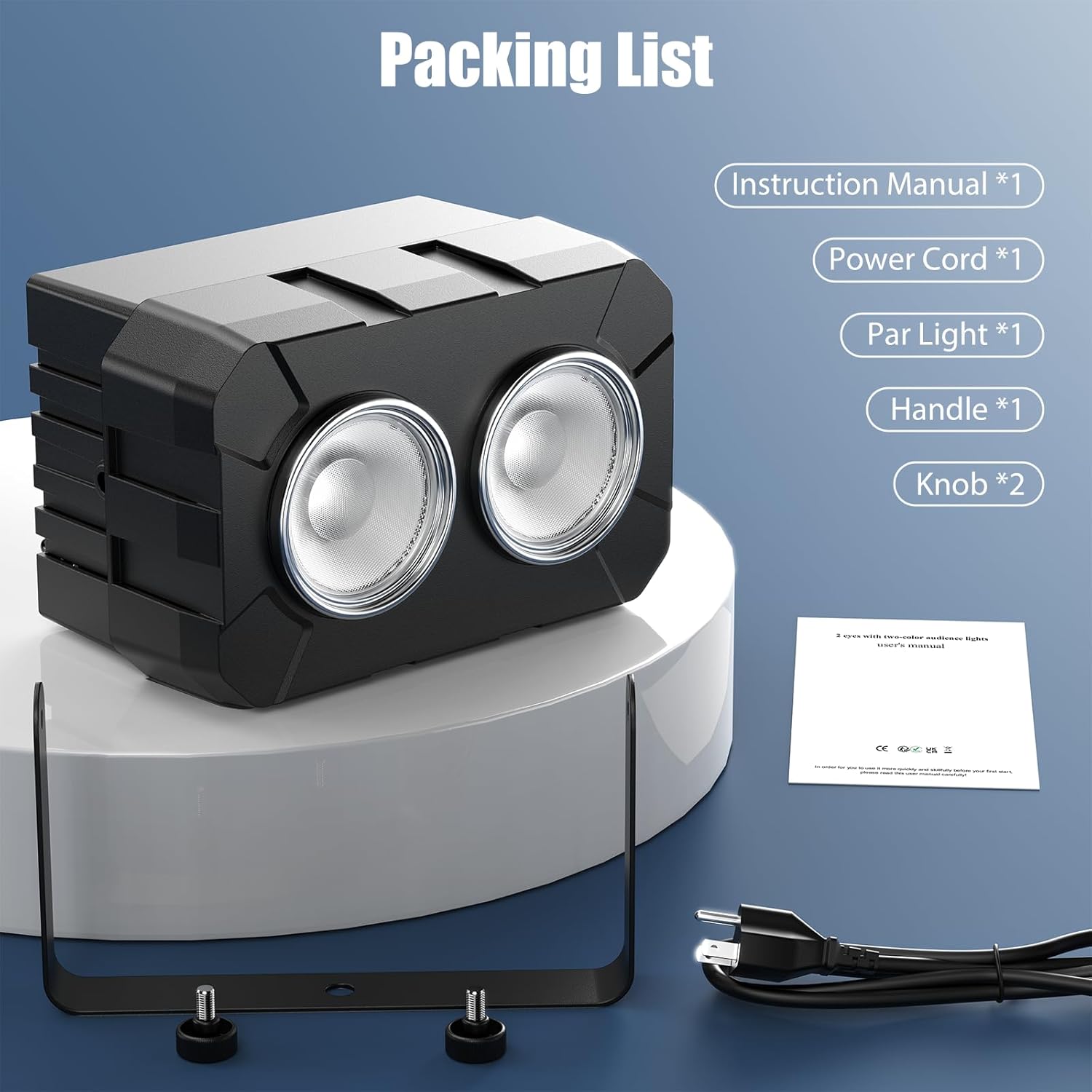

Figure 2: Illustrated packing list showing the COB light, power cord, handle, knobs, and instruction manual.

4. Setup and Installation

The DazzlingStage COB LED Par Light is designed for flexible installation. It can be placed on a flat surface, mounted on a truss, or hung from a ceiling.

4.1 Mounting

  1. Attach the adjustable mounting bracket to the light using the provided knobs.
  2. Securely fasten the light to a truss, ceiling, or stand using appropriate clamps (not included) and the mounting bracket.
  3. Always use the safety rope ring to provide an additional layer of security when suspending the light.

4.2 Power Connection and Daisy-Chaining

Connect the power cable to the "Power In" port on the rear of the unit. For multiple units, you can daisy-chain up to 6 lights using the "Power Out" port to connect to the next unit's "Power In" port.

Multiple DazzlingStage COB LED Par Lights daisy-chained on a truss

Figure 3: Four COB LED Par Lights connected in a daisy-chain configuration, illustrating easy power linking for multiple units.

Rear view of DazzlingStage COB LED Par Light showing power and DMX connections, and safety rope ring

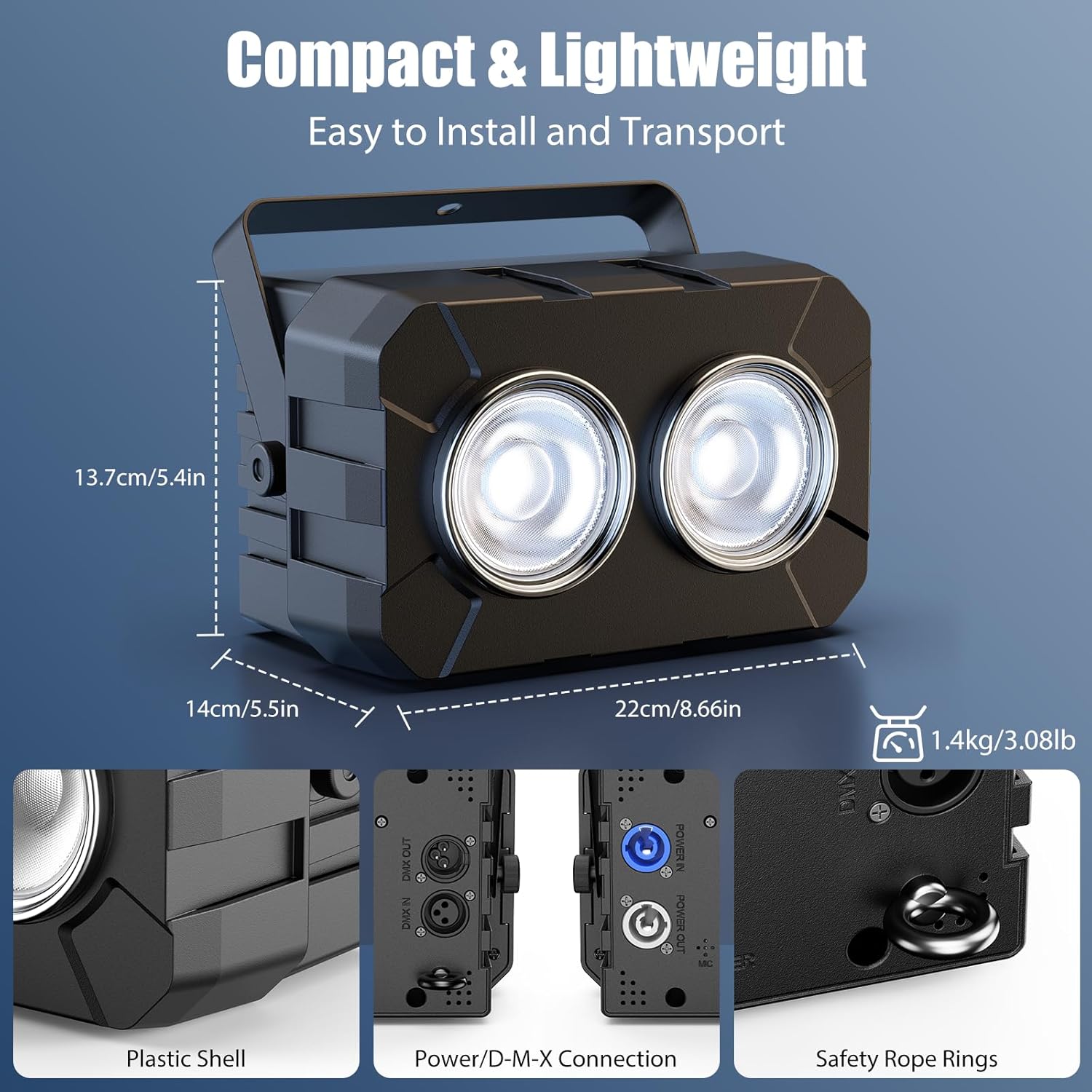

Figure 4: Detailed view of the light's rear panel, highlighting the Power In/Out, DMX In/Out, 4-digit display, control buttons, and safety rope ring.

5. Operating Modes

The DazzlingStage COB LED Par Light offers four primary control modes:

Video 1: Demonstration of the DazzlingStage 180W Dual-Color COB LED Par Light's various lighting effects and modes, including warm white, cool white, mixed white, strobe, jump, gradient, pulse, and DMX control.

6. Key Features and Functions

6.1 Adjustable Color Temperature

The light features both cool white (6500K) and warm white (3200K) COB LEDs, allowing for a wide range of color temperatures. You can adjust the mix to achieve desired ambient lighting, from crisp cool white to rich warm white.

DazzlingStage COB LED Par Light demonstrating adjustable color temperature from warm white to cool white

Figure 5: An illustration showing the adjustable color temperature range (3200K-6500K) of the COB LED Par Light, transitioning from warm white to cool white.

6.2 Dimming and Strobe Effects

Three DazzlingStage COB LED Par Lights showing different light sources: jump, gradient, pulse, strobe

Figure 6: Three lights demonstrating various light sources and effects, including jump, gradient, pulse, and strobe modes.

7. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your DazzlingStage COB LED Par Light.

8. Troubleshooting

ProblemPossible CauseSolution
Light does not turn onNo power supply or faulty cable.Check power connection and cable. Ensure the power outlet is functional.
No DMX controlIncorrect DMX address, faulty DMX cable, or incorrect DMX mode setting.Verify DMX address and channel settings. Check DMX cable connections. Ensure the unit is in DMX512 mode.
Light is too bright/dimDimming level not adjusted.Adjust the dimming setting via the control panel or DMX controller.
Sound-activated mode not workingNo sound input or microphone sensitivity too low.Ensure there is sufficient sound near the unit. Check microphone sensitivity settings if available.

9. Specifications

FeatureDetail
Rated VoltageAC100-240V, 50/60Hz
Lamp Beads2 x 90W COB LED (Cool White + Warm White)
Output Angle35°
Color Temperature (CCT)3200K-6500K
Average LED Lifespan50,000 hours
Dimming0-100% Linear Dimming
Strobe Frequency1-25 times/second
Working ModesDMX512, Master-Slave, Auto, Sound-Activated
Control Channel8 DMX Channels
Display4-Digit Digital Display + 4 Buttons
Protection LevelIP20
Product Dimensions (L x W x H)22cm x 14cm x 13.7cm (8.66in x 5.5in x 5.4in)
Product Weight1.4kg (3.08lb)
MaterialAcrylonitrile Butadiene Styrene (ABS)

10. Warranty and Support

For warranty information or technical support, please contact DazzlingStage customer service through the retailer where the product was purchased. Please have your model number (ZQ01321) and purchase date available when contacting support.
