Introduction

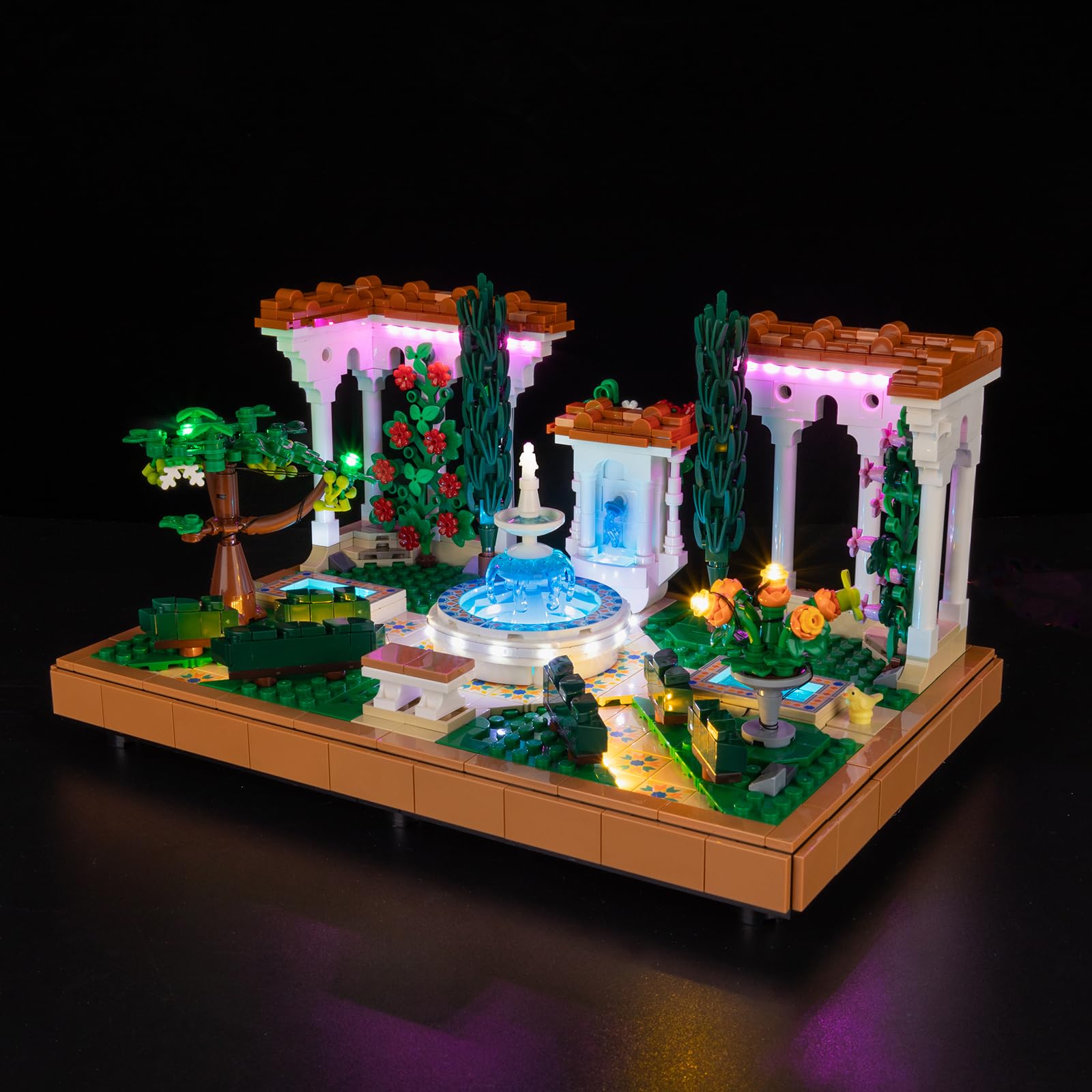

This instruction manual provides guidance for the installation and use of the BrickSoul LED Light Up Kit, designed specifically to enhance the Lego 10359 Building Set. This lighting kit transforms your model into a vibrant display piece, adding detail and visual impact.
Please note: The Lego 10359 Building Set model is not included with this lighting kit and must be purchased separately.
Package Contents
Upon opening your BrickSoul LED Light Up Kit, please verify that all components are present and undamaged. The kit typically includes:
- LED light strips and individual LED lights
- Connecting cables and expansion boards
- USB power cable
- Adhesive squares or mounting bricks (if applicable)
- Instruction manual (this document)
This image shows the various components of the BrickSoul LED Light Up Kit, including LED strips, connecting wires, and a USB power cable, designed to illuminate the Lego 10359 Building Set.
Safety Information
Please read and adhere to the following safety guidelines before installation and use:
- Age Recommendation: This product is recommended for individuals 14 years of age and older. It contains small parts that may pose a choking hazard for younger children.
- Power Source: Use only a USB power source with a recommended input of 3-5V. Do not exceed the specified voltage to prevent damage to the lights or your model.
- Material Safety: The components are made from premium ABS plastic and copper wire. Avoid bending wires excessively or applying undue force to connectors.
- Installation: Ensure the power is disconnected before installing or adjusting the lighting kit.
- Storage: Store the kit and its components in a dry, cool place away from direct sunlight and moisture.
Setup and Installation
The BrickSoul LED kit is designed for easy installation. Follow the detailed online video and PDF guides provided by BrickSoul for the most accurate and visual instructions. A general overview of the installation process is as follows:
- Preparation: Ensure your Lego 10359 Building Set is fully assembled. Gather your lighting kit components and the necessary tools (e.g., brick separator, tweezers if needed).
- Access Points: The installation guide will direct you to carefully remove specific bricks from your Lego model to create access points for the LED lights and wires.
- Placement of Lights: Insert the LED lights into the designated areas as shown in the guide. Ensure the lights are securely placed.
- Wire Routing: Route the connecting cables neatly between Lego studs or through designated channels to ensure a seamless fit and clean wiring. Avoid pinching or damaging the wires.
- Connection: Connect the LED lights to the expansion boards and then to the main power cable. Pay attention to the correct polarity if indicated.
- Reassembly: Carefully reassemble the removed Lego bricks, ensuring no wires are trapped or damaged. The design allows for integration without loosening or damaging your model.
- Power Connection: Once all lights are installed and connections are secure, connect the USB power cable to a compatible 3-5V USB power source.
Operating Instructions
Operating your BrickSoul LED Light Up Kit is straightforward:
- Power On: Connect the USB power cable to a 3-5V USB power source (e.g., a USB wall adapter, power bank, or computer USB port). The lights should illuminate automatically.
- Power Off: Disconnect the USB power cable from the power source to turn off the lights.
- No Controls: This kit does not feature external controls for brightness or light patterns. The lights operate in a continuous on/off state.
Maintenance
To ensure the longevity and optimal performance of your BrickSoul LED Light Up Kit, follow these maintenance tips:
- Cleaning: Gently dust the LED lights and wires with a soft, dry cloth. Avoid using liquid cleaners directly on the electronic components.
- Handling: Handle your illuminated Lego model with care to avoid dislodging lights or damaging wires.
- Storage: If storing the model, ensure wires are not kinked or compressed.
Troubleshooting
If you encounter issues with your BrickSoul LED Light Up Kit, consider the following troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Lights do not turn on | No power, loose connection, faulty component | Check USB power source (ensure it's 3-5V). Verify all connections are secure. Inspect wires for visible damage. |
| Some lights are off | Loose connection, damaged LED/wire | Check connections to the specific lights. If a single LED or wire is damaged, contact BrickSoul support for replacement. |
| Lights flicker | Unstable power, loose connection | Try a different USB power source. Re-check all connections for tightness. |
If these steps do not resolve the issue, please contact BrickSoul customer support for further assistance.
Specifications
- Model Number: 10359-cv
- Product Dimensions: 6 x 5.1 x 1.4 inches
- Item Weight: 1.92 ounces
- Manufacturer Recommended Age: 14 years and up
- Power Input: USB 3-5V
- Materials: ABS plastic, copper wire
Warranty and Support
BrickSoul stands by the quality of its products and offers a worry-free warranty. If you experience accidental damage, such as a bent connector or a broken wire, BrickSoul provides quick, hassle-free replacements to ensure your build stays on track.
For any questions, concerns, or support needs, please contact the BrickSoul support team. They are dedicated to ensuring a smooth and stress-free lighting experience for all customers.
Contact information can typically be found on the BrickSoul official website or through your purchase platform.
