VersLife S6 Cordless Vacuum Cleaner User Manual

Important Safety Instructions

Please read all instructions carefully before using this appliance. Retain this manual for future reference.

• This appliance is for household use only. Do not use outdoors or on wet surfaces.
• Do not allow children to operate the vacuum cleaner. Close supervision is necessary when used near children.
• Do not pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without the dust cup and filters in place.
• Turn off the appliance before connecting or disconnecting the battery pack, accessories, or performing maintenance.
• Use only the charger supplied by the manufacturer to recharge.
• Store the appliance indoors in a cool, dry place.

Product Overview

The VersLife S6 Cordless Vacuum Cleaner is designed for efficient and versatile cleaning. It features a powerful brushless motor, a multi-layer HEPA filtration system, and a lightweight design for ease of use.

Image: The VersLife S6 Cordless Vacuum Cleaner with its various components, including the main motor unit, extension pipe, floor brush, and accessory nozzles.

Key Features:

• Powerful Suction: Up to 38,000 Pa for effective cleaning.
• Brushless Motor: High performance and durability.
• HEPA Filtration: Multi-layer system captures fine dust and allergens.
• Lightweight Design: Easy to maneuver and use for extended periods.
• Multi-functional Nozzles: Includes an extension pipe, fabric head, and 2-in-1 crevice tool for various cleaning tasks.
• Rotary Head: Flexible head rotates 180° horizontally and 90° vertically for easy navigation.
• Cordless Convenience: Battery-powered for unrestricted movement.

Assembly and Setup

Follow these steps to assemble your VersLife S6 Cordless Vacuum Cleaner and prepare it for first use.

1. Attach the Extension Pipe: Insert the extension pipe into the main motor unit until it clicks securely into place.
2. Connect the Floor Brush: Attach the floor brush to the other end of the extension pipe, ensuring it locks firmly.
3. Install Accessories: For specific cleaning tasks, you can directly attach the fabric head or the 2-in-1 crevice tool to the main motor unit (for handheld use) or to the extension pipe.
4. Charge the Battery: Before first use, fully charge the vacuum cleaner. Connect the Type-C charging cable to the charging port on the main unit and plug it into a power outlet. The charging indicator light will show the charging status. A full charge takes approximately 4.5 hours.

Image: Visual guide demonstrating how to attach the extension tube, fabric head, and 2-in-1 crevice brush for different cleaning configurations.

Operation

The VersLife S6 offers versatile cleaning modes for various surfaces and situations.

Starting and Stopping:

• Press the power button on the main unit to turn the vacuum cleaner on.
• Press the power button again to turn it off.
• The vacuum typically has two suction modes. Press the mode button to switch between standard and max suction.

Using Different Configurations:

• Stick Vacuum Mode: Use with the extension pipe and floor brush for cleaning floors, carpets, and tatami mats. The flexible rotary head allows for easy maneuvering around furniture and into tight spaces.
• Handheld Vacuum Mode: Detach the extension pipe and attach accessories directly to the main motor unit for cleaning sofas, car interiors, stairs, and other elevated or confined areas.

Image: A user demonstrating the lightweight design, easily reaching high areas with the vacuum cleaner.

Image: Illustration of the vacuum head's flexibility, capable of rotating 180 degrees left and right, and 90 degrees up and down for comprehensive cleaning.

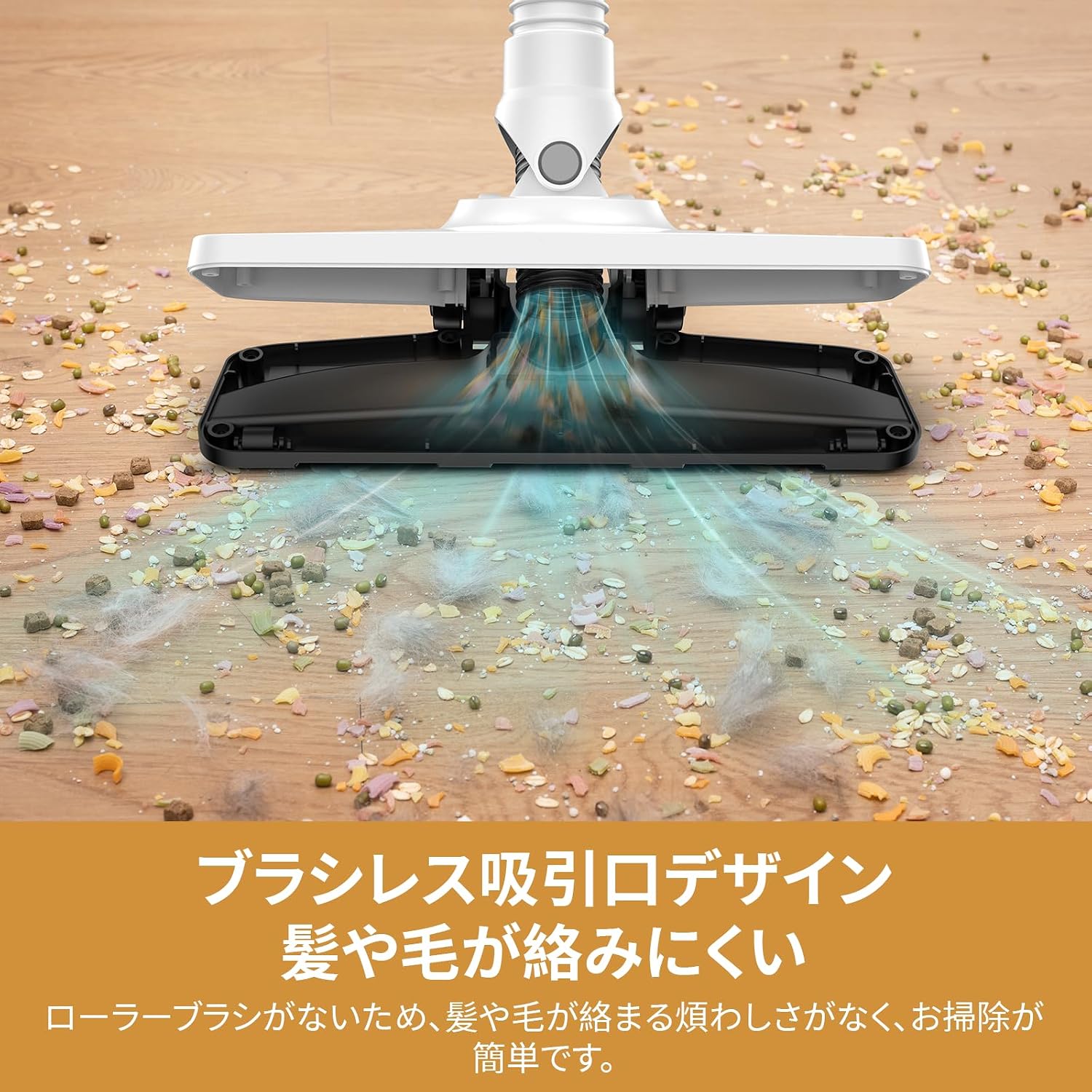

Image: The vacuum cleaner effectively picking up various types of debris, highlighting its 38,000 Pa powerful suction and 130,000 RPM motor.

Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your vacuum cleaner.

Emptying the Dustbin:

• The dustbin has a capacity of 900 milliliters.
• To empty, press the dustbin release button, usually located near the bottom of the main unit.
• Open the dustbin lid and dispose of the collected debris.

Cleaning the Filters:

• The VersLife S6 features a multi-layer filtration system, including a HEPA filter and a plastic mesh filter.
• These filters are washable. Remove them from the dustbin assembly.
• Rinse the filters under running water until clean. Ensure they are completely dry before reinserting them into the vacuum cleaner.
• Do not operate the vacuum with wet filters.

Brushless Suction Mouth:

The brushless design of the suction mouth helps prevent hair and pet fur from tangling, reducing the need for frequent cleaning of the brush roll.

Image: A user demonstrating the one-touch dustbin emptying and the process of washing the removable filter components.

Image: An exploded view illustrating the multi-layer filtration system, highlighting the HEPA filter, plastic mesh filter, and centrifugal cyclone for air purification.

Troubleshooting

If you encounter issues with your VersLife S6, refer to the following common problems and solutions.

• Vacuum does not turn on:
  • Ensure the battery is fully charged.
  • Check that the battery pack is securely inserted.
• Weak suction:
  • Empty the dustbin if it is full.
  • Clean the HEPA and mesh filters. Ensure they are dry before reinstallation.
  • Check for blockages in the extension pipe, floor brush, or nozzles.
• Battery not charging:
  • Ensure the charging cable is properly connected to both the vacuum and the power outlet.
  • Verify that the power outlet is functional.
• Unusual noise:
  • Check for any foreign objects caught in the floor brush or suction path.
  • Ensure all components are securely assembled.

If the problem persists after trying these solutions, please contact customer support.

Specifications

Warranty and Support

The VersLife S6 Cordless Vacuum Cleaner comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including the warranty period and coverage details.

For technical support, troubleshooting assistance beyond this manual, or warranty claims, please contact VersLife customer service through the retailer where you purchased the product or visit the official VersLife website for contact information.
