Instruction Manual for Waterproof Meat Probes

1. Introduction

This manual provides essential information for the proper use and maintenance of your INGQI Waterproof Meat Probes. These probes are designed to accurately monitor internal food temperatures during cooking, particularly for BBQ grills, ensuring safe and perfectly cooked meals. Please read this manual thoroughly before first use to ensure optimal performance and longevity of your product.

Image 1.1: Overview of the two INGQI waterproof meat probes. Each probe features a stainless steel shaft and a braided cable terminating in a 3.5mm plug, designed for compatibility with various digital thermostats.

2. Compatibility

The INGQI Waterproof Meat Probes are specifically designed as replacement parts compatible with Traeger BBQ Grills. They feature a 3.5 mm (1/8 inch) plug, making them suitable for use with various digital thermostat systems that accept this standard. Both the stainless steel overbraid and the stainless steel PRO probe can be utilized for either BBQ or general food cooking applications.

Important Note:

• These probes are incompatible with handheld thermometers.
• Ensure your grill's thermostat system uses a 3.5mm jack for probe input.

3. Features

These meat probes offer a range of features designed for reliable and accurate temperature monitoring:

• Dual Functionality: Capable of monitoring both internal meat temperature and ambient temperature within a smoker or grill.
• Waterproof Design: Engineered to withstand moisture, making them durable for outdoor cooking environments.
• High Accuracy: Provides precise temperature readings for consistent cooking results.
• Heat Resistance: Constructed with materials that can withstand high temperatures typical of grilling and smoking.
• Ease of Use: Simple plug-and-play operation with no complicated modes or setup required.
• Durable Construction: Made with stainless steel overbraid and PRO probe materials for longevity.

4. Setup

Setting up your INGQI meat probe is straightforward:

1. Unpack the meat probes from their packaging.
2. Locate the 3.5mm (1/8 inch) probe input jack on your compatible Traeger BBQ Grill's digital thermostat.
3. Carefully insert the 3.5mm plug of the meat probe into the corresponding jack until it is fully seated.
4. Ensure the cable is routed safely away from direct heat sources and moving parts of the grill.

Your probe is now ready for use.

5. Operating Instructions

Follow these guidelines for effective temperature monitoring:

1. For Meat Temperature: Insert the pointed tip of the probe into the thickest part of the meat, avoiding bones. Ensure the probe is fully inserted to get an accurate internal temperature reading.
2. For Ambient Temperature: Position the probe within the grill or smoker chamber, ensuring it is not directly touching the grates or food, to monitor the cooking environment temperature.
3. Monitor the temperature readings on your grill's digital display. Refer to your grill's manual for specific temperature settings and alerts.

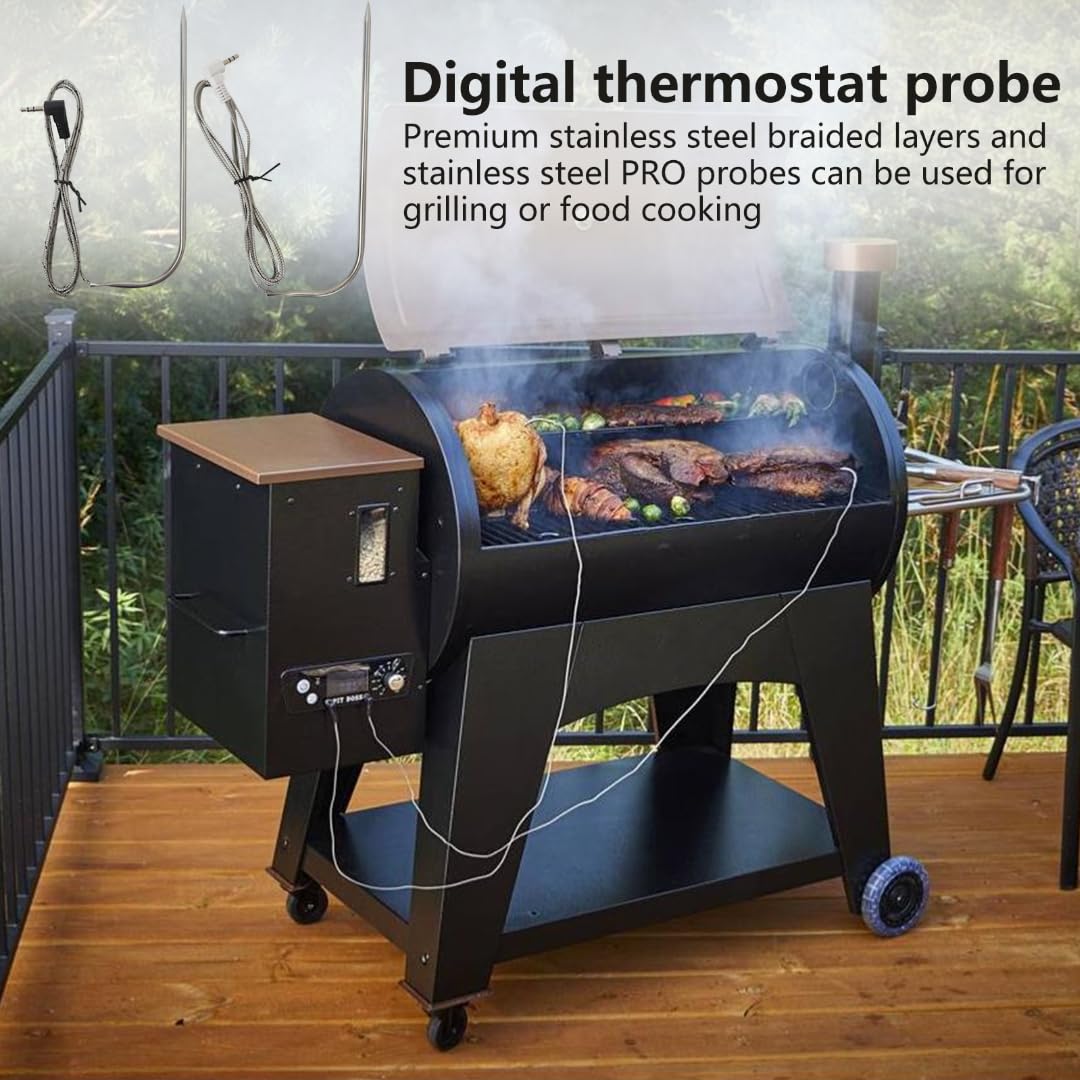

Image 5.1: The digital thermostat probe connected to a grill, demonstrating its use for monitoring cooking temperatures. The probe's durable construction allows for reliable performance in high-heat environments.

Image 5.2: Close-up view of the probe inserted into meat, illustrating its function as a high-temperature monitor. This allows for precise control over the cooking process.

Important Tip: Avoid Bumping Meat Probe into Bones. This can damage the probe tip and affect accuracy.

6. Maintenance and Cleaning

Proper cleaning and maintenance will extend the life of your meat probes:

• Probe Tip Cleaning: The stainless steel tip of the probe tube can be rinsed under a faucet or cleaned with a damp rag after each use.
• Cable and Plug Cleaning: The 3.5 mm plugs and cables should not be cleaned with water. Use a dry cloth to wipe them clean if necessary.
• Storage: Store the probes in a clean, dry place when not in use to prevent damage and corrosion.
• Inspection: Periodically inspect the probe cable and plug for any signs of wear, fraying, or damage. If damage is observed, discontinue use and replace the probe.

7. Troubleshooting

If you encounter issues with your meat probes, consider the following:

• Inaccurate Readings:
  • Ensure the probe is fully inserted into the thickest part of the meat and not touching bone.
  • Verify the probe plug is securely connected to the grill's thermostat jack.
  • Check for any visible damage to the probe cable or tip.
• No Reading/Probe Not Detected:
  • Confirm the probe is compatible with your specific grill model and thermostat (3.5mm plug).
  • Try plugging the probe into a different port on your grill, if available.
  • Ensure the grill's thermostat is powered on and functioning correctly.

If problems persist after checking these points, please refer to the "Support and Warranty" section for further assistance.

8. Specifications

Key specifications for the INGQI Waterproof Meat Probes:

Image 8.1: Detailed product size introduction diagram, indicating key dimensions such as the 46-inch total length, 7-inch probe length, and 0.13-inch plug diameter.

9. Support and Warranty

INGQI is committed to customer satisfaction. If you encounter any issues or have questions regarding your meat probes, please contact the seller directly through the platform where you made your purchase.

• Customer Service: For any problems, concerns, or inquiries, please reach out to INGQI.INC, the seller. They are dedicated to resolving issues as quickly as possible.
• Return Policy: This product typically comes with a 30-day return policy for refund or replacement, subject to the terms and conditions of the marketplace where it was purchased. Please refer to your purchase details for specific return instructions.
• Quality Assurance: All parts are tested and quality controlled prior to shipment to ensure they meet functional standards.

Please compare the goods appearance, shape, and size with your original goods before ordering to ensure compatibility.
