CAARLA HGS28E 220V 500W Electric Die Grinder Instruction Manual

1. Safety Instructions

Always observe basic safety precautions when using electrical tools to reduce the risk of fire, electric shock, and personal injury. Read all instructions before operating this tool.

• Work Area Safety: Keep the work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Electrical Safety: Power tool plugs must match the outlet. Never modify the plug in any way. Do not abuse the cord. Never use the cord for carrying, pulling, or unplugging the power tool. Keep cord away from heat, oil, sharp edges, or moving parts.
• Personal Safety: Always wear eye protection. Use hearing protection when operating for extended periods. Wear a dust mask if operations create dust. Dress properly. Do not wear loose clothing or jewelry. Keep hair and clothing away from moving parts.
• Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.
• Maintenance: Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use.

2. Product Overview

The CAARLA HGS28E Electric Die Grinder is a robust tool designed for precision grinding, carving, and polishing tasks on various metal surfaces. It features a powerful 500W motor and a durable construction for reliable performance.

Figure 2.1: CAARLA HGS28E Electric Die Grinder and included accessories (wrenches, carbon brushes, nuts).

2.1 Components

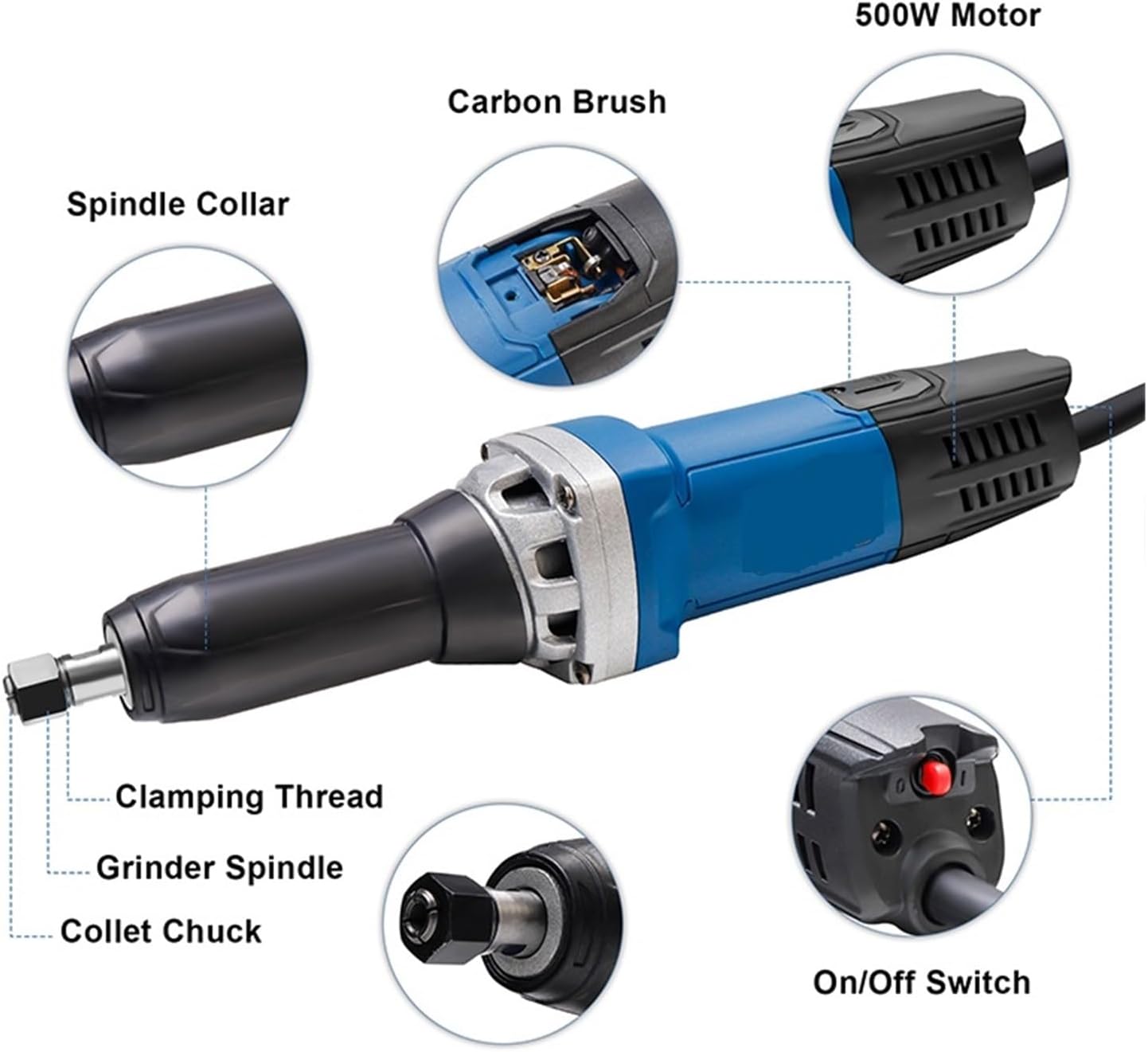

Figure 2.2: Key components of the HGS28E Die Grinder, including the Spindle Collar, Carbon Brush access, 500W Motor, On/Off Switch, Collet Chuck, Grinder Spindle, and Clamping Thread.

• Spindle Collar: Secures the collet chuck assembly.
• Carbon Brush Access: Allows for easy inspection and replacement of carbon brushes.
• 500W Motor: Provides powerful rotation for grinding and polishing.
• On/Off Switch: Controls power to the tool.
• Collet Chuck: Holds various grinding bits and accessories.
• Grinder Spindle: The rotating shaft that drives the collet chuck.
• Clamping Thread: Used to tighten and secure the collet chuck.

3. Setup

3.1 Unpacking

1. Carefully remove the die grinder and all accessories from the packaging.
2. Inspect the tool for any signs of damage that may have occurred during shipping. Do not operate if damaged.
3. Verify that all listed components are present: die grinder unit, two wrenches, and two spare carbon brushes.

3.2 Attaching Accessories

1. Ensure the die grinder is unplugged from the power source.
2. Loosen the collet chuck nut using the provided wrenches.
3. Insert the desired grinding bit or accessory into the collet chuck. Ensure the shank is fully seated.
4. Tighten the collet chuck nut firmly with the wrenches to secure the accessory. Do not overtighten.

3.3 Power Connection

• Confirm that the power supply matches the tool's rated voltage (220V, 50Hz).
• Plug the power cord into a suitable electrical outlet.

4. Operation

Before starting, ensure all safety precautions are followed and the work piece is securely clamped.

4.1 Turning On/Off

• To turn on the die grinder, press the On/Off switch located on the tool body.
• To turn off the die grinder, release or press the On/Off switch again, depending on its type (toggle or momentary).
• Allow the tool to reach full speed before making contact with the workpiece.

4.2 Grinding and Polishing Techniques

• Apply light, consistent pressure. Excessive force can damage the tool or workpiece and reduce efficiency.
• Move the tool smoothly across the surface to ensure even material removal and a consistent finish.
• For detailed work, use smaller bits and maintain a steady hand.
• Regularly check the condition of the grinding bit and replace it if it becomes dull or damaged.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your die grinder. Always unplug the tool before performing any maintenance.

5.1 Cleaning

• After each use, clean the tool with a dry cloth to remove dust and debris.
• Use compressed air to clear ventilation openings and prevent dust buildup inside the motor housing.
• Do not use harsh chemicals or abrasive cleaners.

5.2 Carbon Brush Replacement

Carbon brushes are wear items and will need periodic replacement. The tool may show reduced power or intermittent operation when brushes are worn.

Figure 5.1: Location for carbon brush installation on the HGS28E Die Grinder.

1. Unplug the die grinder from the power source.
2. Locate the carbon brush covers on the sides of the motor housing (refer to Figure 5.1).
3. Use a screwdriver to remove the carbon brush covers.
4. Carefully pull out the old carbon brushes.
5. Insert the new carbon brushes, ensuring they are oriented correctly.
6. Replace the carbon brush covers and tighten them securely.

6. Troubleshooting

7. Specifications

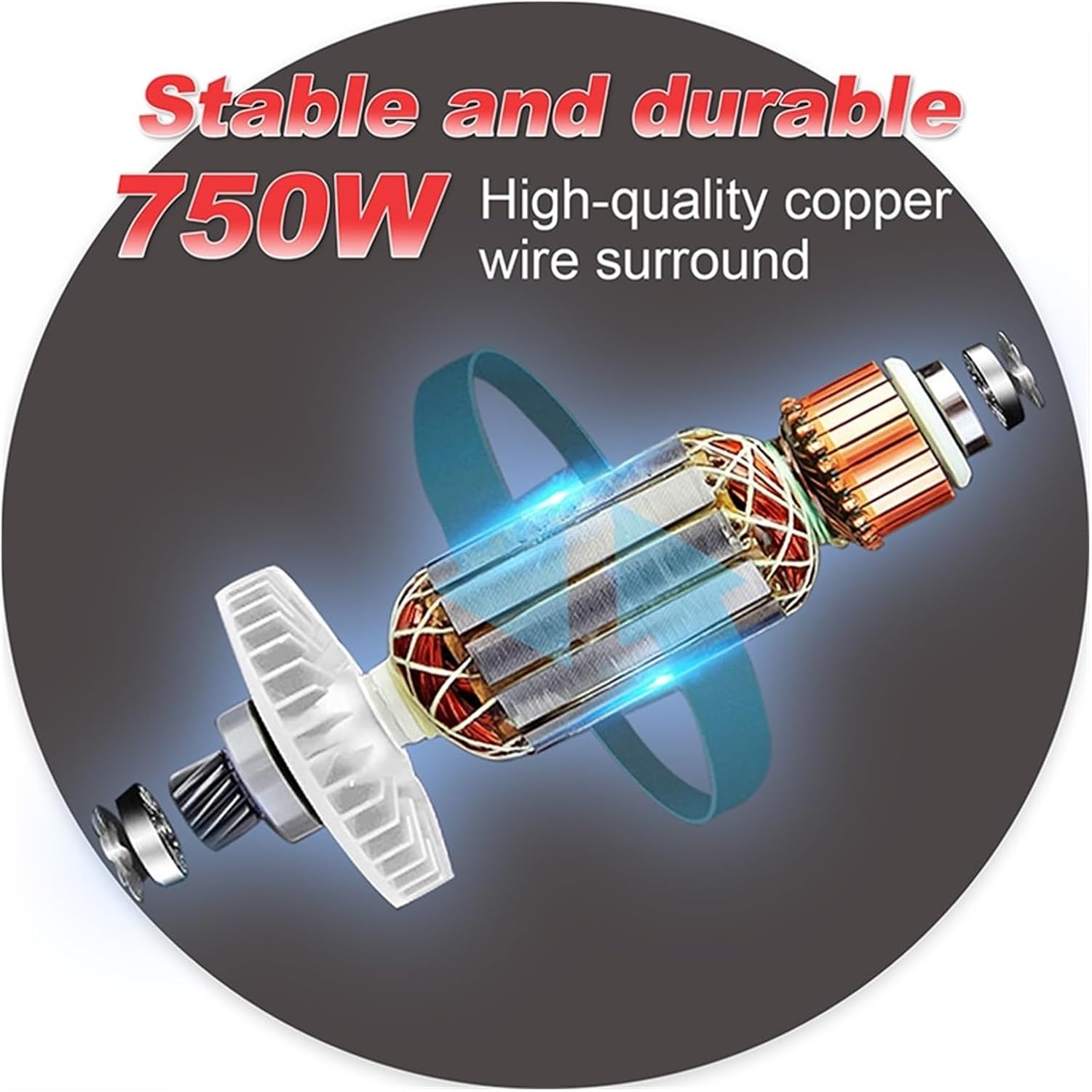

Figure 7.1: Illustration of the internal motor construction, highlighting the high-quality copper wire winding for stable and durable performance.

8. Warranty & Support

For warranty information, technical support, or service inquiries, please refer to the documentation provided with your purchase or contact CAARLA customer service. Keep your proof of purchase for warranty claims.

For further assistance, please visit the official CAARLA website or contact your local distributor.
