Philips Avent Hands-Free Dual Electric Breast Pump

Introduction

This manual provides essential instructions for the safe and effective use of your Philips Avent Hands-Free Dual Electric Breast Pump, model SCF547/11. This device is designed to assist mothers in expressing breast milk comfortably and efficiently. Please read this manual thoroughly before first use and retain it for future reference.

Important Safety Information

• Always inspect the product for damage before each use. Do not use if damaged.
• Keep out of reach of children.
• This product is for personal use only. Do not share to prevent cross-contamination.
• Ensure all parts are clean and sterilized before each use that comes into contact with breast milk.
• Do not immerse the motor unit in water or other liquids.
• Use only the provided USB-C cable for charging.
• Consult a healthcare professional if you experience pain or discomfort during pumping.

Product Components

The Philips Avent Hands-Free Dual Electric Breast Pump system includes the following main components:

• Motor Unit (rechargeable)
• Collection Cups (x2)
• SkinSense Silicone Breast Protectors (x4)
• USB-C Charging Cable
• User Manual (this document)

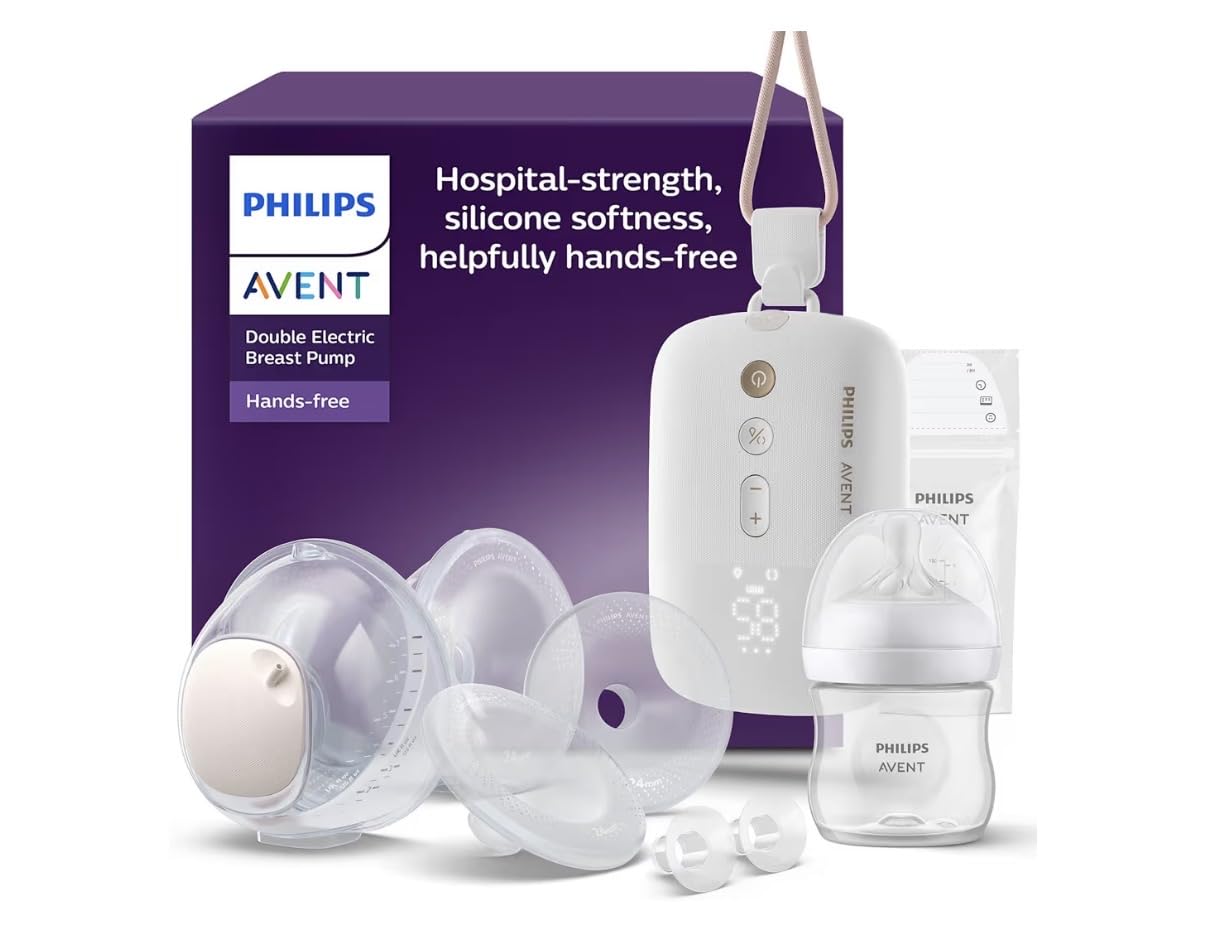

Image 1: Overview of the Philips Avent Hands-Free Dual Electric Breast Pump components, including the compact motor unit, two transparent collection cups, and the silicone breast protectors.

Setup and Preparation

1. Initial Cleaning and Sterilization

Before first use, and after each subsequent use, disassemble all parts that come into contact with breast milk (collection cups, breast protectors). Wash them thoroughly with warm soapy water and rinse. Sterilize these parts using a sterilizer, boiling water, or a dishwasher (top rack recommended).

2. Charging the Motor Unit

Connect the USB-C charging cable to the motor unit and a suitable USB power adapter (not included). A full charge takes approximately 1.5 hours and provides power for about 5 pumping sessions. The battery indicator will show charging status.

3. Assembly

1. Ensure all parts are dry.
2. Attach the SkinSense silicone breast protector to the collection cup, ensuring a secure seal.
3. Connect the assembled collection cup to the motor unit. The design allows for easy assembly with few connecting pieces.

4. Nipple Sizing

Proper nipple sizing is crucial for comfort and effective milk expression. Use the provided size chart or a ruler to measure your nipple diameter. Select the breast protector size that best fits your nipple. A wide variety of breast pads and inserts are available separately to ensure the right fit for 99% of mothers.

Operating Instructions

1. Positioning the Breast Pump

Place the assembled collection cup with the breast protector over your breast, ensuring your nipple is centered within the protector. The transparent design of the collection cup allows for visual confirmation of correct nipple placement and milk flow. The ultra-light 111g cup is designed to sit comfortably within your bra for hands-free operation.

2. Powering On and Selecting Modes

Press the power button on the motor unit to turn on the breast pump. The pump will typically start in a stimulation mode to encourage milk let-down. You can switch between 8 stimulation stages and 16 expression modes to find the most comfortable and effective rhythm for you. The pump mimics your baby's natural drinking rhythm, providing up to 85 pump movements per minute.

3. Adjusting Settings

Use the control buttons on the motor unit to adjust the vacuum level and cycle speed. Experiment with different settings to find what works best for your milk flow and comfort. The pump automatically saves your preferred settings for future use.

4. Pumping Session

Pump until your breasts feel empty or milk flow significantly slows. The hands-free design allows you to perform other tasks while pumping. Monitor the milk volume through the transparent collection cup.

5. Powering Off

Press the power button to turn off the breast pump. Carefully remove the collection cups from your breasts.

Care and Maintenance

Cleaning

After each pumping session, disassemble all parts that came into contact with breast milk. Wash them immediately in warm, soapy water, rinse thoroughly, and sterilize. The collection cups and breast protectors are dishwasher-safe (top rack). The motor unit should be wiped clean with a damp cloth; never immerse it in water.

Storage

Store the clean and dry breast pump components in a clean, dry place away from direct sunlight and extreme temperatures. Ensure the motor unit is fully charged before storing for extended periods.

Troubleshooting

Specifications

• Model Number: SCF547/11
• Brand: AVENT
• Type: Hands-Free Dual Electric Breast Pump
• Motor Strength: Hospital Strength
• Pump Movements: Up to 85 per minute
• Stimulation Stages: 8
• Expression Modes: 16
• Battery Charging Time: Approximately 1.5 hours
• Battery Life: Approximately 5 pumping sessions per full charge
• Collection Cup Weight: 111g (ultra-light)
• Noise Level: 1 Decibel (as per product specifications)
• Item Weight (overall): 0.94 Kilograms
• Color: White

Warranty and Support

For warranty information, please refer to the warranty card included with your product or visit the official Philips Avent website. If you encounter any issues not covered in the troubleshooting section or require further assistance, please contact Philips Avent customer support. Contact details can typically be found on the product packaging or the official brand website.

Online Support: www.philips.com/avent
