JOINICE 43-inch Black Console Table with Drawers

1. Product Overview

The JOINICE 43-inch Black Console Table with Drawers (Model FUCT6982) is a versatile furniture piece designed for entryways, living rooms, and hallways. It features three functional drawers and a lower shelf, providing ample storage and display space. Crafted with solid wood legs and a painted finish, this console table offers a blend of modern French elegance and practicality.

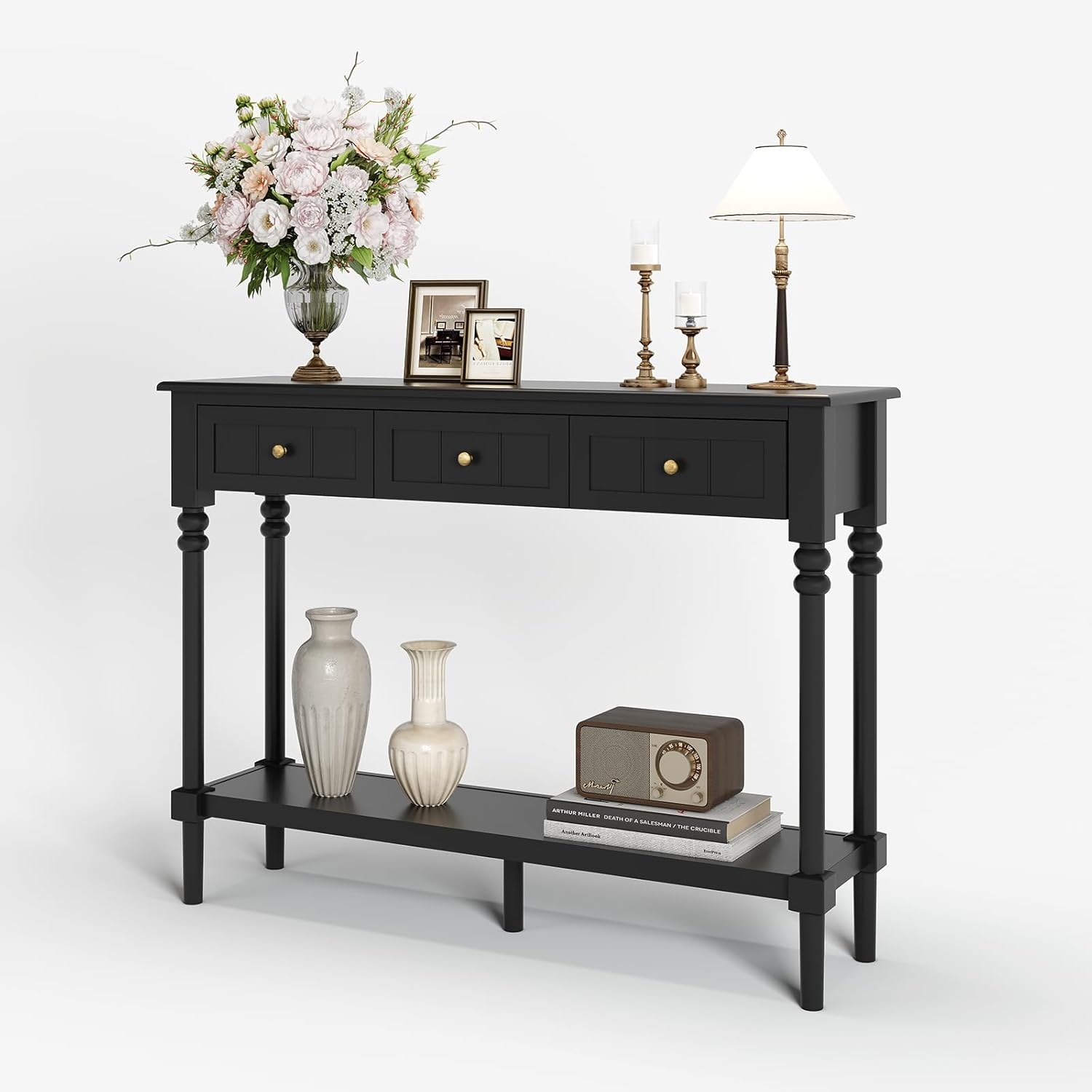

Image: The JOINICE 43-inch Black Console Table with Drawers, showcasing its design and potential for decorative use.

2. Safety Information

• Maximum Weight Recommendation: Do not exceed the maximum weight recommendation of 60 pounds for the tabletop. Each drawer has a maximum weight capacity of 22 pounds.
• Anti-Tipping Device: Ensure the table is properly anchored to the wall using the provided anti-tipping device to prevent tipping, especially in households with children or pets.
• Assembly: Follow all assembly instructions carefully. Do not overtighten screws.
• Placement: Place the table on a flat, stable surface. Avoid placing it in areas with excessive moisture or direct sunlight.

3. Package Contents

Verify that all parts and hardware are present before beginning assembly. Refer to the assembly video for visual identification of components.

Parts List:

• Panel No.(1): Top Panel
• Panel No.(2): Left Leg Assembly
• Panel No.(3): Right Leg Assembly
• Panel No.(4): Back Panel (top)
• Panel No.(5): Back Panel (bottom)
• Panel No.(6): Side Panels (x2)
• Panel No.(7): Front Panel (top)
• Panel No.(8): Front Panel (bottom)
• Panel No.(9): Center Support Leg
• Panel No.(10): Drawer Bottom (x3)
• Panel No.(11): Drawer Side (left, x3)
• Panel No.(12): Drawer Side (right, x3)
• Panel No.(13): Drawer Back (x3)
• Panel No.(14): Drawer Front (left)
• Panel No.(15): Drawer Front (middle)
• Panel No.(16): Drawer Front (right)
• Panel No.(17): Back Support Bar

Hardware List:

• Cam Bolt (A)
• Cam Lock (B)
• Wood Dowel (C)
• Screw (D)
• Screw (E)
• Drawer Rails (F)
• Anti-fallt (G)
• Handle (H)
• Iron sheet (I)
• Screw (J)
• EVE Pads (K)

4. Assembly Instructions

For a detailed visual guide, please refer to the official assembly video below. All screws and parts are labeled for easy identification.

1. Step 1: Attach Cam Bolts to Leg Assemblies (Panels 2 & 3). Insert Cam Bolts (A) into the designated holes on the Left Leg Assembly (Panel 2) and Right Leg Assembly (Panel 3). (Refer to video: 0:04-0:10)
2. Step 2: Assemble Side and Front/Back Panels (Panels 6, 7, 8). Attach the Side Panels (Panel 6) to the Front Panel (top) (Panel 7) and Front Panel (bottom) (Panel 8) using Wood Dowels (C) and Screws (D). (Refer to video: 0:11-0:28)
3. Step 3: Attach Center Support Leg (Panel 9). Secure the Center Support Leg (Panel 9) to the bottom panel using Iron Sheet (I) and Screws (J). (Refer to video: 0:29-0:53)
4. Step 4: Connect Leg Assemblies to Main Frame (Panels 2, 4, 7). Connect the assembled leg structures (Panel 2) to the Back Panel (top) (Panel 4) and Front Panel (top) (Panel 7) using Wood Dowels (C) and Cam Locks (B). (Refer to video: 0:54-1:37)
5. Step 5: Attach EVE Pads (K). Apply EVE Pads (K) to the bottom of the legs to protect your floor. (Refer to video: 1:38-1:45)
6. Step 6: Install Drawer Rails (F). Attach the Drawer Rails (F) to the interior sides of the console table frame. (Refer to video: 1:46-1:55)
7. Step 7: Attach Top Panel (Panel 1). Place the Top Panel (Panel 1) onto the assembled frame, aligning the holes. Secure it using Cam Bolts (A) and Screws (D). (Refer to video: 1:56-2:11)
8. Step 8: Secure Top Panel with Cam Locks (B). Tighten the Cam Locks (B) to firmly secure the Top Panel (Panel 1) to the frame. (Refer to video: 2:12-2:27)
9. Step 9: Assemble Drawers (Panels 10, 11, 12, 13, 14, 15, 16). Assemble the three drawers by connecting the Drawer Sides (Panels 11, 12), Drawer Back (Panel 13), and Drawer Bottom (Panel 10) to the Drawer Fronts (Panels 14, 15, 16) using Screws (E) and Handles (H). (Refer to video: 2:28-2:57)
10. Step 10: Insert Drawers. Carefully slide the assembled drawers into their respective slots in the console table. (Refer to video: 2:58-3:04)
11. Step 11: Install Anti-Tipping Device (G). Attach the Anti-Tipping Device (G) to the back of the console table and secure it to the wall as shown in the video. This step requires drilling holes in the wall. (Refer to video: 3:05-3:16)

5. Usage Instructions

This console table is designed for versatile use in various areas of your home.

• Placement: Ideal for entryways, hallways, living rooms (behind a sofa), or even at the end of a bed. Its narrow design optimizes space without feeling bulky.
• Storage: Utilize the three smooth-gliding drawers for organizing small items such as keys, mail, chargers, remotes, or personal accessories. The spacious open bottom shelf can accommodate decorative baskets, books, plants, or other display items.
• Weight Capacity: The tabletop can support up to 60 pounds. Each drawer can hold up to 22 pounds. Distribute weight evenly to maintain stability.

Image: The console table positioned in an entryway, demonstrating its space-saving design and functional storage.

Image: The console table placed behind a sofa, illustrating its suitability for living room arrangements.

6. Maintenance

• Cleaning: Wipe the table surfaces with a dry cloth. Avoid using harsh chemicals or abrasive cleaners that may damage the painted finish.
• Spills: Promptly clean any spills to prevent staining or damage to the wood.
• Inspection: Periodically check all screws and connections to ensure they remain tight. Retighten if necessary.

7. Troubleshooting

• Wobbling: If the table feels wobbly, ensure all screws and cam locks are securely tightened. Verify that the table is placed on a level surface. Adjust EVE pads if needed.
• Drawers Not Sliding Smoothly: Check for any obstructions in the drawer rails. Ensure the rails are properly aligned and secured.
• Missing or Damaged Parts: If you encounter any missing parts, quality problems, or assembly issues, please contact our dedicated customer service team for assistance.

8. Specifications

Image: Visual representation of the console table's dimensions and weight capacities.

9. Warranty and Support

JOINICE is committed to providing quality products. If you encounter any quality problems, assembly issues, or missing parts, our dedicated customer service team is available to help. Please refer to your purchase documentation for specific warranty details.

Protection Plans:

• 2-Year Protection Plan: Available for purchase.
• 3-Year Protection Plan: Available for purchase.
• Asurion Complete Protect: Monthly plan covering eligible past and future purchases.
