LANKELEISI MG600 Lite Electric Bicycle User Manual

Introduction

Thank you for choosing the LANKELEISI MG600 Lite Electric Bicycle. This manual provides essential information for the safe assembly, operation, and maintenance of your e-bike. Please read this manual thoroughly before your first ride to ensure proper use and to maximize your riding experience. Retain this manual for future reference.

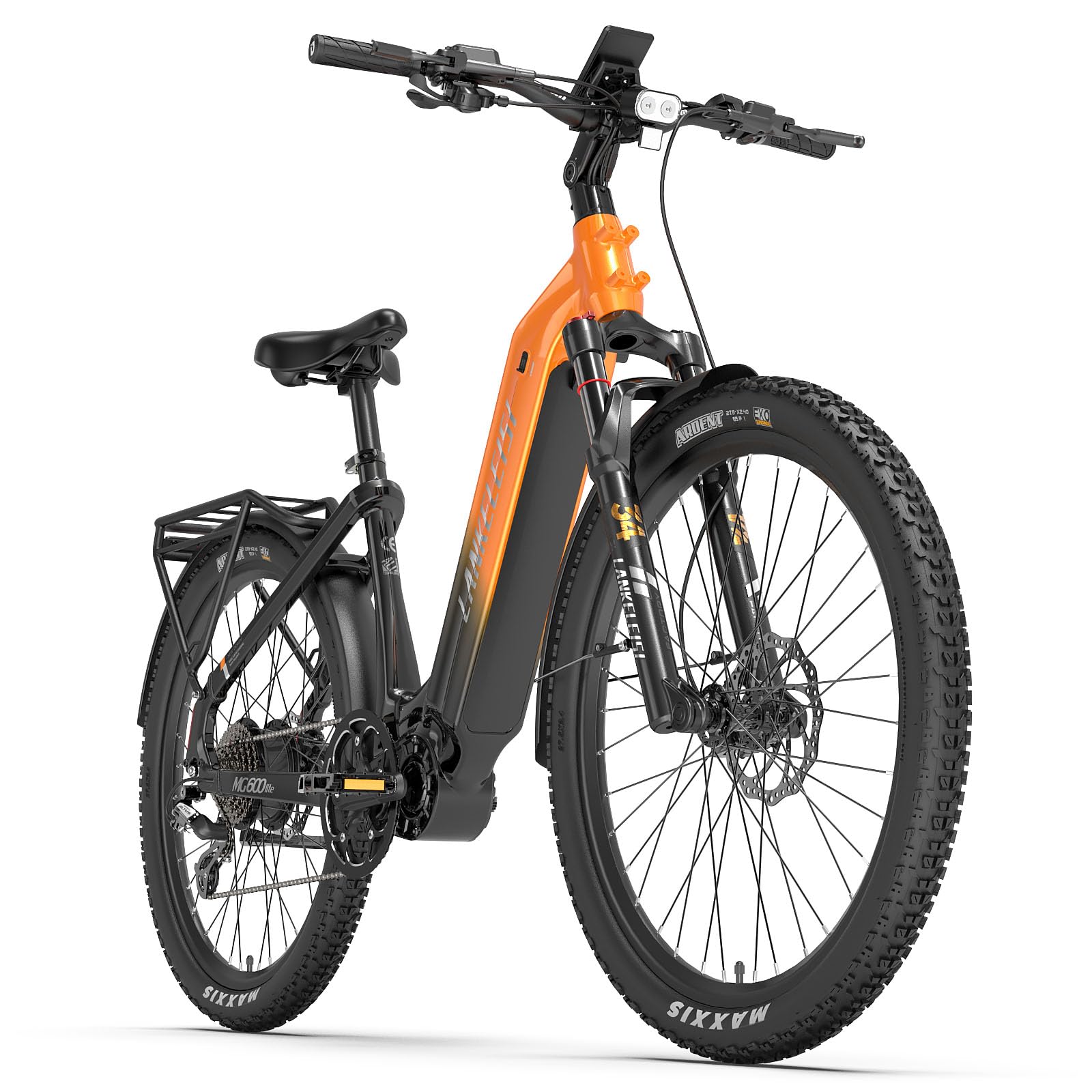

Image: The LANKELEISI MG600 Lite Electric Bicycle, showcasing its design and components.

Safety Information

Your safety is paramount. Always wear a helmet and appropriate safety gear when riding. Observe all local traffic laws and regulations. Perform pre-ride checks before each use. Do not operate the e-bike under the influence of alcohol or drugs. Ensure all components are securely fastened and in good working order.

• Always check tire pressure, brake function, and battery charge before riding.
• Be aware of your surroundings and ride defensively.
• Avoid riding in adverse weather conditions or on slippery surfaces.
• Do not exceed the maximum load capacity of 200 kg.
• Ensure the battery is properly secured before riding.

Package Contents

Upon unpacking, please verify that all the following items are included:

• 1x MG600 Lite E-Bike
• 1x Charger
• 1x Tool Kit
• 1x Pump
• 1x Anti-theft Lock

Setup and Assembly

The LANKELEISI MG600 Lite requires some assembly. Follow these steps carefully:

1. Unpacking: Carefully remove all components from the packaging. Retain packaging for potential future transport or returns.
2. Handlebar Installation: Attach the handlebars to the stem, ensuring they are centered and tightened securely. Adjust the angle for comfortable riding.
3. Front Wheel Installation: Install the front wheel, ensuring the quick-release skewer or axle nuts are properly tightened. Verify the brake rotor is correctly seated within the caliper.
4. Pedal Attachment: Identify the left (L) and right (R) pedals. Thread the pedals into the crank arms. The left pedal threads counter-clockwise, and the right pedal threads clockwise. Tighten firmly with a wrench.
5. Seat Post and Saddle Adjustment: Insert the seat post into the frame. Adjust the saddle height to allow for a slight bend in your knee when the pedal is at its lowest point. Secure the quick-release lever or bolt. The minimum user height is 165 cm.
6. Battery Installation and Charging: Ensure the battery is fully charged before first use. Insert the battery into its compartment and secure it. Connect the charger to the battery and a power outlet. The charging indicator will show progress.
7. Pre-Ride Checks: Before your first ride, double-check all bolts and quick releases for tightness. Verify brake function, tire pressure, and ensure the display powers on correctly.

Image: Side view of the LANKELEISI MG600 Lite, illustrating the overall bike structure for assembly reference.

Operating Instructions

Familiarize yourself with the controls and functions of your MG600 Lite e-bike.

1. Power On/Off and Display

Press and hold the power button on the digital display to turn the e-bike system on or off. The display shows speed, battery level, assist mode, and trip information.

Image: Close-up of the handlebars, showing the digital display and control buttons for power and assist levels.

2. Pedal Assist System (PAS)

The MG600 Lite features a torque sensor for natural pedal assistance. Use the '+' and '-' buttons on the control panel to select your desired assist level (typically 0-5). Level 0 provides no assistance, while higher levels provide more motor power.

3. Gear Shifting

Your e-bike is equipped with an 8-speed trigger shifter. Shift gears smoothly by pressing the levers. Downshift before stopping or climbing hills to make pedaling easier. Avoid shifting under heavy load.

4. Braking System

The e-bike uses hydraulic disc brakes for reliable stopping power. Apply both brake levers simultaneously for balanced and effective braking. Test brakes regularly for responsiveness.

5. Lights

The e-bike includes a rear light. Activate lights via the display controls for improved visibility, especially during low-light conditions.

Maintenance

Regular maintenance ensures the longevity and safe operation of your LANKELEISI MG600 Lite.

• Battery Care: Charge the battery regularly, even when not in use, to maintain its health. Store the battery in a cool, dry place. Avoid fully discharging the battery.
• Tire Pressure: Check tire pressure before each ride. Maintain pressure within the recommended range printed on the tire sidewall.
• Brake Inspection: Regularly inspect brake pads for wear and brake levers for proper tension and responsiveness. Replace worn pads promptly.
• Chain Lubrication: Keep the chain clean and lubricated to ensure smooth gear changes and prevent wear.
• General Cleaning: Clean your e-bike with a damp cloth. Avoid using high-pressure washers directly on electrical components.
• Fastener Checks: Periodically check all bolts, nuts, and quick releases for tightness.

Image: Detailed view of the rear hydraulic disc brake system, highlighting components requiring regular inspection.

Troubleshooting

This section addresses common issues you might encounter with your e-bike.

If you encounter issues not listed here or cannot resolve a problem, please contact customer support.

Specifications

Key technical specifications for the LANKELEISI MG600 Lite Electric Bicycle:

Warranty and Support

The LANKELEISI MG600 Lite Electric Bicycle comes with a 1-year product warranty. For any questions, technical assistance, or warranty claims, please contact our specialized customer support team. Refer to your purchase documentation for specific contact details.

For further information, you may visit the official LANKELEISI store: LANKELEISI Store
