Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Kyglaring LED Lighting Kit, designed specifically for the Lego Art Love Sculpture Model Set (Lego model 31214). This kit enhances your Lego model with custom lighting effects. Please read these instructions carefully before beginning installation.
Package Contents
Verify that all components listed below are present in your package. If any items are missing or damaged, please contact Kyglaring customer service.
Image: Contents of the Kyglaring LED Lighting Kit box. Includes individual light kits, a battery box, an electronic manual card with a QR code, and a printed paper manual.
- LED Light Kits (various components)
- Battery Box (for power supply)
- Electronic Manual Card (with QR code for online instructions)
- Paper Manual (printed instructions)
Note: The Lego Art Love Sculpture Model Set (Lego 31214) is not included with this lighting kit.
Setup and Installation
Follow these steps to install the LED lighting kit onto your Lego Art Love Sculpture Model Set 31214. Detailed visual instructions are available via the electronic manual.
- Prepare Your Lego Model: Ensure your Lego Art Love Sculpture Model Set 31214 is fully assembled and stable.
- Access Online Instructions: For the most detailed and up-to-date installation guide with pictures, scan the QR code on the electronic manual card or visit instructions.kyglaring.com.
- Identify Components: Familiarize yourself with the different types of LED lights and connection wires provided in the kit.
- Integrate Lights: Carefully integrate the LED lights into the designated areas of your Lego model. The design allows for close matching with the Lego structure.
- Connect Wires: Connect the LED wires to the battery box or other power components as indicated in the detailed instructions. Ensure all connections are secure.
- Test Functionality: Before finalizing the installation, connect the power source and test all lights to ensure they are functioning correctly.
- Finalize Placement: Adjust the wiring and light placement for optimal aesthetic effect and secure any loose components.
Image: A visual comparison demonstrating the transformation of the Lego Love Sculpture model from its original state to being illuminated by the Kyglaring LED kit.

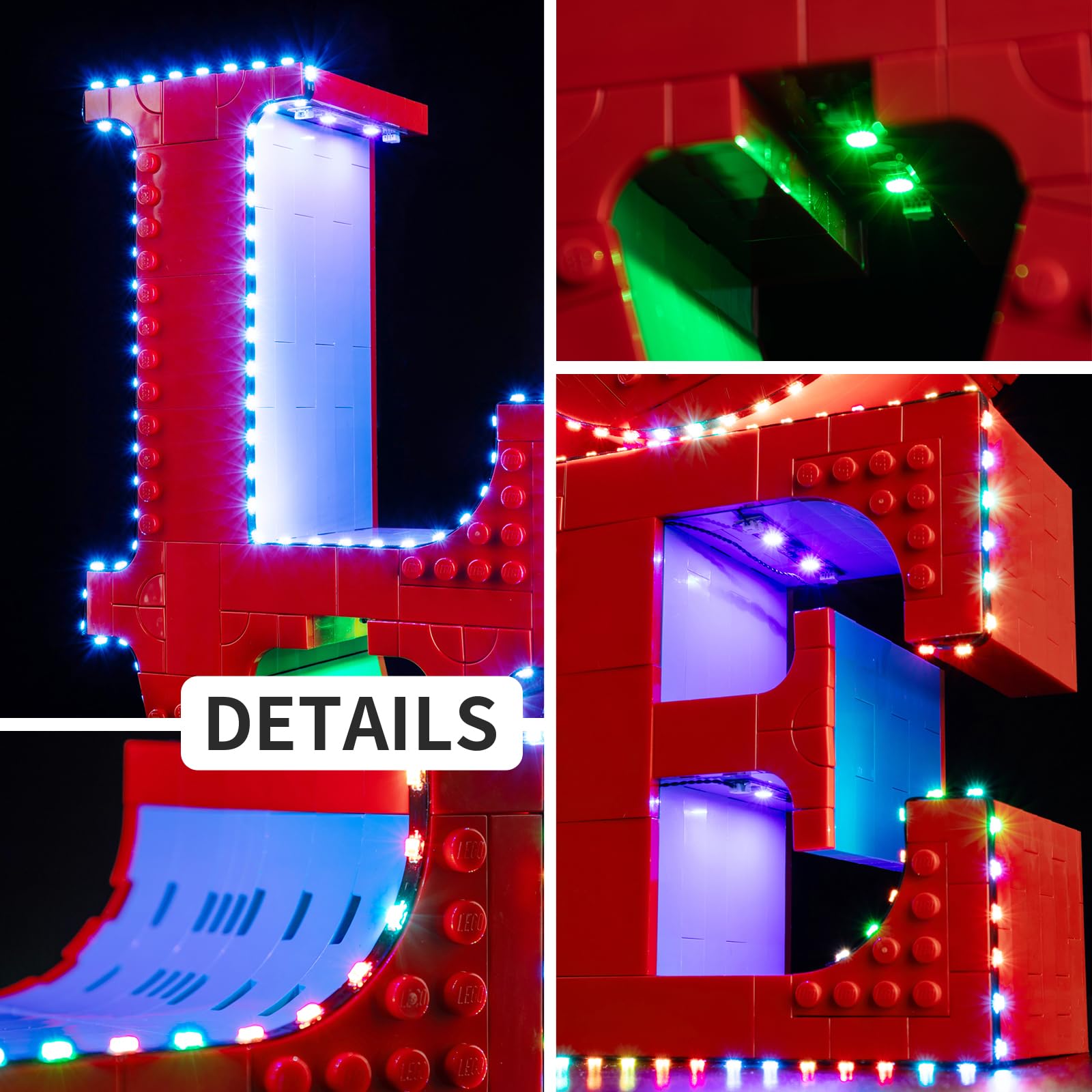

Image: Detailed views of the LED lights installed within the Lego Love Sculpture, highlighting the precise placement and integration of the lighting components.

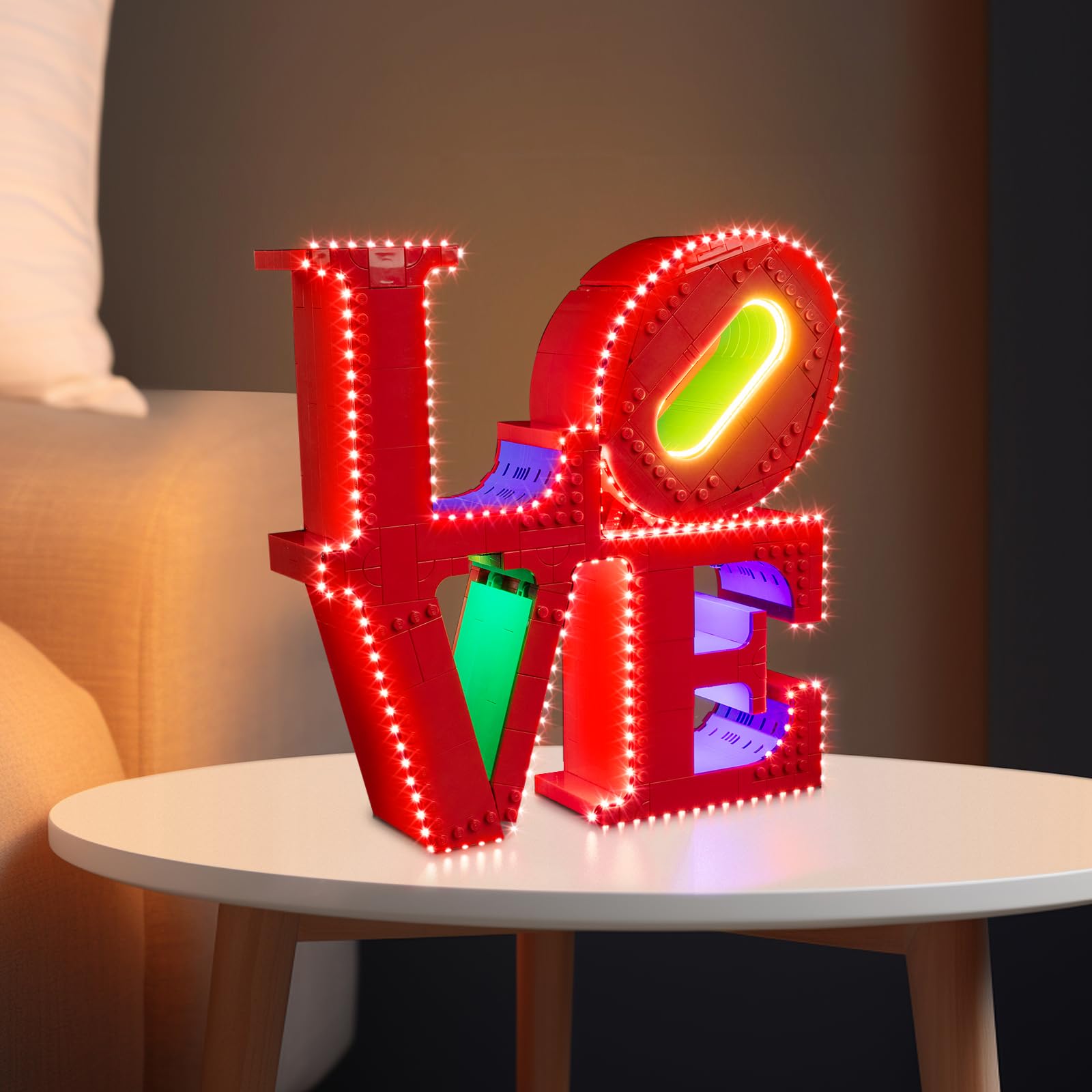

Image: The illuminated Lego Love Sculpture model, enhanced by the Kyglaring LED lighting kit, presented as a decorative piece in a home environment.
Operating Instructions
Once the LED lighting kit is fully installed and connected to the power source (battery box or USB power), operation is straightforward.
- Power On/Off: Use the switch on the battery box or disconnect the USB power source to turn the lights on or off.
- Light Modes: Depending on the specific kit components, some lights may offer different modes or colors. Refer to the detailed online instructions for specific functionality.
Maintenance
Proper care will ensure the longevity and optimal performance of your Kyglaring LED Lighting Kit.
- Cleaning: Gently dust the LED components and wires with a soft, dry cloth. Avoid using liquid cleaners directly on the lights or electrical connections.
- Handling: Handle the wires and LED components with care to prevent damage. Avoid excessive bending or pulling.
- Power Source: If using a battery box, replace batteries as needed. Ensure correct battery polarity.
- Storage: If disassembling for storage, carefully disconnect components and store them in a dry, cool place away from direct sunlight.
Troubleshooting
If you encounter issues with your lighting kit, refer to the following common solutions:
- Lights Not Turning On:
- Check the power source: Ensure batteries are correctly installed and charged, or the USB cable is securely connected to a working power adapter.
- Verify all wire connections: Make sure all LED wires are firmly connected to the main circuit board or battery box.
- Inspect for damage: Look for any visible damage to wires or LED components.
- Some Lights Not Working:
- Check individual connections: Ensure the specific non-working light's wire is properly connected.
- Test with another port (if applicable): If your kit has multiple connection ports, try connecting the problematic light to a different port to isolate the issue.
- Flickering Lights:
- Ensure stable power: Unstable power can cause flickering. Check battery levels or try a different USB power source.
- Secure connections: Loose connections can also cause flickering. Re-seat all connections.
If these steps do not resolve the issue, please contact Kyglaring customer service for further assistance.
Specifications
| Feature | Detail |
|---|---|
| Brand | Kyglaring |
| Model Number | 31214-cv |
| Compatibility | Lego Art Love Sculpture Model Set (Lego 31214) |
| Special Feature | Glow in the Dark |
| Material | Plastic |
| Item Weight | 1.92 ounces |
| Product Dimensions | 7.37 x 4.21 x 1.33 inches (packaging) |
Warranty and Support
Kyglaring is committed to providing high-quality products and excellent customer service. If you have any questions about your product, require assistance with installation, or need to report a defect, please contact us directly.
- Customer Service: Refer to the contact information provided in your package or on the official Kyglaring website.
- Online Resources: Visit the official Kyglaring website or the instruction portal at instructions.kyglaring.com for additional support and FAQs.
